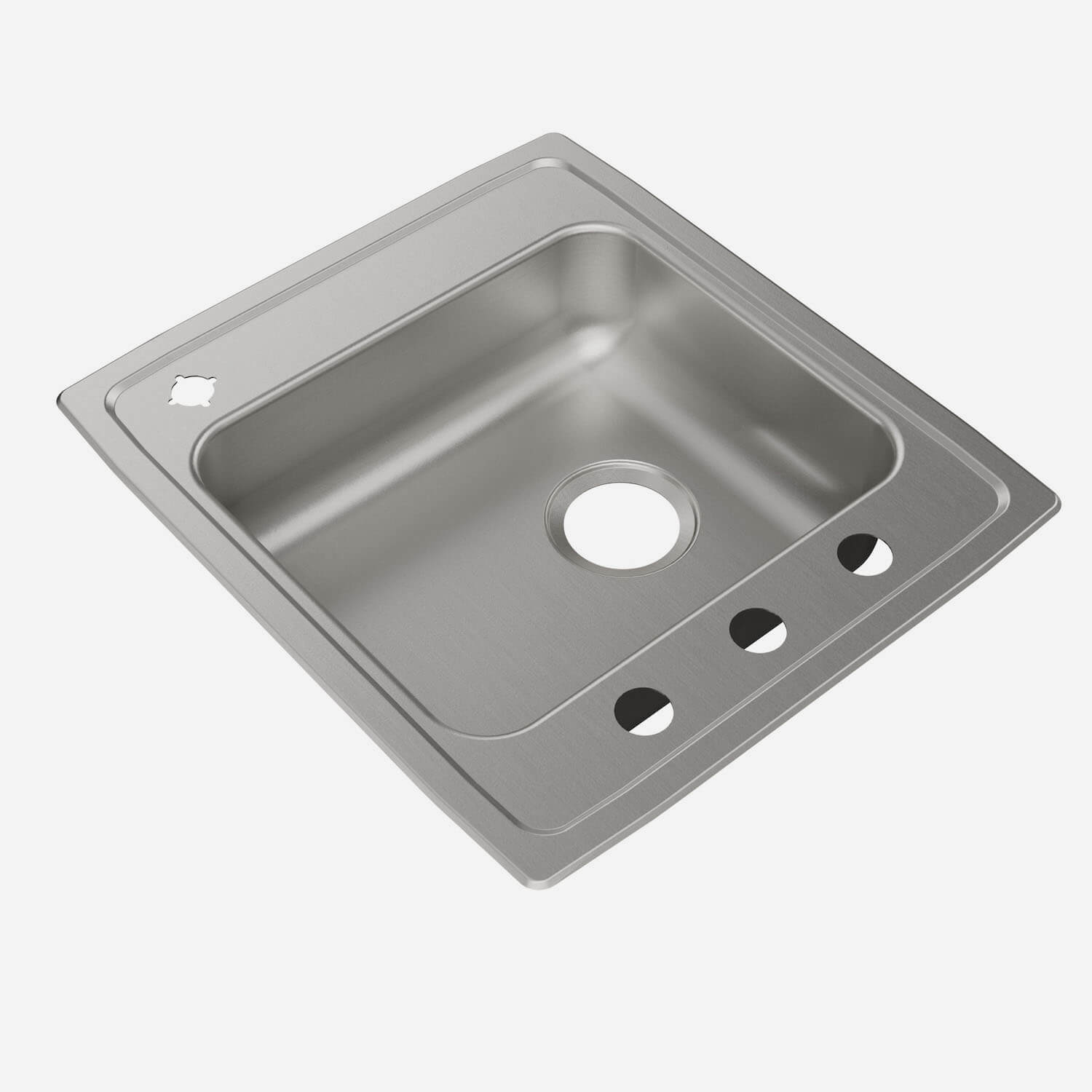

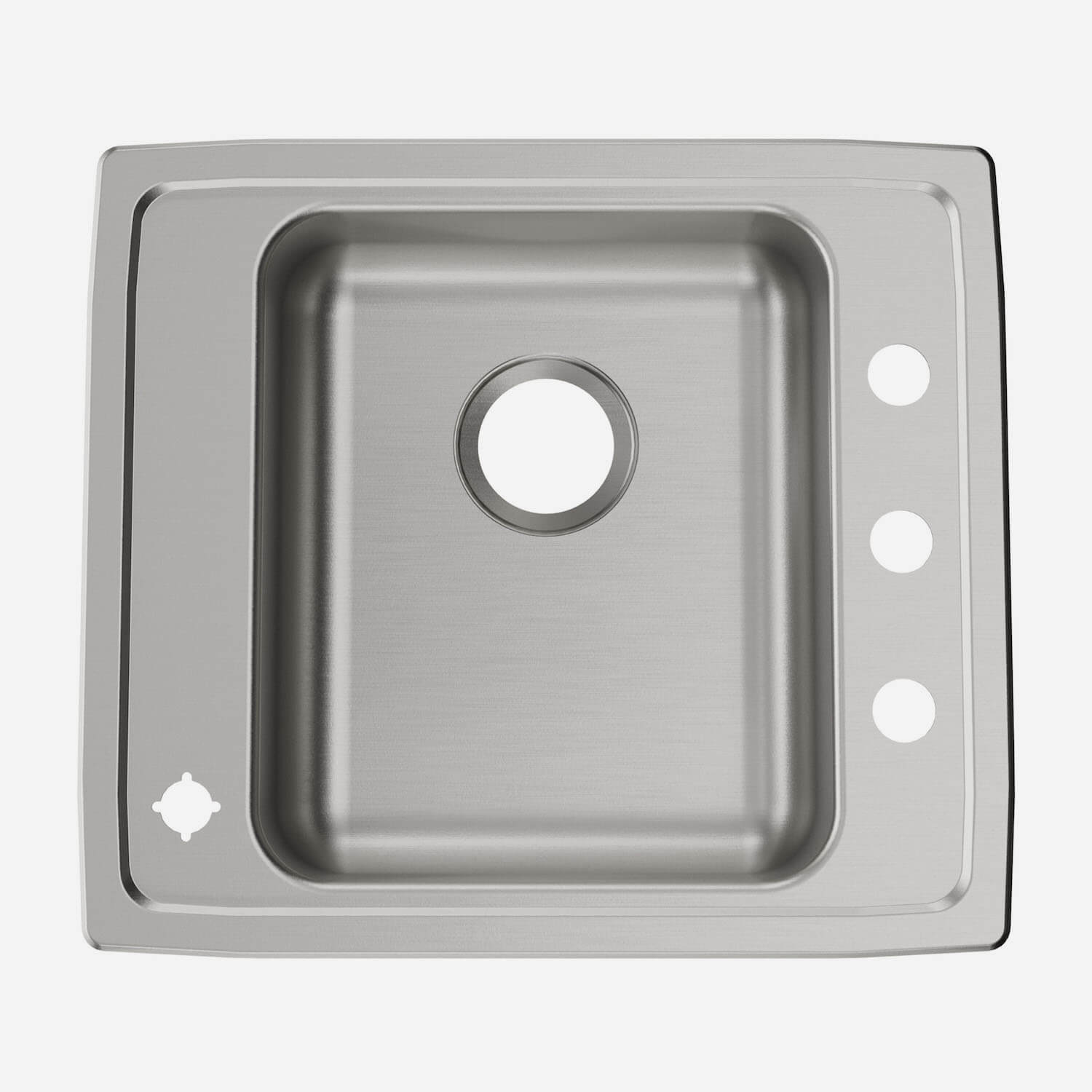

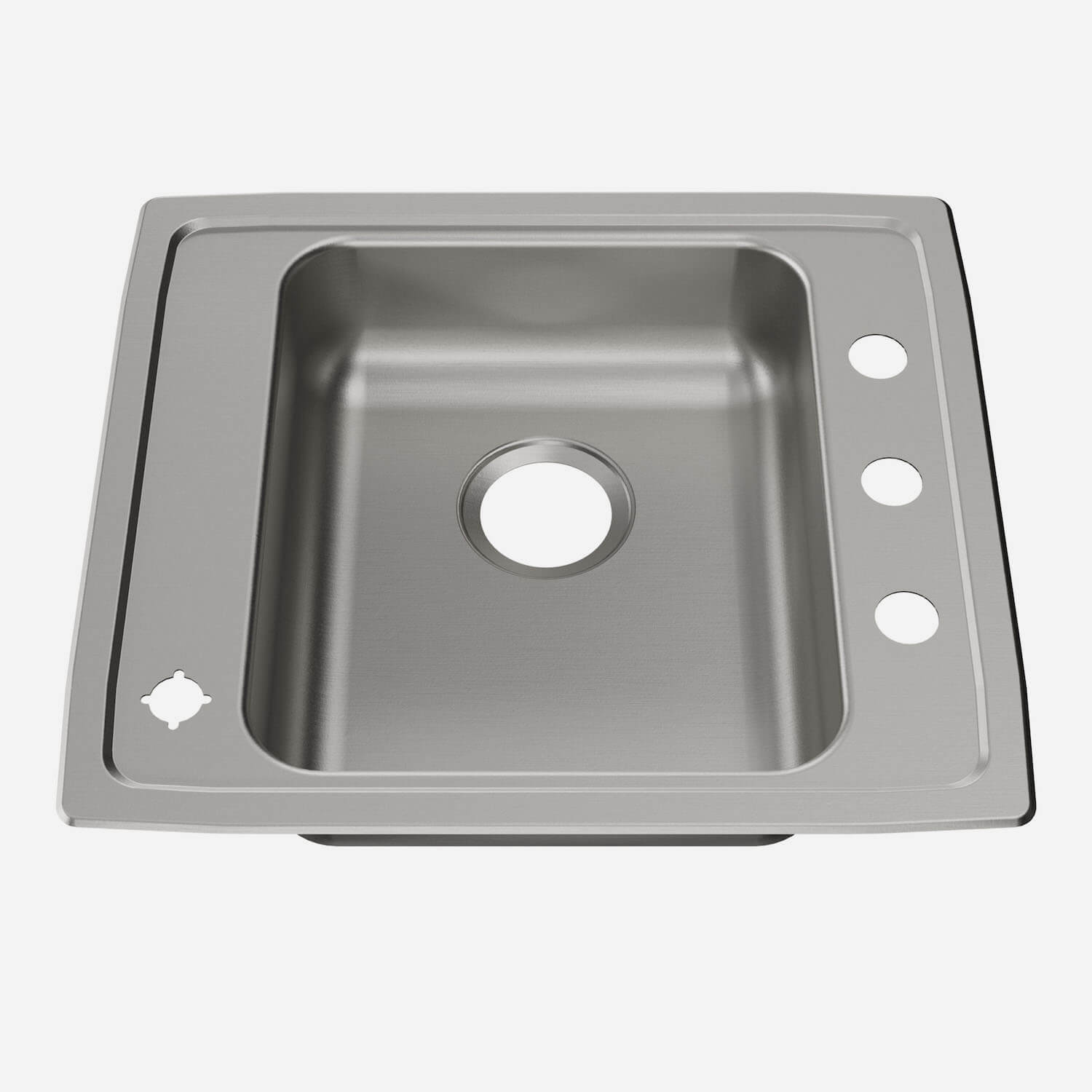

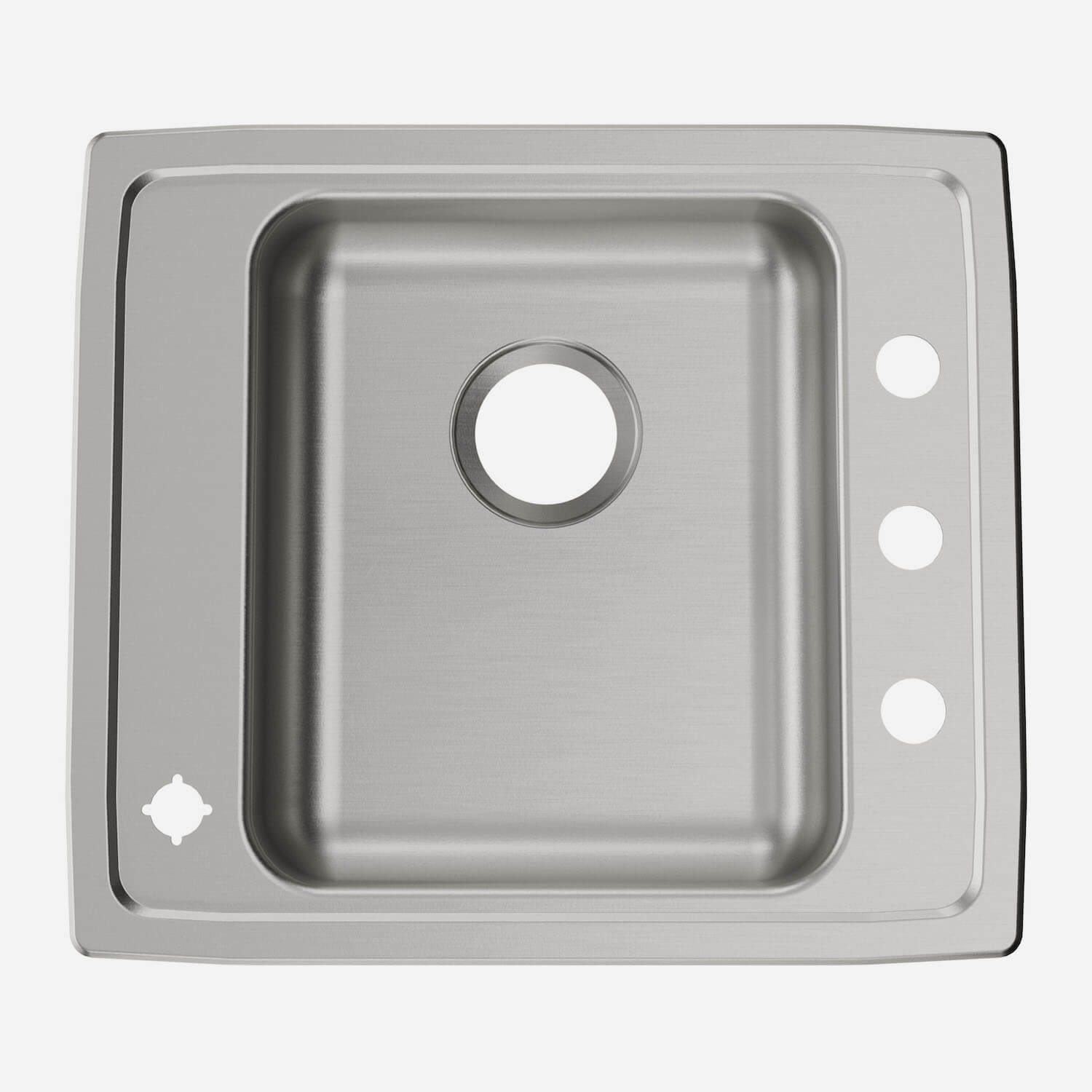

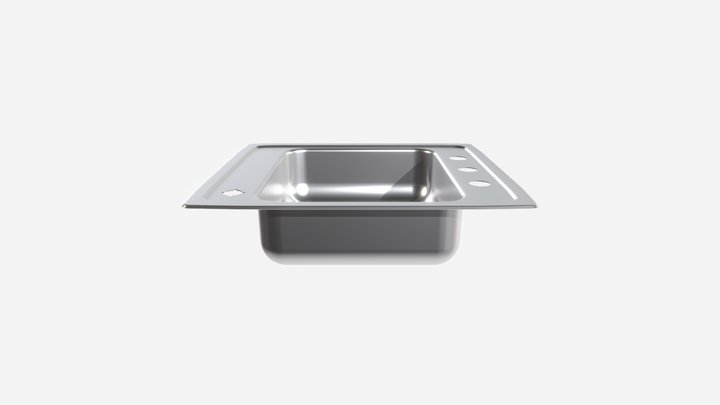

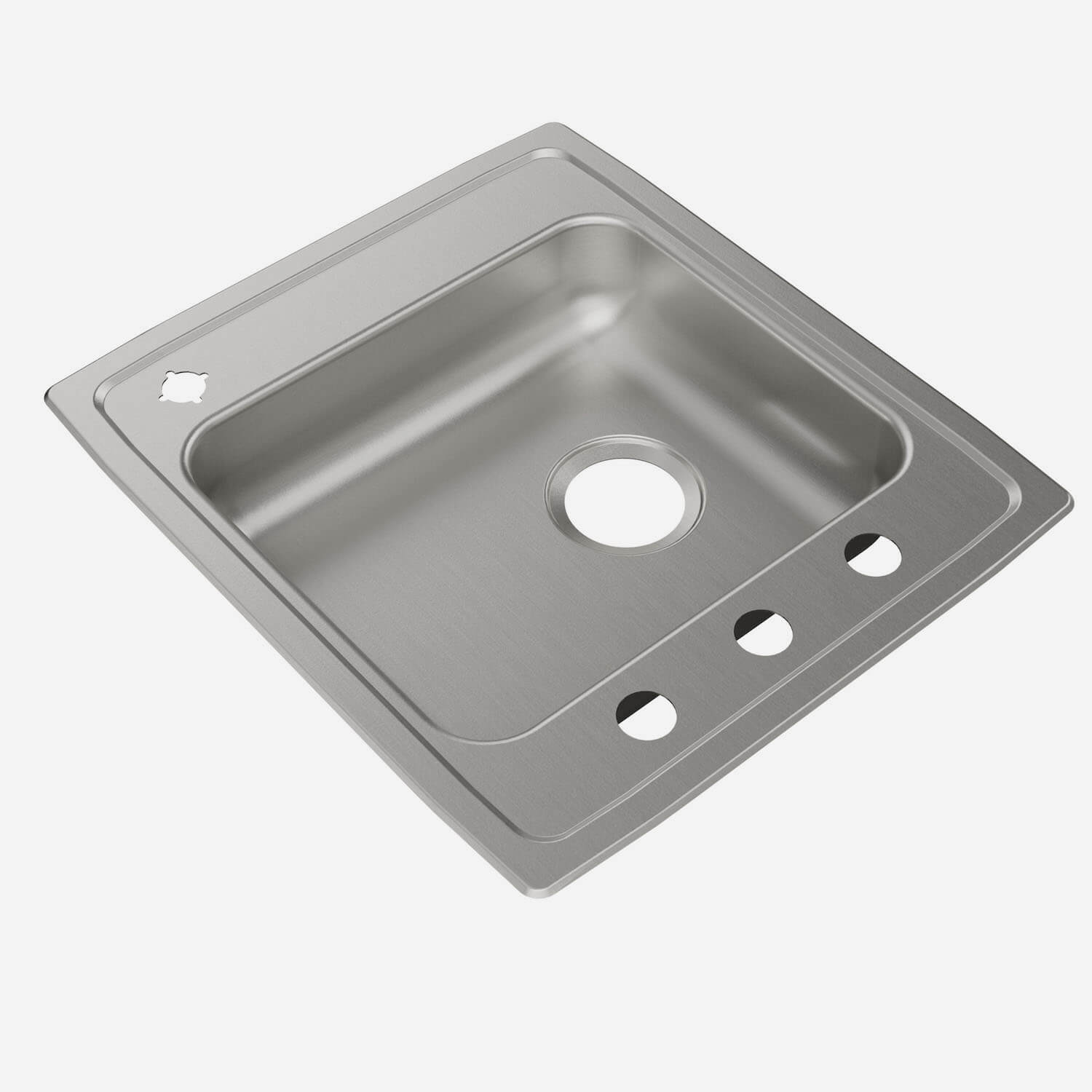

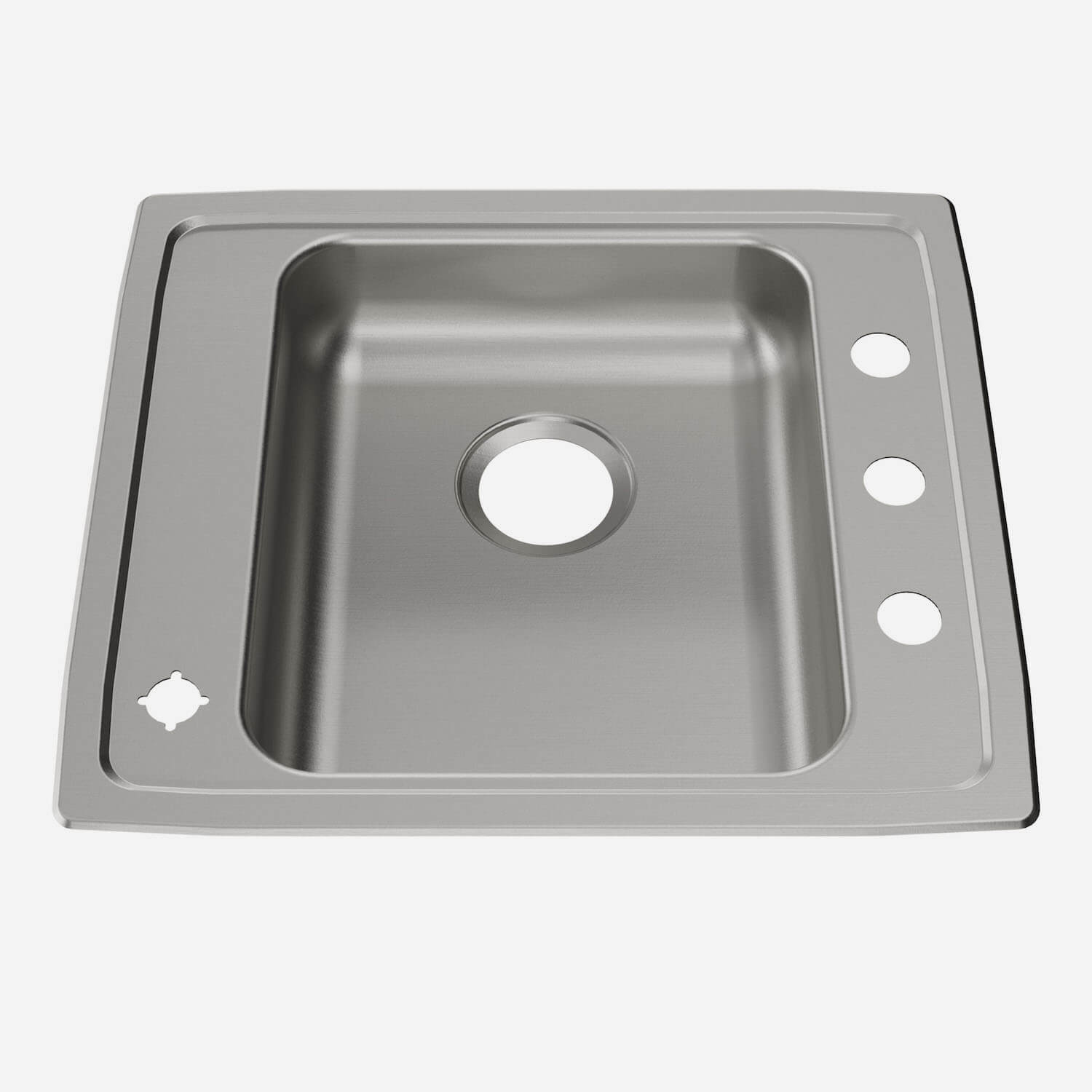

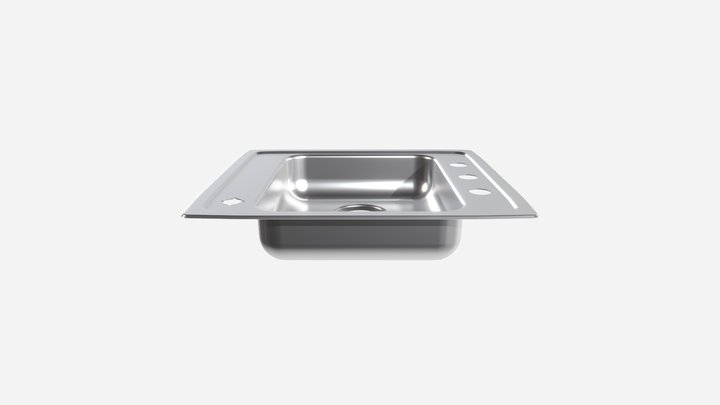

Acorn-Sinks® Stainless Steel ADA Drop-In Classroom Sink, 22" x 20"

An ADA-compliant, single bowl drop-in sink designed specifically for classroom applications, CDADA-2220 measures 22"W and is offered with your choice of a 5-1/2", 4-1/2" or 6-1/2" bowl depth. A minimum cabinet size of 27" is required. All classroom sinks feature punching for a faucet on one side and a drinking bubbler on the other.

Acorn-Sinks® Features & Benefits:

• Ideal for classroom appplications
• Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
• Simple drop-in installation
• Sound deadening pads on the sink bottom for reduced noise
• Concealed U-channels with mounting hardware
• Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
• Meticulous packaging that prevents shipping damage
• UPC, cUPC, IPC, and ADA compliant

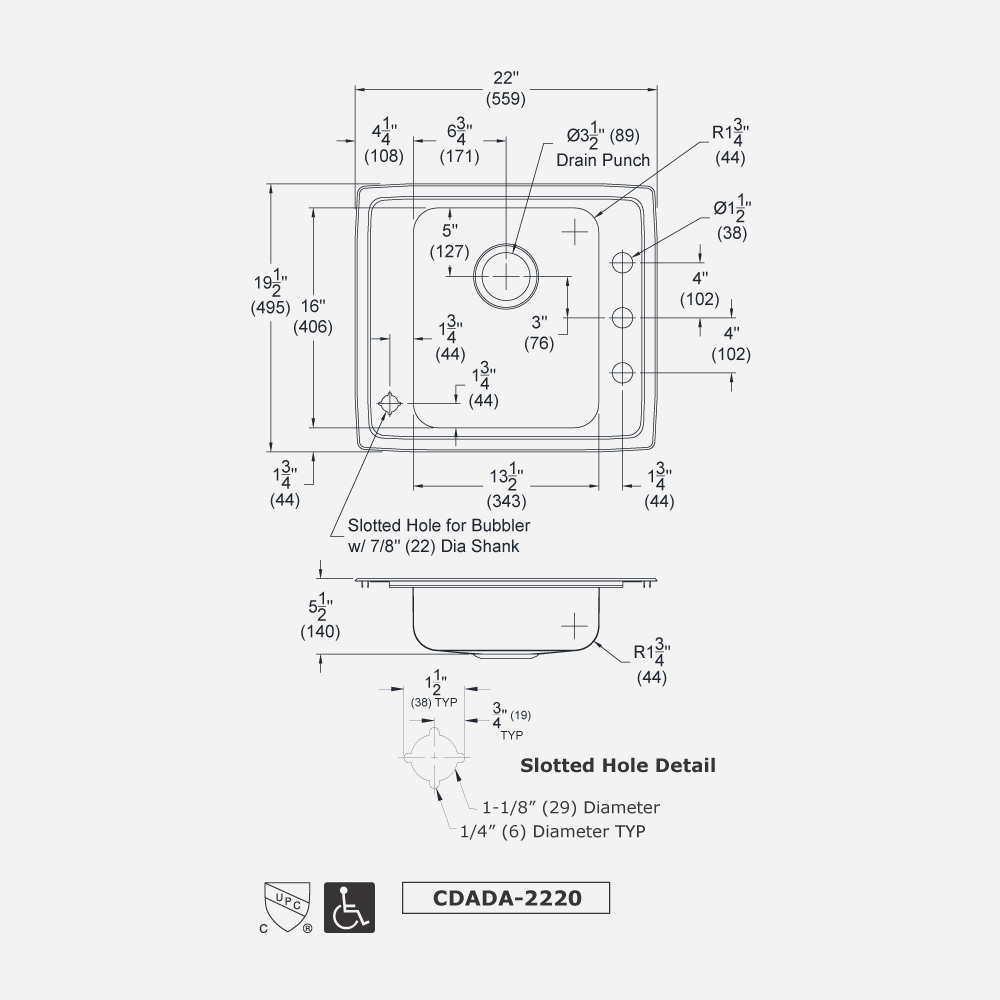

CDADA-2220-55 features a 13-1/2"W (343 mm) side-to-side x 16" (406 mm) front-to-back x 5-1/2"D (140 mm) bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 5" (127 mm) from the back wall of the bowl. These specific dimensions provide ADA compliance; however, please check your local requirements. ADA compliance is subject to proper installation and the interpretations of the local code authority. Overall dimensions are 22"W (559 mm) side-to-side x 19-1/2" (495 mm) front-to-back.

CDADA-2220-45 features the same dimensions but a 4-1/2" (114 mm) depth bowl.

CDADA-2220-65 features the same dimensions but a 6-1/2" (165 mm) depth bowl. (coming soon)
