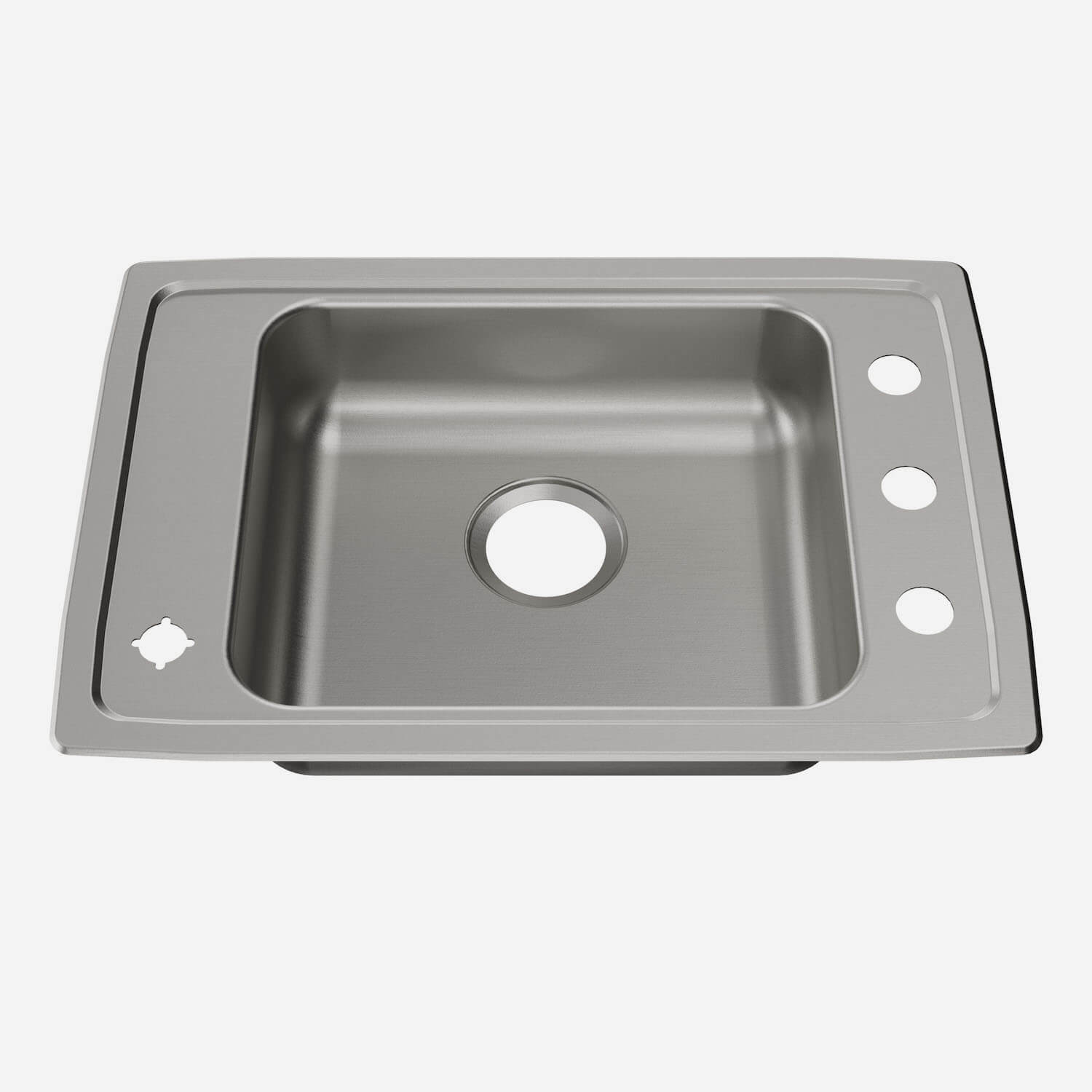

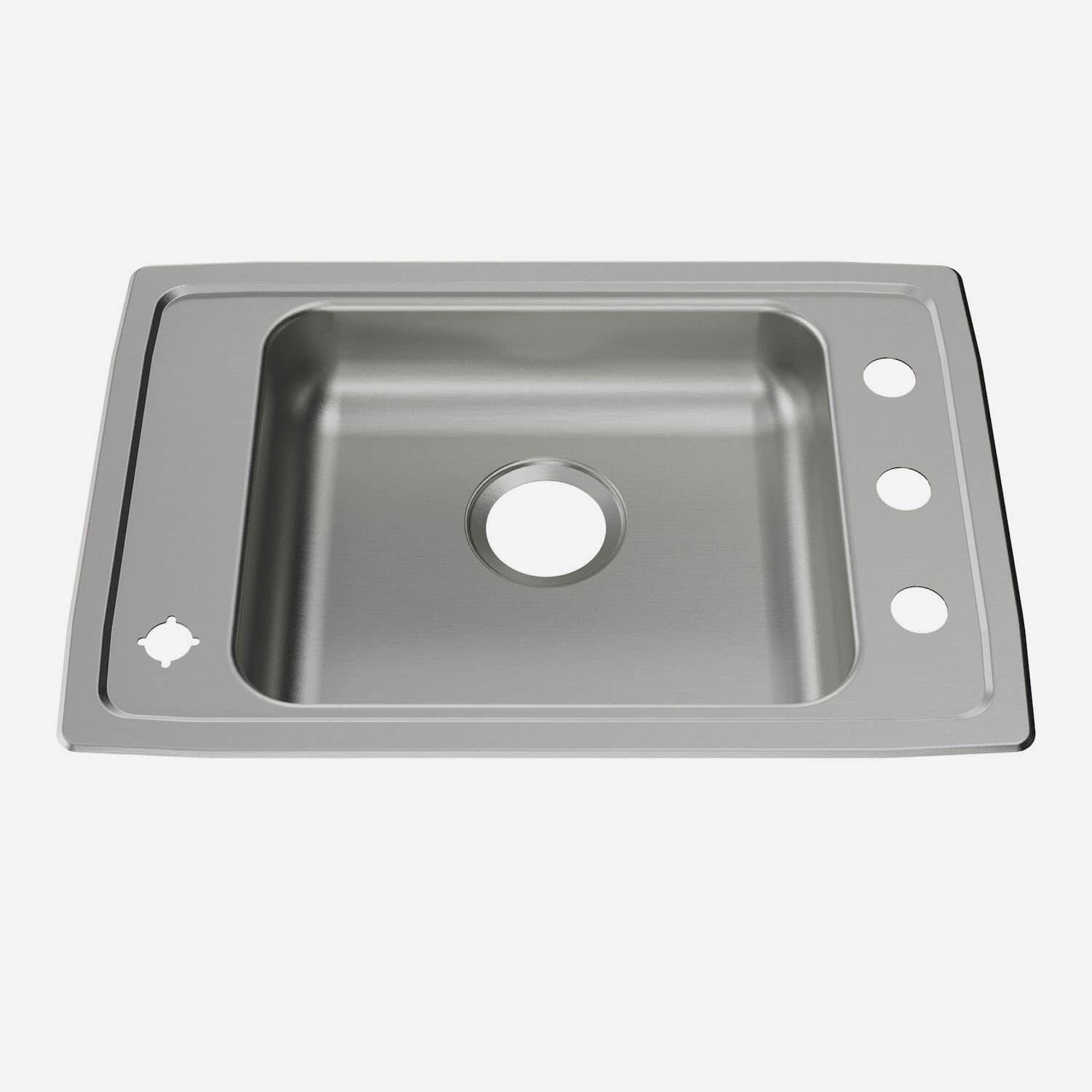

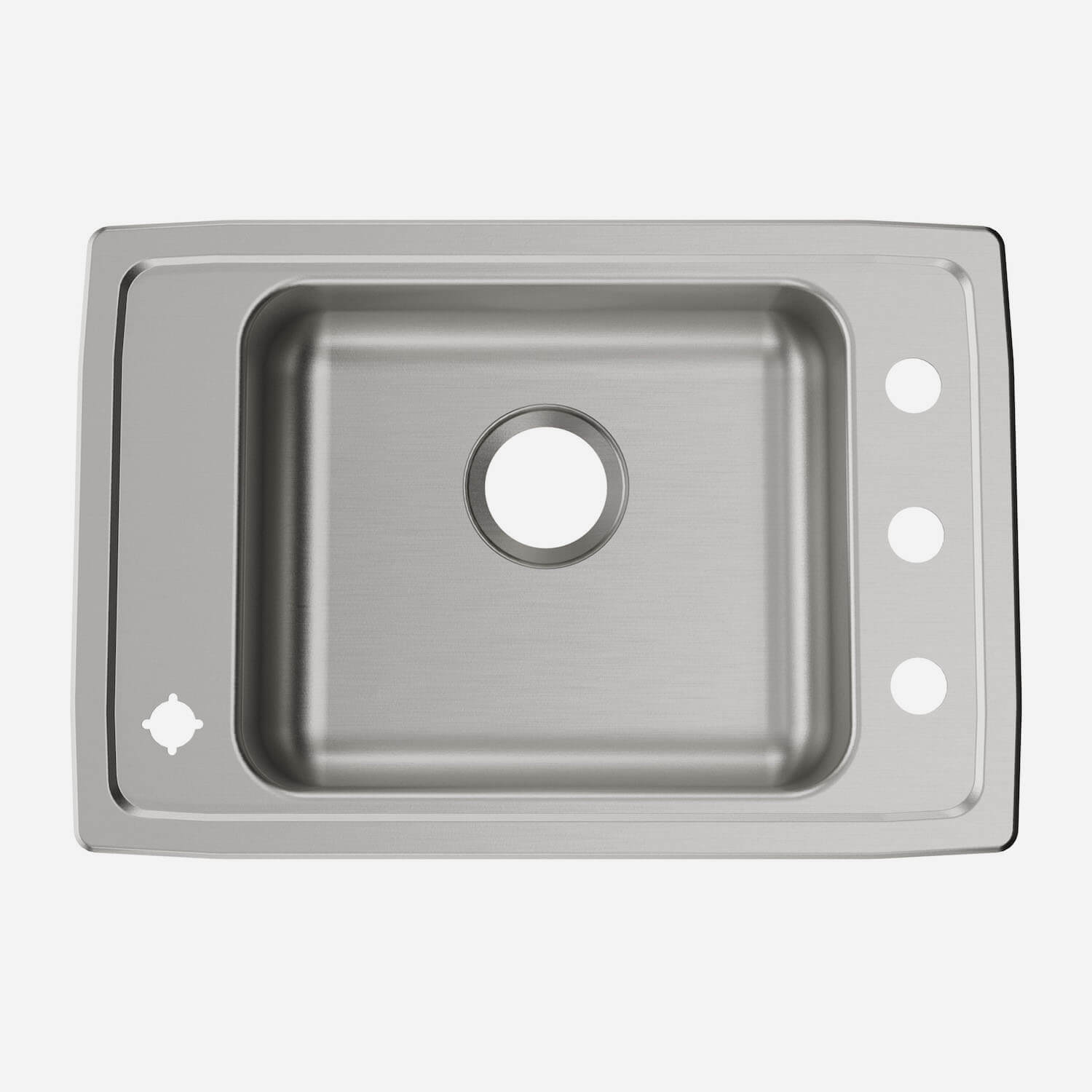

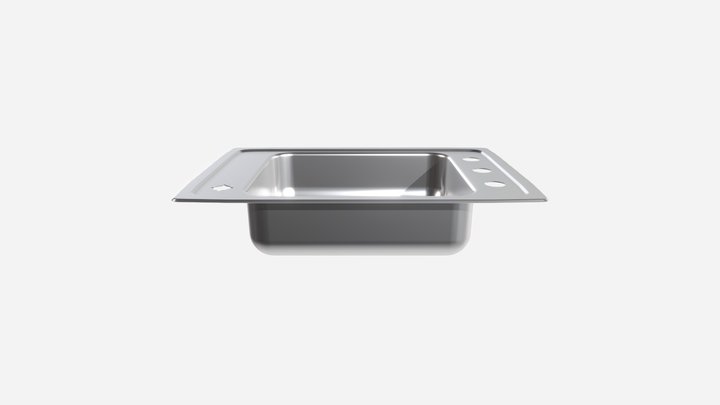

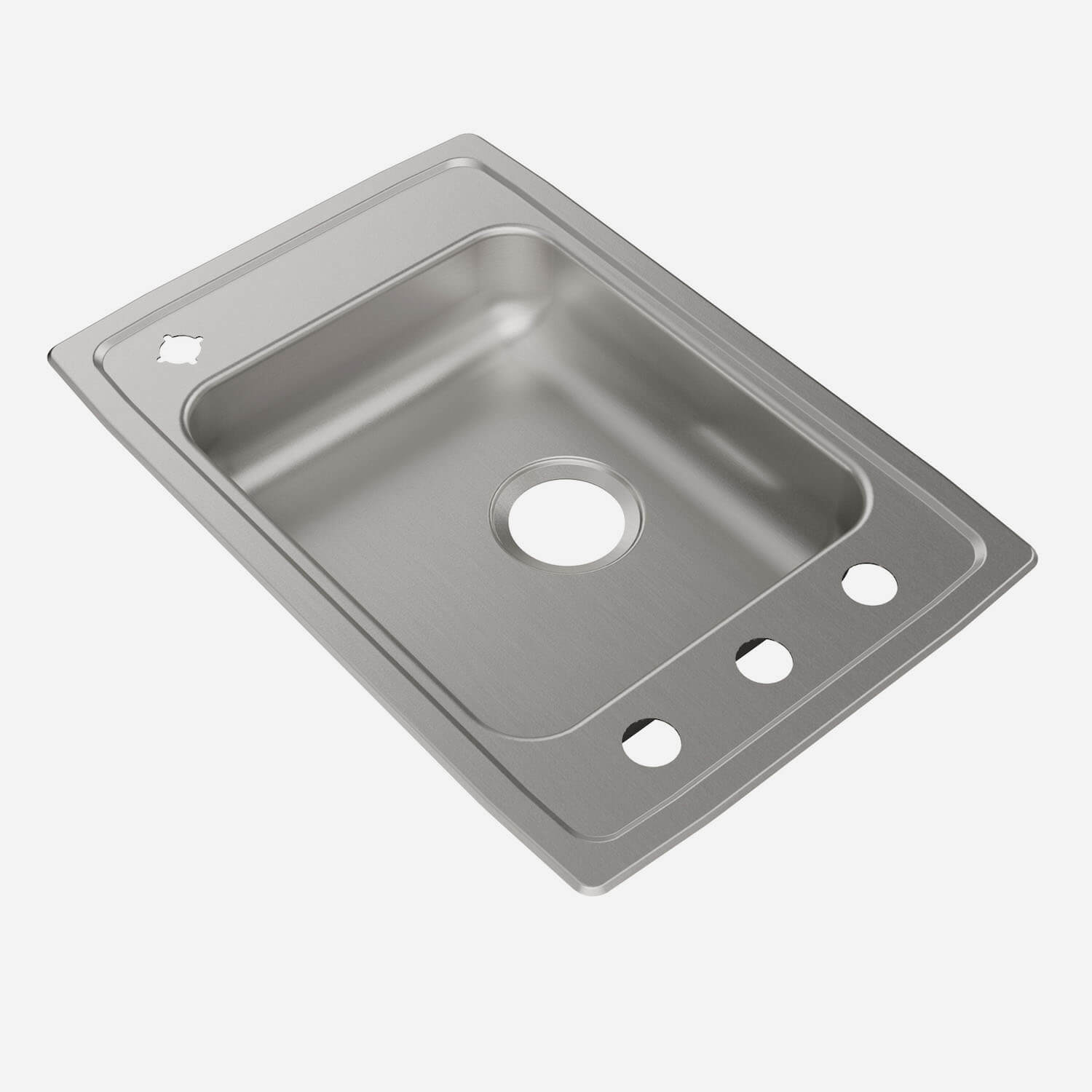

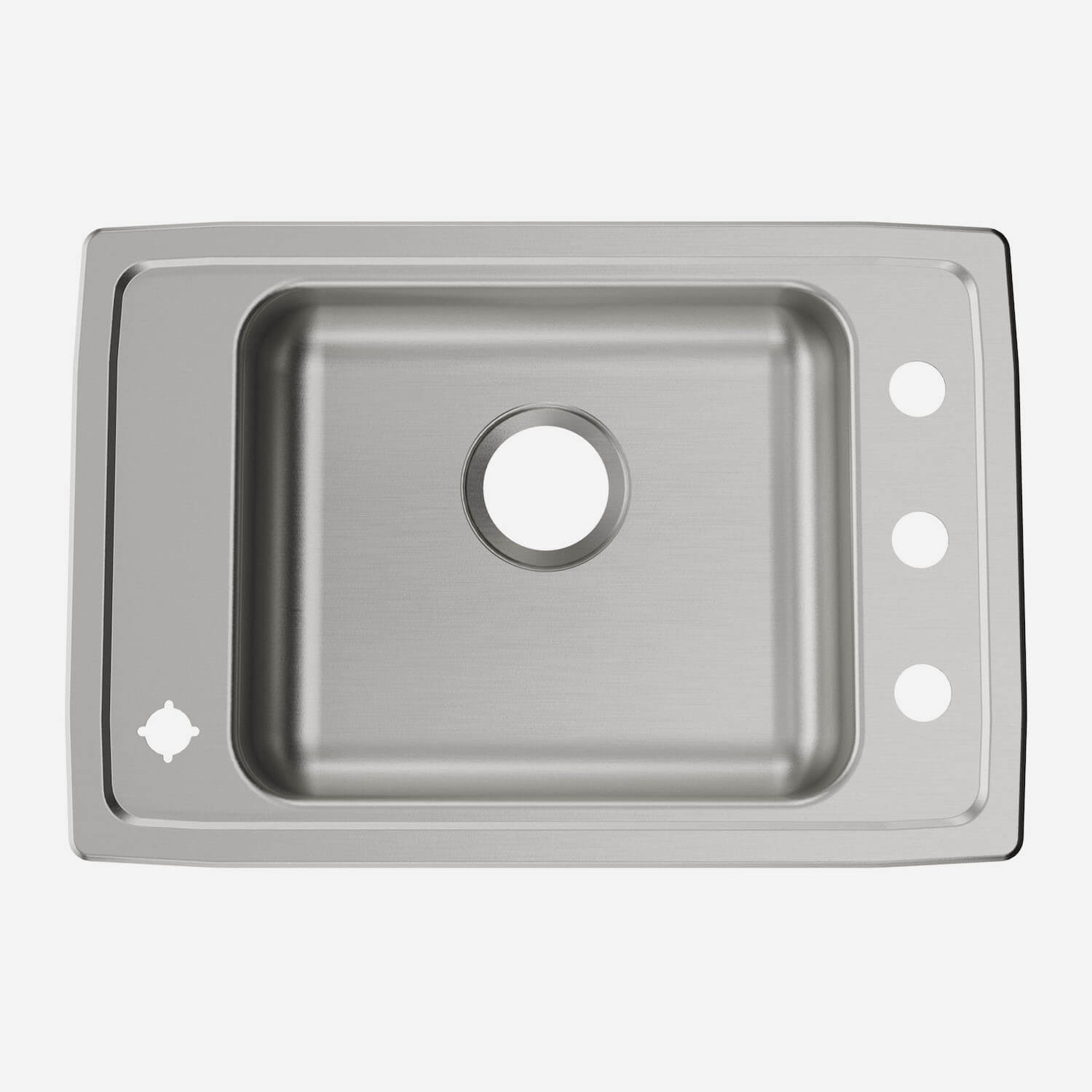

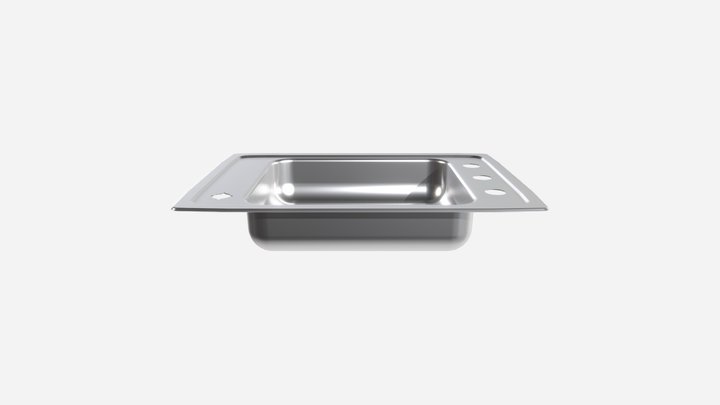

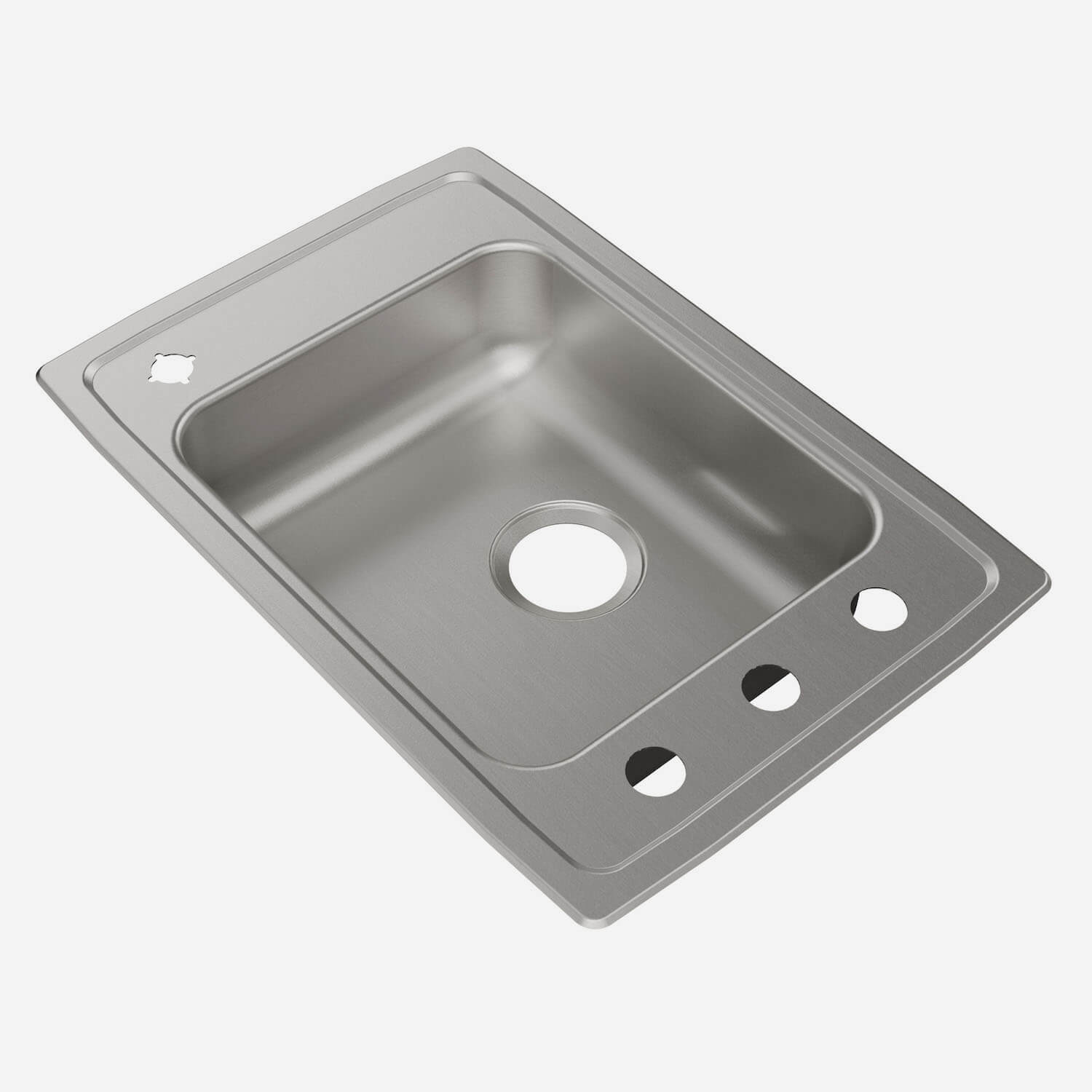

Acorn-Sinks® Stainless Steel ADA Drop-In Classroom Sink, 25" x 17"
An ADA-compliant, single bowl drop-in sink designed specifically for classroom applications, CDADA-2517 measures 25"W and is offered with your choice of a 5-1/2" or 4-1/2" bowl depth. A minimum cabinet size of 30" is required. All classroom sinks feature punching for a faucet on one side and a drinking bubbler on the other.
Acorn-Sinks® Features & Benefits:
- Ideal for classroom appplications
- Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
- Simple drop-in installation
- Sound deadening pads on the sink bottom for reduced noise
- Concealed U-channels with mounting hardware
- Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
- Meticulous packaging that prevents shipping damage
- UPC, cUPC, IPC, and ADA compliant

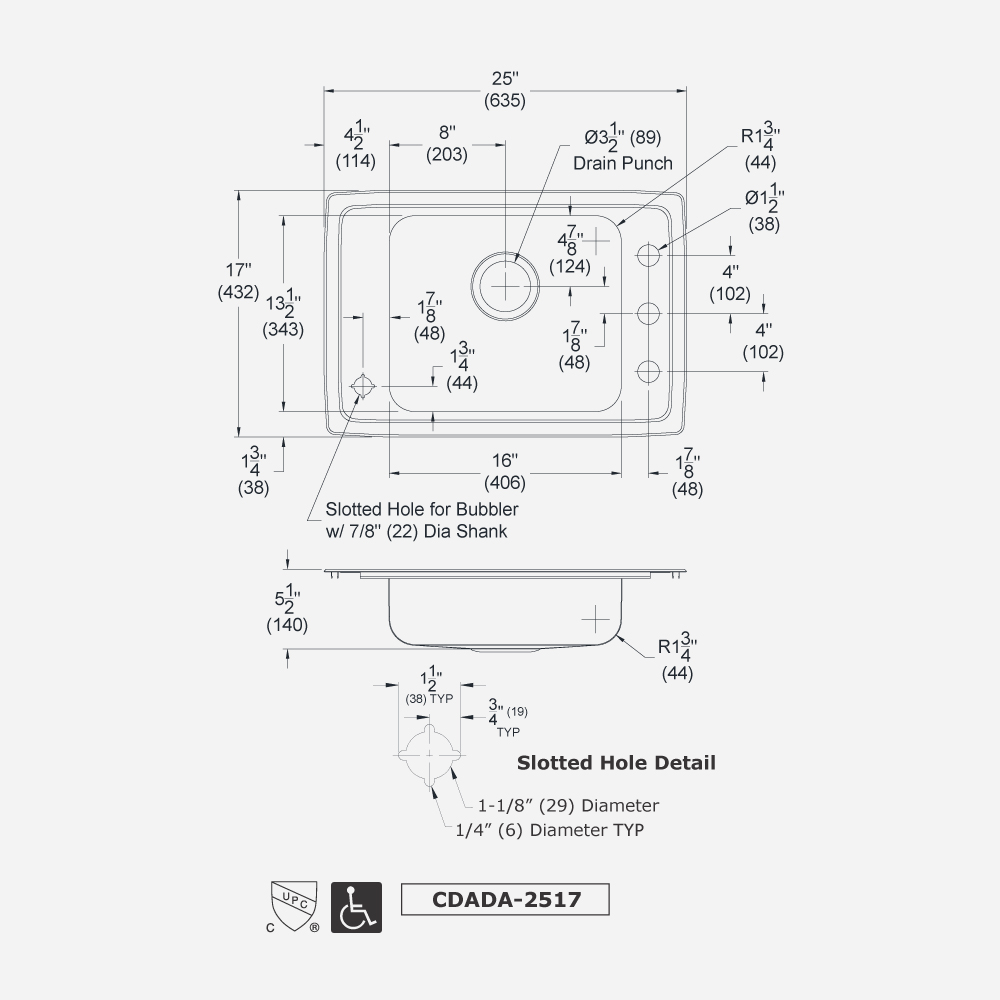

CDADA-2517-55 features a 13-1/2"W (343 mm) side-to-side x 16" (406 mm) front-to-back x 5-1/2"D (140 mm) bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 4-7/8" (124 mm) from the back wall of the bowl. These specific dimensions provide ADA compliance; however, please check your local requirements. ADA compliance is subject to proper installation and the interpretations of the local code authority. Overall dimensions are 25"W (635 mm) side-to-side x 17" (432 mm) front-to-back.
CDADA-2517-45 features the same dimensions but a 4-1/2" (114 mm) depth bowl.
CDADA-2517-65 features the same dimensions but a 6-1/2" (165 mm) depth bowl. (coming soon)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Install Guide for Acorn-Sinks® - Commercial Stainless Steel Sinks - Drop-in [CD-2220, CD-2517, CD-3120, CDADA-2220, CDADA-2517, CDADA-3120, SDB-1515, DD-3320, DD-3322, DDADA-3320, DDADA-3322, SD-1518, SD-1716, SD-1722, SD-1918, SD-2019, et al] | 0 | 186 KB | ||
| | Acorn-Sinks® Stainless Steel ADA Drop-In Classroom Sink - 25" x 17" Size - includes submittal, accessory spec sheet, installation instruction | 0 | 476 KB | ||
 | | Acorn-Sinks® Stainless Steel ADA Drop-In Classroom Sink - 25" x 17" Size - includes faucet configuration variations | 0 | 572 KB | ||
| | Acorn-Sinks® Stainless Steel ADA Drop-In Classroom Sink - 25" x 17" Size - includes faucet configuration variations | 0 | 860 KB | ||
 | | Cutout Template for CDADA-2517-55, CD-2517-80 Acorn-Sink® Drop in Classroom Sinks | 0 | 249 KB | ||
| | Acorn Engineering - Commercial Plumbing Fixtures | 0 | 473 KB | ||
 | | Acorn Engineering - Commercial Plumbing Fixtures | 0 | 771 KB | ||
| | Acorn Sinks Sales Brochure (pdf) | 0 | 4 MB | ||
| | Acorn Sinks Technical Brochure with Competitive Crosscover | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
 | | Video - How to Install Acorn-Sink® Drop-in Sink | 0 | 134 KB | ||
| | Acorn-Sinks products are constructed from durable stainless steel that has an appealing #4 polished satin finish. They come in a variety of sizes and ADA compliant options are available. | 0 | 132 KB |
Specifications
| Brand | Acorn-Sinks® |
| Application | Classroom |
| Material | Stainless Steel |
| Mounting | Drop-in |
| Minimum Cabinet Size | 30" |
| Accessibility | ADA Compliant |
| Compliance | UPC, ASME A112.19.3/CSA B45.4 |
| Number of Bowls | Single |
| Bowl Depth | 4.5", 6.5", 5.5" |
| Drain Size | 3-1/2" |
| Gauge | 18 |
| Bowl Dimensions | 16" (Side-to-Side) x 13-1/2" (Front-to-Back) |
| Overall Dimensions | 25" (Side-to-Side) x 17" (Front-to-Back) |
| Cutout Dimensions | 24-3/8" (Side-to-Side) x 16-3/8" (Front-to-Back) with 1-1/2" corner radius |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | Suffix -0 (Acorn-Sinks®) | Option: Acorn-Sinks® No Faucet Punching on Deck | ||
 | Suffix -1 (Acorn-Sinks® Classroom) | Option: Acorn-Sinks® Single Faucet Punching for Classroom Sink | ||
 | Suffix -2DL (Acorn-Sinks® Classroom) | Option: Acorn-Sinks® Single Faucet Punching (R) & Drinking Bubbler Punching (L) for Classroom Sink | ||
 | Suffix -2DR (Acorn-Sinks® Classroom) | Option: Acorn-Sinks® Single Faucet Punching (L) & Drinking Bubbler Punching (R) for Classroom Sink | ||
 | Suffix -4DL (Acorn-Sinks® Classroom) | Option: Acorn-Sinks® Three Faucet Punchings (R) & Drinking Bubbler Punching (L) for Classroom Sink | ||
 | Suffix -4DR (Acorn-Sinks® Classroom) | Option: Acorn-Sinks® Three Faucet Punchings (L) & Drinking Bubbler Punching (R) for Classroom Sink |
Models
Variations on this product specified by the faucet hole punching.
 |  |  | |
|---|---|---|---|
| Punching Details | 4-1/2" Bowl Depth (203 mm) | 5-1/2" Bowl Depth (140 mm) | 6-1/2" Bowl Depth (165 mm) Coming Soon |
| Blank, No Deck Punching | CDADA-2517-45-0 | CDADA-2517-55-0 | CDADA-2517-65-0 |
| Single Hole Centered | CDADA-2517-45-1 | CDADA-2517-55-1 | CDADA-2517-65-1 |
| Single Faucet Centered on Right Side, Drinking Bubbler Punching on Left Side | CDADA-2517-45-2DL | CDADA-2517-55-2DL | CDADA-2517-65-2DL |
| Single Faucet Centered on Left Side, Drinking Bubbler Punching on Right Side | CDADA-2517-45-2DR | CDADA-2517-55-2DR | CDADA-2517-65-2DR |
| Three Faucet Hole Punching 4" Center to Center on Right Side, Drinking Bubbler on Left Side | CDADA-2517-45-4DL | CDADA-2517-55-4DL | CDADA-2517-65-4DL |
| Three Faucet Hole Punching 4" Center to Center on Left Side, Drinking Bubbler on Right Side | CDADA-2517-45-4DR | CDADA-2517-55-4DR | CDADA-2517-65-4DR |
Details
Acorn-Sinks® Product Number System
This is how our Acorn-Sinks products are numbered. The graphic below is an example. It does not necessarily reflect the product above.
