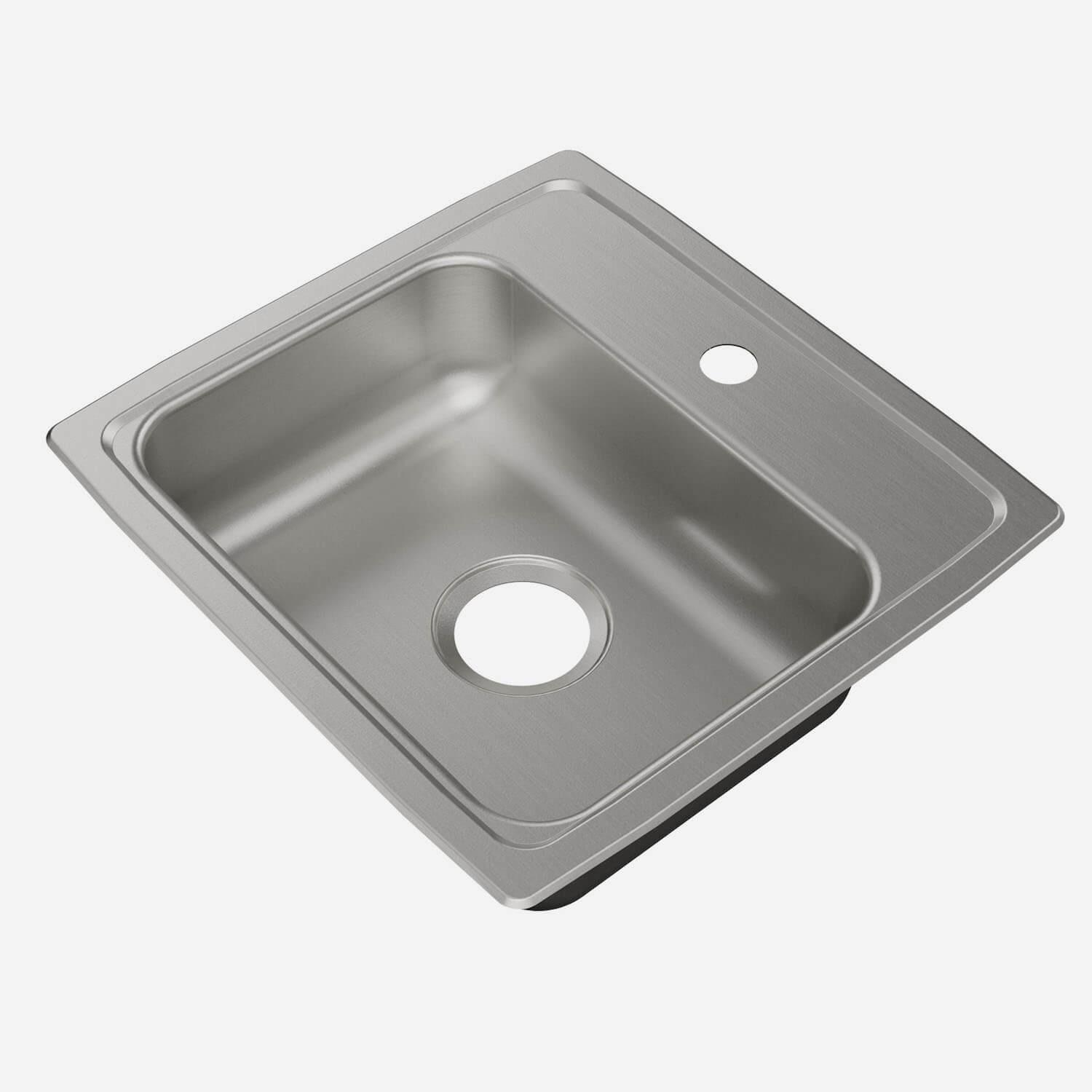

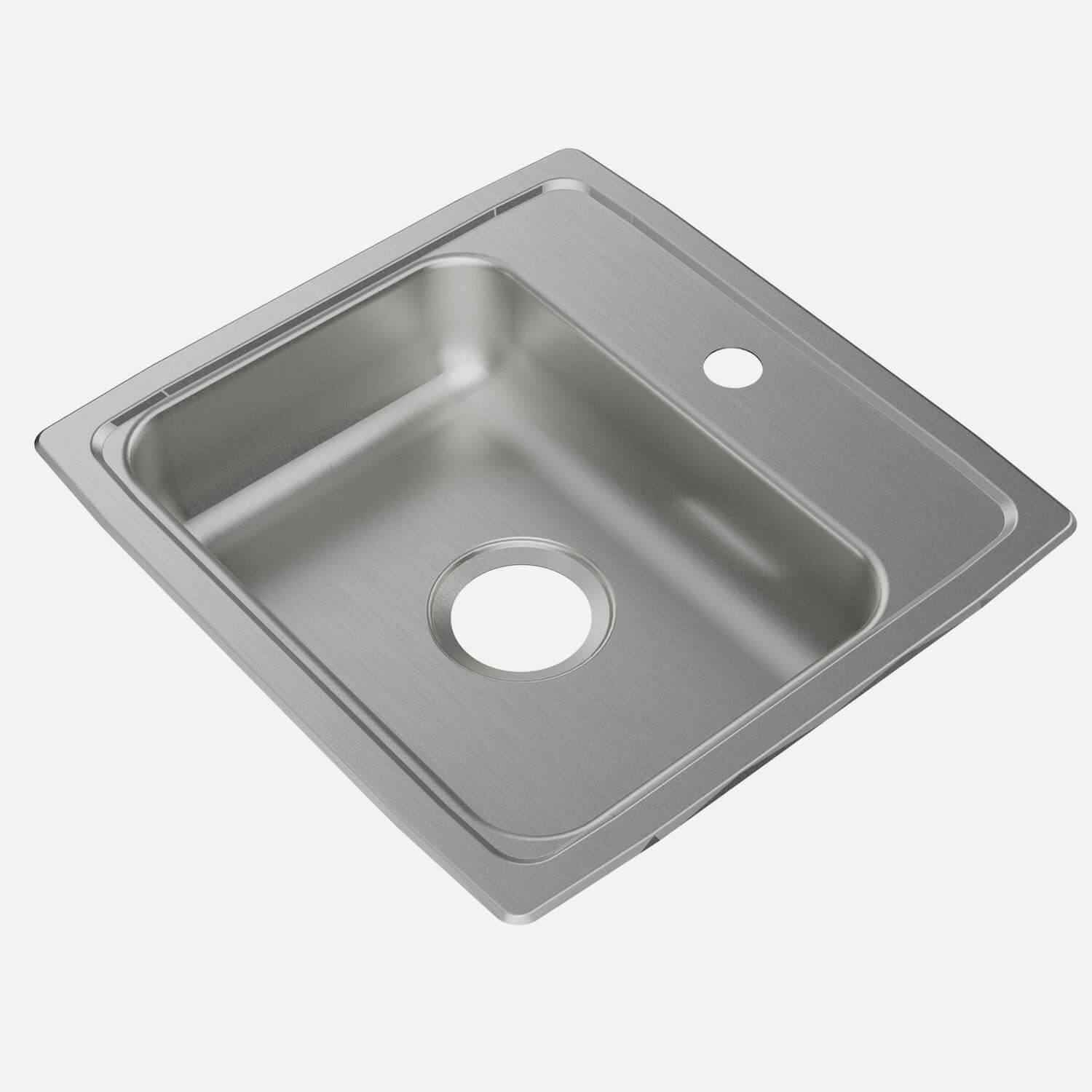

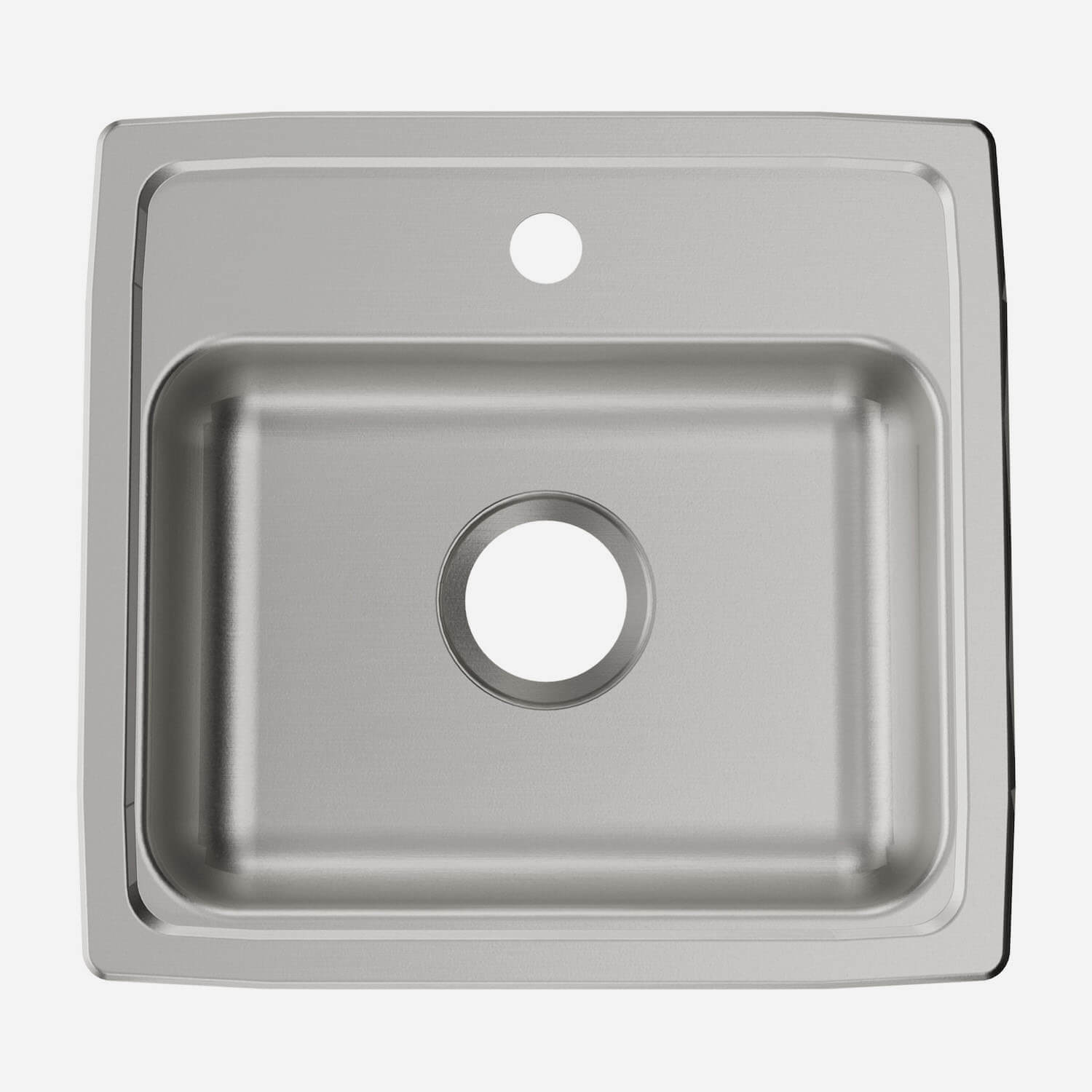

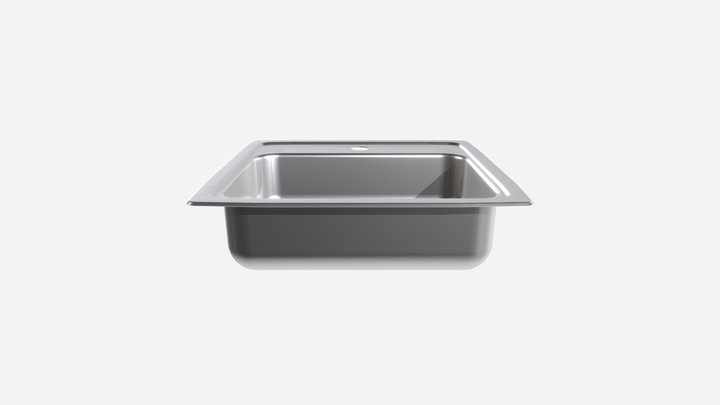

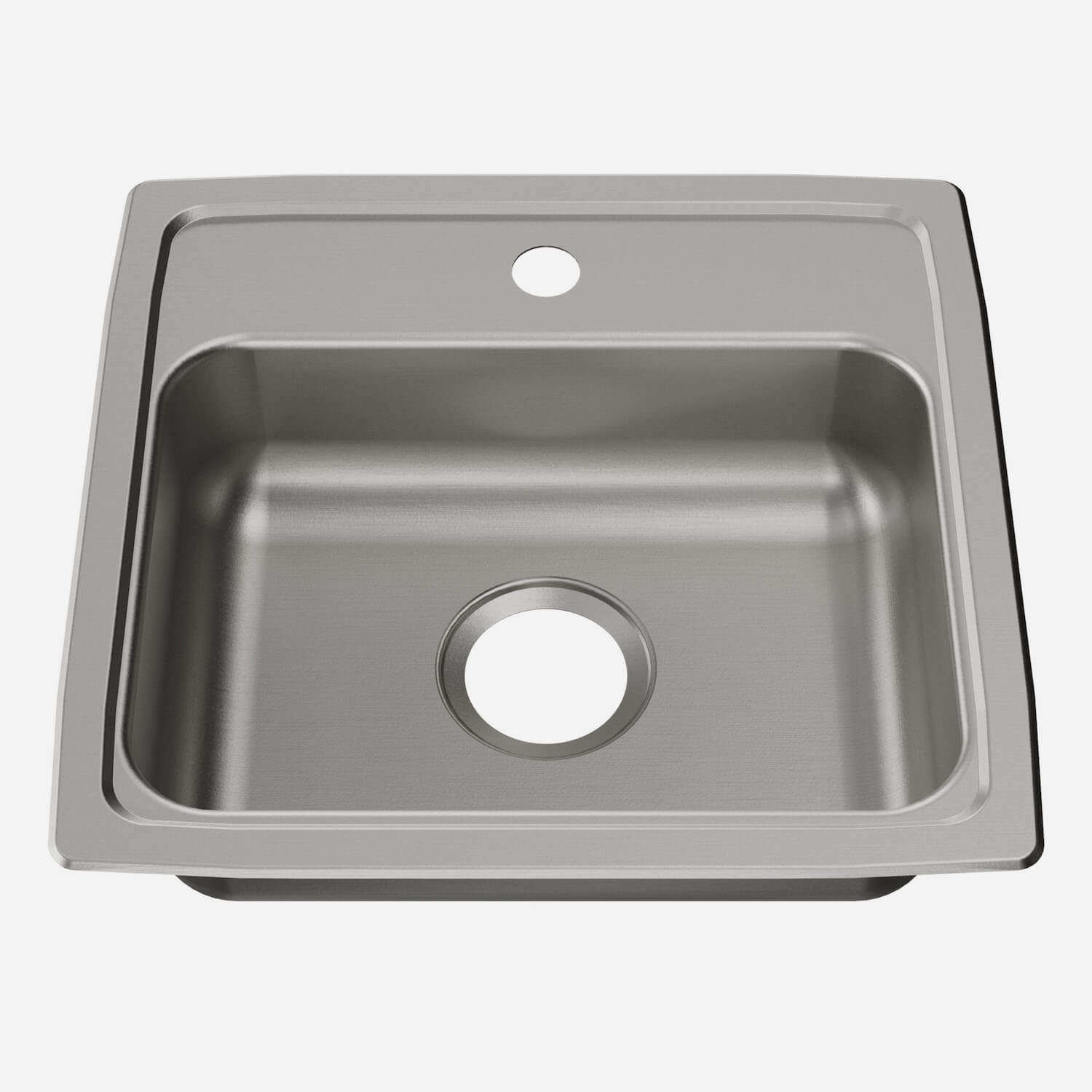

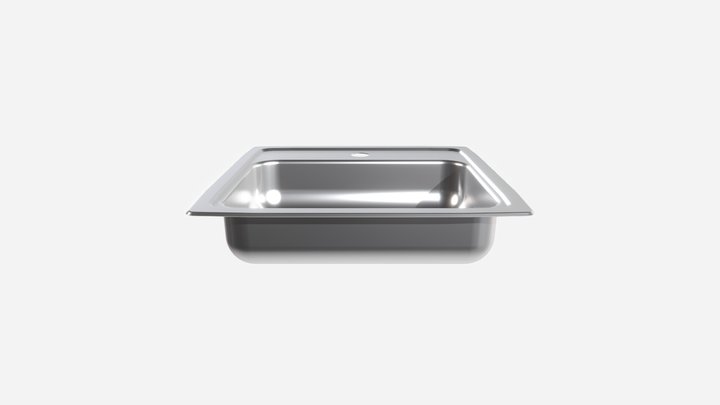

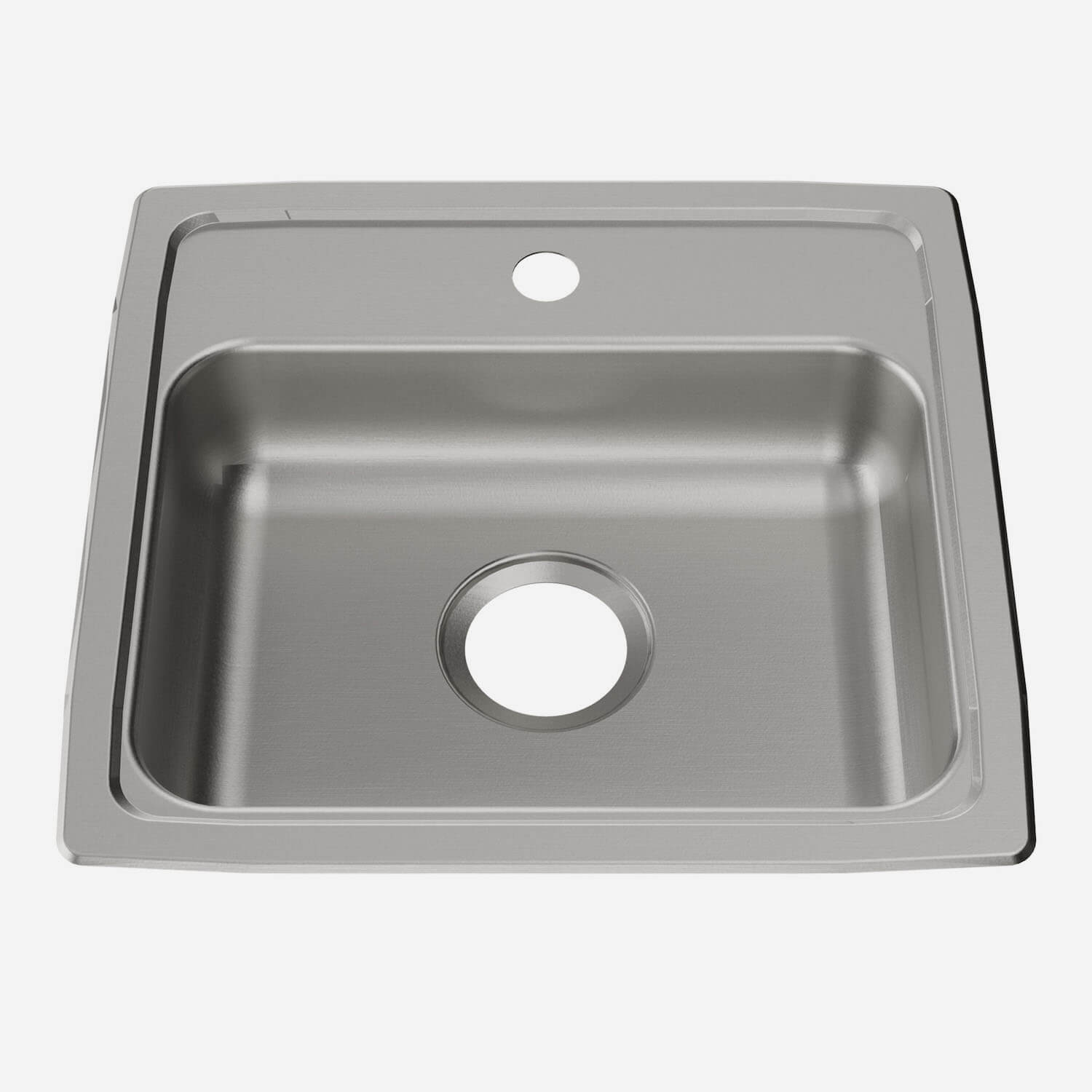

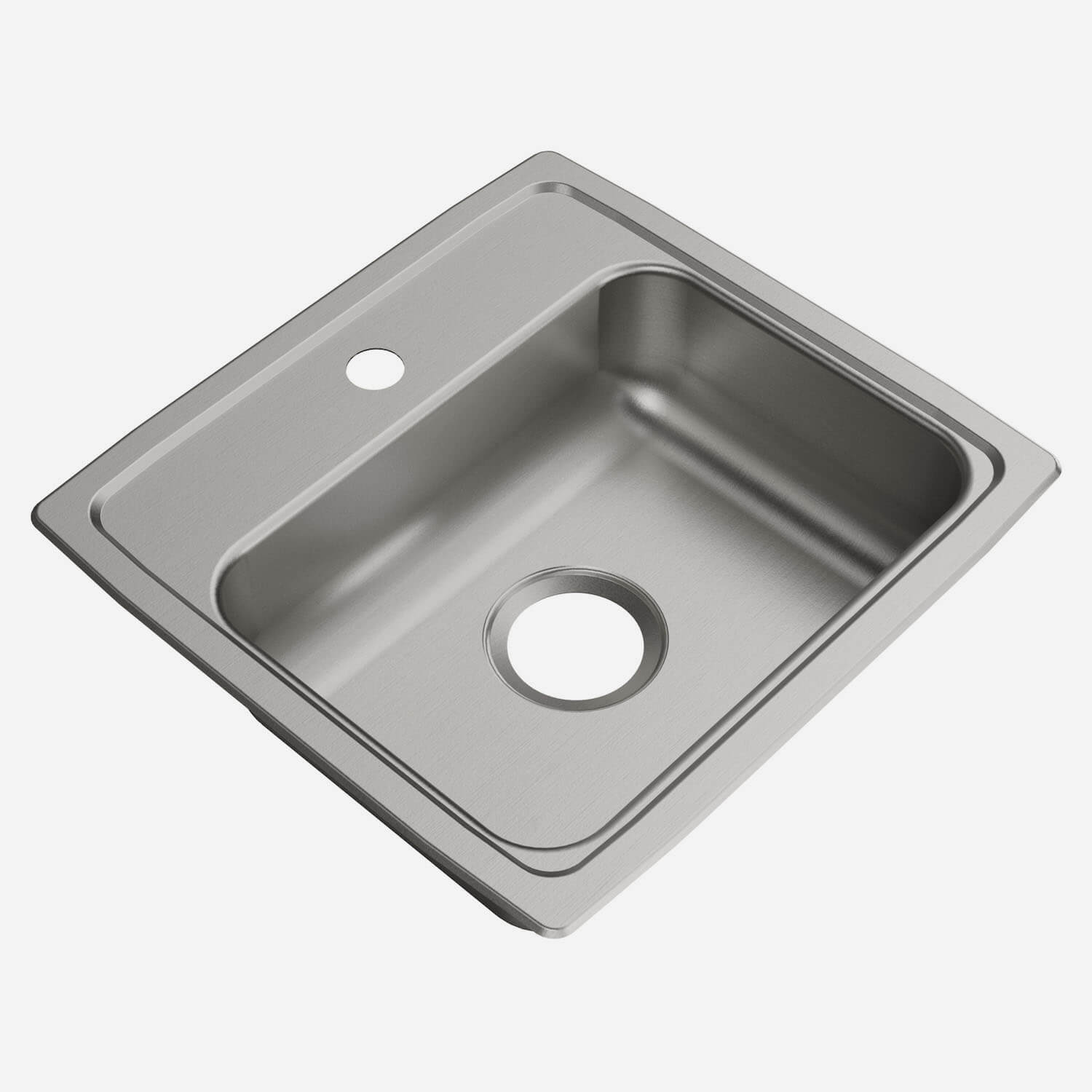

Acorn-Sinks® Stainless Steel ADA Drop-In Sink, 19" x 18"

SDADA-1918 is an ADA-compliant, single bowl drop-in sink measuring 19" x 18" with a bowl size of 16" x 11-1/2". It has a centered drain and your choice of a 5-1/2". 6-1/2" or 4-1/2" bowl depth. A minimum cabinet size of 24" is required.

Acorn-Sinks® Features & Benefits:

• Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
• Simple drop-in installation
• Sound deadening pads on the sink bottom for reduced noise
• Concealed U-channels with mounting hardware
• Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
• Meticulous packaging that prevents shipping damage
• UPC, cUPC, and IPC compliant

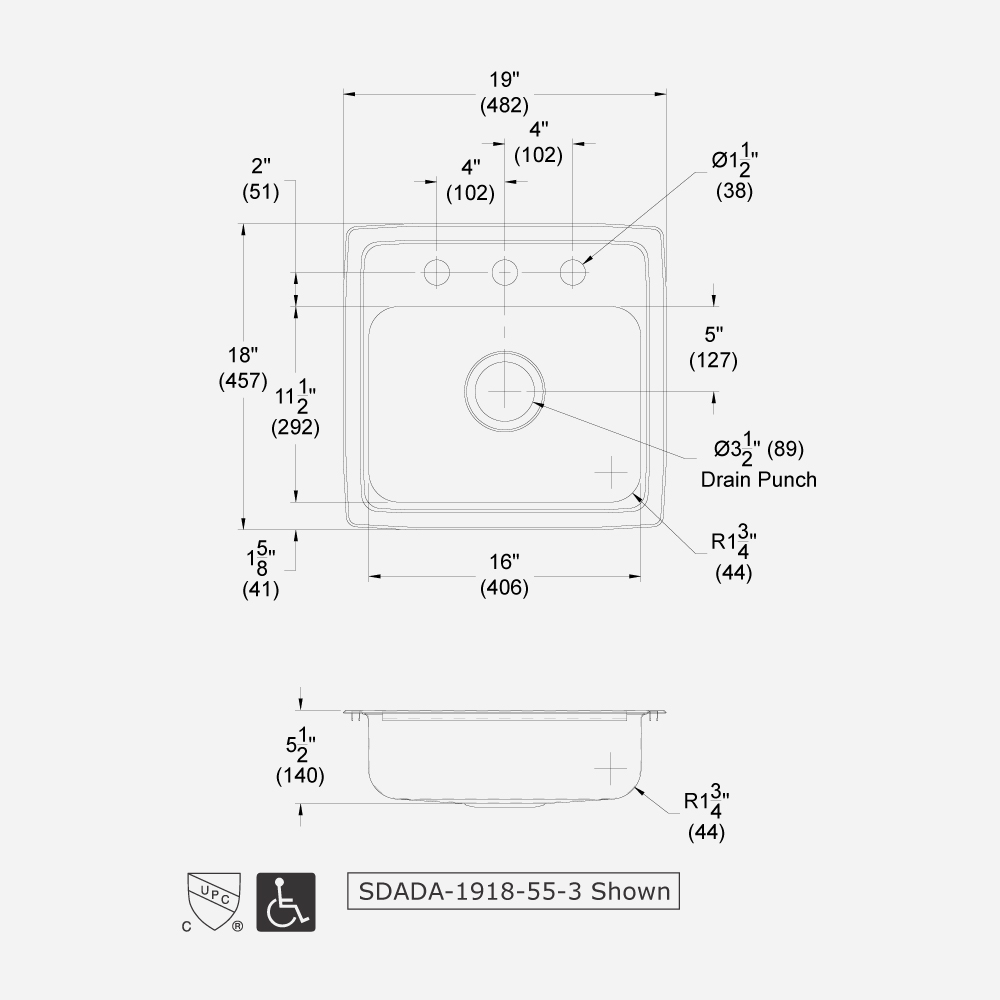

SDADA-1918-55 features a 5-1/2" (140 mm) deep x 11-1/2" (292 mm) front-to-back x 16" (406 mm) wide (side-to-side) bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 5" (127 mm) from the rear wall of the bowl. These specific dimensions provide ADA compliance; however, please check your local requirements. ADA compliance is subject to proper installation and the interpretations of the local code authority. Overall dimensions are 19" (483 mm) side-to-side x 18" (457 mm) front-to-back.

SDADA-1918-45 features the same dimensions but a 4-1/2" (114 mm) bowl depth.

SDADA-1918-65 features the same dimensions but a 6-1/2" (165 mm) bowl depth (coming soon).
