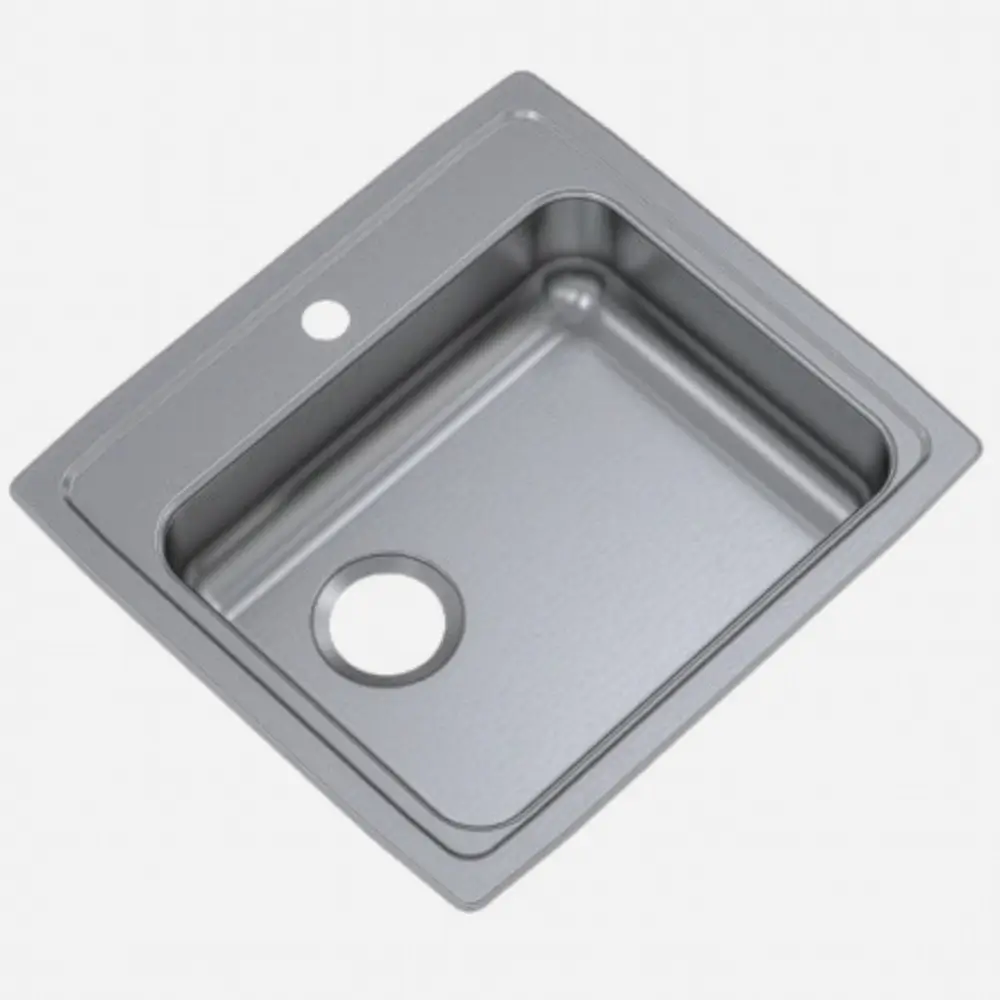

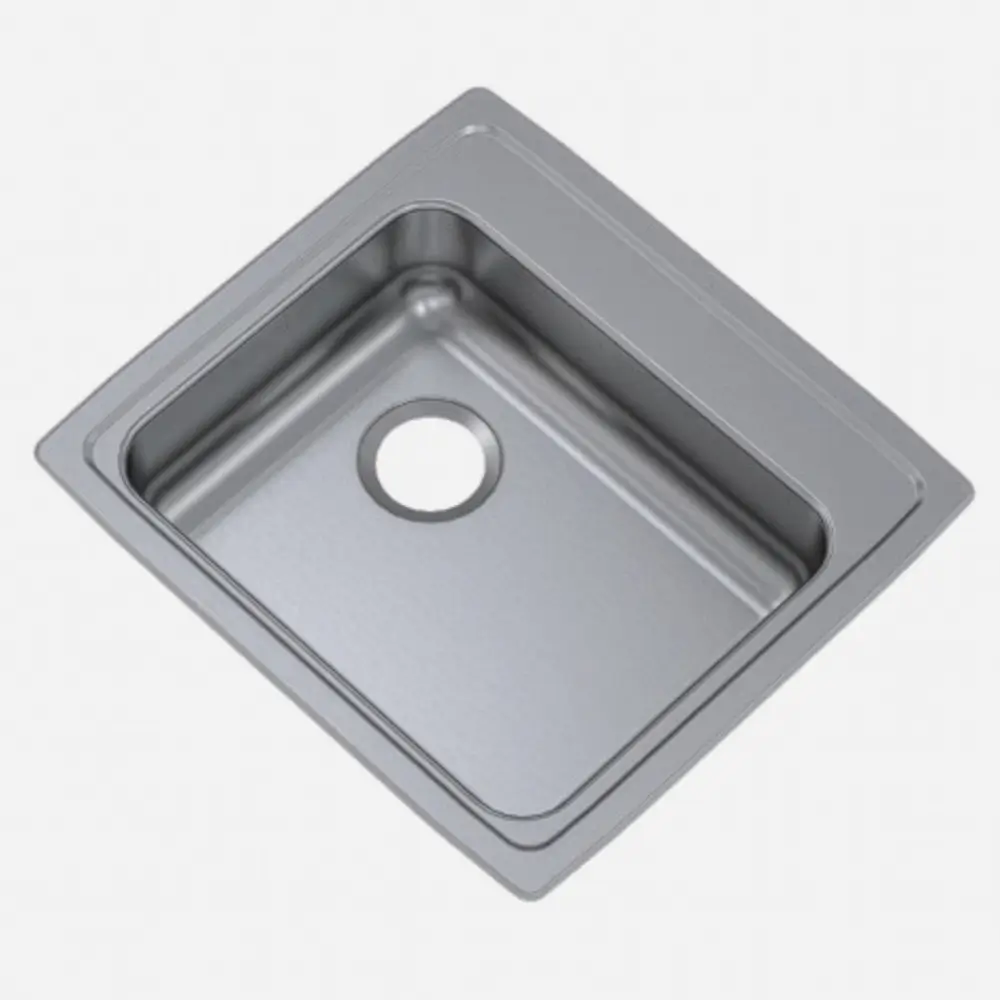

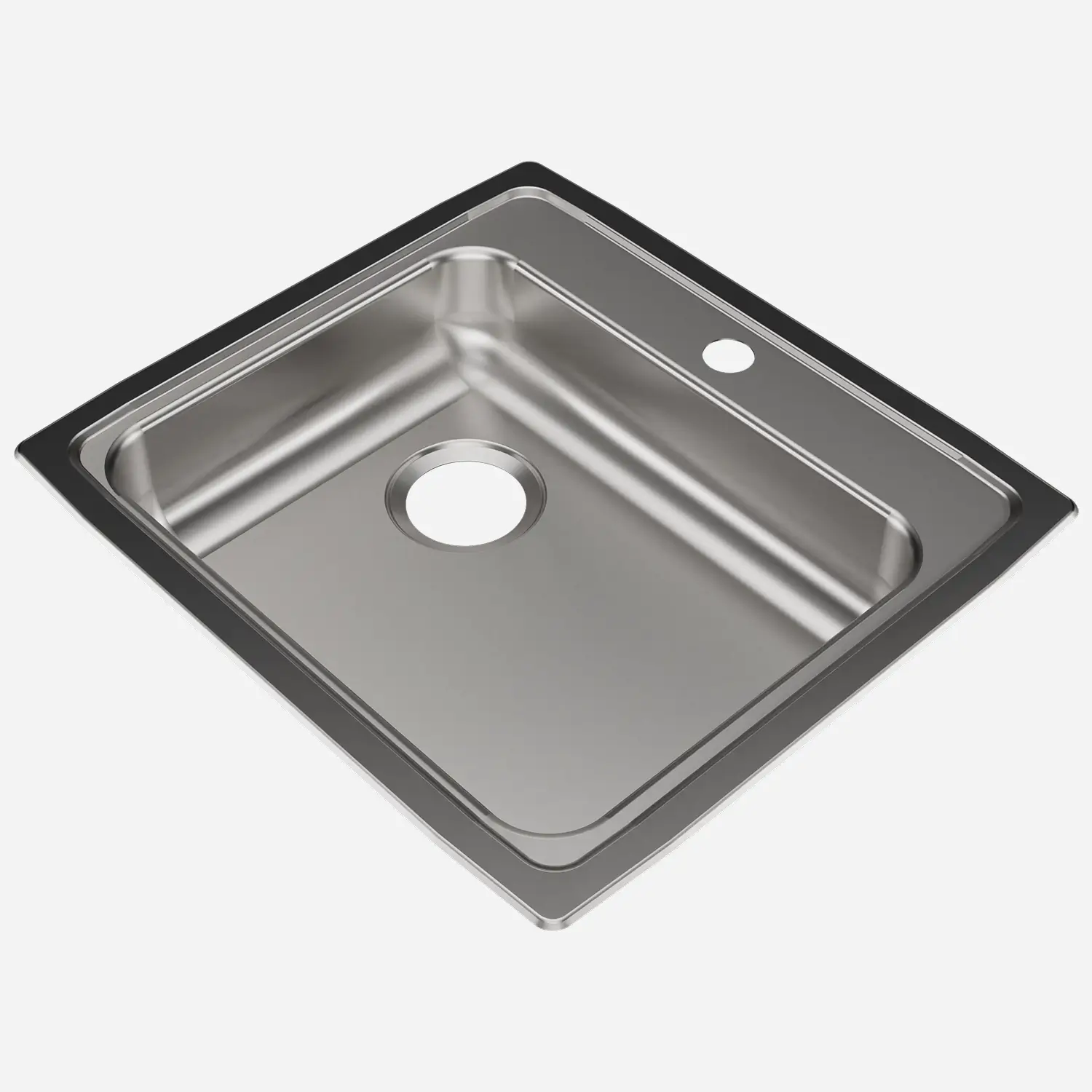

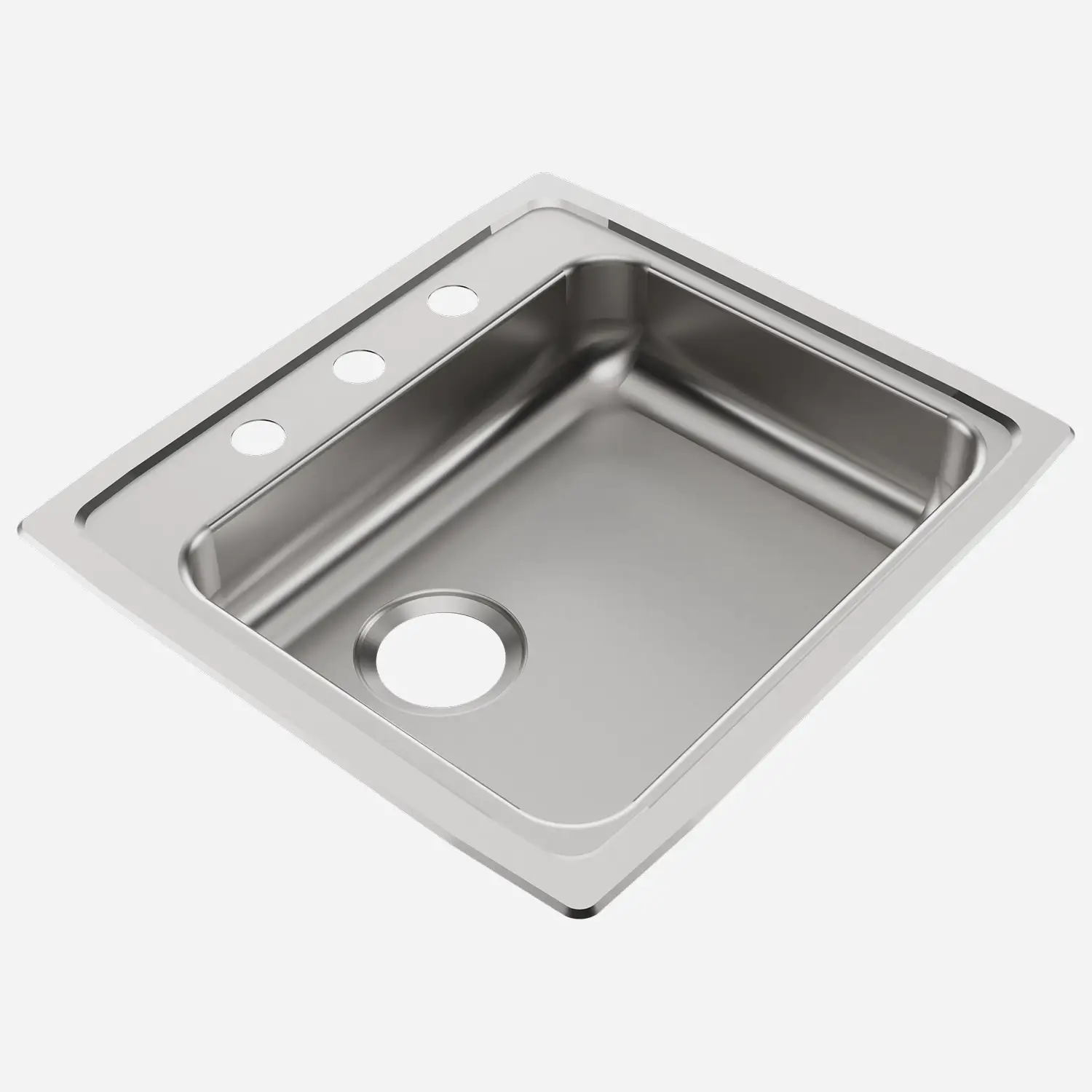

Acorn-Sinks® Stainless Steel ADA Drop-In Sink, 22" x 20", Left Offset Drain

SDADADL-2220 is an ADA-compliant, single-bowl drop-in sink measuring 22" x 20" with a bowl size of 18" x 14". The sink is available in 5-1/2",  4-1/2" or 6-1/2" bowl depths. The 3-1/2" drain is offset 5" from the left wall of the bowl and 5" from the back wall of the bowl.  A minimum cabinet size of 27" is required.

Acorn-Sinks® Features & Benefits:

• Left offset drain
• Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
• Simple drop-in installation
• Sound-deadening pads on the sink bottom for reduced noise
• Concealed U-channels with mounting hardware
• Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
• Meticulous packaging that prevents shipping damage
• UPC, cUPC, and IPC compliant

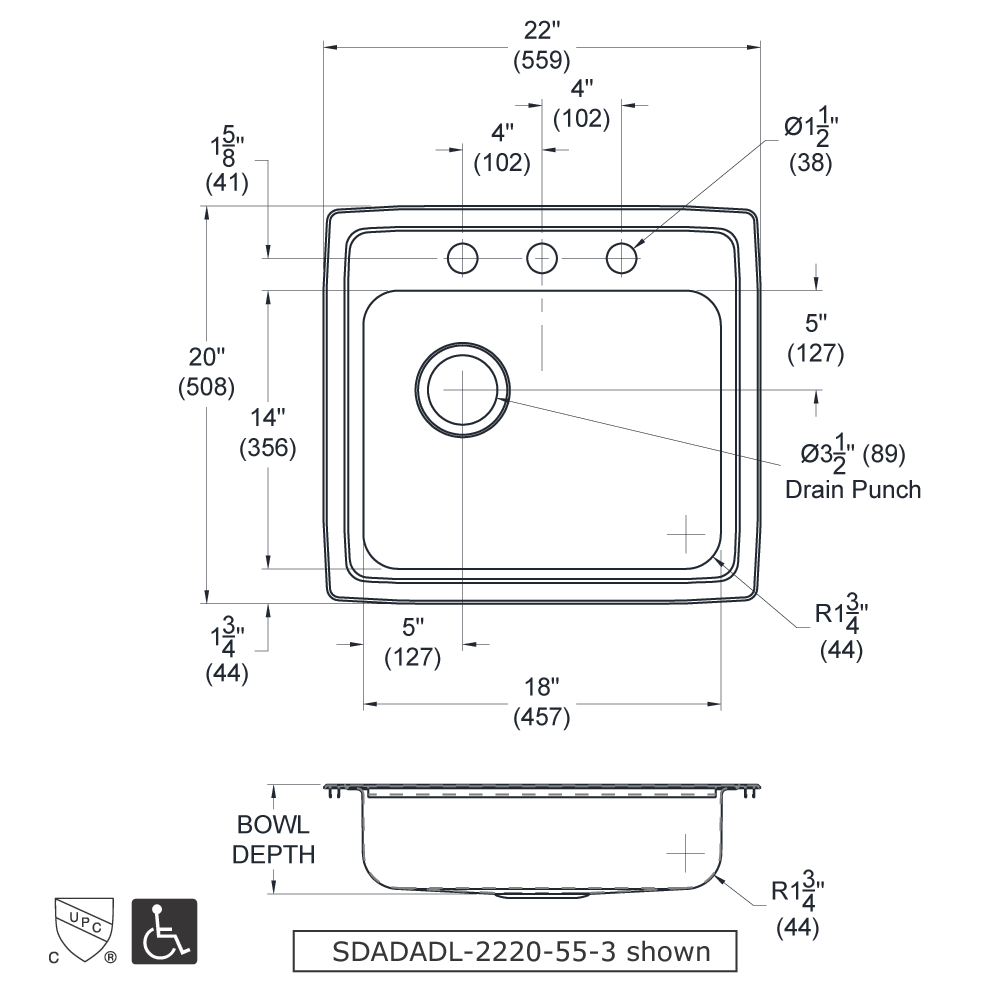

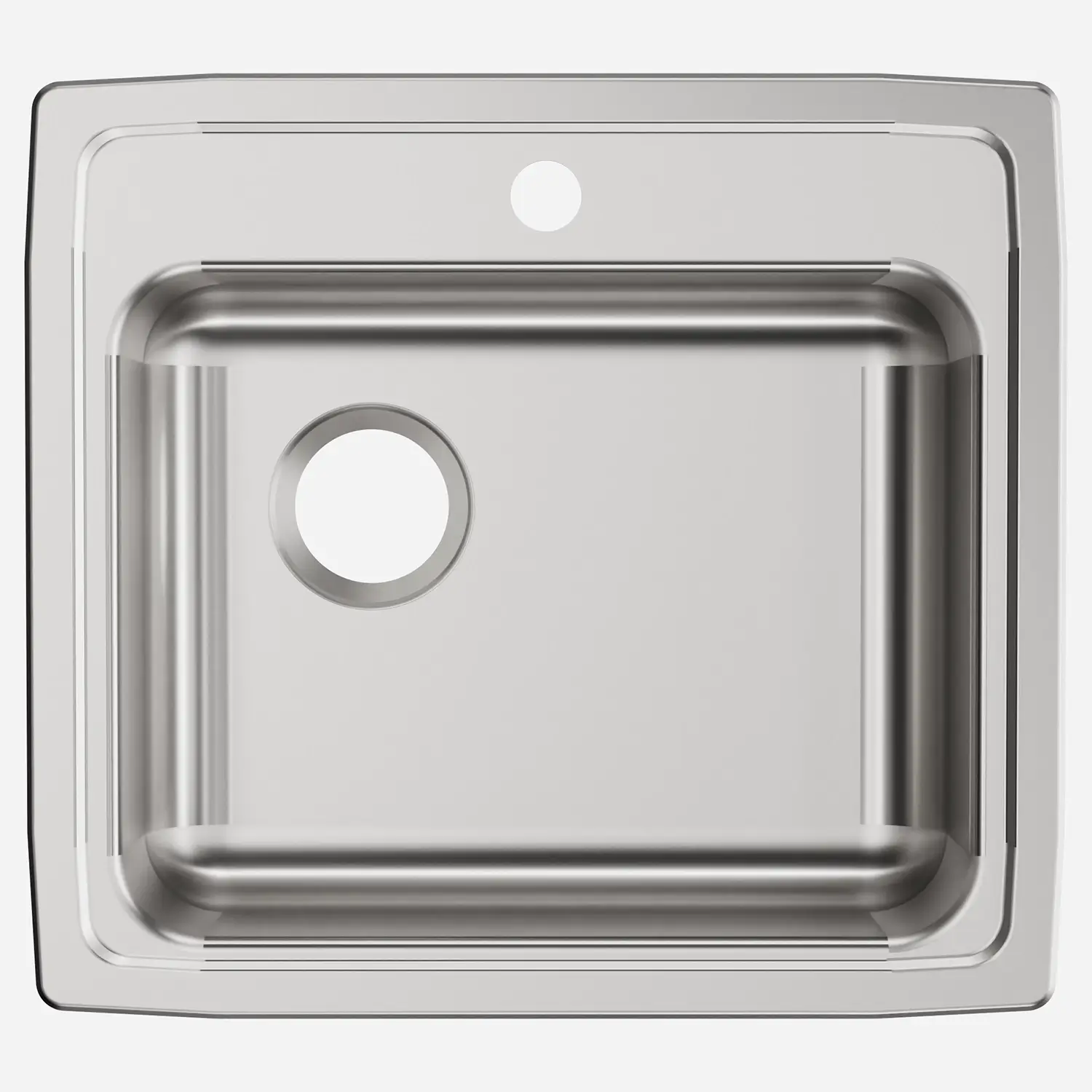

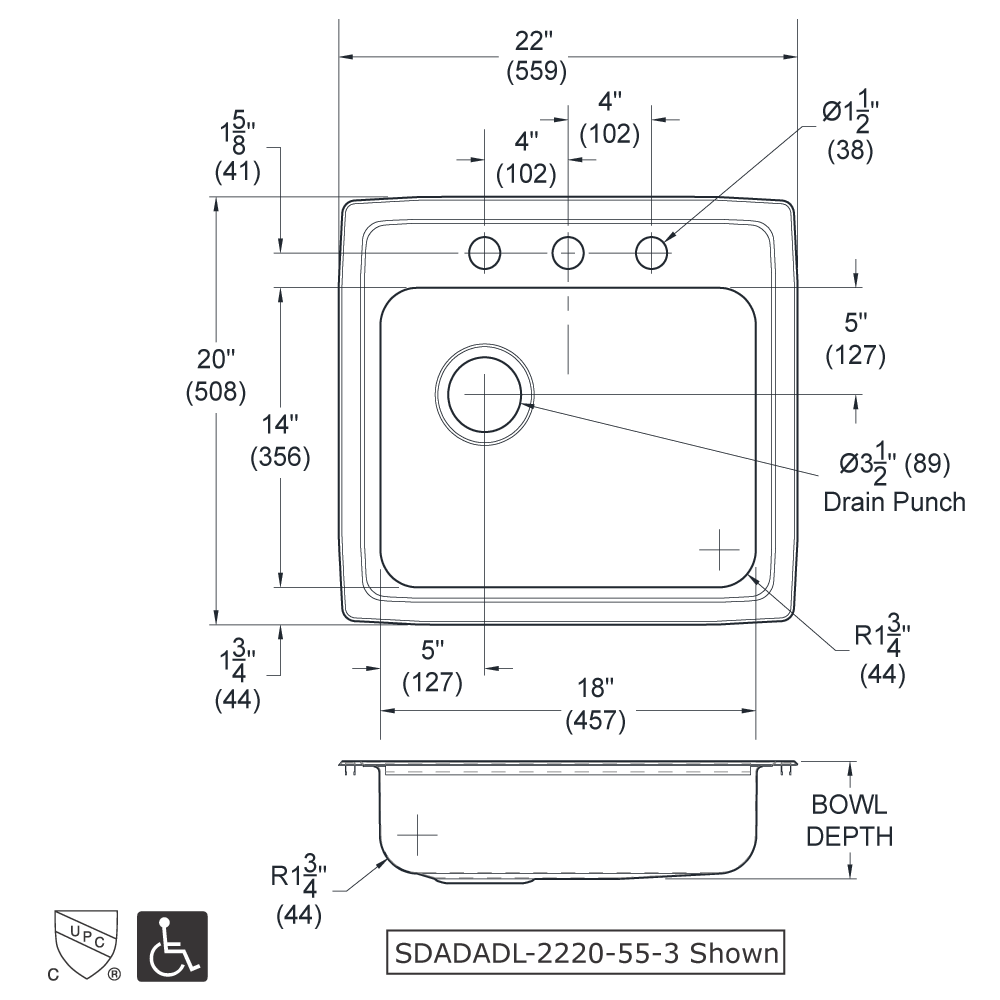

SDADADL-2220-55 features a 5-1/2" (140 mm) deep x 14" (356 mm) front-to-back x 18" (457 mm) wide (side-to-side) bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 5" (127 mm) from the rear wall of the bowl and 5" (127 mm) from the left wall of the bowl. These specific dimensions provide ADA compliance; however, please check your local requirements. ADA compliance is subject to proper installation and the interpretations of the local code authority. Overall dimensions are 22" (559 mm) side-to-side x 20" (508 mm) front-to-back.

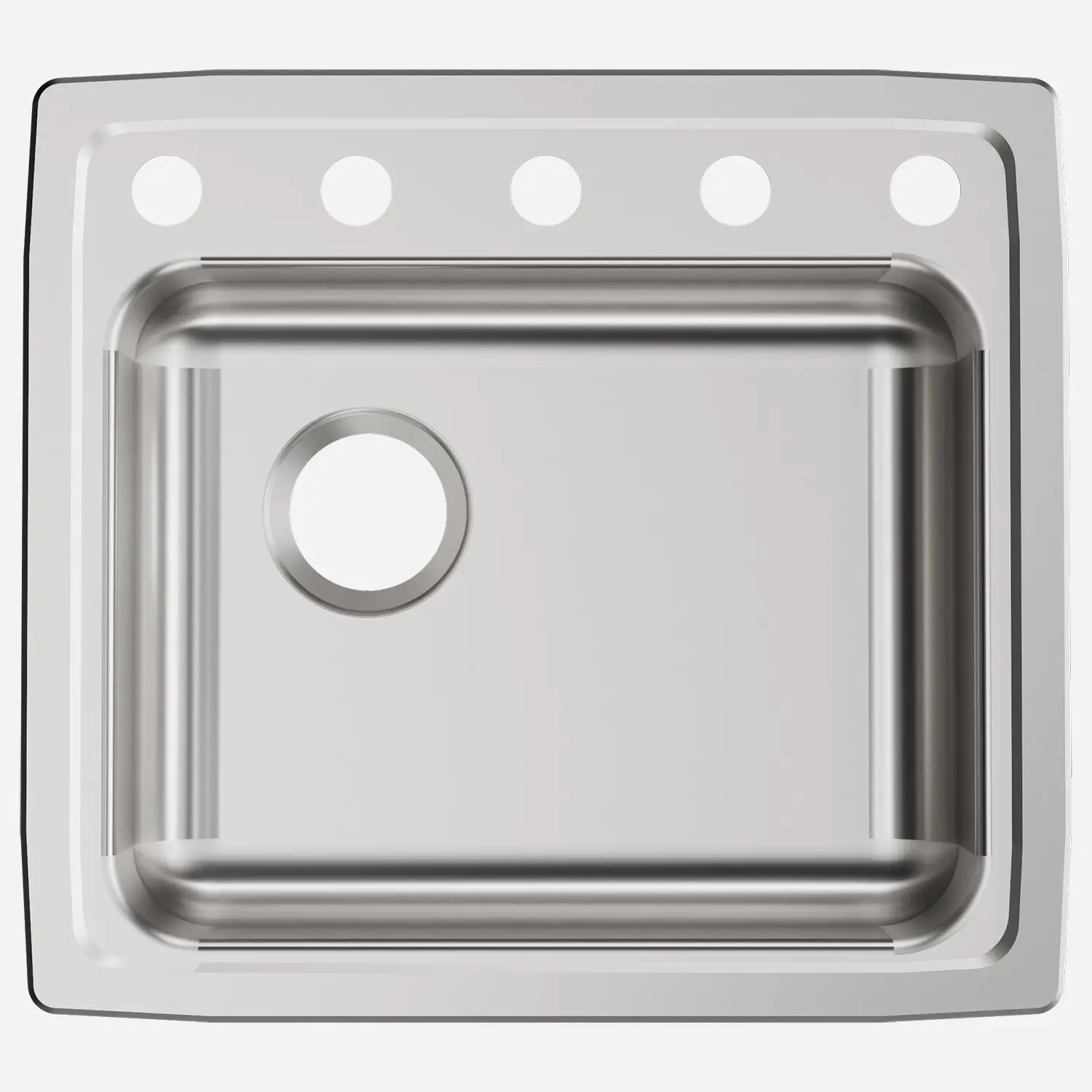

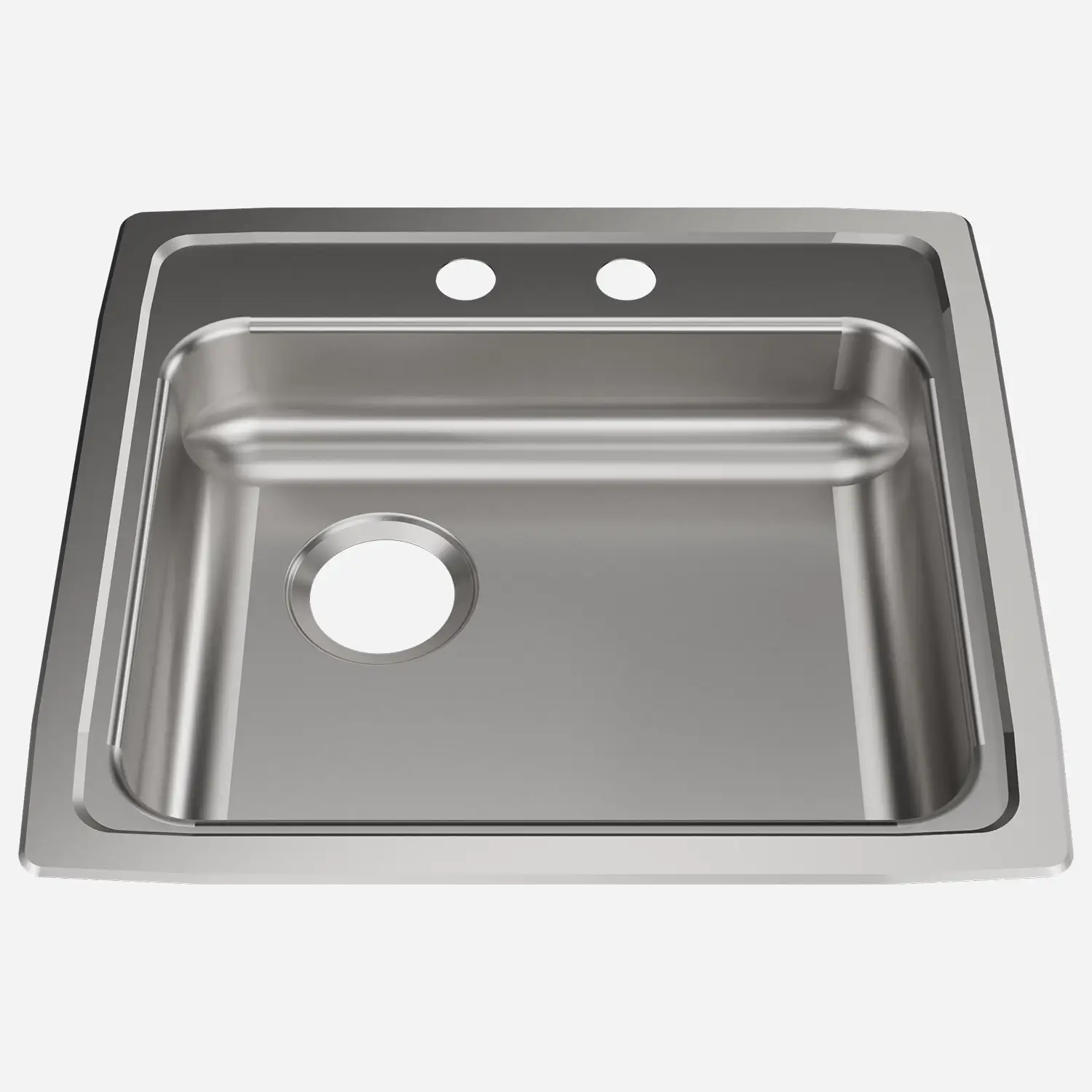

SDADADL-2220-45 features the same dimensions but a 4-1/2" (114 mm) bowl depth.

SDADADL-2220-65 features the same dimensions but a 6-1/2" (165 mm) bowl depth. < COMING SOON >
