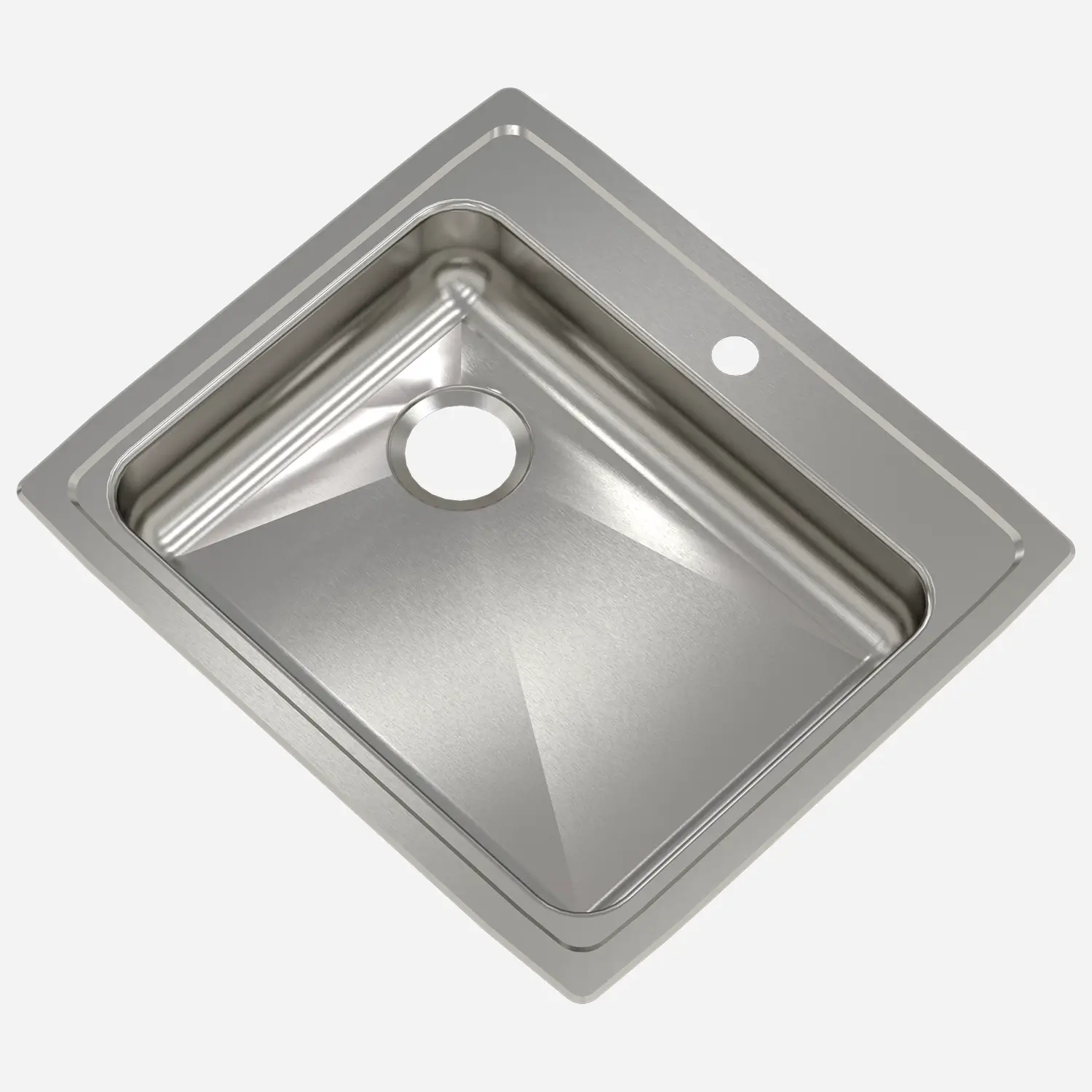

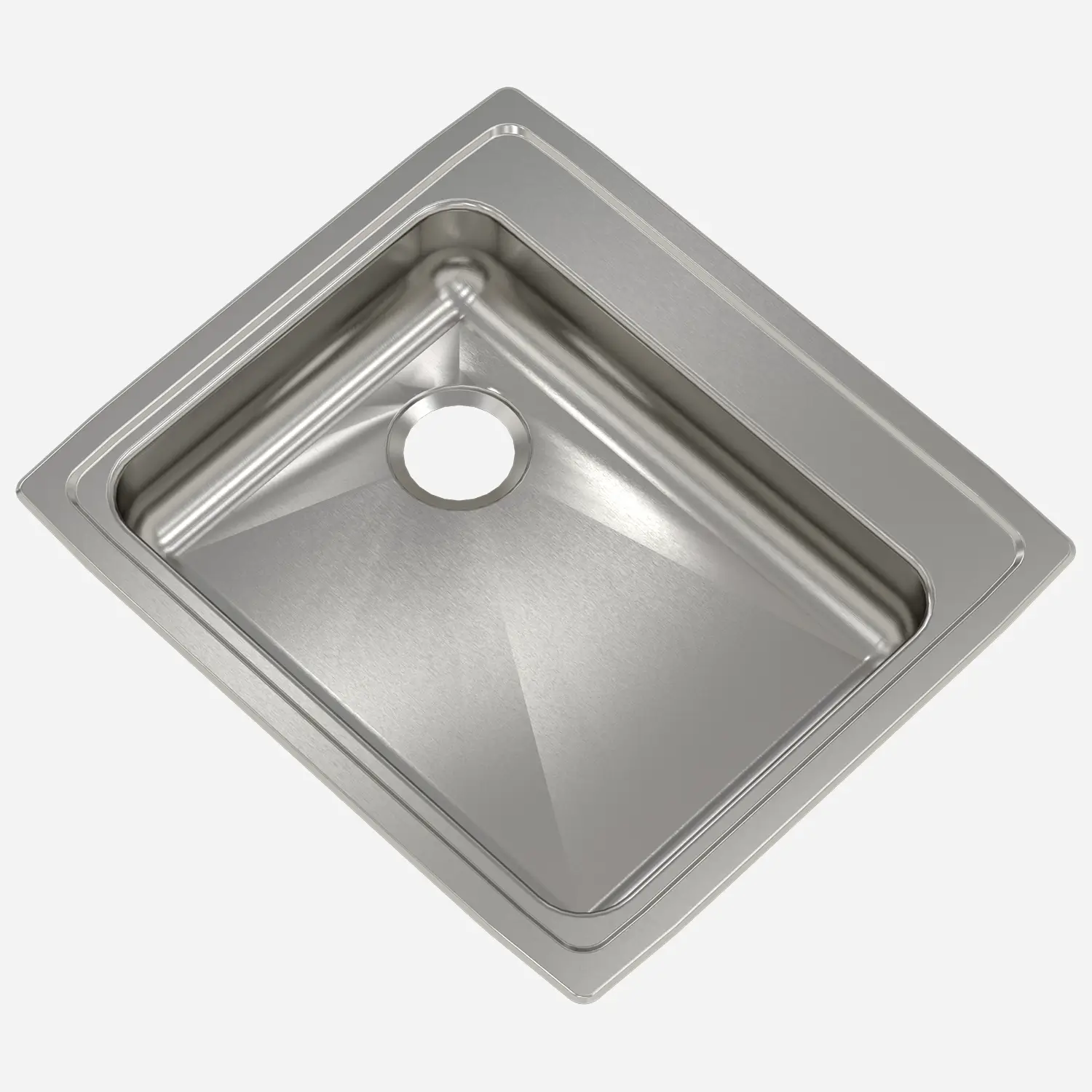

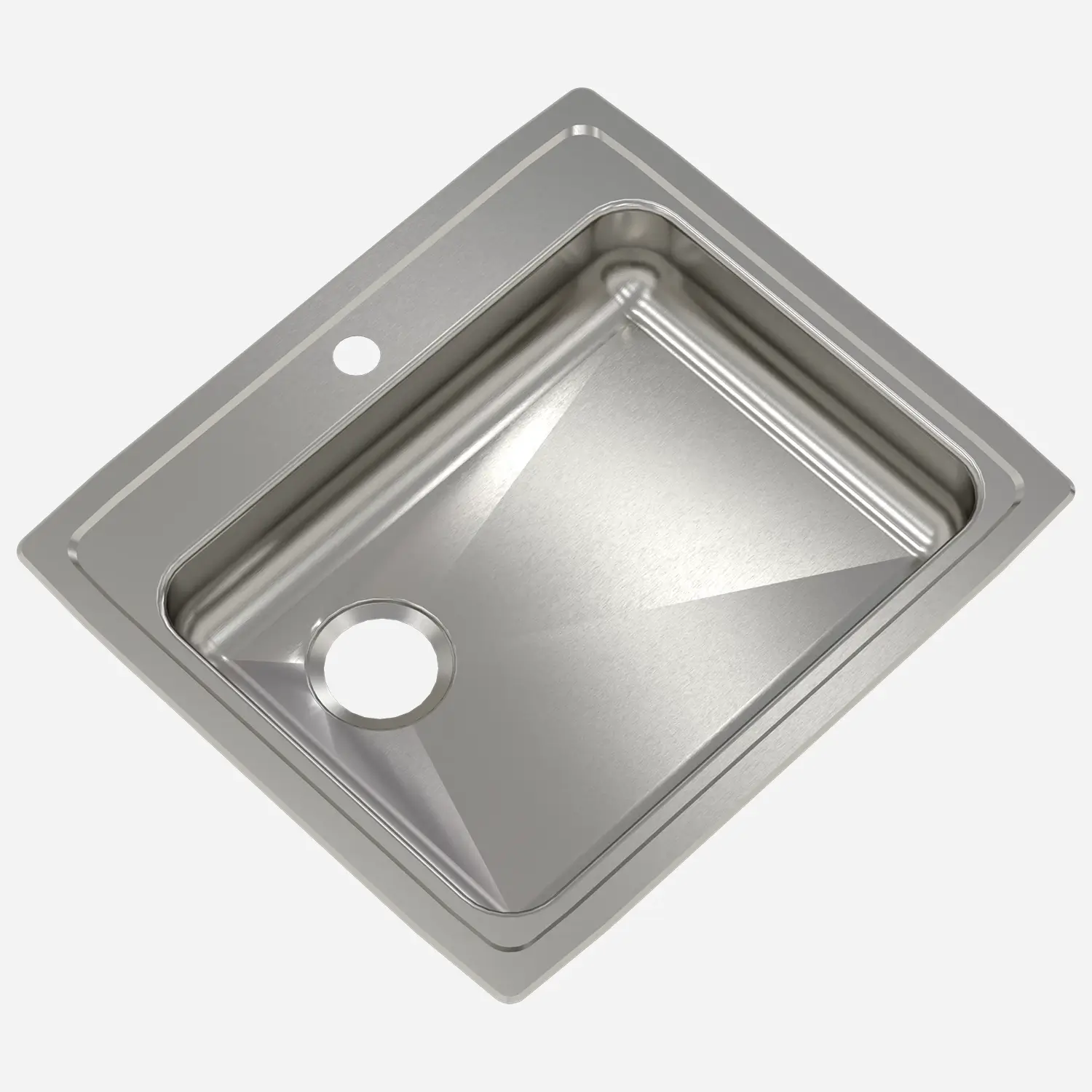

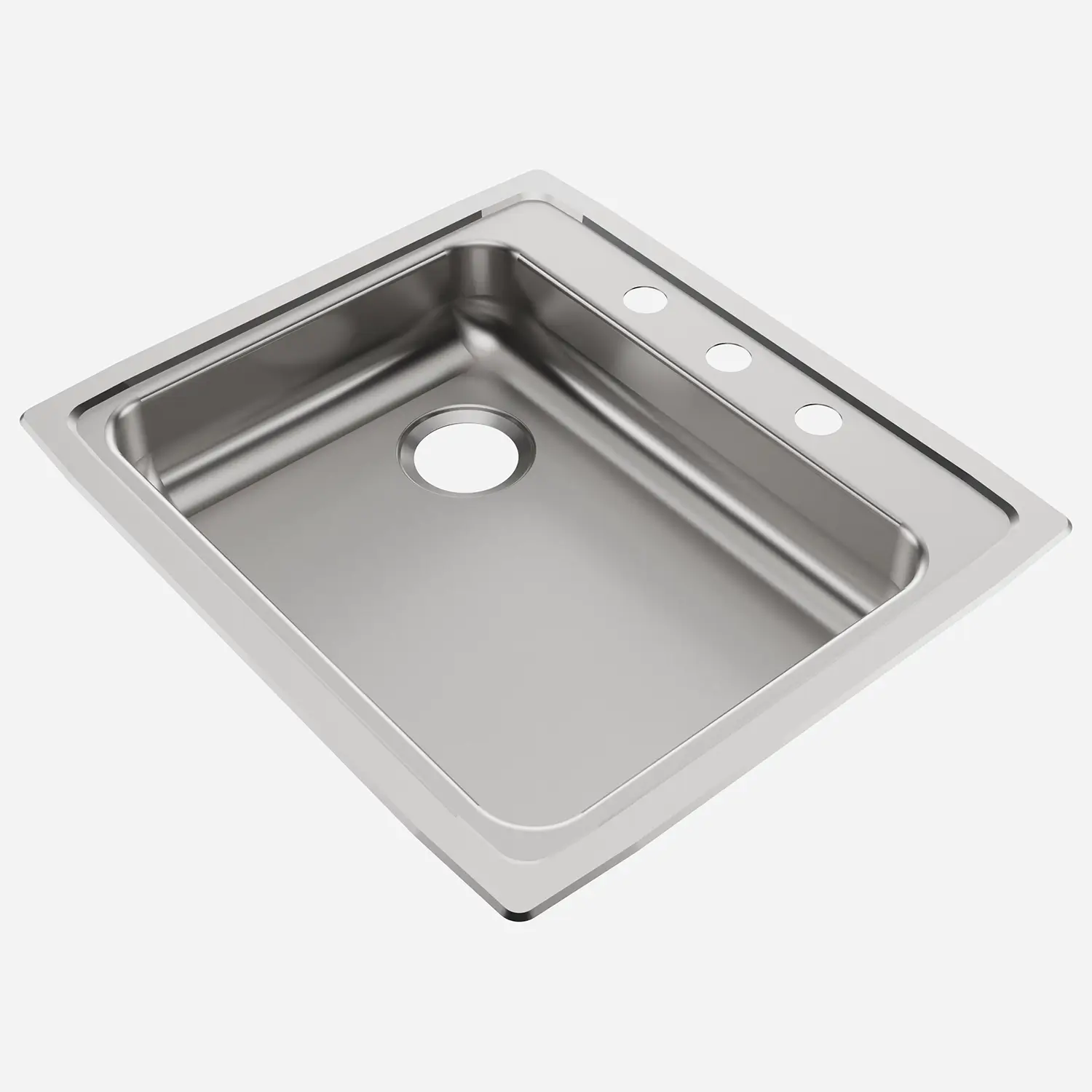

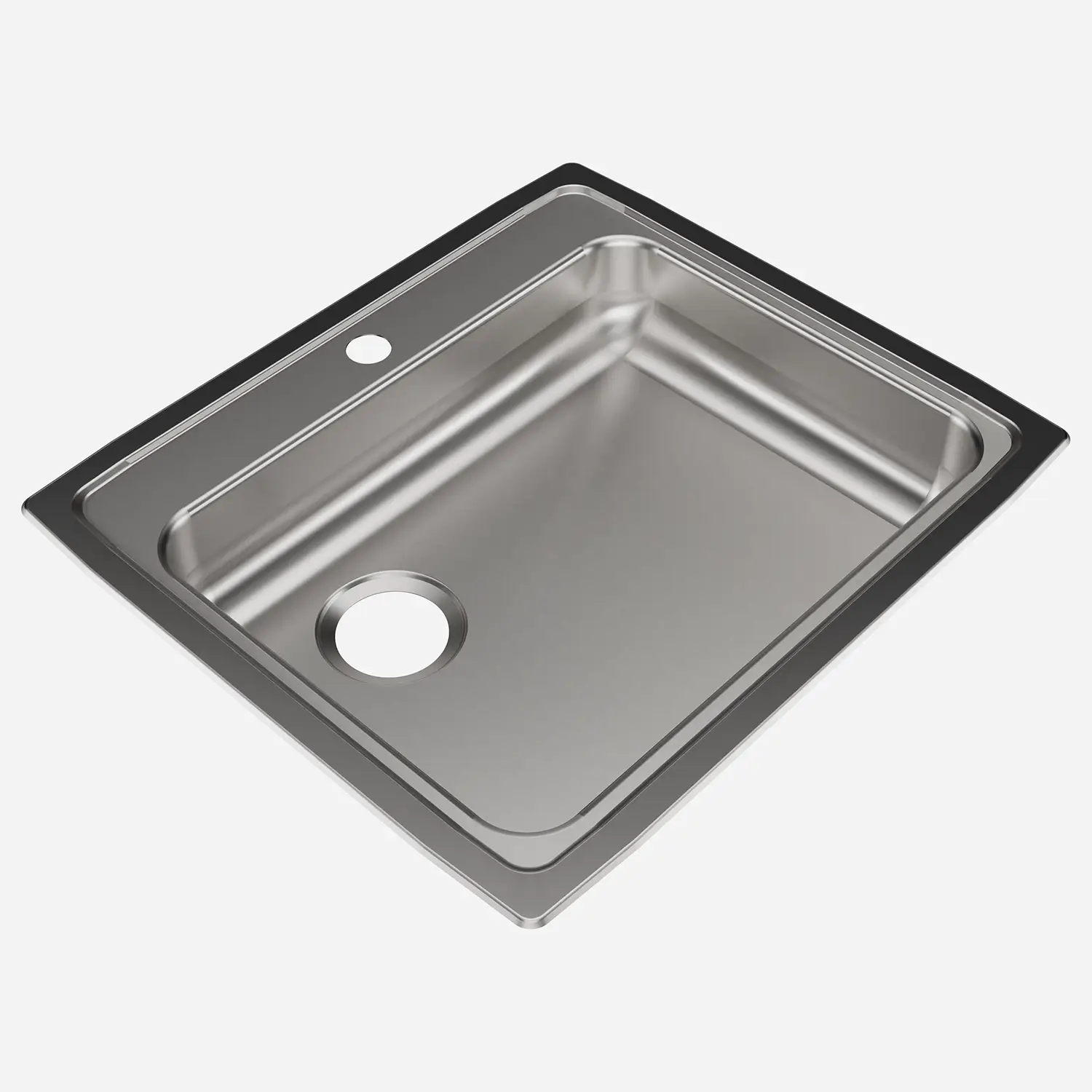

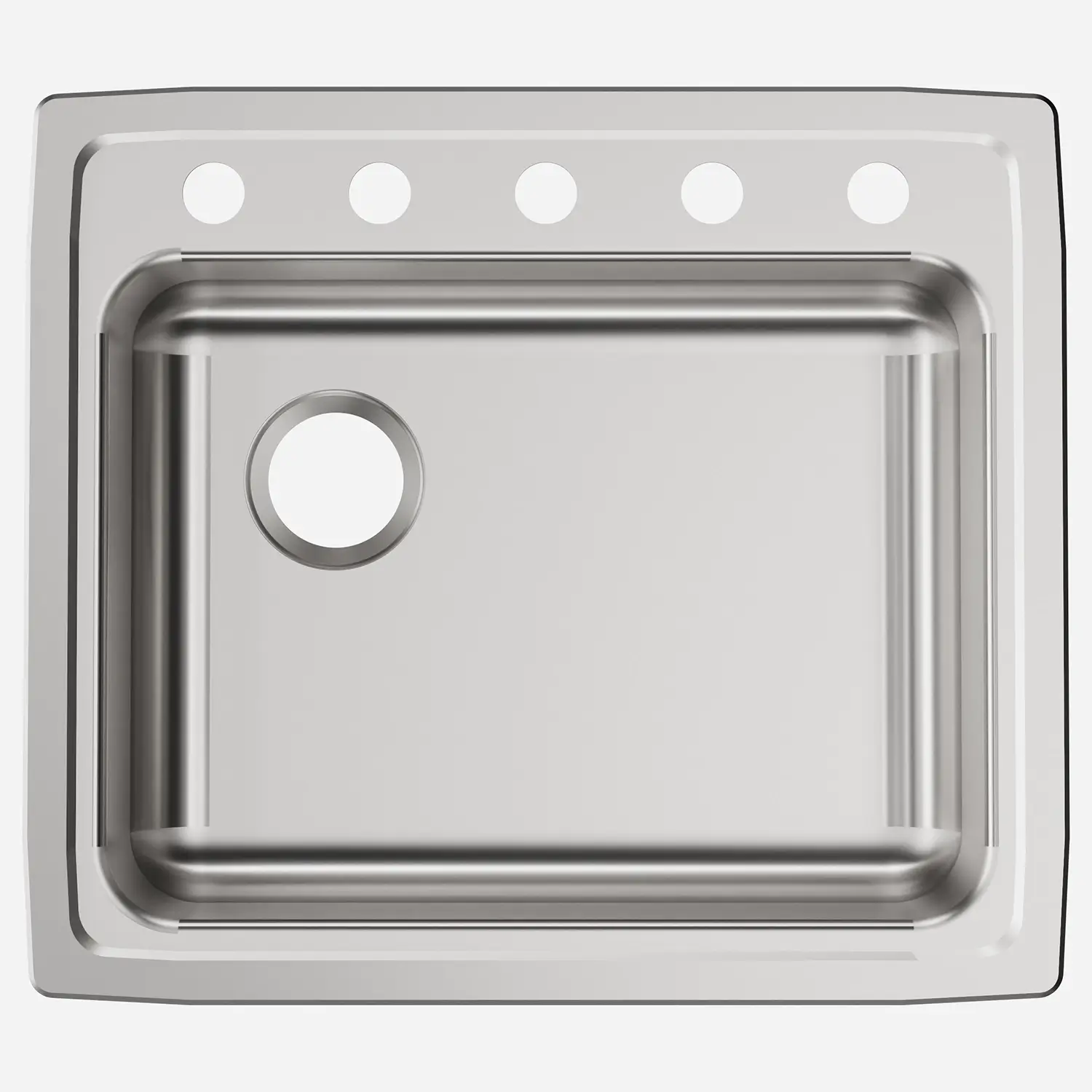

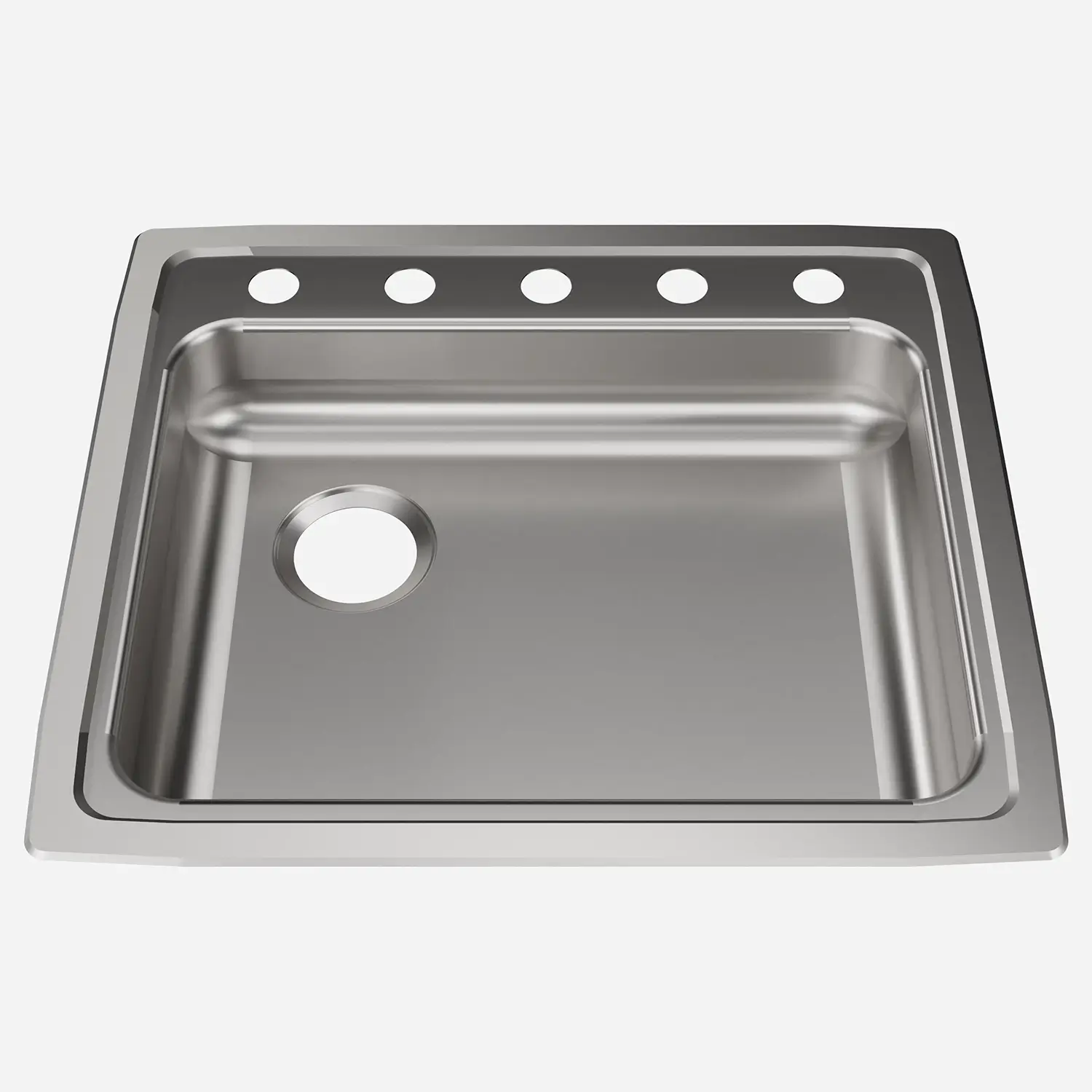

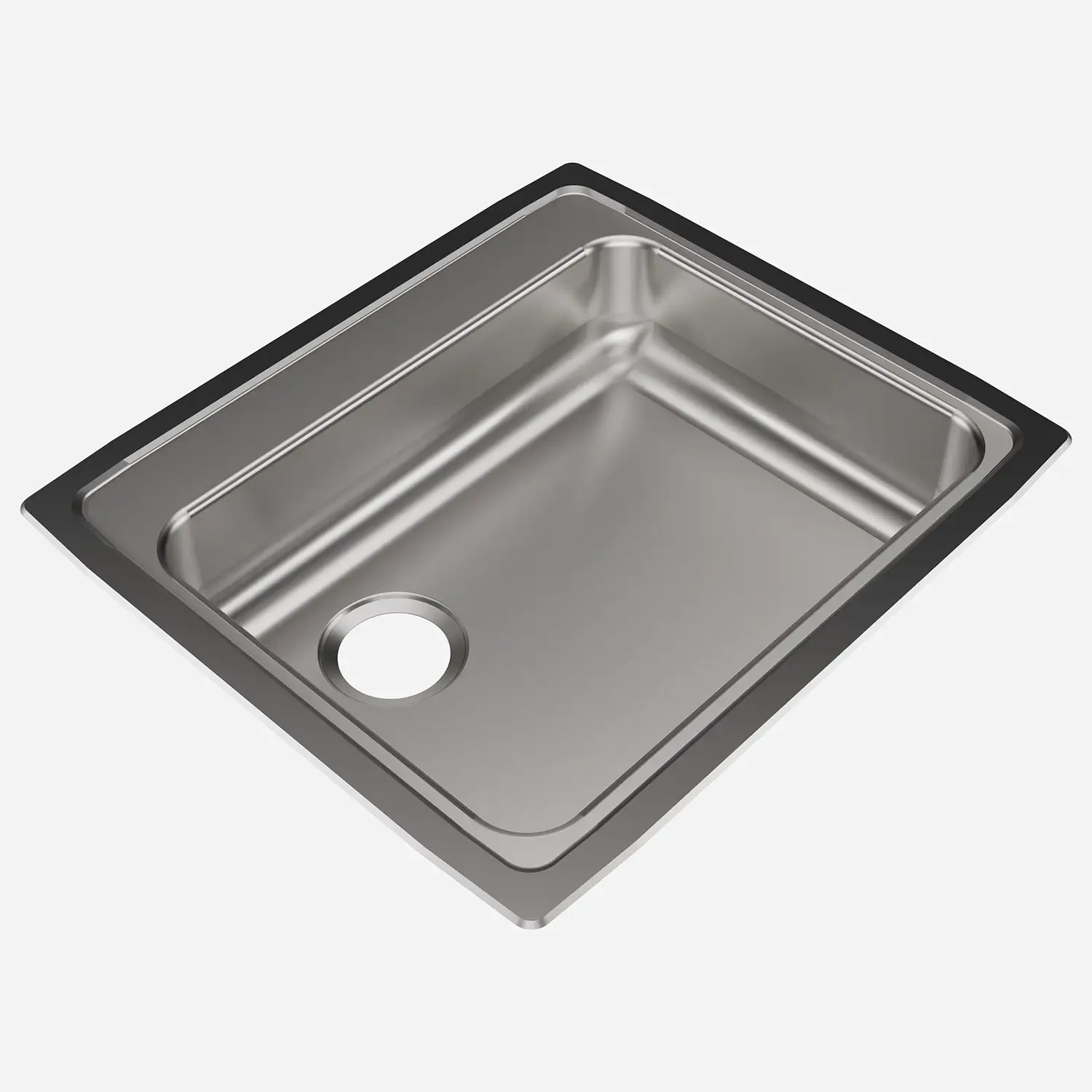

Acorn-Sinks® Stainless Steel ADA Drop-In Sink, 25" x 22", Left Offset Drain

SDADADL-2522 is an ADA-compliant, single bowl drop-in sink measuring 25" x 22" with a bowl size of 21"x 15-3/4". The sink is available in 5-1/2" or 4-1/2" bowl depth.  The 3-1/2" drain is offset 5" from the left wall of the bowl and 5" from the back wall of the bowl. A minimum cabinet size of 30" is required.

Acorn-Sinks® Features & Benefits:

• Left offset drain
• Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
• Simple drop-in installation
• Sound deadening pads on the sink bottom for reduced noise
• Concealed U-channels with mounting hardware
• Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
• Meticulous packaging that prevents shipping damage
• UPC, cUPC, and IPC compliant

SDADADL-2522-55 features a 5-1/2" (140 mm) deep x 15-3/4" (400 mm) front-to-back x 21" (533 mm) wide (side-to-side) bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 5" (127 mm) from the rear wall of the bowl and 5" (127 mm) from the left wall of bowl. These specific dimensions provide ADA compliance; however, please check your local requirements. ADA compliance is subject to proper installation and the interpretations of the local code authority. Overall dimensions are 25" (635 mm) side-to-side x 22" (559 mm) front-to-back.

SDADADL-2522-45 features the same dimensions but a 4-1/2" (114 mm) bowl depth.

SDADADL-2522-65 features the same dimensions but a 6-1/2" (165 mm) bowl depth. < COMING SOON >
