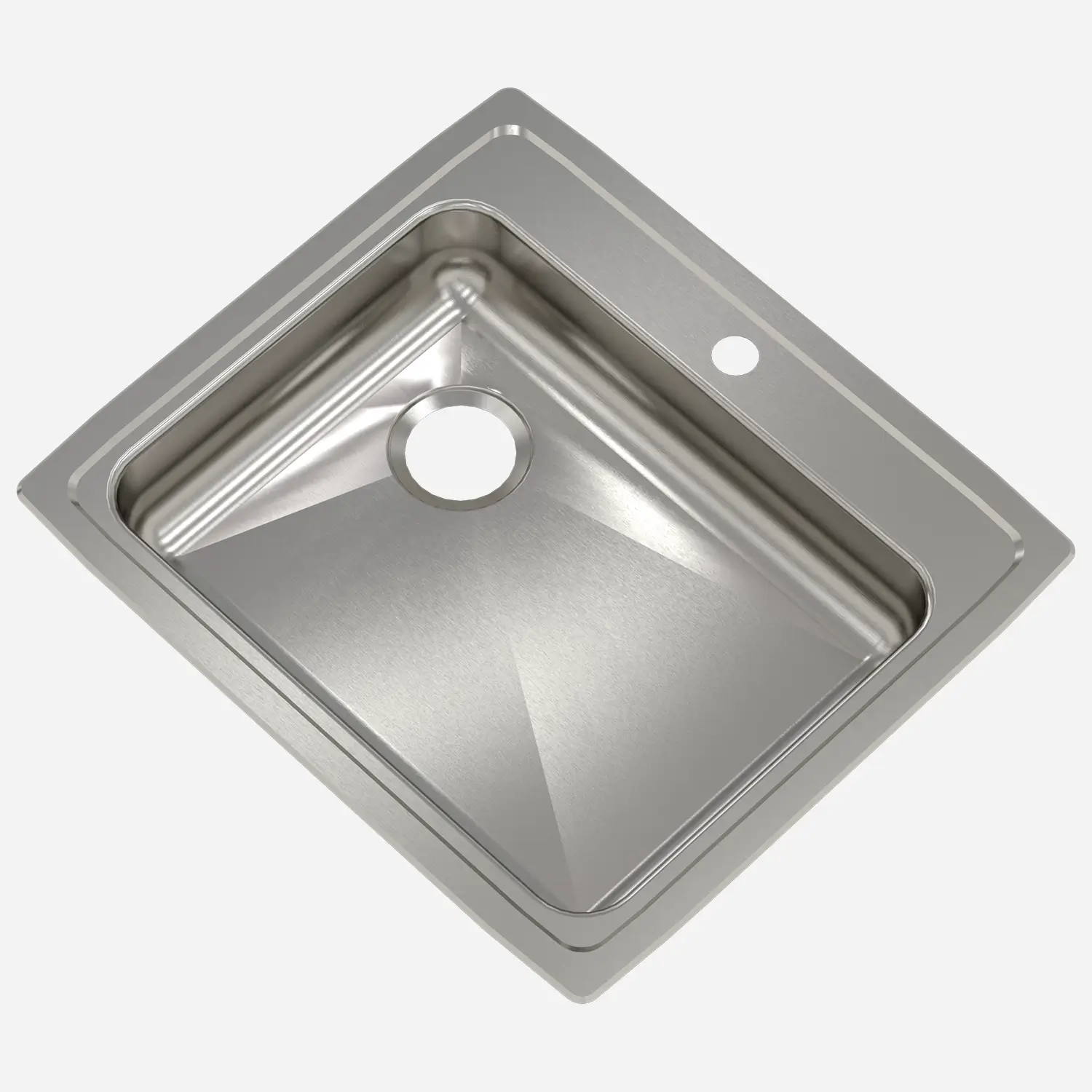

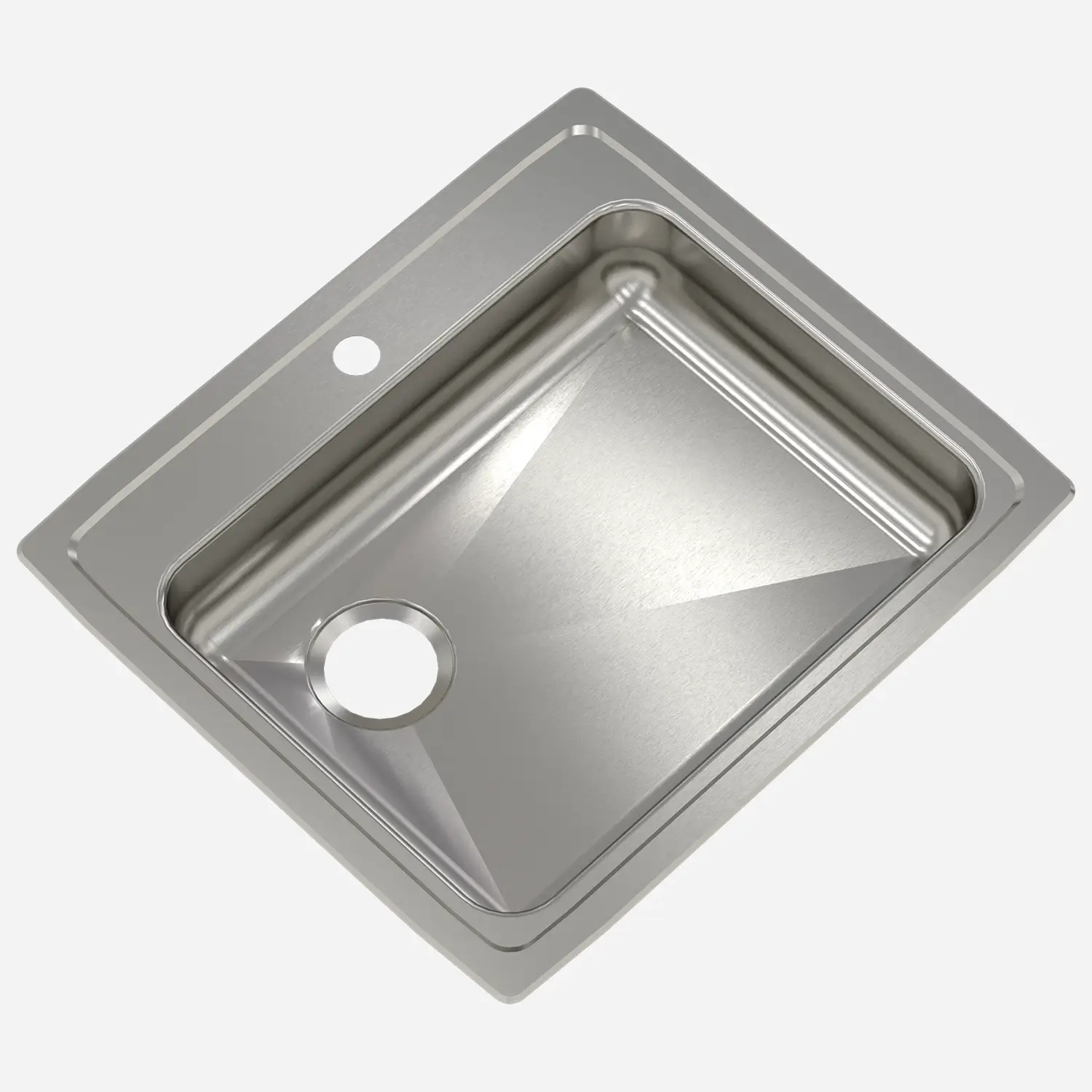

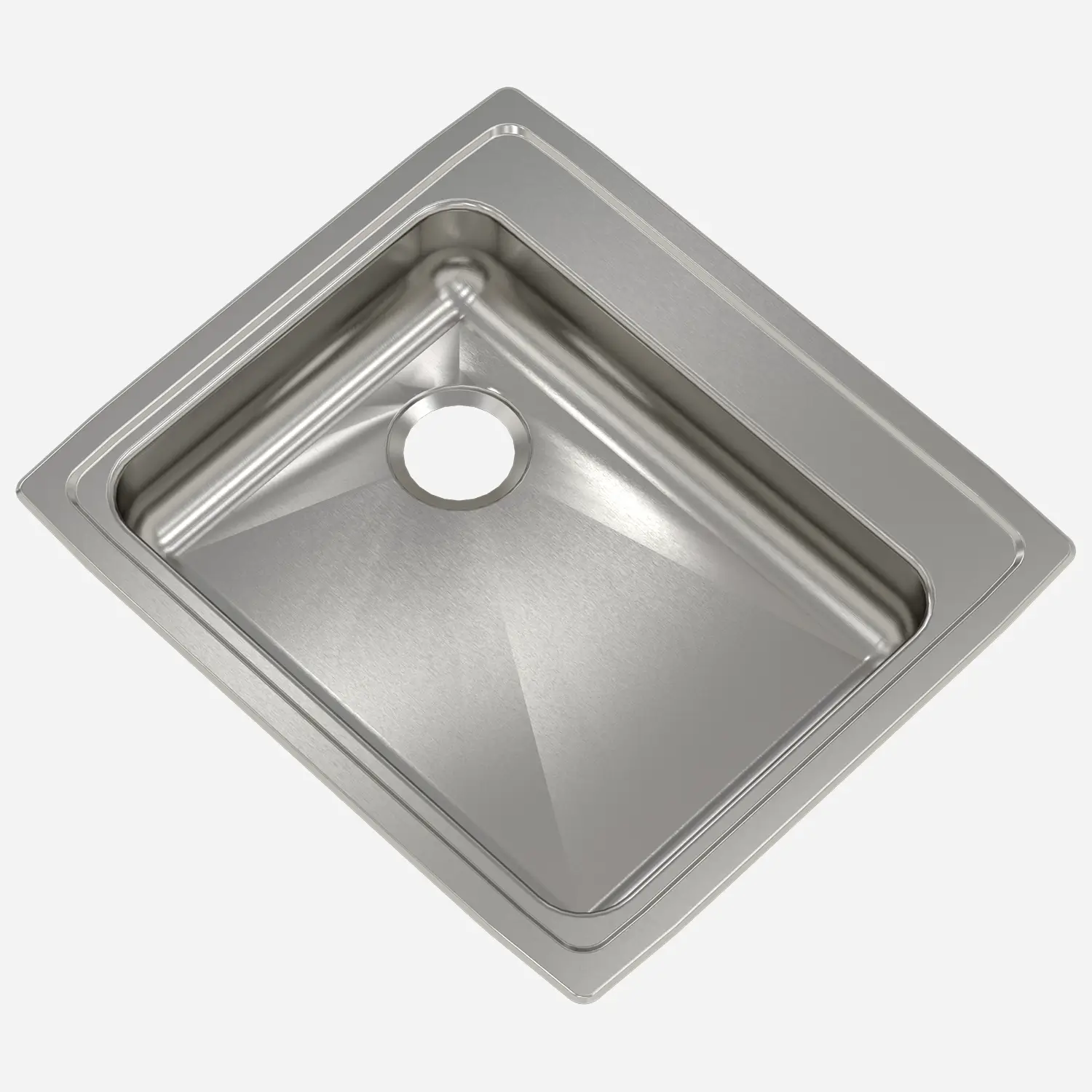

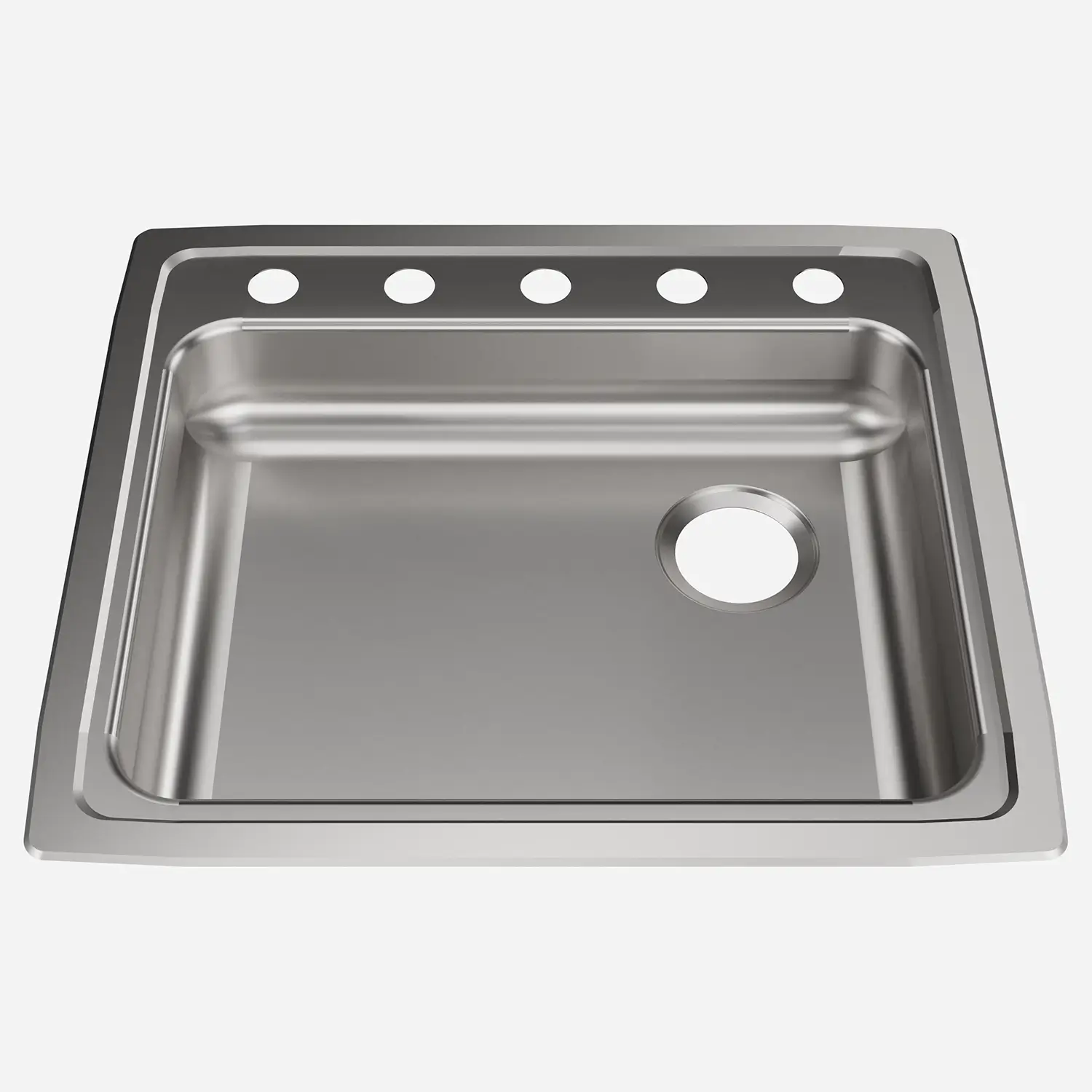

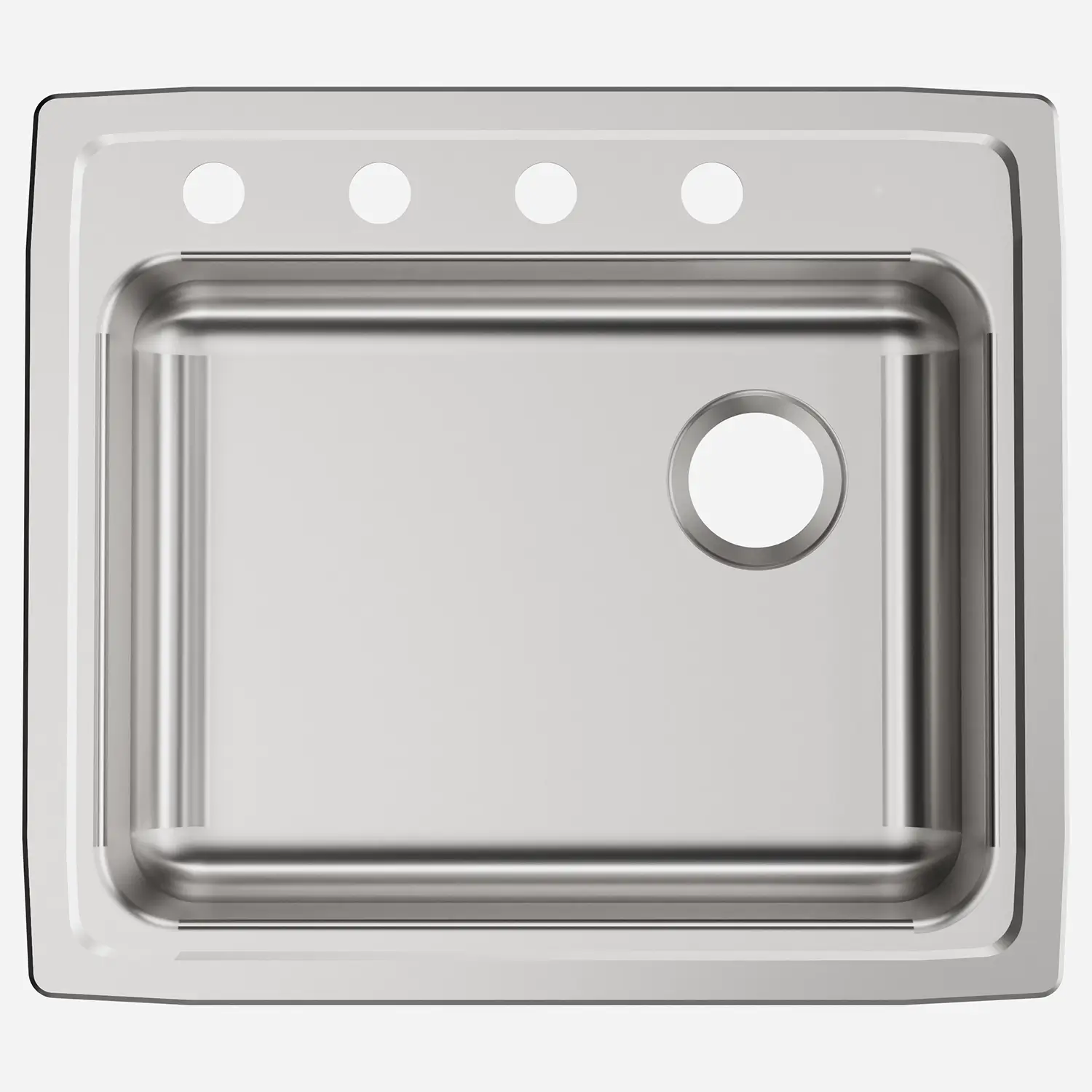

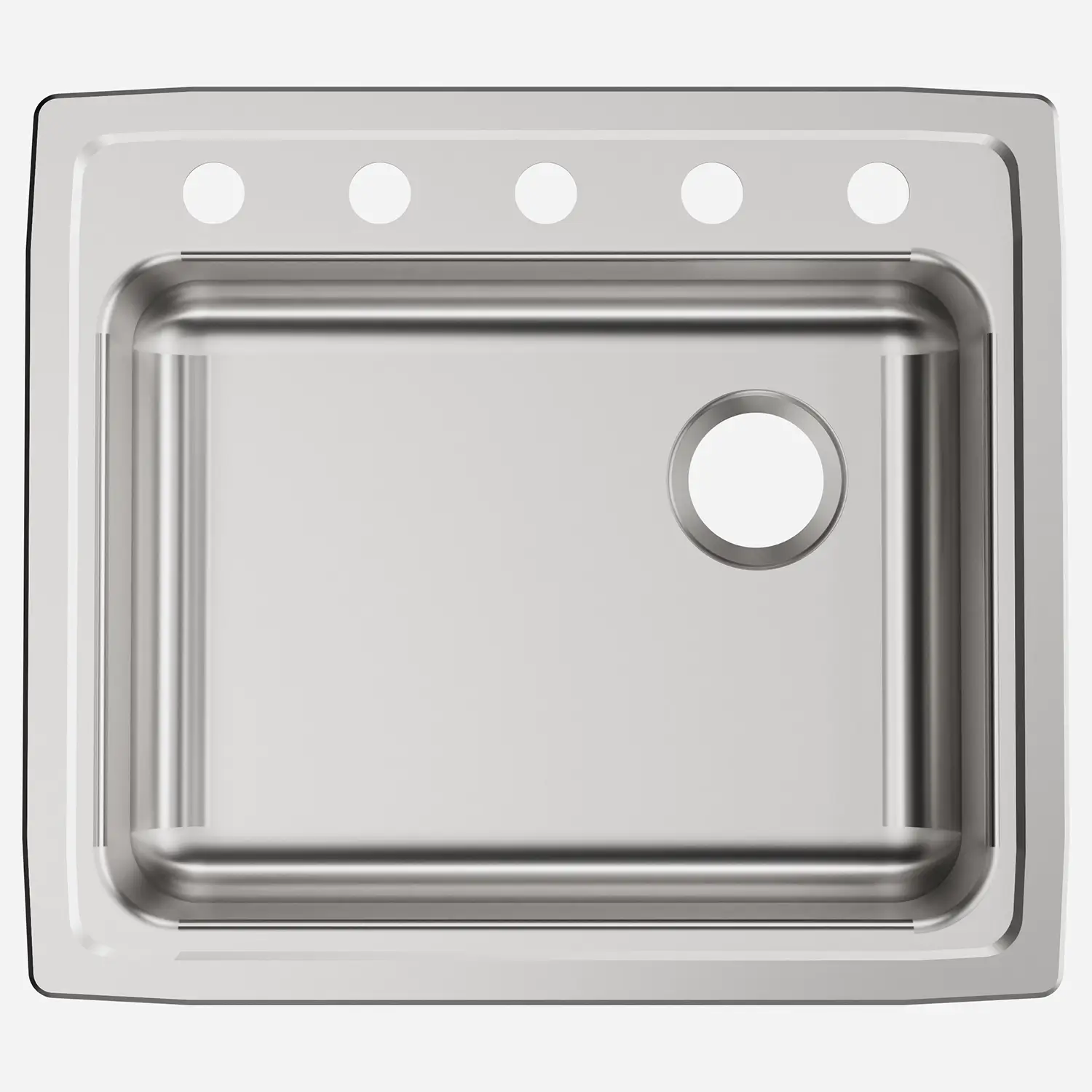

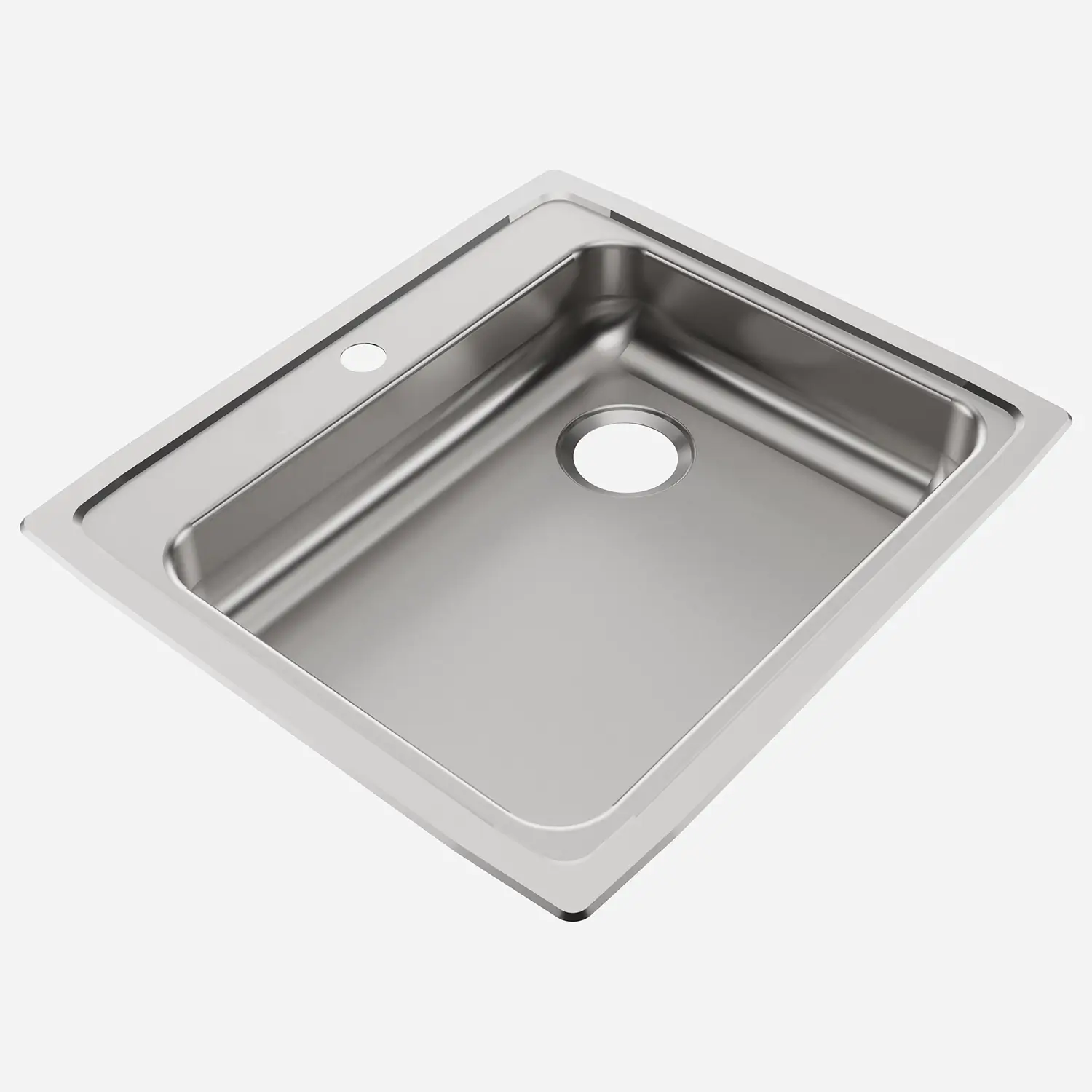

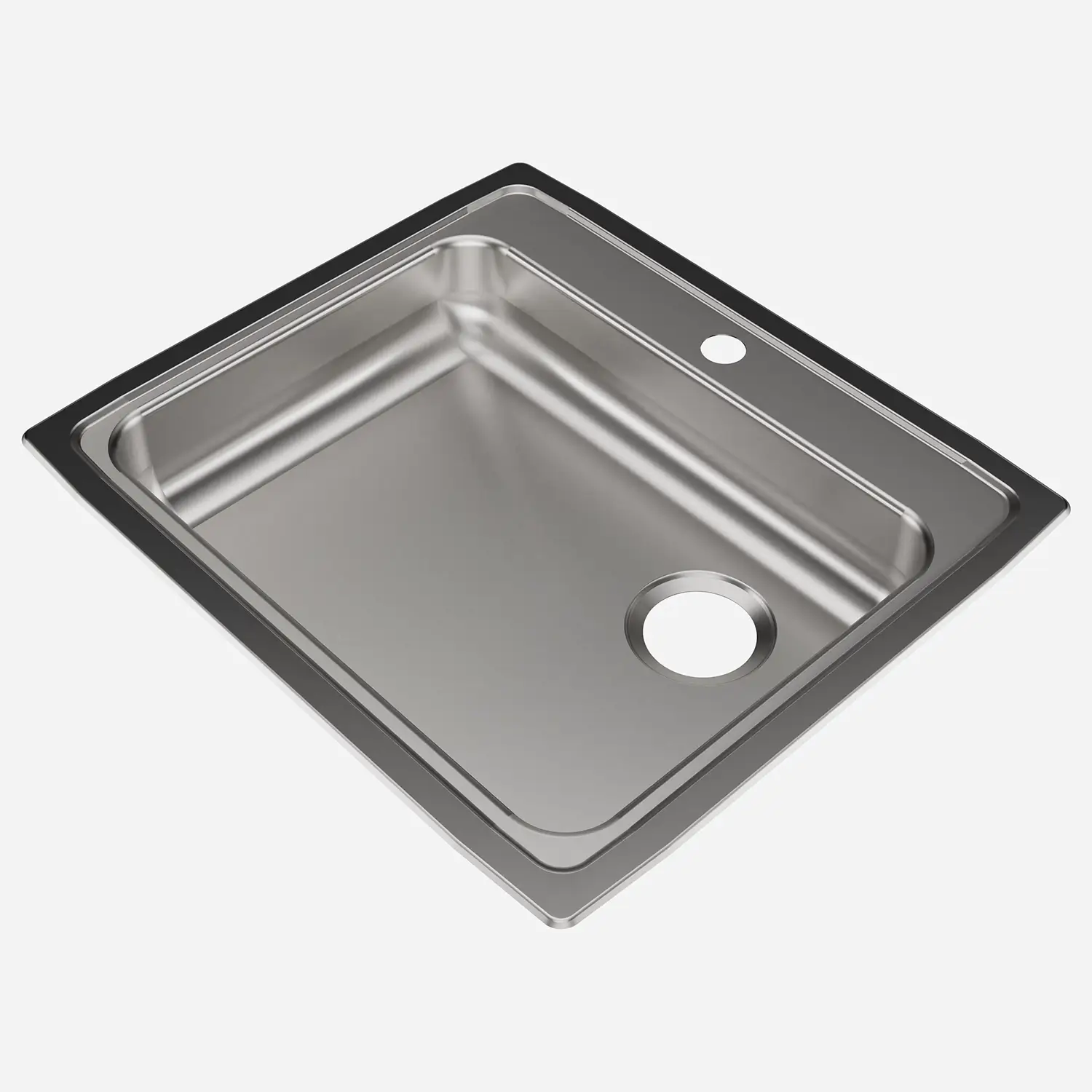

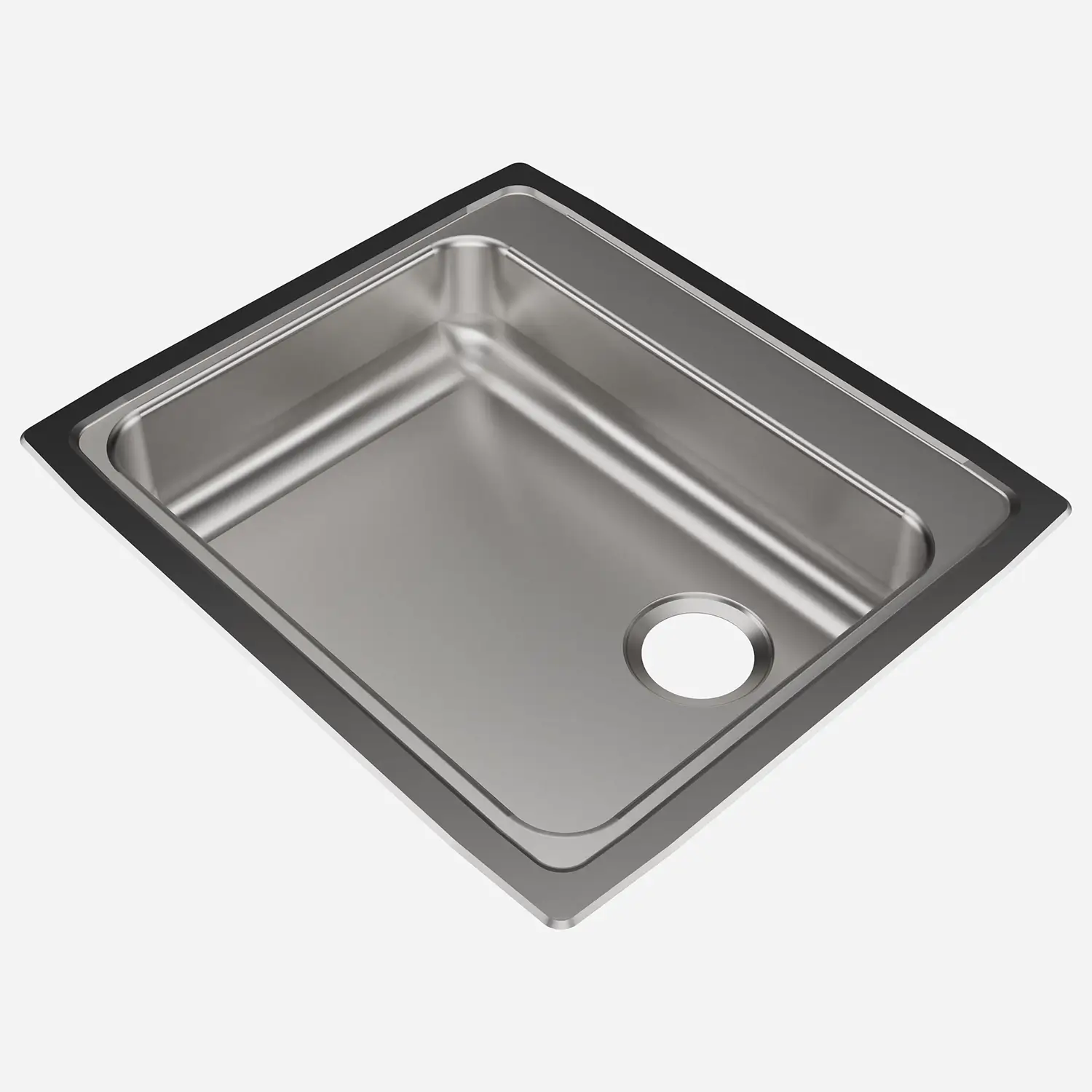

Acorn-Sinks® Stainless Steel ADA Drop-In Sink, 25" x 22", Right Offset Drain

SDADADR-2522 is an ADA-compliant, single-bowl drop-in sink measuring 25" x 22" with a bowl size of 21" x 15-3/4". The sink is available in 5-1/2", 4-1/2", 6-1/2" bowl depths.  The 3-1/2" drain is offset 5" from the right wall of the bowl and 5" from the back wall of the bowl. A minimum cabinet size of 30" is required.

Acorn-Sinks® Features & Benefits:

• Right offset drain
• Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
• Simple drop-in installation
• Sound-deadening pads on the sink bottom for reduced noise
• Concealed U-channels with mounting hardware
• Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
• Meticulous packaging that prevents shipping damage
• UPC, cUPC, and IPC compliant

SDADADR-2522-55 features a 5-1/2" (140 mm) deep x 15-3/4" (400 mm) front-to-back x 21" (533 mm) wide (side-to-side) bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 5" (127 mm) from the rear wall of the bowl and 5" (127 mm) from the right wall of the bowl. These specific dimensions provide ADA compliance; however, please check your local requirements. ADA compliance is subject to proper installation and the interpretations of the local code authority. Overall dimensions are 25" (635 mm) side-to-side x 22" (559 mm) front-to-back.

SDADADR-2522-45 features the same dimensions but a 4-1/2" (114 mm) bowl depth.

SDADADR-2522-65 features the same dimensions but a 6-1/2" (165 mm) bowl depth. < COMING SOON >
