Acorn-Sinks® Stainless Steel ADA Undermount Sink, 19" x 16"

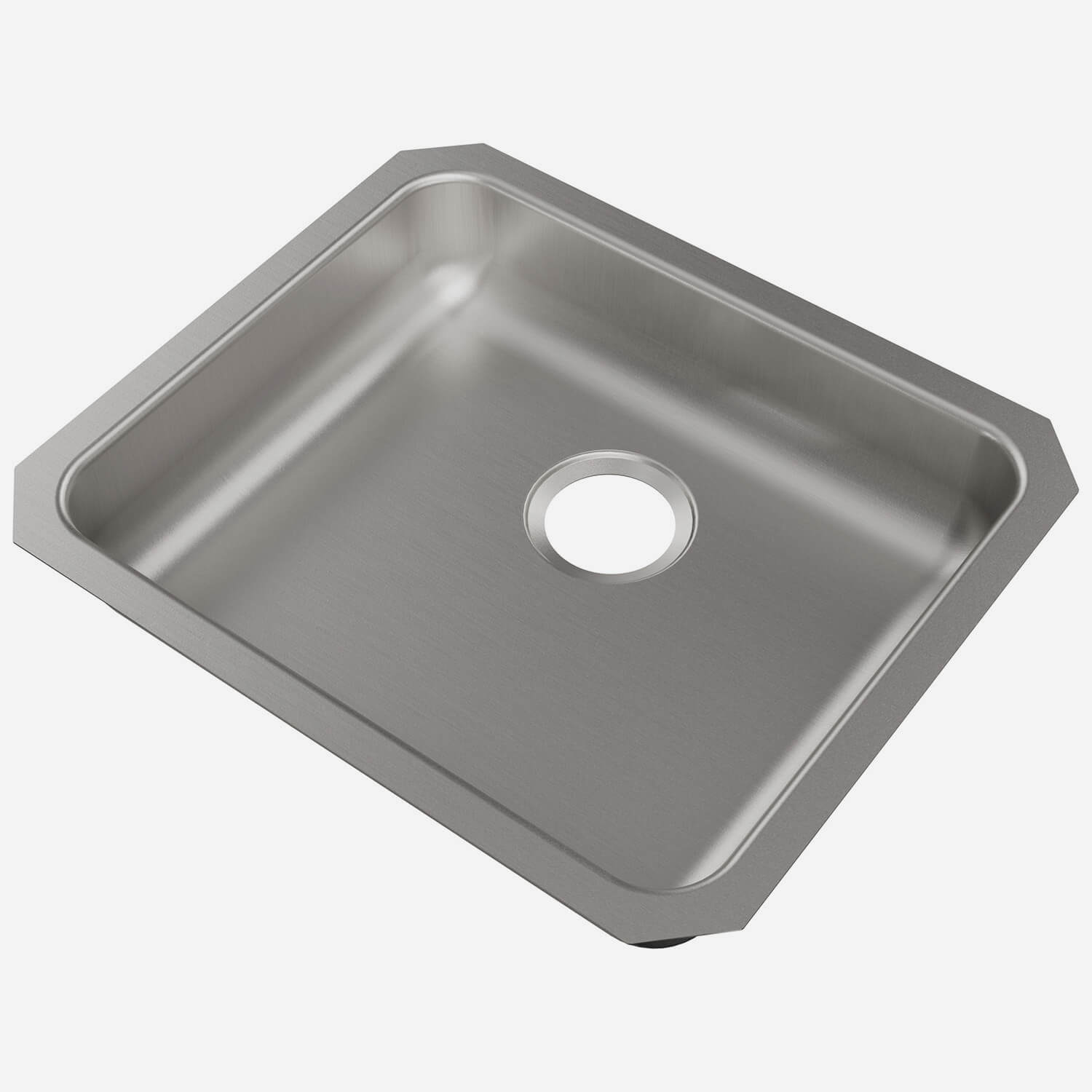

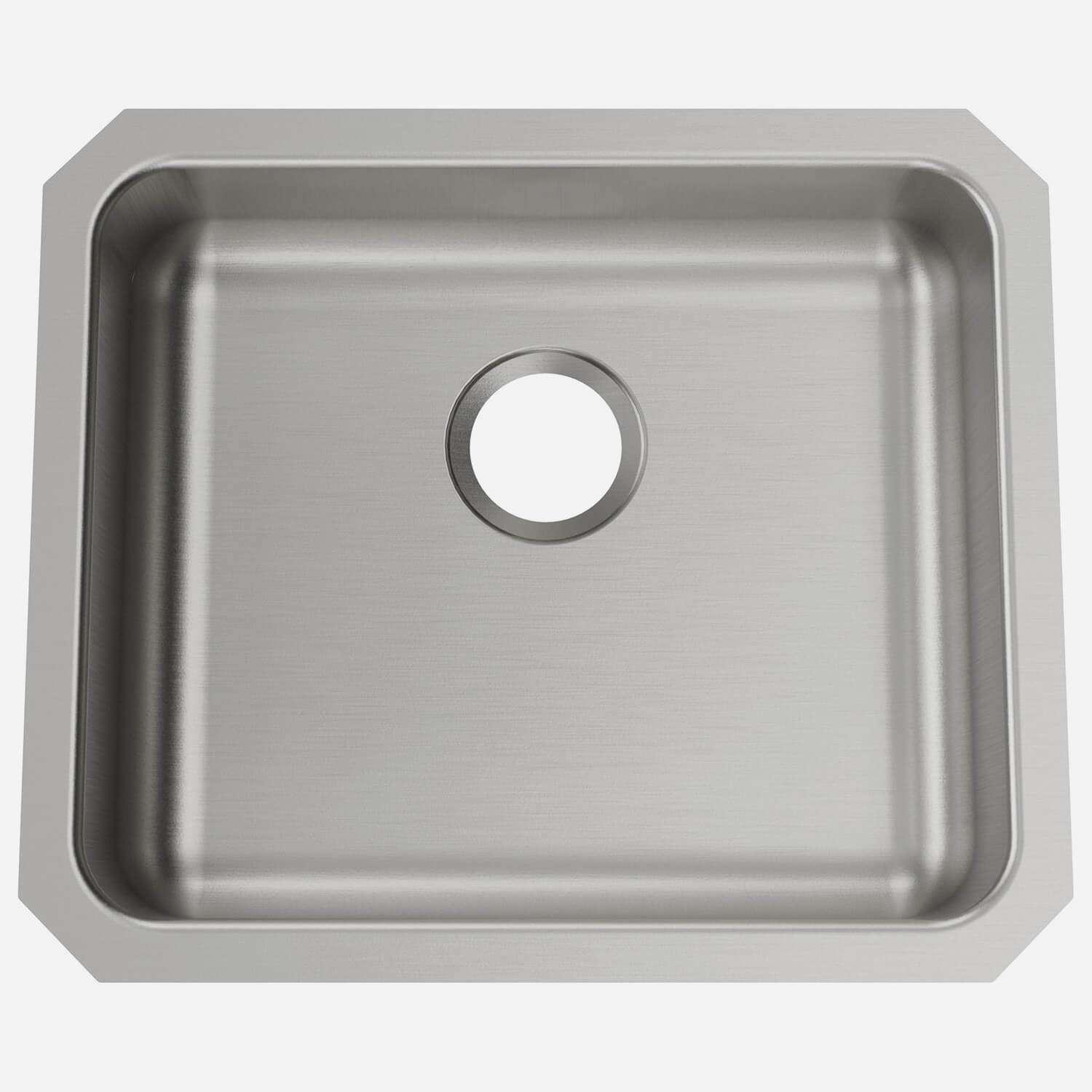

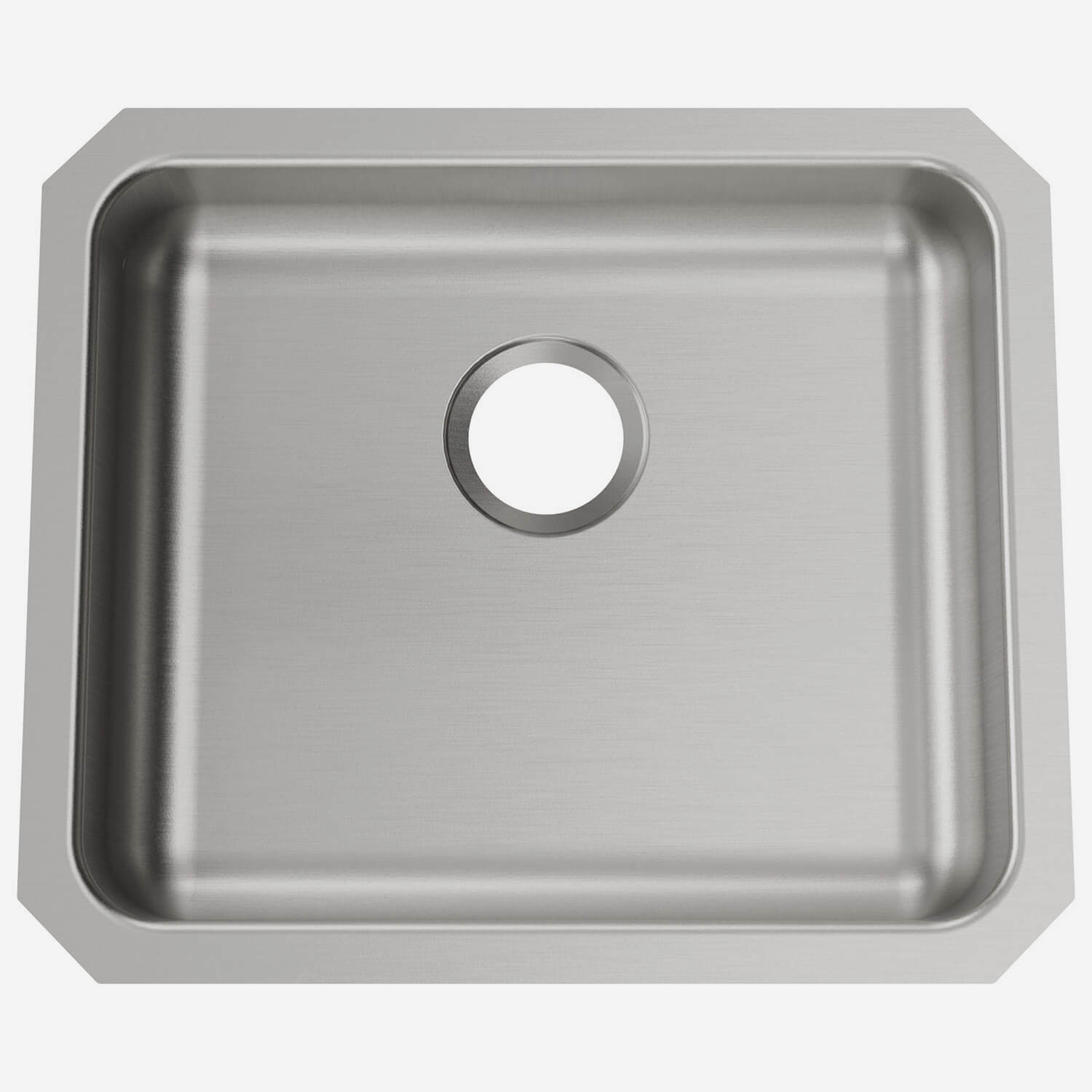

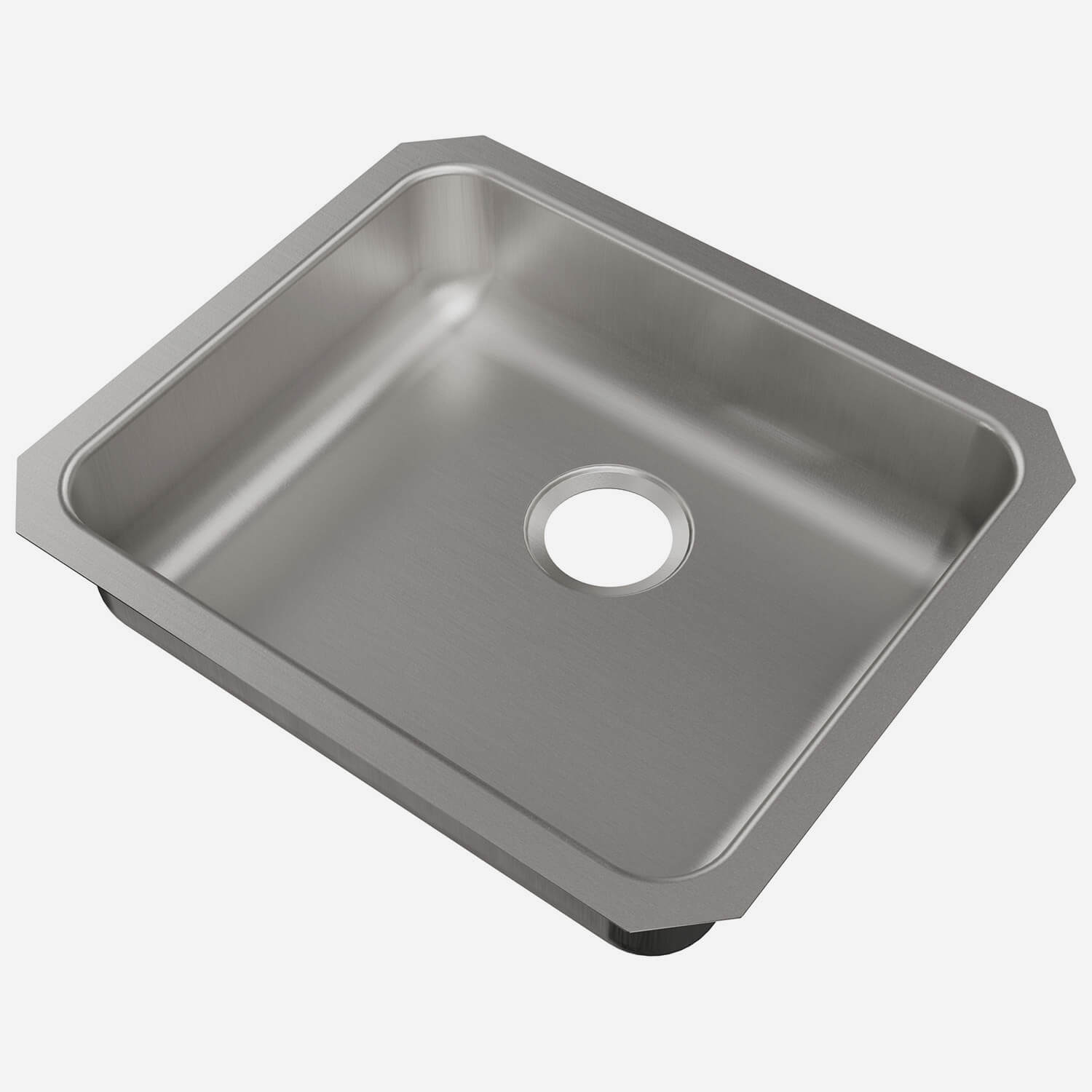

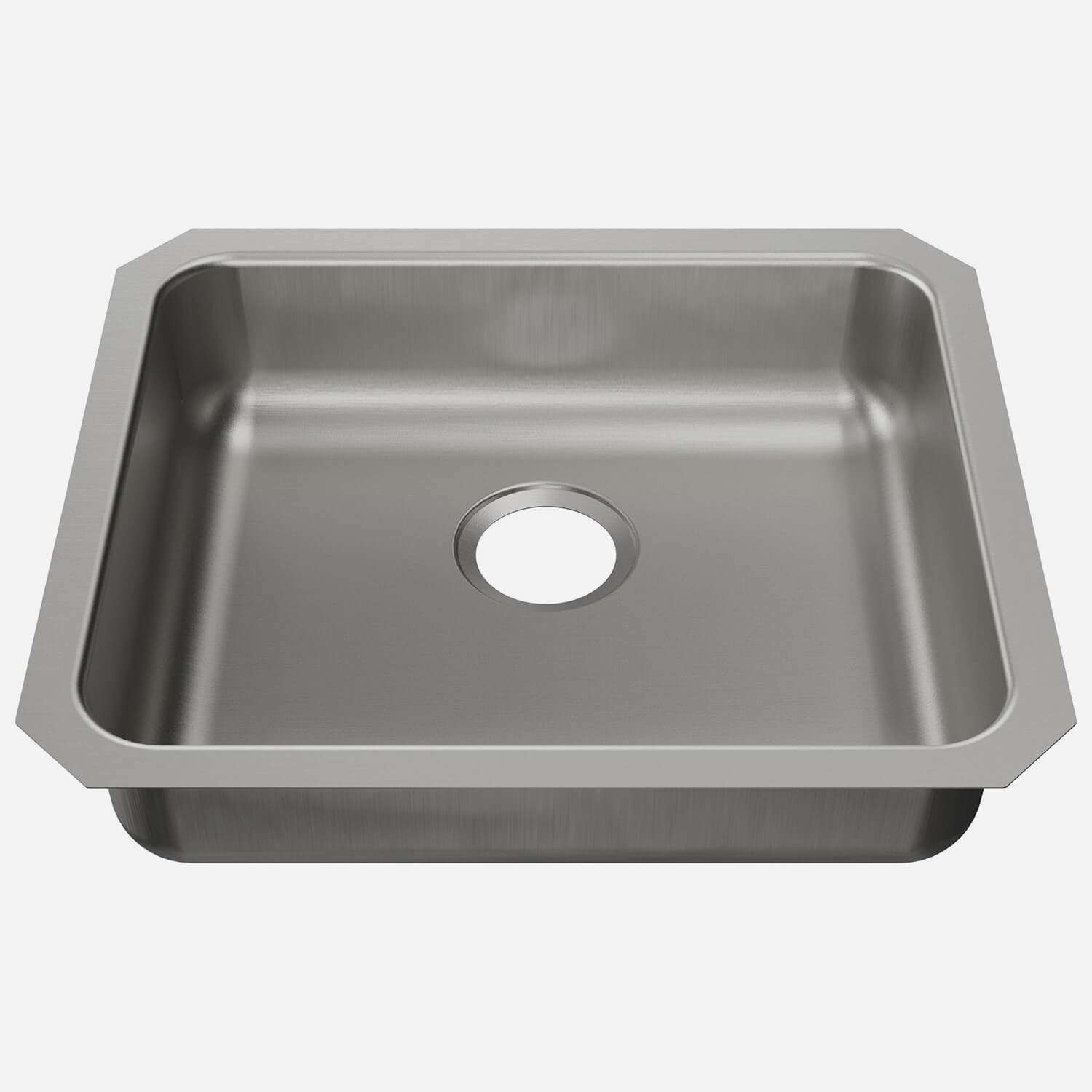

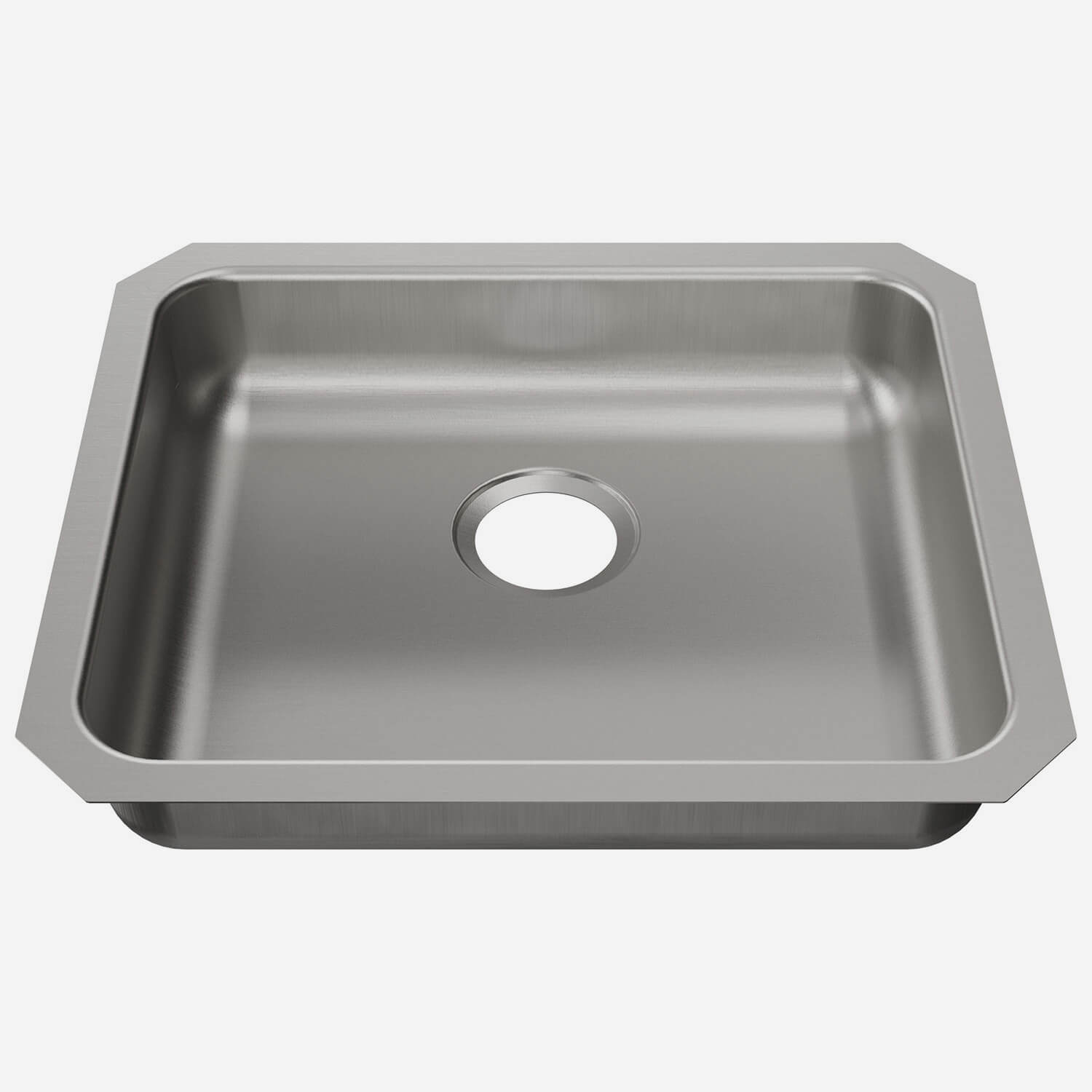

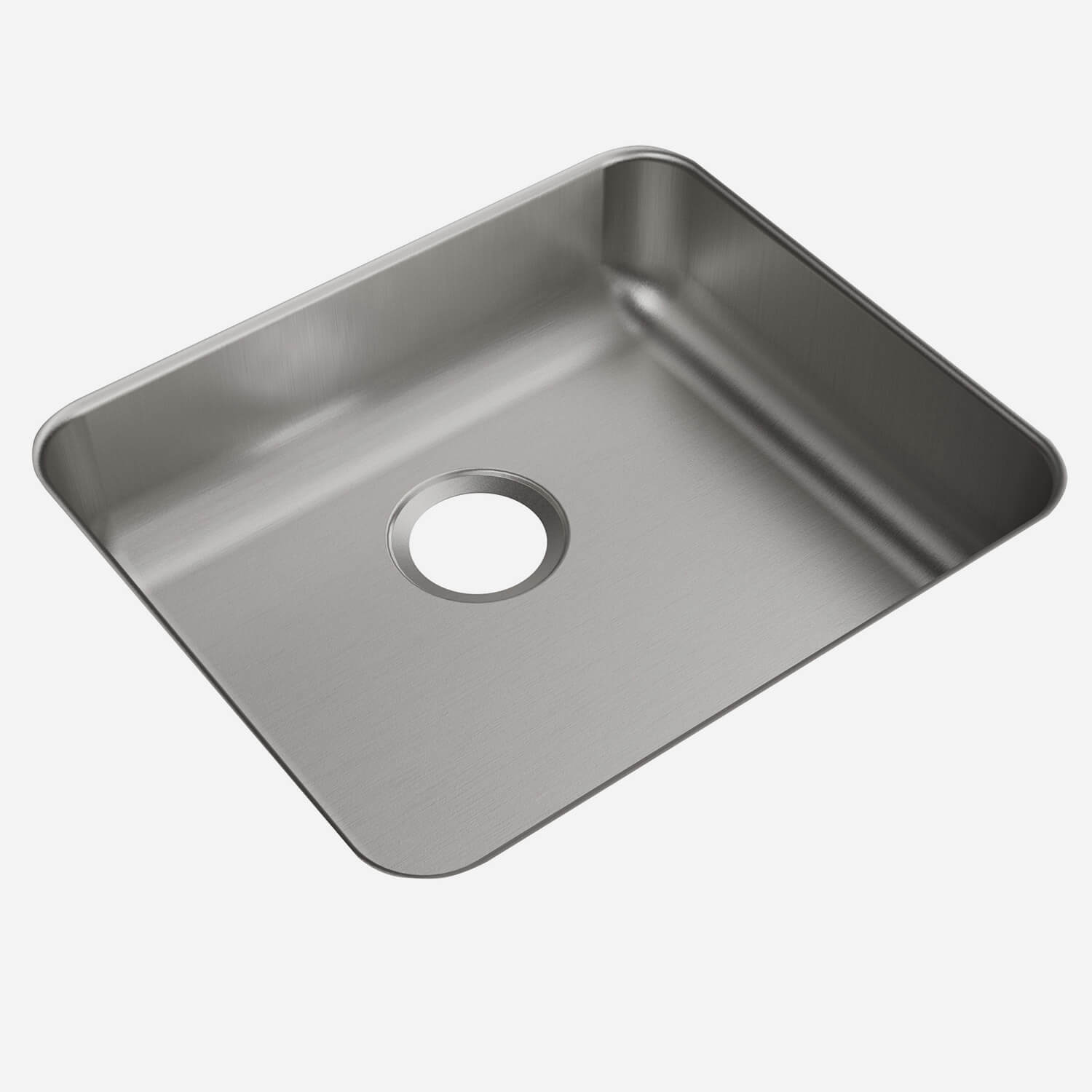

SUADA-1916 is an ADA compliant, undermount style, single bowl sink measuring 21-1/2" x 18-1/2" with a bowl size of 19" x 16". It has a centered back drain and your choice of a 5-1/2" or 4-1/2" bowl depth. A minimum cabinet size of 27" is required.

Acorn-Sinks® Features & Benefits:

• Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
• Simple undermount installation
• Sound deadening pads on the sink bottom for reduced noise
• Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
• Meticulous packaging that prevents shipping damage
• UPC, cUPC, and IPC compliant

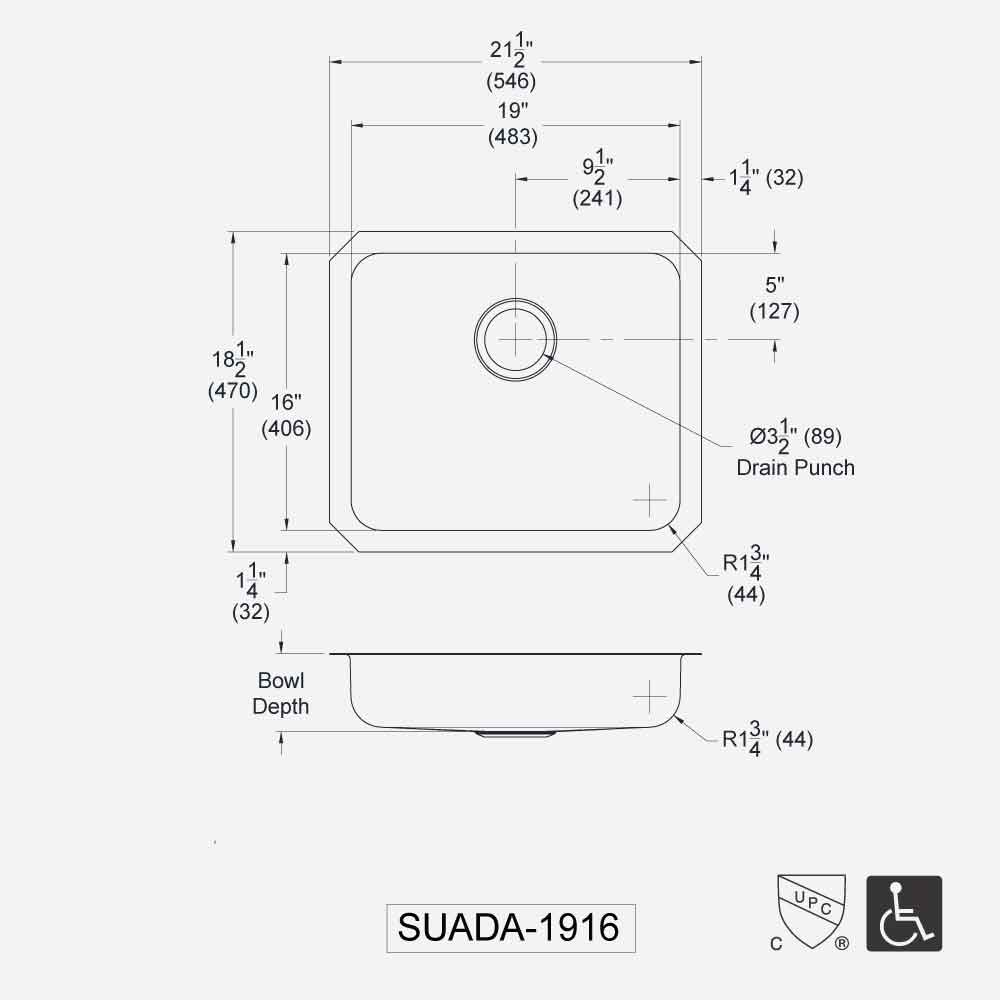

SUADA-1916-55 features a 5-1/2" (140 mm) deep x 16" ( 406 mm) front-to-back x 19" (483 mm) side-to-side bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 5" (127 mm) from the rear wall of the bowl. These specific dimensions provide ADA compliance; however, please check your local requirements. ADA compliance is subject to proper installation and the interpretations of the local code authority. Overall dimensions are 21-1/2" (546 mm) side-to-side x 18-1/2" (470 mm) front-to-back.

SUADA-1916-45 features the same dimensions but a 4-1/2" (114 mm) bowl depth.
