Acorn-Sinks® Stainless Steel Drop-In Classroom Sink, 25" x 17"
$1,136.00 (USD) List PriceActual selling price may vary
In StockThis product is available for quick shipment nationwide.
Model CD-2517
Installation Instructions
Install Guide Stainless Steel Drop-in Sink (pdf)
Submittal
Submittal CD-2517 Drop-In Sink (pdf)
Model CD-2517

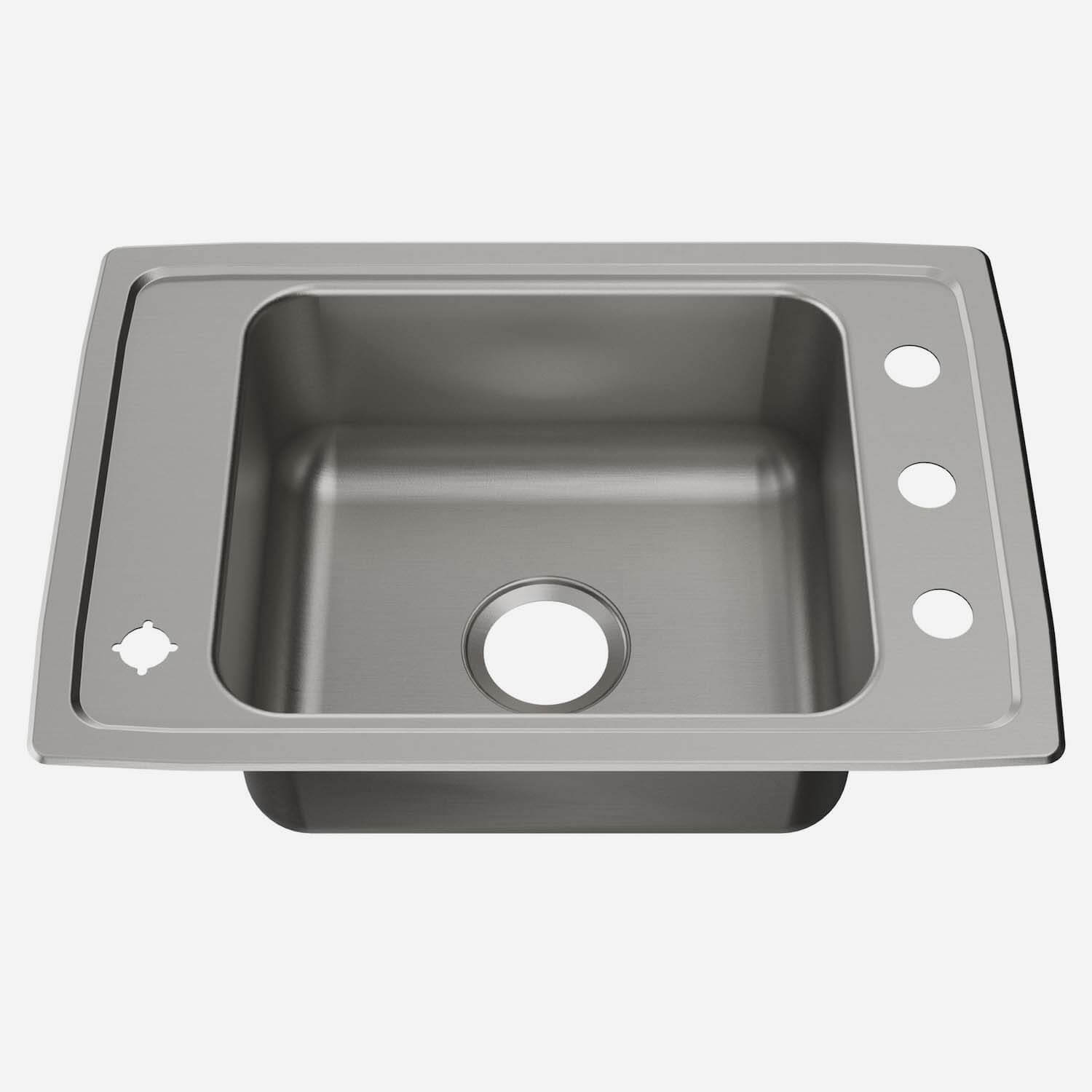

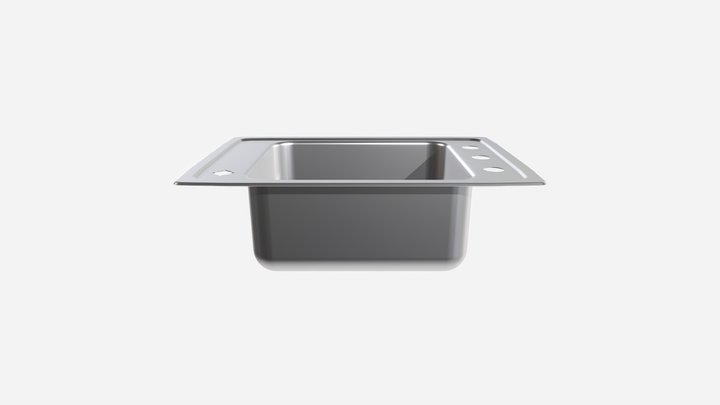

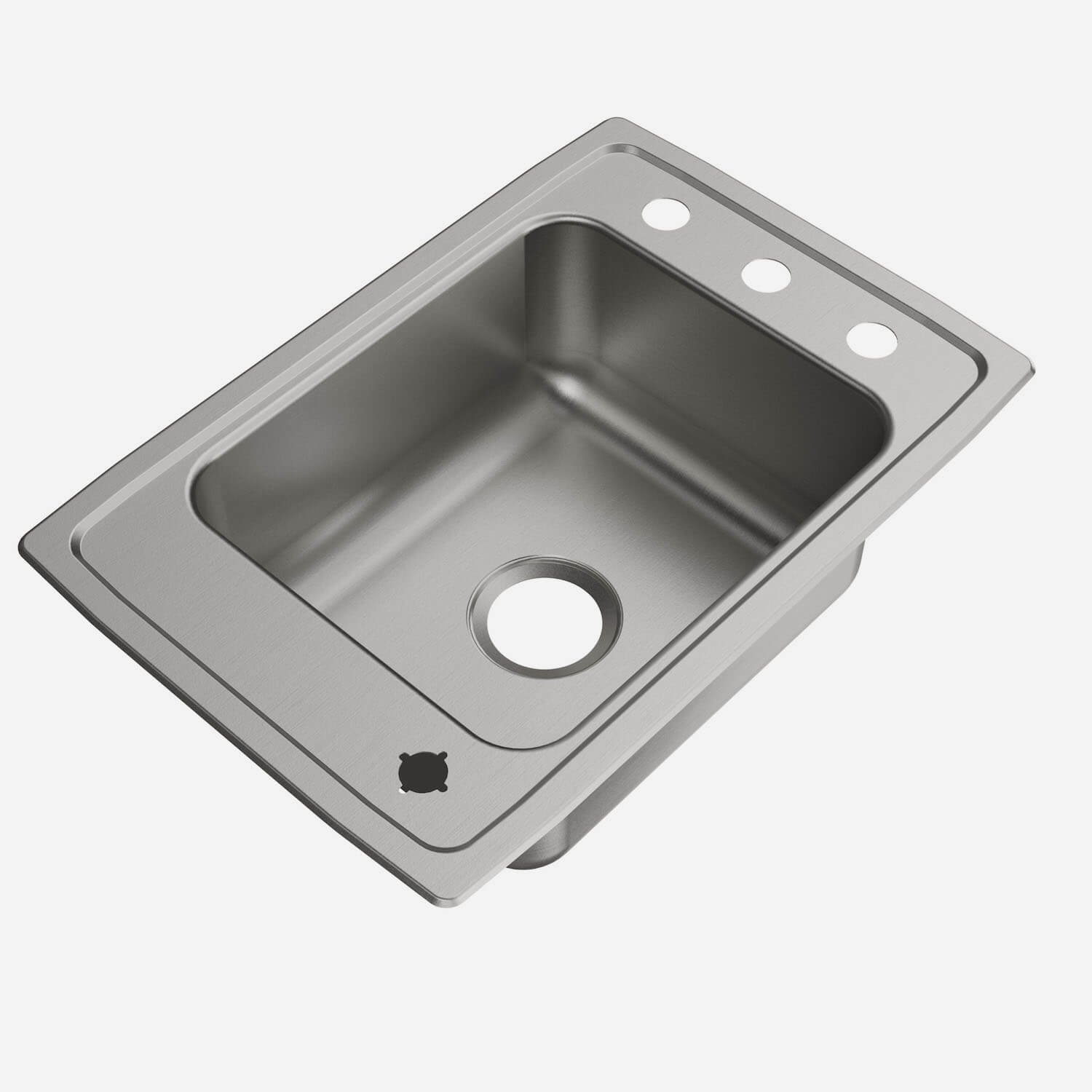

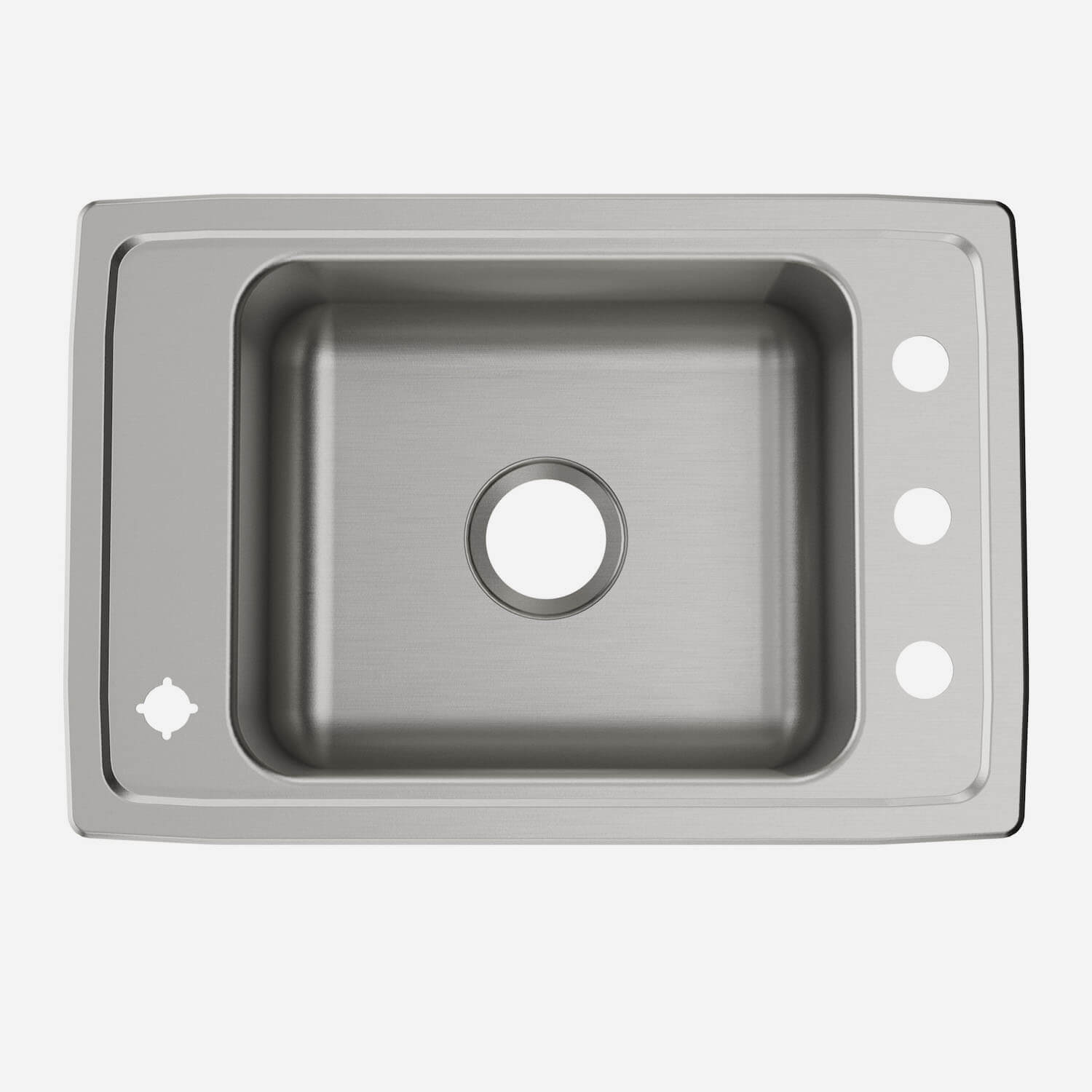

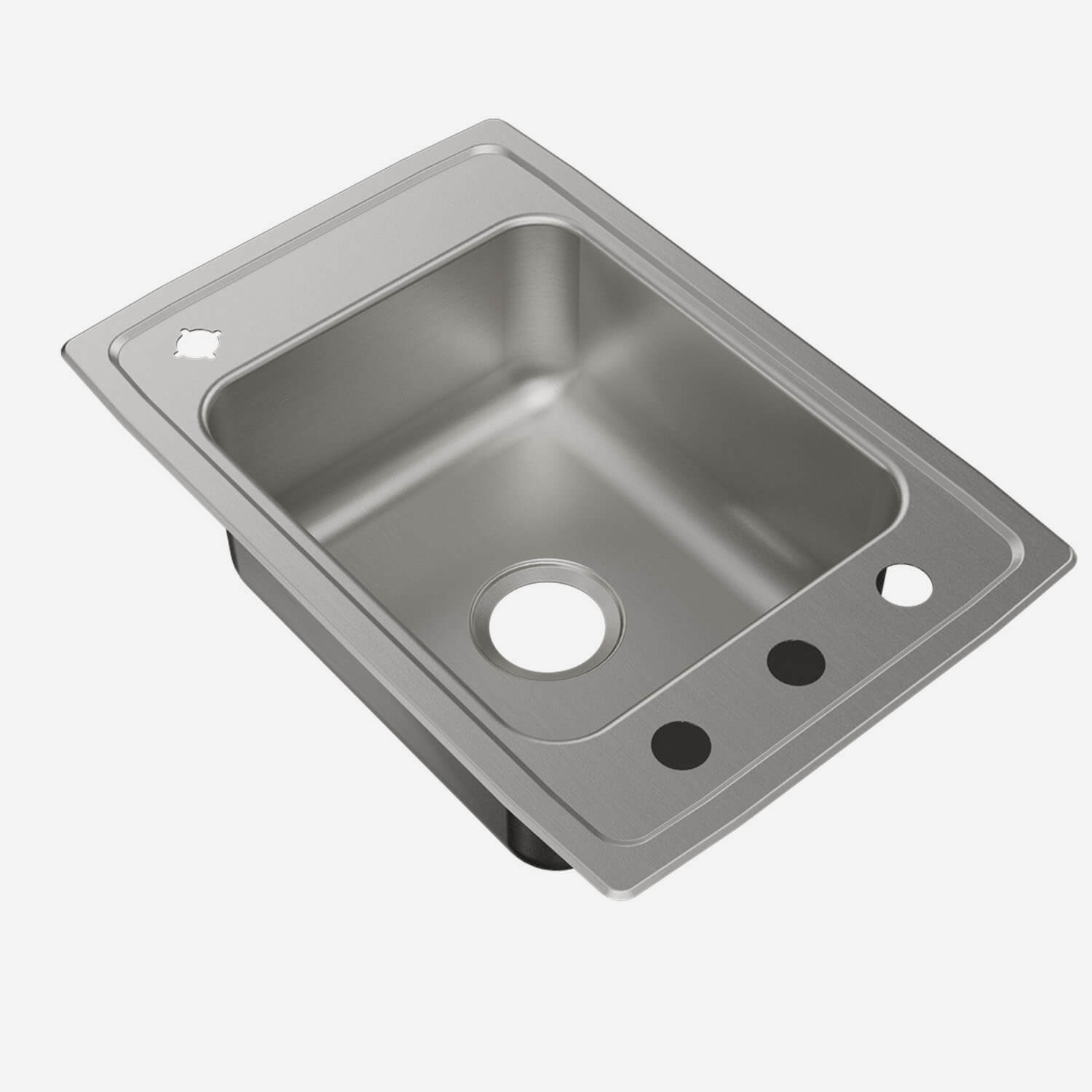

Acorn-Sinks® Stainless Steel Drop-In Classroom Sink, 25" x 17"
A single bowl drop-in sink designed specifically for classroom applications, CD-2517 measures 25"W and has an 8"D bowl. A minimum cabinet size of 30" is required. All classroom sinks feature punching for a faucet on one side and a drinking bubbler on the other.
Acorn-Sinks® Features & Benefits:
- Ideal for classroom appplications
- Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
- Simple drop-in installation
- Sound deadening pads on the sink bottom for reduced noise
- Concealed U-channels with mounting hardware
- Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
- Meticulous packaging that prevents shipping damage
- UPC, cUPC, and IPC compliant

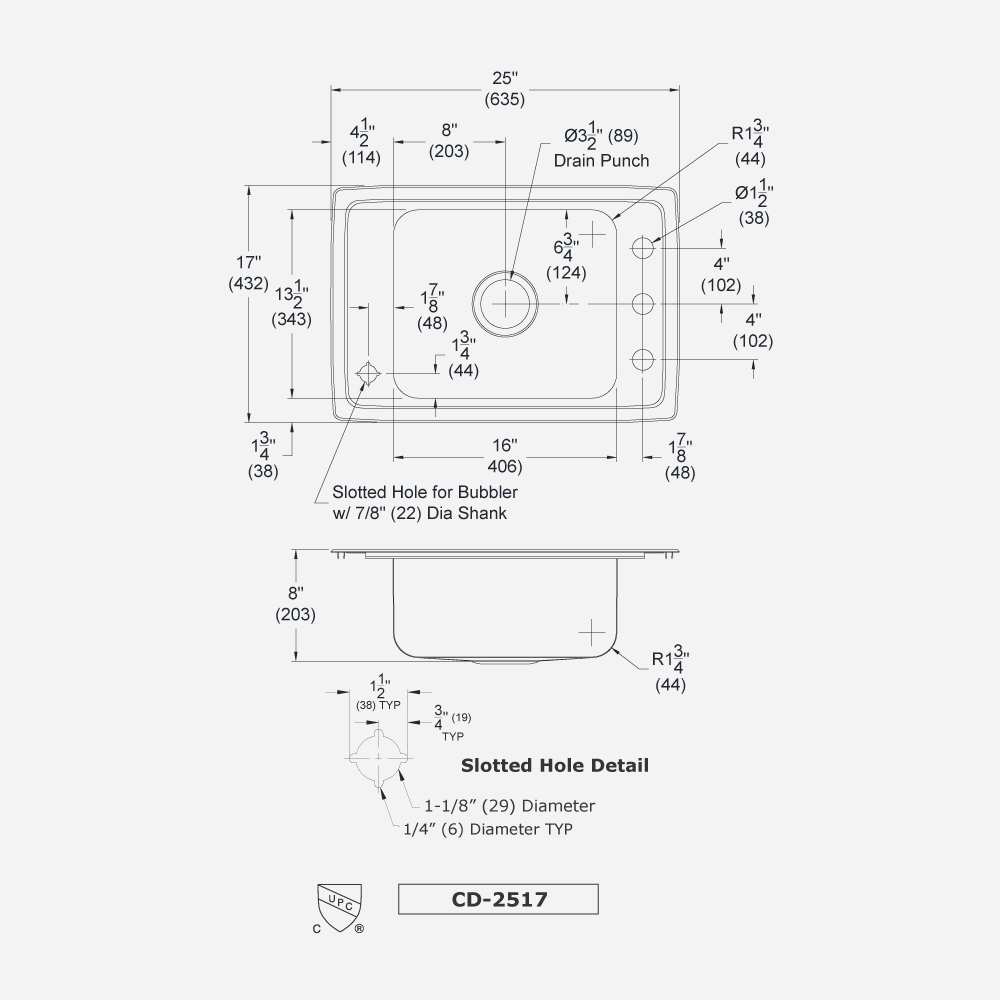

CD-2517-80 features a 13-1/2"W (343 mm) side-to-side x 16" (406 mm) front-to-back x 8"D (203 mm) bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 8" (203 mm) from the back wall of the bowl. Overall dimensions are 25"W (635 mm) side-to-side x 17" (432 mm) front-to-back.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Install Guide for Acorn-Sinks® - Commercial Stainless Steel Sinks - Drop-in [CD-2220, CD-2517, CD-3120, CDADA-2220, CDADA-2517, CDADA-3120, SDB-1515, DD-3320, DD-3322, DDADA-3320, DDADA-3322, SD-1518, SD-1716, SD-1722, SD-1918, SD-2019, et al] | 186 KB | ||
| | Acorn-Sinks® Stainless Steel Drop-In Classroom Sink - 25" x 17" Size - includes submittal, accessory spec sheet, installation instruction | 1 MB | ||
 | | Acorn-Sinks® Stainless Steel Drop-In Classroom Sink - 25" x 17" Size - includes faucet configuration variations | 544 KB | ||
| | Acorn-Sinks® Stainless Steel Drop-In Classroom Sink - 25" x 17" Size - includes faucet configuration variations | 848 KB | ||
 | | Cutout Template for CDADA-2517-55, CD-2517-80 Acorn-Sink® Drop in Classroom Sinks | 249 KB | ||
| | Acorn Engineering - Commercial Plumbing Fixtures | 473 KB | ||
 | | Acorn Engineering - Commercial Plumbing Fixtures | 771 KB | ||
| | Acorn-Sinks 36-page Sales Brochure - Acorn-Sinks®, an Acorn Engineering Company brand, offers drop-in and under-mount commercial stainless-steel sinks for your shared spaces. Doc # L1001723 update 0326 | 3 MB | ||
| | Acorn Sinks Technical Brochure with Competitive Crosscover | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
 | | Video - How to Install Acorn-Sink® Drop-in Sink | 134 KB | ||
| | Acorn-Sinks products are constructed from durable stainless steel that has an appealing #4 polished satin finish. They come in a variety of sizes and ADA compliant options are available. | 132 KB | ||
| | Acorn Engineering Kwik Ship® Acorn-Sinks vs Elkay, Just Mfg [SDB-1515, SD-1518, SDADA-1518, SD-1716, SDADA-1716, SD-1722, SDADA-1722, SD-1918, SDADA-1918, SD-2019, SDADA-2019, SD-2220, SDADA-2220, SD-2522, SDADA-2522, SD-3322, SDADA-3322, SU-1416, SUADA-1416, SU-1916, SUADA-1916, SU-2116, SUADA-2116, SU-2416, SU-2816, SUADA-2816, DD-3320, DDADA-3320, DD-3322, DDADA-3322, DU-3118, DUADA-3118, CD-2220, CD-2220, CD-2517, CD-2517, CD-3120, CD-3120, CDRB-2220, CDRB-2220, CDLB-2220, CDLB-2220, CDDRB-3717, CDDRB-3717, CDDLB-3717, CDDLB-3717] Lit# L1001750 7/26 (Rev A) | 848 KB |
Specifications
| Brand | Acorn-Sinks® |
| Application | Classroom |
| Material | Stainless Steel |
| Mounting | Drop-In (Counter), Drop-in |
| Minimum Cabinet Size | 30" |
| Accessibility | Not ADA |
| Compliance | UPC, ASME A112.19.3/CSA B45.4 |
| Number of Bowls | Single |
| Drain Size | 3-1/2" |
| Bowl Depth | 8" |
| Gauge | 18 |
| Bowl Dimensions | 16" (Side-to-Side) x 13-1/2" (Front-to-Back) |
| Overall Dimensions | 25" (Side-to-Side) x 17" (Front-to-Back) |
| Cutout Dimensions | 24-3/8" (Side-to-Side) x 16-3/8" (Front-to-Back) with 1-1/2" corner radius |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BK-3 | Accessory: Acorn-Sinks® 3" Mounting Clips for Drop-In Sink | ||
 | D80-C | Accessory: Acorn-Sinks® Push Button Drinking Bubbler |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | Suffix -0 (Acorn-Sinks®) | Option: Acorn-Sinks® No Faucet Punching on Deck | ||
 | Suffix -1 (Acorn-Sinks® Classroom) | Option: Acorn-Sinks® Single Faucet Punching for Classroom Sink | ||
 | -1 | Acorn-Sinks® Single Faucet Punching, Center | ||
 | Suffix -2DL (Acorn-Sinks® Classroom) | Option: Acorn-Sinks® Single Faucet Punching (R) & Drinking Bubbler Punching (L) for Classroom Sink | ||
 | Suffix -2DR (Acorn-Sinks® Classroom) | Option: Acorn-Sinks® Single Faucet Punching (L) & Drinking Bubbler Punching (R) for Classroom Sink | ||
 | Suffix -4DL (Acorn-Sinks® Classroom) | Option: Acorn-Sinks® Three Faucet Punchings (R) & Drinking Bubbler Punching (L) for Classroom Sink | ||
 | Suffix -4DR (Acorn-Sinks® Classroom) | Option: Acorn-Sinks® Three Faucet Punchings (L) & Drinking Bubbler Punching (R) for Classroom Sink |
Models
Variations on this product specified by the faucet hole punching.
 | |
|---|---|
| Punching Details | 8" Bowl Depth (203 mm) |
| Blank, No Deck Punching | CD-2517-80-0 |
| Single Hole Centered | CD-2517-80-1 |
| Single Faucet Centered on Right Side, Drinking Bubbler Punching on Left Side | CD-2517-80-2DL |
| Single Faucet Centered on Left Side, Drinking Bubbler Punching on Right Side | CD-2517-80-2DR |
| Three Faucet Hole Punching 4" Center to Center on Right Side, Drinking Bubbler on Left Side | CD-2517-80-4DL |
| Three Faucet Hole Punching 4" Center to Center on Left Side, Drinking Bubbler on Right Side | CD-2517-80-4DR |
Details
Acorn-Sinks® Product Number System
This is how our Acorn-Sinks products are numbered. The graphic below is an example. It does not necessarily reflect the product above.
Cross-References
CD-2517 is a direct cross-reference to the following products
DRKR2517
Elkay
DRK25172FRM
Elkay
DRKR25172LM
Elkay
DRKR25174
Elkay
DRKR2517FR4
Elkay
