Acorn-Sinks® Stainless Steel Drop-In Sink, 17" x 16"
$1,088.00 (USD) List PriceActual selling price may vary
In StockThis product is available for quick shipment nationwide.
Model SD-1716
Installation Instructions
Install Guide Stainless Steel Drop-in Sink (pdf)
Submittal
Submittal SD-1716 Drop-In Sink (pdf)
Model SD-1716
Acorn-Sinks® Stainless Steel Drop-In Sink, 17" x 16"

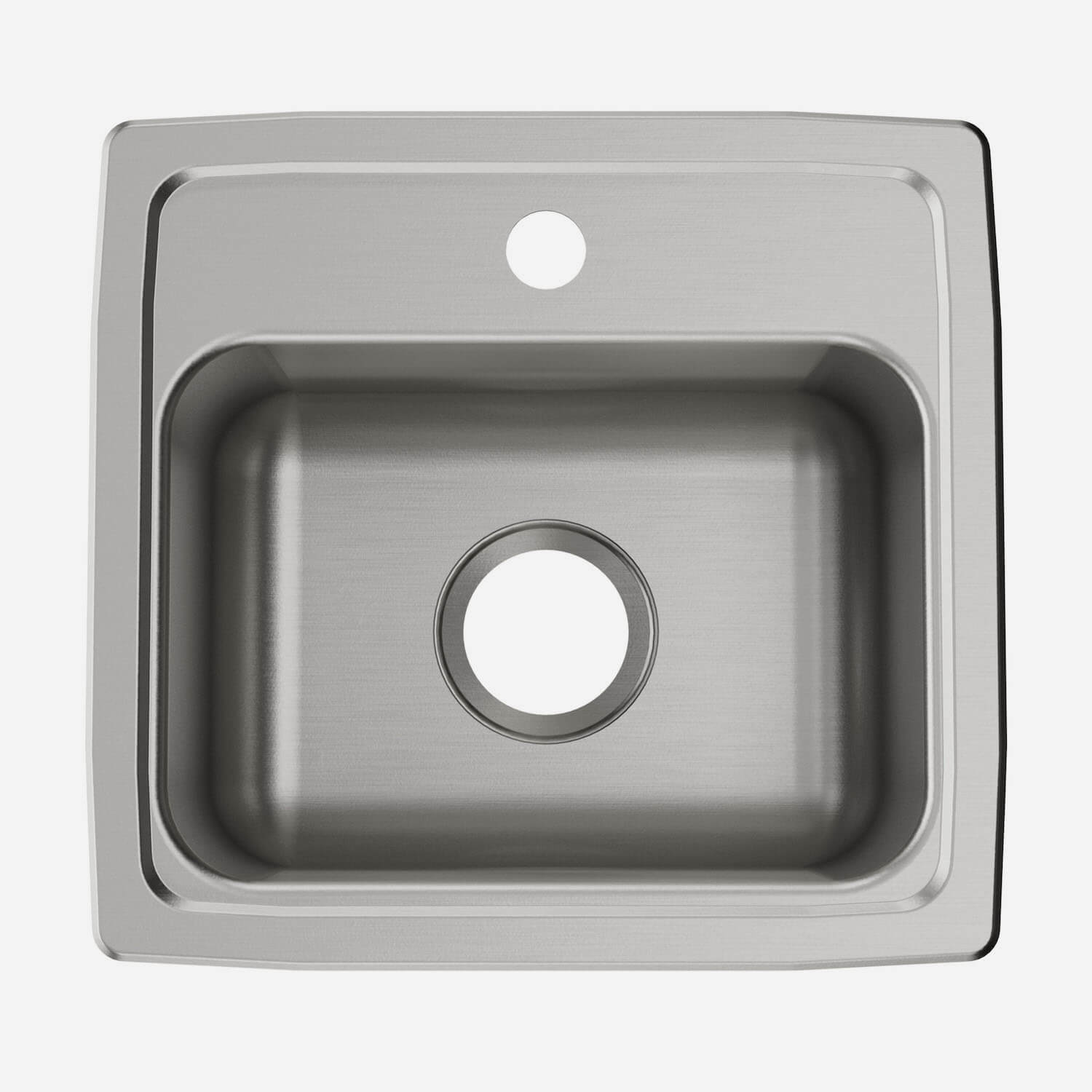

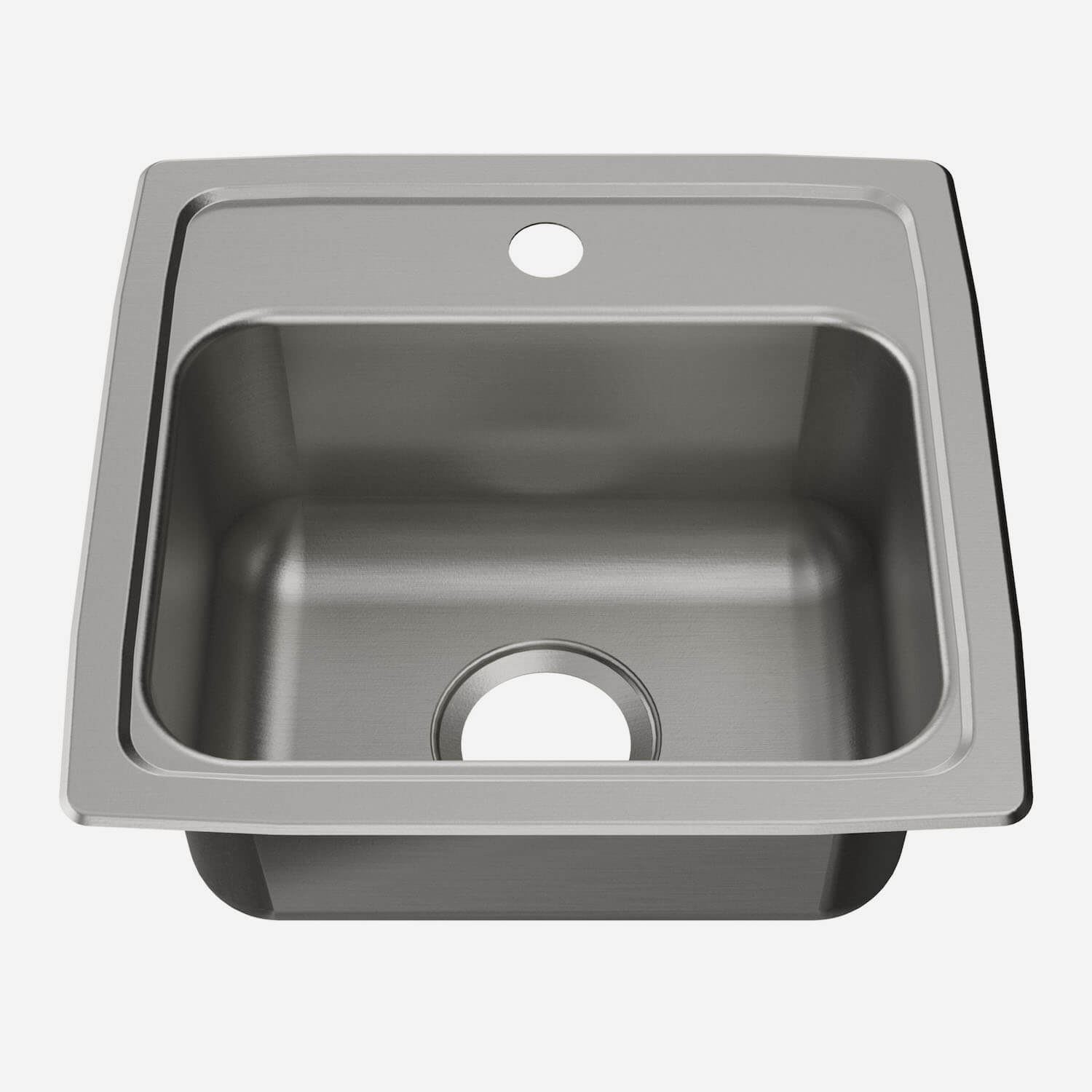

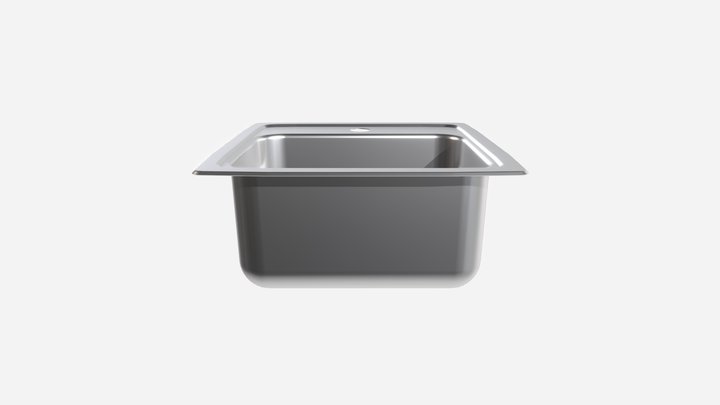

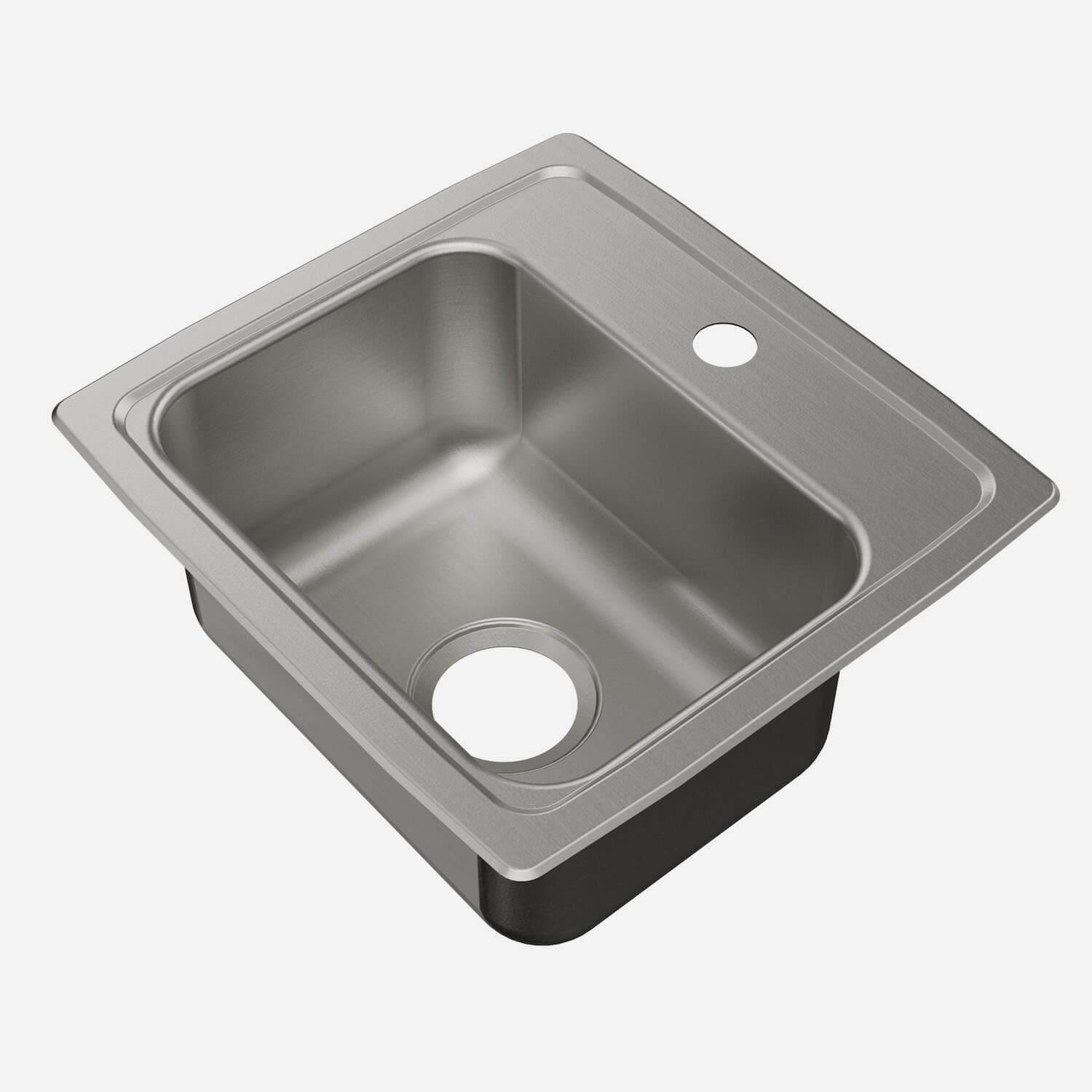

SD-1716 is a single bowl drop-in sink measuring 17" x 16" with a bowl size of 14" x 10". It has a centered drain and an 8" bowl depth. A minimum cabinet size of 21" is required.
Acorn-Sinks® Features & Benefits:
- Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
- Simple drop-in installation
- Sound deadening pads on the sink bottom for reduced noise
- Concealed U-channels with mounting hardware
- Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
- Meticulous packaging that prevents shipping damage
- UPC, cUPC, and IPC compliant

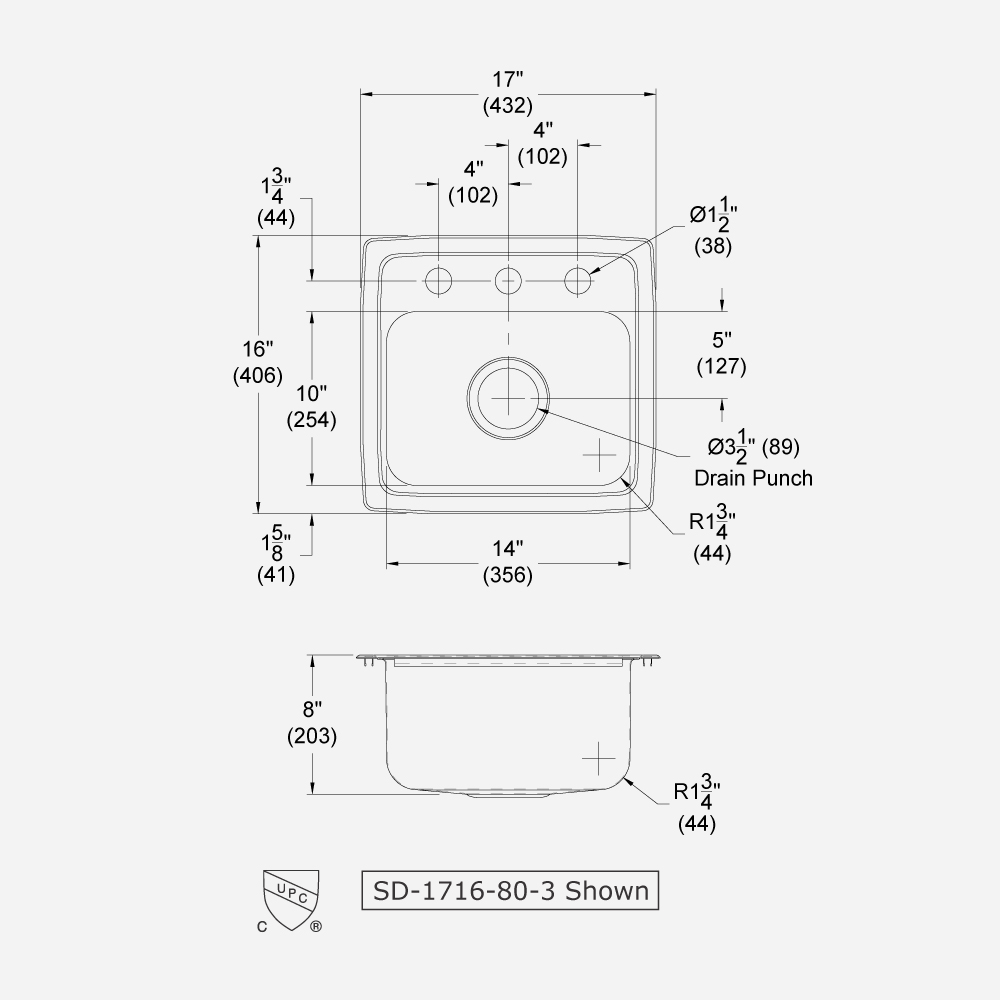

SD-1716-80 features an 8" (203 mm) deep x 10" (254 mm) front-to-back x 14" (356 mm) wide bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 5" (127 mm) from the back wall of the bowl. Overall dimensions are 17" (432 mm) side-to-side x 16" (406 mm) front-to-back.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Install Guide for Acorn-Sinks® - Commercial Stainless Steel Sinks - Drop-in [CD-2220, CD-2517, CD-3120, CDADA-2220, CDADA-2517, CDADA-3120, SDB-1515, DD-3320, DD-3322, DDADA-3320, DDADA-3322, SD-1518, SD-1716, SD-1722, SD-1918, SD-2019, et al] | 186 KB | ||
| | Acorn-Sinks® Stainless Steel Drop-In Sink - 17" x 16" Size - includes submittal, accessory spec sheet, faucet punching spec sheet, installation instruction | 429 KB | ||
 | | Acorn-Sinks® Stainless Steel Drop-In Sink - 17" x 16" Size - includes faucet configuration variations | 520 KB | ||
| | Acorn-Sinks® Stainless Steel Drop-In Sink - 17" x 16" Size - includes faucet configuration variations | 745 KB | ||
 | | Cutout Template for SDADA-1716, SD-1716 Acorn-Sink® Drop-In Sinks | 247 KB | ||
| | Acorn Engineering - Commercial Plumbing Fixtures | 473 KB | ||
 | | Acorn Engineering - Commercial Plumbing Fixtures | 771 KB | ||
| | Acorn-Sinks 36-page Sales Brochure - Acorn-Sinks®, an Acorn Engineering Company brand, offers drop-in and under-mount commercial stainless-steel sinks for your shared spaces. Doc # L1001723 update 0326 | 3 MB | ||
| | Acorn Sinks Technical Brochure with Competitive Crosscover | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
 | | Video - How to Install Acorn-Sink® Drop-in Sink | 134 KB | ||
| | Acorn Engineering Kwik Ship® Acorn-Sinks vs Elkay, Just Mfg [SDB-1515, SD-1518, SDADA-1518, SD-1716, SDADA-1716, SD-1722, SDADA-1722, SD-1918, SDADA-1918, SD-2019, SDADA-2019, SD-2220, SDADA-2220, SD-2522, SDADA-2522, SD-3322, SDADA-3322, SU-1416, SUADA-1416, SU-1916, SUADA-1916, SU-2116, SUADA-2116, SU-2416, SU-2816, SUADA-2816, DD-3320, DDADA-3320, DD-3322, DDADA-3322, DU-3118, DUADA-3118, CD-2220, CD-2220, CD-2517, CD-2517, CD-3120, CD-3120, CDRB-2220, CDRB-2220, CDLB-2220, CDLB-2220, CDDRB-3717, CDDRB-3717, CDDLB-3717, CDDLB-3717] Lit# L1001750 7/26 (Rev A) | 848 KB |
Specifications
| Brand | Acorn-Sinks® |
| Material | Stainless Steel |
| Mounting | Drop-in |
| Minimum Cabinet Size | 21" |
| Accessibility | Not ADA |
| Compliance | ASME A112.19.3/CSA B45.4, UPC |
| Number of Bowls | Single |
| Bowl Depth | 8" |
| Gauge | 18 |
| Drain Size | 3-1/2" |
| Bowl Dimensions | 14" (Side-to-Side) x 10" (Front-to-Back) |
| Overall Dimensions | 17" (Side-to-Side) x 16" (Front-to-Back) |
| Cutout Dimensions | 16-3/8" (Side-to-Side) x 15-3/8" (Front-to-Back) with 1-1/2" corner radius |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BST | Accessory: Acorn-Sinks® Basket Strainer | ||
 | F80-BN | Accessory: Acorn-Sinks® Kitchen Faucet with Pull-Out Sprayer |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | Suffix -0 (Acorn-Sinks®) | Option: Acorn-Sinks® No Faucet Punching on Deck | ||
 | -1 | Acorn-Sinks® Single Faucet Punching, Center | ||
 | Suffix -2 (Acorn-Sinks®) | Option: Acorn-Sinks® Two Faucet Punchings, Center | ||
 | Suffix -2R (Acorn-Sinks®) | Option: Acorn-Sinks® Two Punchings, Center & Offset Right | ||
 | Suffix -3 (Acorn-Sinks®) | Option: Acorn-Sinks® Three Faucet Punchings, Center |
Models
Variations on this product specified by the faucet hole punching and bowl depth.
 | |
|---|---|
| Punching Details | 8" Bowl Depth (203 mm) |
| Blank, No Deck Punching | SD-1716-80-0 |
| Single Hole Centered | SD-1716-80-1 |
| Single Hole Centered with 2nd Hole 4" to Right | SD-1716-80-2R |
| 2 Holes on 4" Centers | SD-1716-80-2 |
| 3 Holes on 4" Centers | SD-1716-80-3 |
Details
Acorn-Sinks® Product Number System
This is how our Acorn-Sinks products are numbered. The graphic below is an example. It does not necessarily reflect the product above.
Cross-References
SD-1716 is a direct cross-reference to the following products
SL1617A-J
JUST
SL1617A1-J
JUST
SL1617A2-J
JUST
SL1617A3-J
JUST
LR1716
Elkay
LR17161
Elkay
LR1716MR2
Elkay
LR17162
Elkay
LR17163
Elkay
