Acorn-Sinks® 60" Two-Station Eco-Trough™ Stainless Steel Trough Sink
SW260 is a 60" (1,524 mm) two-station, wall-mounted stainless steel trough sink. The cost-effective and space-saving design is ideal for any facility or space that has a need to augment hand washing capabilities.
The trough sink is pre-drilled at each station with three punchings for a 4" (101.6 mm) centerset faucet. A pre-drilled backsplash return is provided for mounting unit to the wall. Basin is formed to facilitate drainage and is punched to accept a 1-1/2" drain assembly (sold separately). Unit is fabricated from 16-gauge, type 304 stainless steel with exposed surfaces polished to a #4 satin finish. Without the legs, this product is IAPMO compliant.
Optional support legs, available in several heights, provide added stability for this hand washing station. Alternatively, a four-leg frame is available, providing a 34"H (864 mm) free-standing assembly with the trough sink.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Acorn-Sinks® Eco-Trough™ Stainless Steel Trough Sink [SW130 | Single Station, 30" Length; SW260 | Two-Station, 60" Length; SW2102 | Two-Station, 102" Length; SW390 | Three-Station, 90" Length; SW4120 | Four-Station, 102" Length] | 0 | 738 KB | ||
| | Acorn-Sinks® Eco-Trough™ Stainless Steel Trough Sink [SW130 | Single Station, 30" Length; SW260 | Two-Station, 60" Length; SW2102 | Two-Station, 102" Length; SW390 | Three-Station, 90" Length; SW4120 | Four-Station, 102" Length] | 0 | 658 KB | ||
 | | Two-Station Wash-Ware® Eco-Trough™ Stainless Steel Trough Sink, 60 Inch Length - Basin Only | 0 | 608 KB | ||
| | Two-Station Wash-Ware® Eco-Trough™ Stainless Steel Trough Sink - 60" Length - including SW260 (basin only); SW260-4LF260-34, SW260-SW000-34 | 0 | 1014 KB | ||
| | Acorn Sinks Sales Brochure (pdf) | 0 | 4 MB | ||
| | Acorn Sinks Technical Brochure with Competitive Crosscover | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Brand | Acorn-Sinks® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Accessibility | Not ADA |
| Compliance | UPC |
| Bowl Depth | 6" |
| Drain Size | Accepts 1-1/2" drain assembly |
| Bowl Dimensions | 59-7/8" (Side-to-Side) x 11" (Front-to-Back), 9" bottom (Front-to-Back) |
| Overall Dimensions | 60" (Side-to-Side) x 16" (Front-to-Back) |
| Stations-Users | 2 |
| Gauge | 16 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | SW000-24 | Accessory: Front Support Leg, 24" Tall with Adjustable Foot | ||
 | SW000-30 | Accessory: Front Support Leg, 30" Tall with Adjustable Foot | ||
 | SW000-34 | Accessory: Front Support Leg, 34” Tall with Adjustable Foot | ||
 | SW000-F50 | Accessory: Faucet, Hot and Cold Wristblade Gooseneck | ||
 | SW000-F51 | Accessory: Faucet, Hot and Cold Wristblade | ||
 | SW000-F60 | Accessory: Single Temp Sensor Faucet with Stainless Steel Spout and Stainless Steel Deck Plate | ||
 | SW000-F70 | Accessory: Single Temp Push Button Metering Faucet with Plate | ||
 | SW000-PT | Accessory: Daisy Strainer with Tailpiece and 1-1/2” P-Trap | ||
 | SW000-PTC | Accessory: Chrome Plated Brass Daisy Strainer and 1-1/2" P-Trap | ||
 | SW000-SG | Accessory: Splash Guard for SW000 Series Trough Sinks |
Miscellaneous
Models

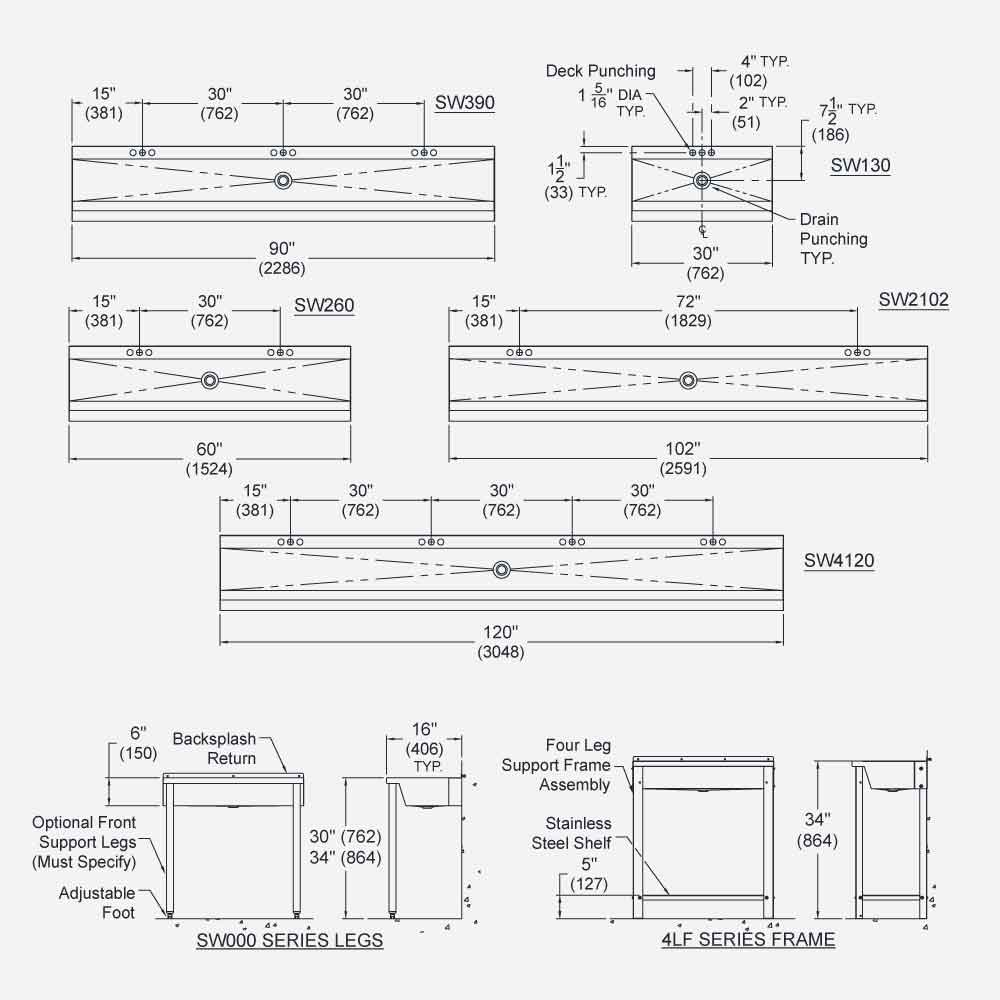

Typical models are shown below:

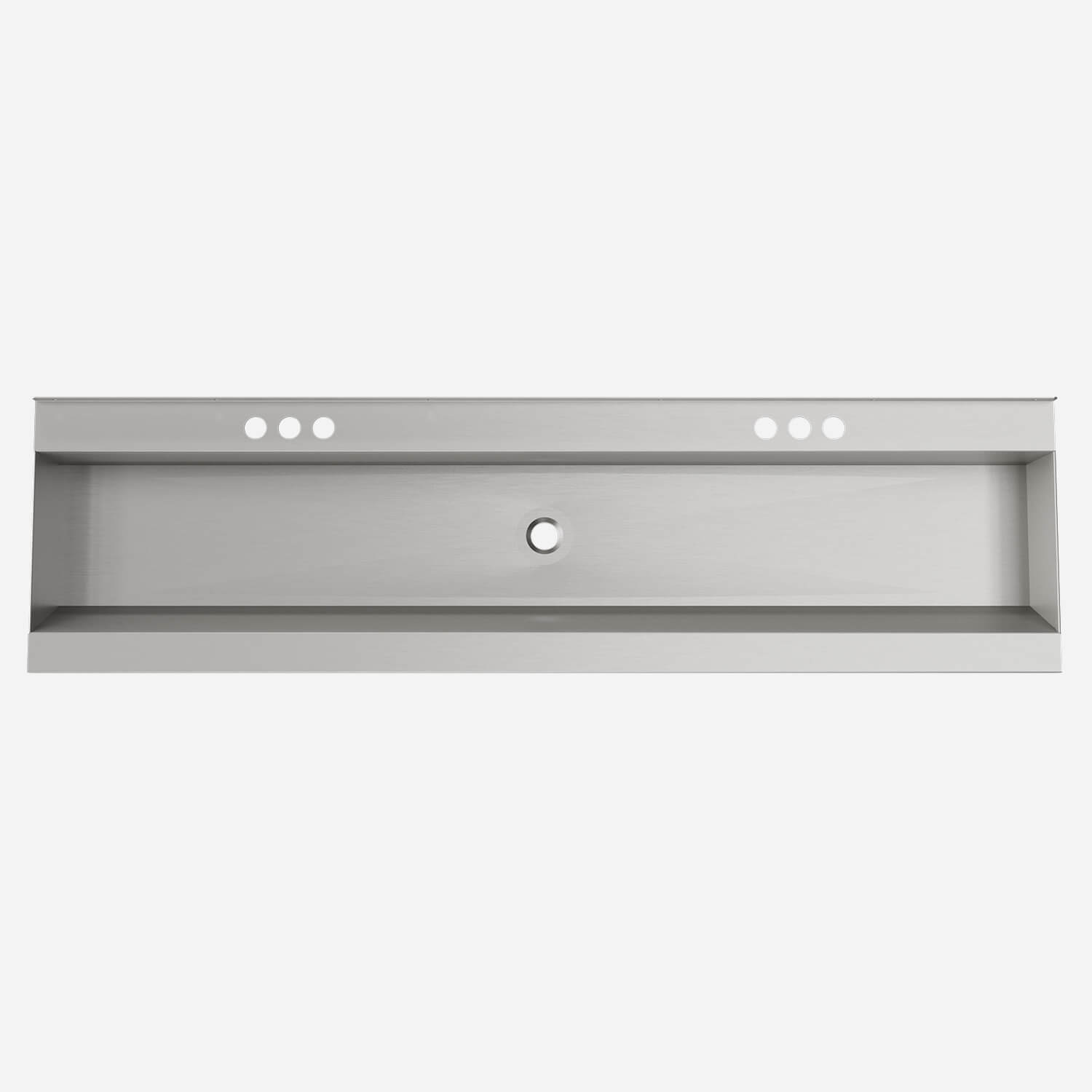

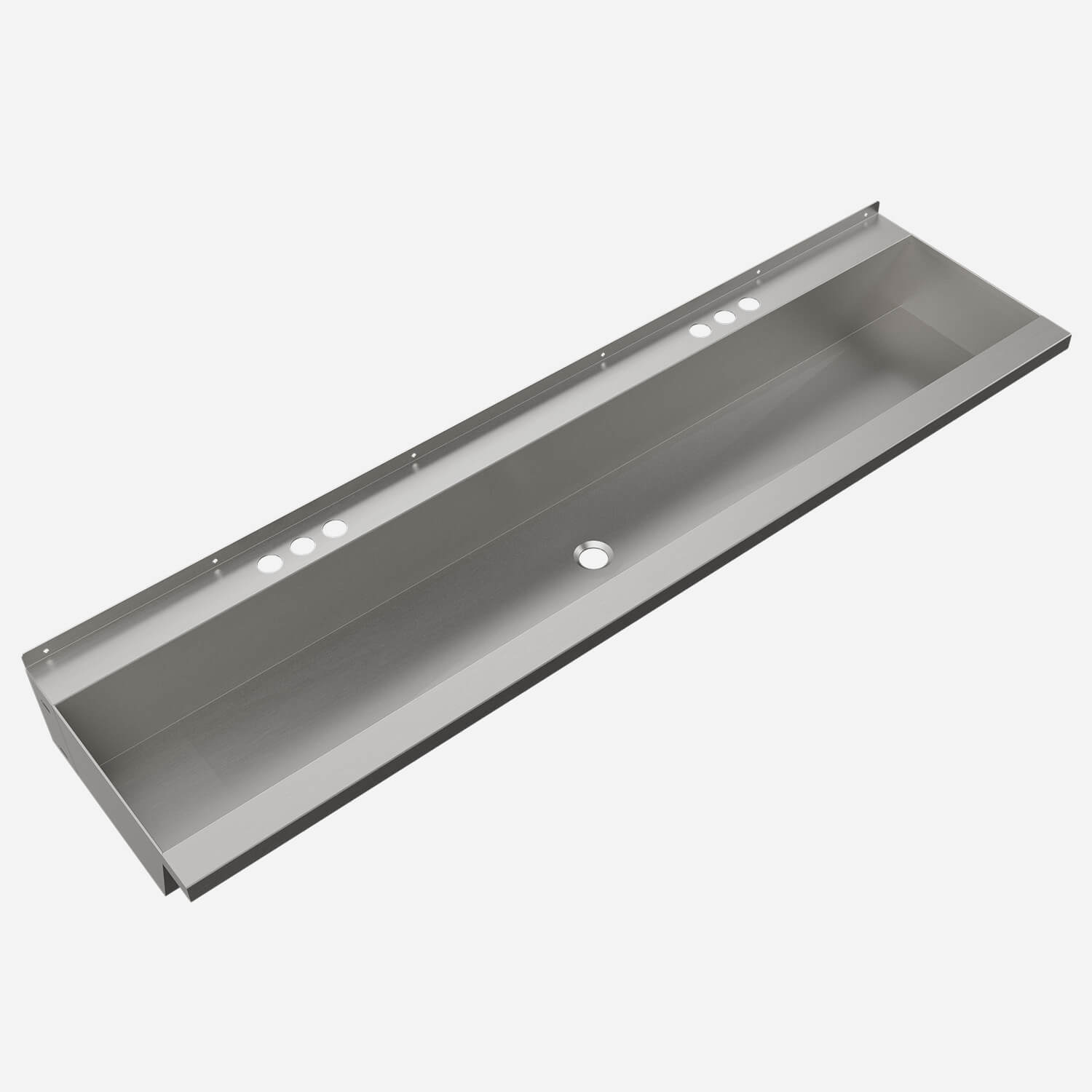

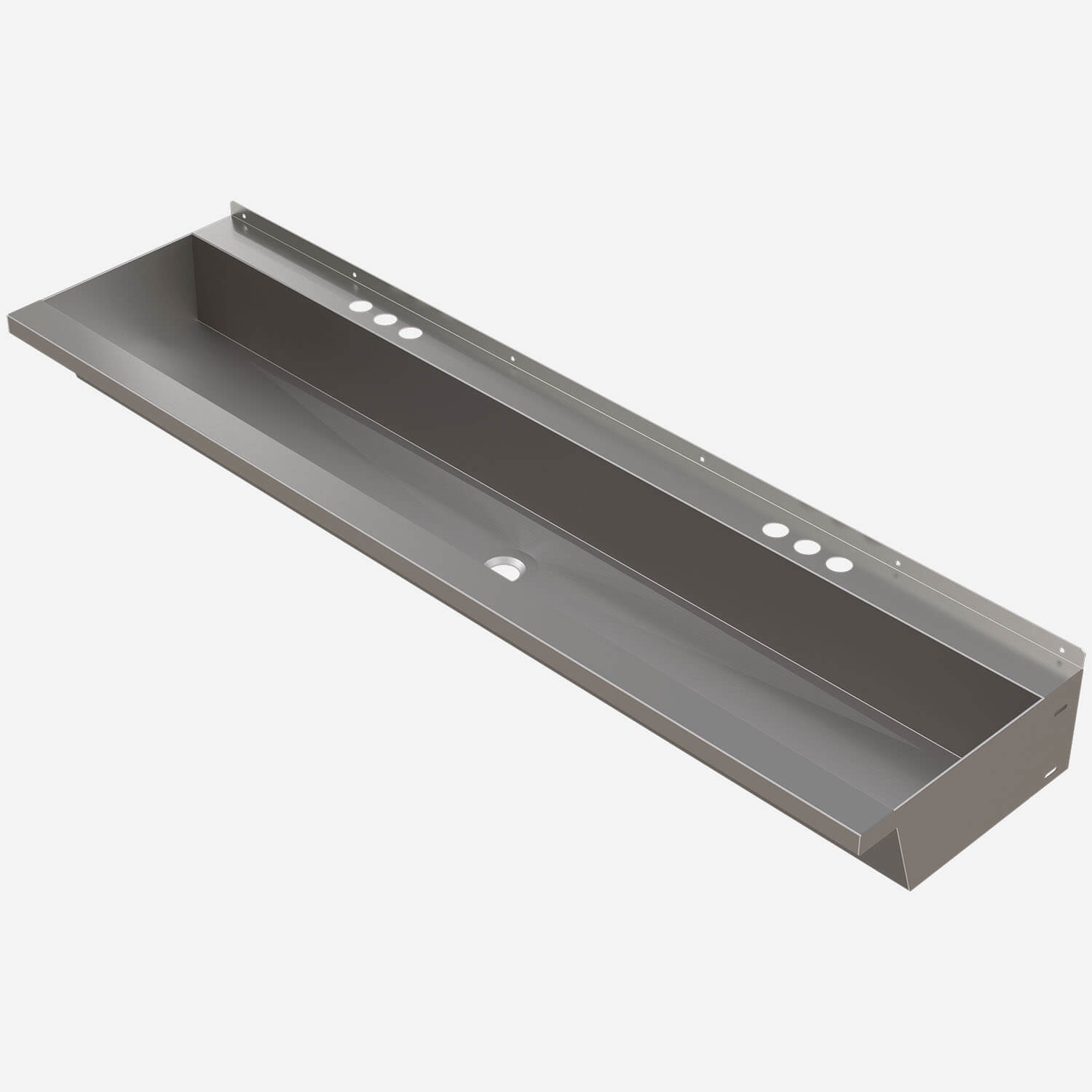

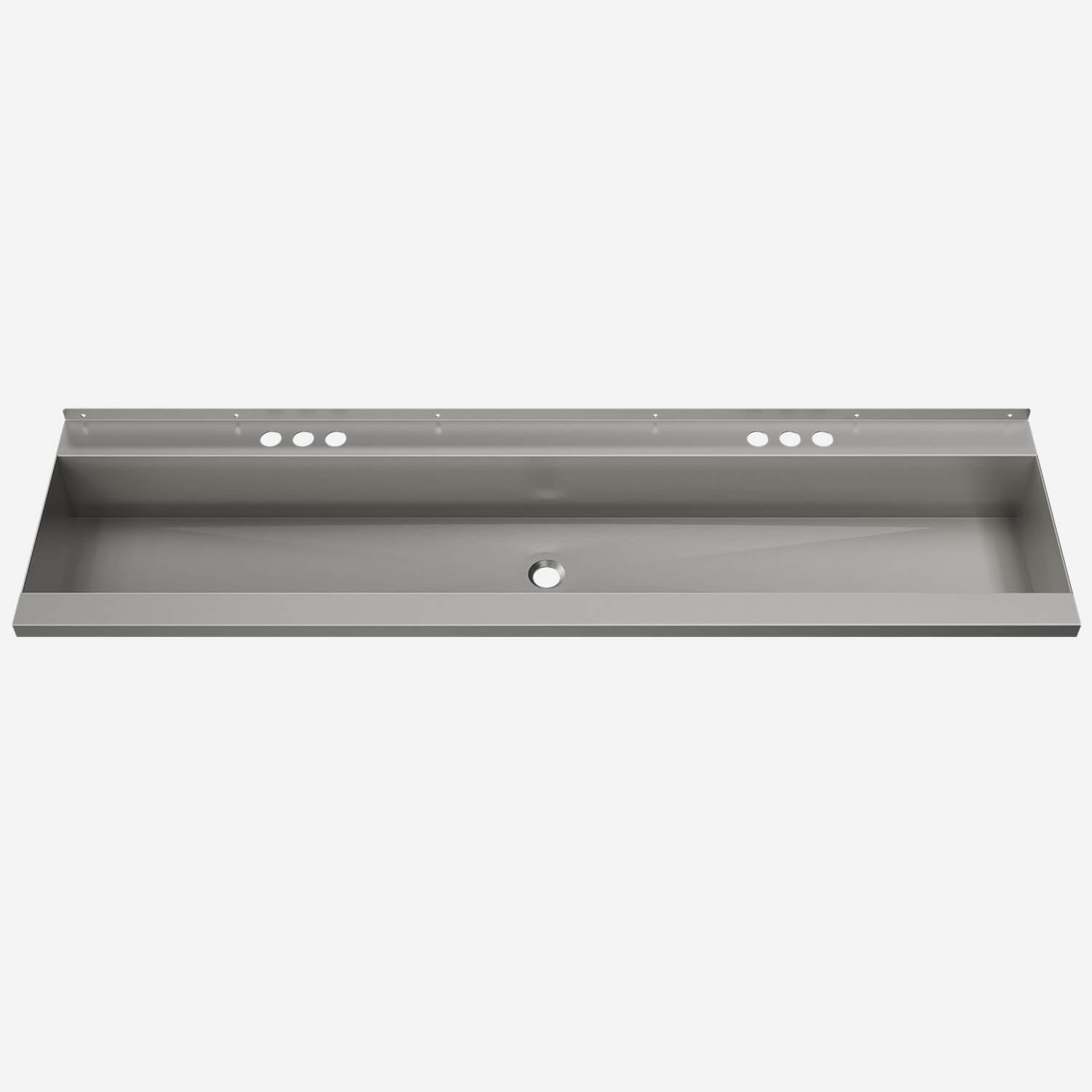

SW260
1/4" Diameter Mounting Holes for Anchoring, Hardware by Others

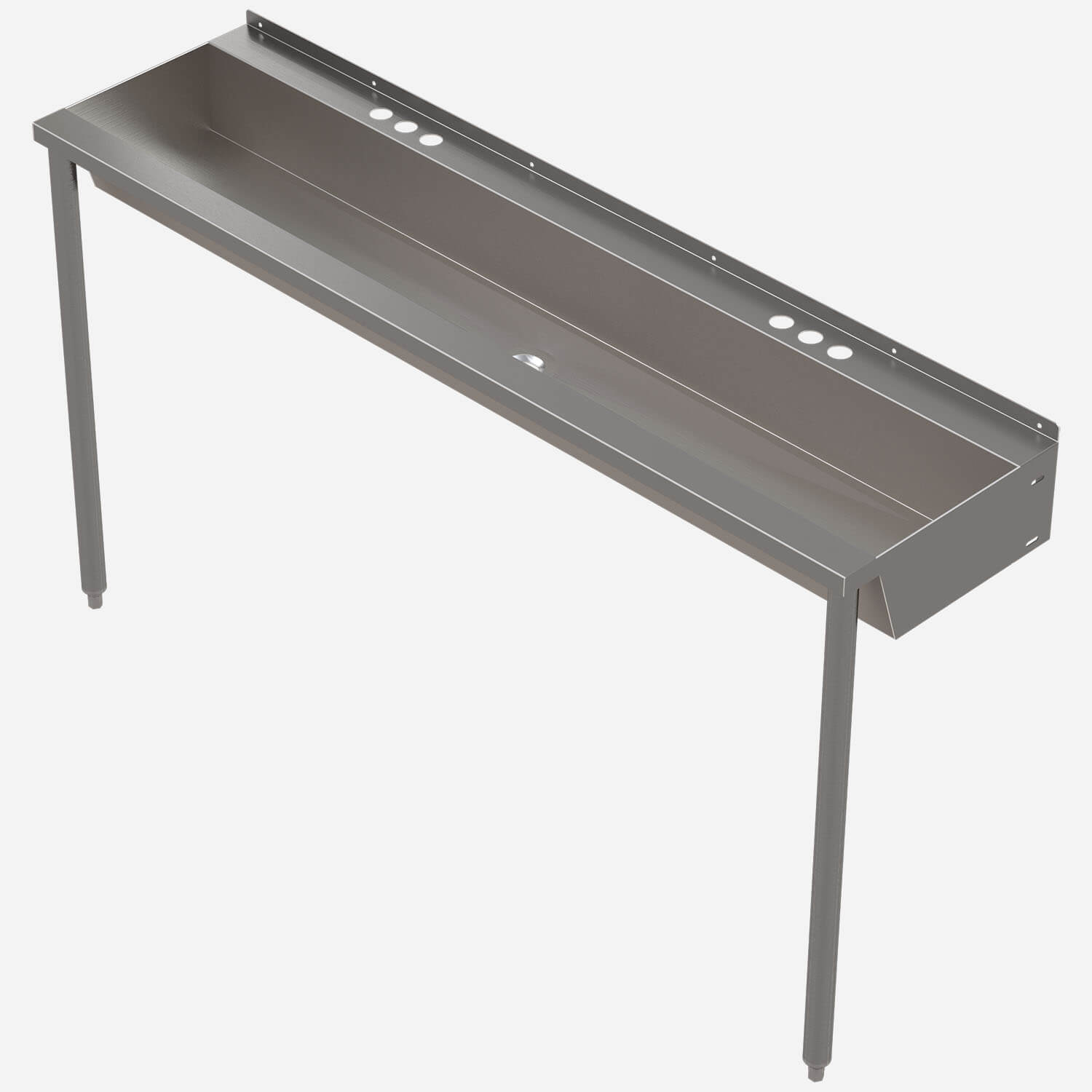

SW260-SW000-34
Front Support Legs Providing 34" Rim Height (30" and 24" also available)

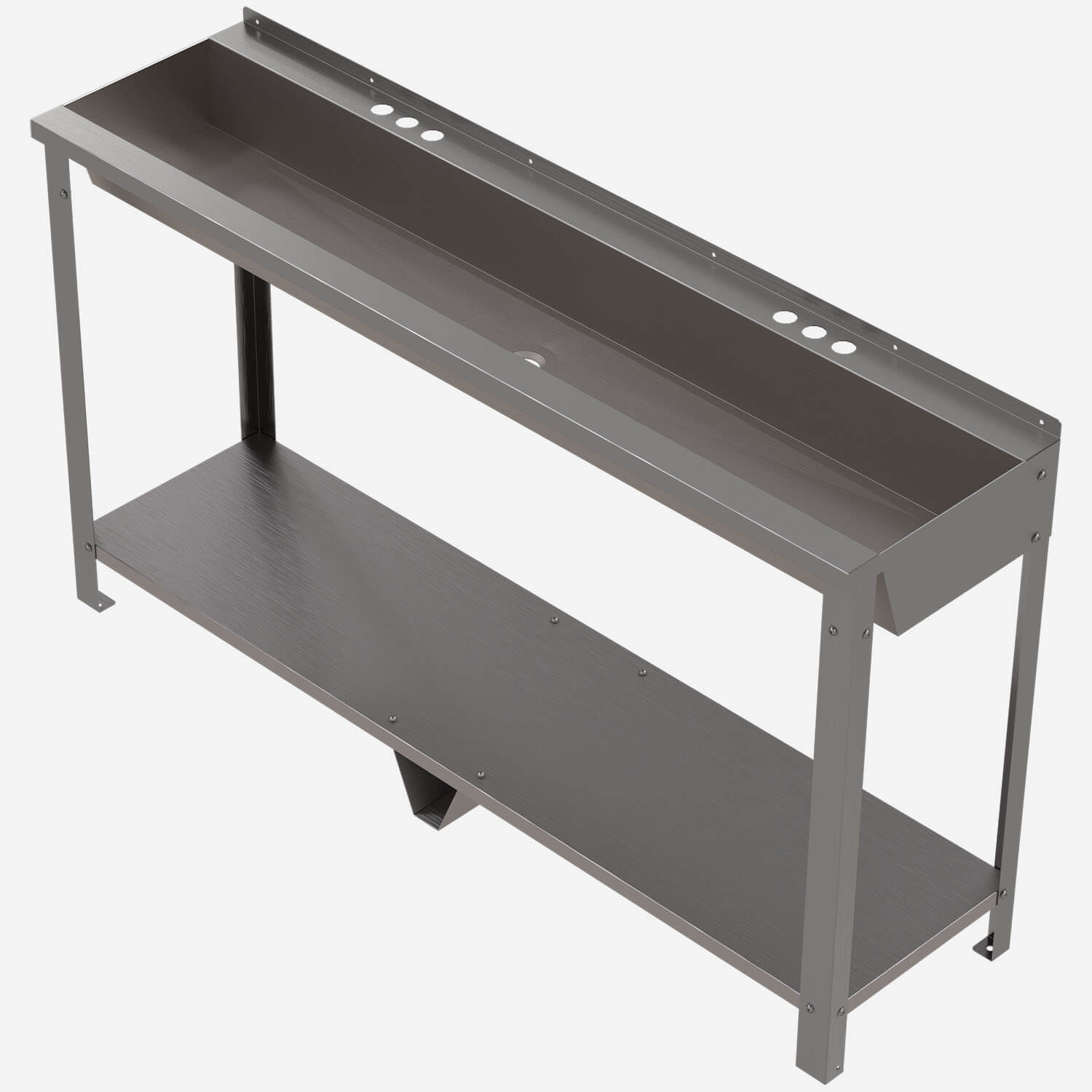

SW260-4LF260-34
Four Leg Frame Assembly Providing 34" Rim Height
