Acorn-Sinks® Stainless Steel Undermount Sink, 24" x 16"
$1,129.00 (USD) List PriceActual selling price may vary
In StockThis product is available for quick shipment nationwide.
Model SU-2416
Installation Instructions
Install Guide Stainless Steel Undermount Sink (pdf)
Submittal
Submittal SU-2416 Undermount Sink (pdf)
Model SU-2416
Acorn-Sinks® Stainless Steel Undermount Sink, 24" x 16"

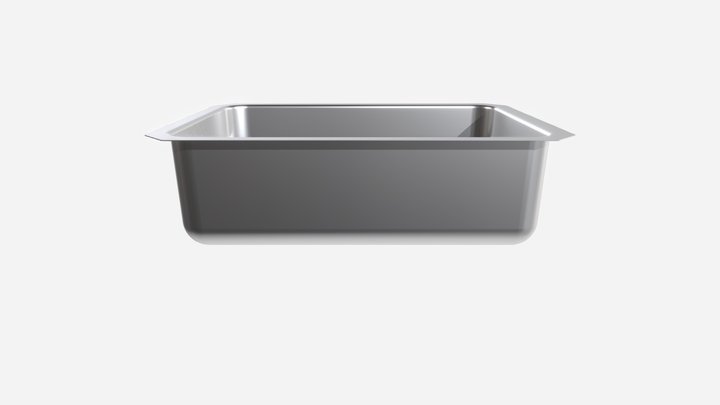

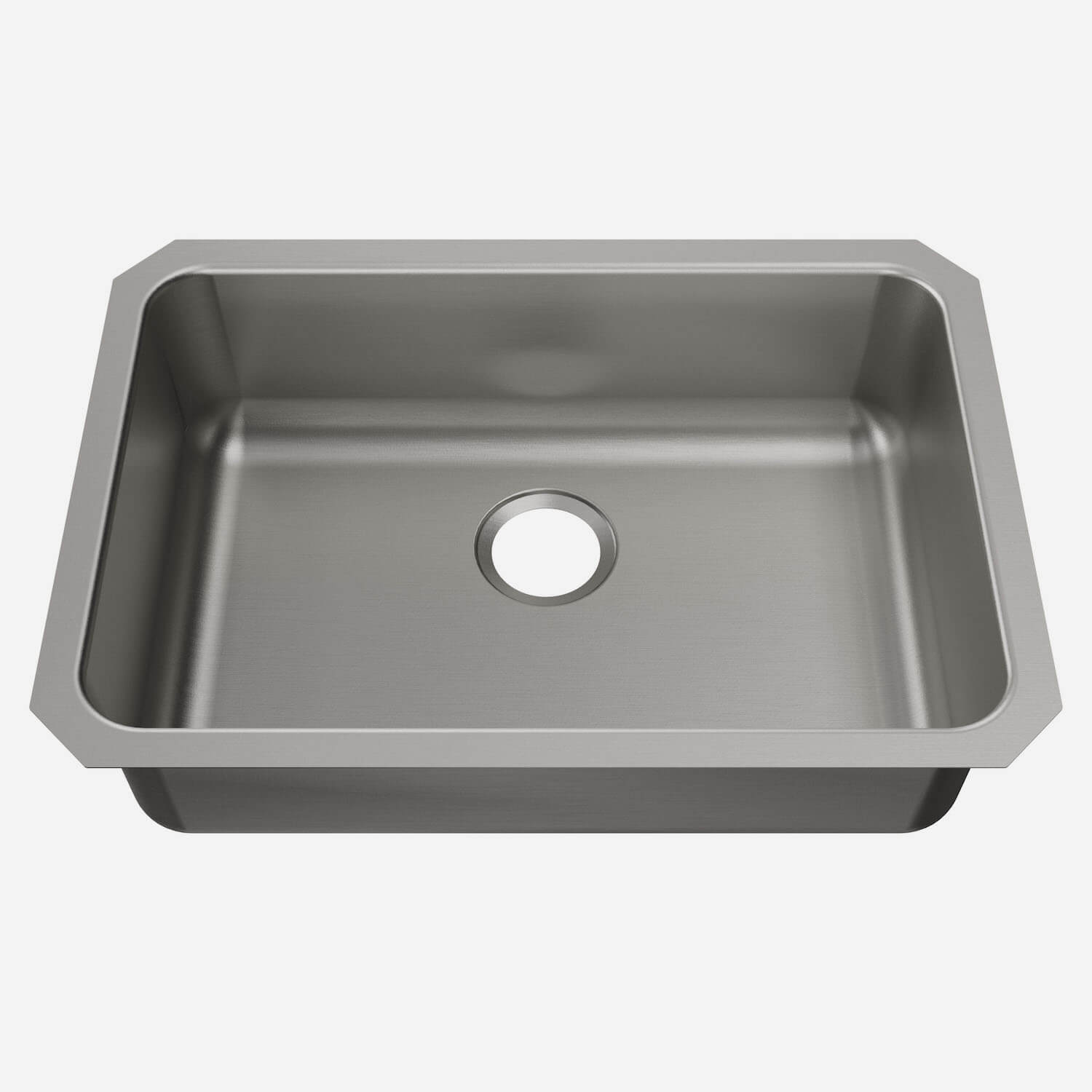

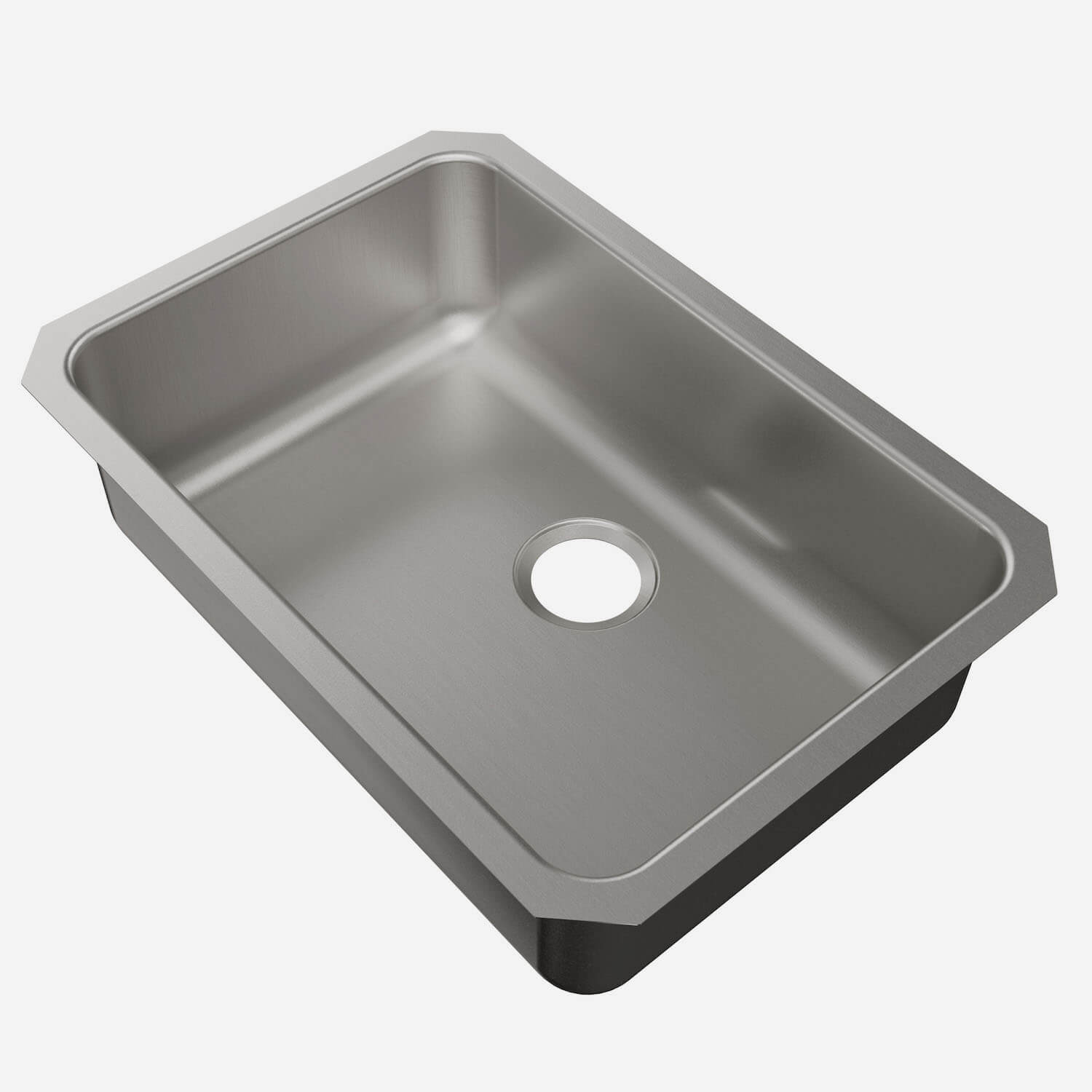

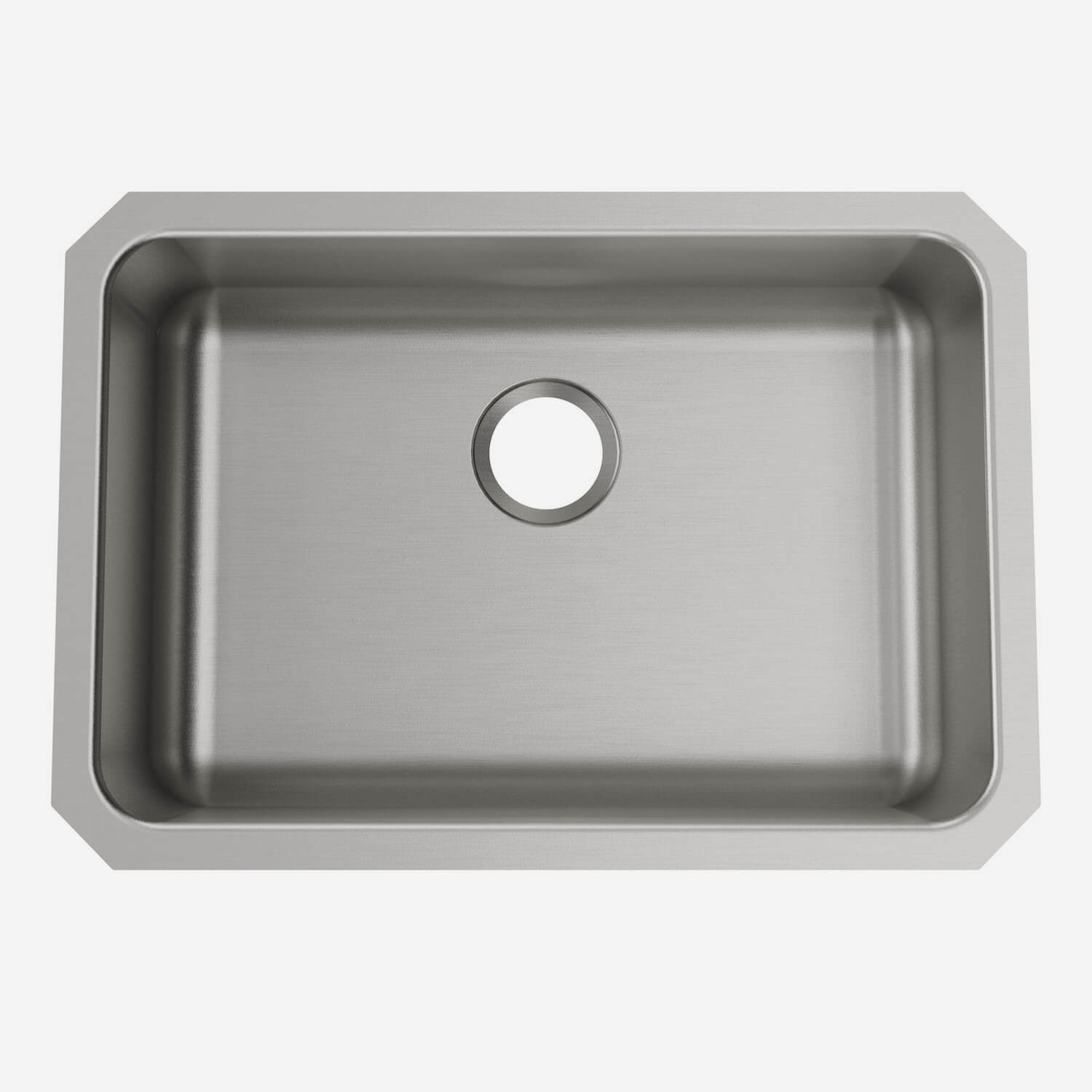

SU-2416 is a single bowl undermount sink measuring 26-1/2" x 18-1/2" with a bowl size of 24" x 16". It has a center back drain and an 8" bowl depth. A minimum cabinet size of 30" is required.
Acorn-Sinks® Features & Benefits:
- Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
- Simple undermount installation
- Sound deadening pads on the sink bottom for reduced noise
- Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
- Meticulous packaging that prevents shipping damage
- UPC, cUPC, and IPC compliant

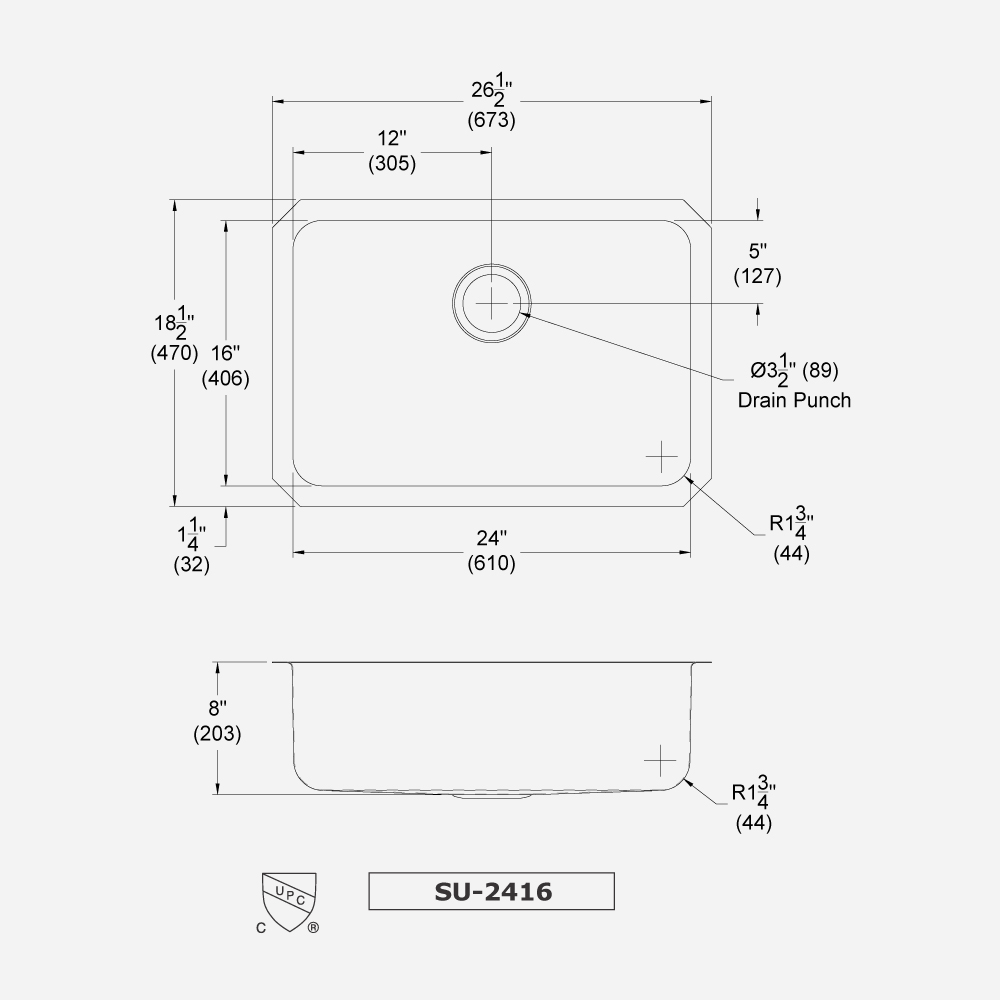

SU-2416-80 features an 8" (203 mm) deep x 16" (406 mm) front-to-back x 24" (610 mm) wide (side-to-side) bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 5" (127 mm) from the rear wall of the bowl. Overall dimensions are 26-1/2" (673 mm) side-to-side x 18-1/2" (470 mm) front-to-back.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Install Guide for Acorn-Sinks® - Commercial Stainless Steel Sinks - Undermount DU-3118, DUADA-3118, SU-2116, SU-2416, SU-2816, SUADA-2116, SUADA-2816 | 115 KB | ||
| | Acorn-Sinks® Stainless Steel Undermount Sink - 24" x 16" Size- includes submittal, accessory spec sheet, installation instruction | 248 KB | ||
 | | Acorn-Sinks® Stainless Steel Undermount Sink - 24" x 16" Size- includes faucet configuration variations | 452 KB | ||
| | Acorn-Sinks® Stainless Steel Undermount Sink - 24" x 16" Size- includes faucet configuration variations | 147 KB | ||
 | | Cutout Template for SU-2416 Acorn-Sink® Undermount Sink | 870 KB | ||
| | Acorn Engineering - Commercial Plumbing Fixtures | 473 KB | ||
 | | Acorn Engineering - Commercial Plumbing Fixtures | 771 KB | ||
| | Acorn-Sinks 36-page Sales Brochure - Acorn-Sinks®, an Acorn Engineering Company brand, offers drop-in and under-mount commercial stainless-steel sinks for your shared spaces. Doc # L1001723 update 0326 | 3 MB | ||
| | Acorn Sinks Technical Brochure with Competitive Crosscover | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
| | Acorn Engineering Kwik Ship® Acorn-Sinks vs Elkay, Just Mfg [SDB-1515, SD-1518, SDADA-1518, SD-1716, SDADA-1716, SD-1722, SDADA-1722, SD-1918, SDADA-1918, SD-2019, SDADA-2019, SD-2220, SDADA-2220, SD-2522, SDADA-2522, SD-3322, SDADA-3322, SU-1416, SUADA-1416, SU-1916, SUADA-1916, SU-2116, SUADA-2116, SU-2416, SU-2816, SUADA-2816, DD-3320, DDADA-3320, DD-3322, DDADA-3322, DU-3118, DUADA-3118, CD-2220, CD-2220, CD-2517, CD-2517, CD-3120, CD-3120, CDRB-2220, CDRB-2220, CDLB-2220, CDLB-2220, CDDRB-3717, CDDRB-3717, CDDLB-3717, CDDLB-3717] Lit# L1001750 7/26 (Rev A) | 848 KB |
Specifications
| Brand | Acorn-Sinks® |
| Material | Stainless Steel |
| Mounting | Undermount |
| Minimum Cabinet Size | 30" |
| Accessibility | Not ADA |
| Compliance | UPC, ASME A112.19.3/CSA B45.4 |
| Number of Bowls | Single |
| Bowl Depth | 8" |
| Gauge | 18 |
| Drain Size | 3-1/2" |
| Bowl Dimensions | 24" (Side-to-Side) x 16" (Front-to-Back) |
| Overall Dimensions | 26-1/2" (Side-to-Side) x 18-1/2" (Front-to-Back) |
| Cutout Dimensions | See cutout template |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BK | Accessory: Acorn-Sinks® Undermount Sink Brackets | ||
 | BST | Accessory: Acorn-Sinks® Basket Strainer |
Miscellaneous
Image | Model | Description | Downloads |
|---|
Models
Typical models are shown below
SU-2416-80
8.0 inch (203 mm) bowl depth
undermount sink
Details
Acorn-Sinks® Product Number System
This is how our Acorn-Sinks products are numbered. The graphic below is an example. It does not necessarily reflect the product above.
Cross-References
SU-2416 is a direct cross-reference to the following products
USXN1824A-J
JUST
ELUH2416
Elkay
