Name: Recessed Stainless Steel Shelf
Brand: Acorn Engineering Company
SKU: 1820

Model 1820

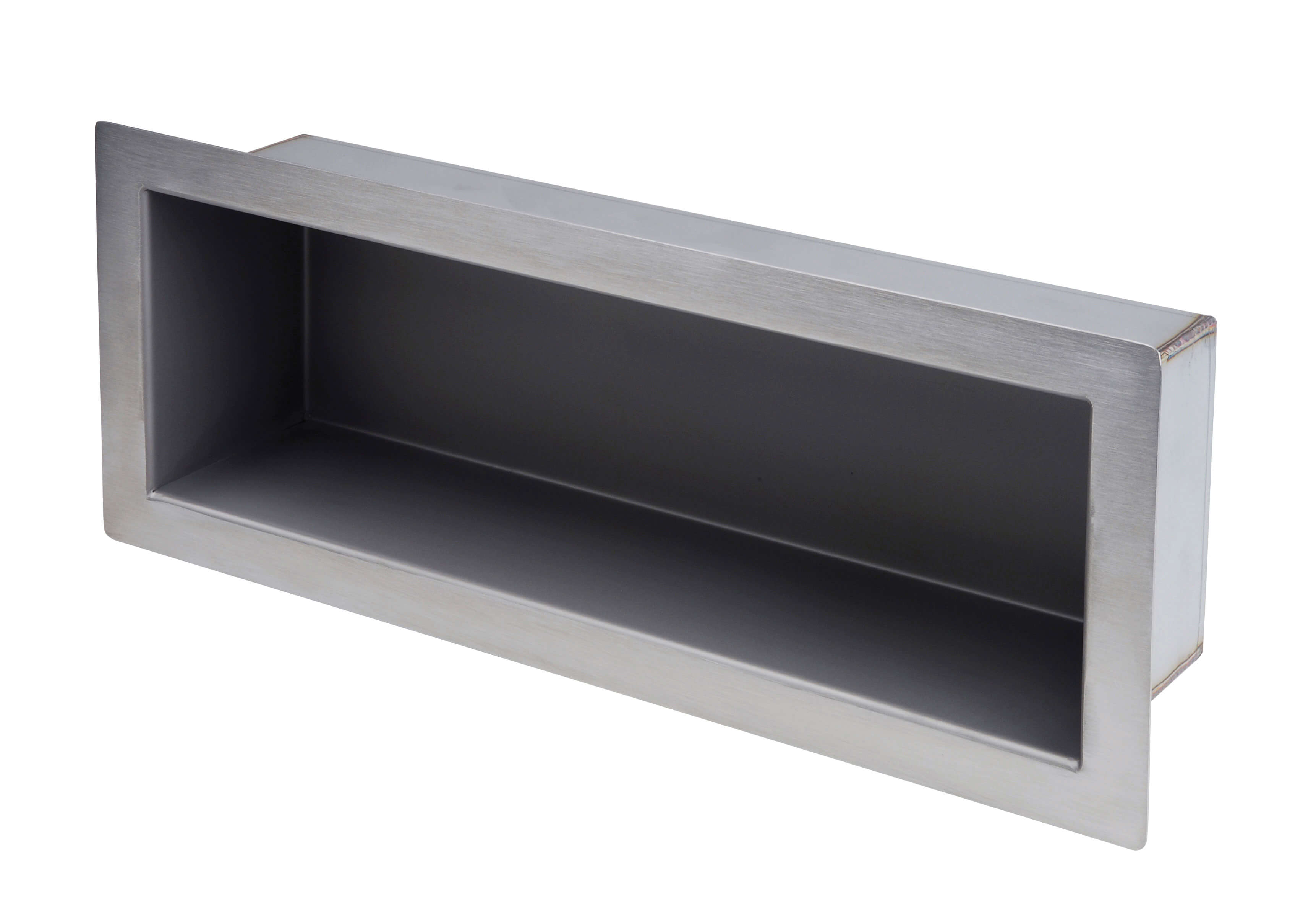

Recessed Stainless Steel Shelf

This recessed shelf can be installed on the finished wall from an accessible pipe chase. An optional Wall Sleeve is recommended for required wall openings. The shelf is constructed from type 304 stainless steel and features seamless welded construction. Exposed welds are ground smooth and exposed surfaces have a satin finish.

The shelf measures 5" (127 mm) high x 16" (406 mm) wide x 4" (102 mm) front-to-back with a 1" (25.4 mm) flange. Mounting studs are provided for a rear (chase) mount. Option -SW mounting sleeve is available.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide 1820 Shelf (pdf)	Recessed Stainless Steel Shelf	167 KB
Submittals	Submittal 1820 Shelf (pdf)	Recessed Stainless Steel Shelf	491 KB
BIM/CAD/Revit	Security Accessories (dwg)	Rear Mount Security Accessories [Mirrors 1810, 1811, 1812, 1813, 1817A; Shelves 1821, 1822, 1823, 1824, 1825, 1826, Clothes Hooks 1827, 1828, 1829, 1830; Soap Dish 1832, Toilet Paper Roll Holder 1840]	246 KB
BIM/CAD/Revit	1820 Shelf (rfa)	Recessed Stainless Steel Shelf	268 KB
Product MasterSpec	MasterSpec: 102813.63, Detention Toilet Accessories (doc)	Acorn Engineering - Detention Toilet Accessories	109 KB
Product MasterSpec	MasterSpec: 102813.63, Detention Toilet Accessories (pdf)	Acorn Engineering - Detention Toilet Accessories	137 KB
Brochures/Flyers	Acorn Enviro-Glaze Powder Coating Colors Flyer (pdf)	Enviro-Glaze Powdercoating Color Chart - Update Aug 2026	291 KB
Images	JPG 1820 Shelf	Recessed	136 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	Overview of MGI Divisions	718 KB
Brochures/Flyers	Secure Furnishings by Acorn Engineering Company Flyer (pdf)	Acorn Engineering Company offers a wide range of innovative designs for secured furnishings, featuring the durability and security of all steel construction.	2 MB
Technical Data Sheets	Cleaning and Care Guide (pdf)	Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo	1 MB
Parts Manuals	Parts Assembly 9957-900-001	Trims: Mounting Hardware, Penal FixtureS	96 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Shelf
Brand	Penal-Ware®
Material	Stainless Steel
Mounting	Recessed
Institutional Applications	Correctional
Park and Recreation Applications	Yes
Fixture Width	16"
Compliance	Ligature-Resistant

Options

Accessories

	Image	Model	Description	Downloads
		SW	Accessory: Wall Sleeve

Miscellaneous

	Image	Model	Description	Downloads
No available options
