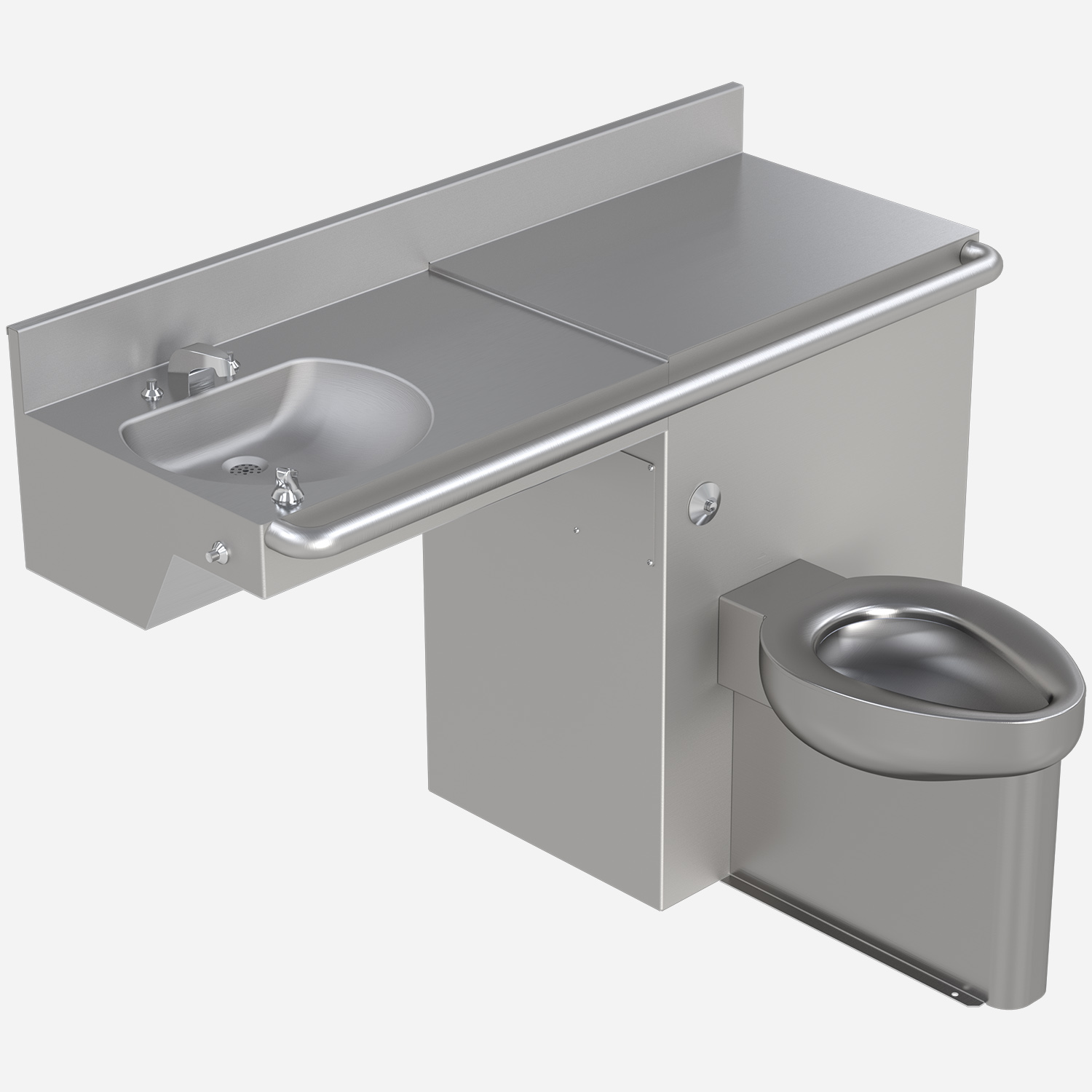

CBC (Calif. Title 24) Compliant - Lav/Toilet Comby - 52-1/4" Wide

1452 Series Comby are designed for compliancy with CBC (California Title 24). The toilet is designed with toilet being offset to the right or the left, the lavatory basin is on the opposite site. The comby unit is to be installed in a rear-mount (typically a chase) application.
The comby is designed to meet CBC compliancy, water conservation, and the rigorous demands of security facilities in a rear (chase) application.
CBC requirements include Lavatory Clearance to Adjacent Side Wall [11B-606.6] and Toe Clearance for Extended Reach [11B-306.2 Exception]. The fixture is compliant and exceeds ADA requirements. Please check with local requirements. Compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
Downloads
Specifications
| Product Type | Comby |
| Brand | Penal-Ware® |
| Configurations Available | On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Toilet Orientation | Left Offset (-LO), Right Offset (-RO) |
| Compliance | Federal Public Law 111-380, WaterSense meets EPA Criteria - certified by IAPMO R&T, ADA Compliant, CBC (Calif. Title 24) |
| Material | Stainless Steel |
| Material Detail | 14-Gauge Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Fixture Width | 52.25" |
| Bowl Shape | D-Shaped |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
![]() | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
![]() | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
![]() | 2 (Comby) | Option: On-Floor, Wall Outlet Comby | ||
![]() | 3 (Comby) | Option: On-Floor, Floor Outlet Comby | ||
![]() | BP | Option: Bubbler, Penal | ||
![]() | BPH | Option: Hemispherical Penal Bubbler | ||
![]() | BRS | Option : Lead-Free Brass Body Valve | ||
![]() | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
![]() | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
![]() | COH | Option: Cleanout Treble Hook Assembly | ||
![]() | CW (Comby) | Option: Combined Waste (Comby) | ||
![]() | DMB-BC | Option: Deck Mounted Bubbler, Code | ||
![]() | DMB-BP | Option: Deck Mounted Bubbler, Penal | ||
![]() | DMB-BPH | Option: Deck Mounted Bubbler, Hemispherical | ||
![]() | DMF-BP | Option: Deck Mounted Cup Filler Lavy-Toilet Comby | ||
![]() | DMF-BPH | Option: Deck Mounted Conical Cup Filler for Ligature-Resistant Lavy-Toilet Comby | ||
![]() | DMS | Option: Deck-Mounted Spout | ||
![]() | EG | Option: Enviro-Glaze® Powder Coating | ||
![]() | EVS1 | Option: Single Temperature Application Master-Trol® | ||
![]() | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
![]() | EVSFV | Option: Flush Valve Application Master-Trol® | ||
![]() | EVSFV-FTE | Option: Master-Trol® Flush Valve with Flood-Trol® Anti-Flood System | ||
![]() | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
![]() | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
![]() | EVSPFV | Option: Piezo Button Flush Valve Application Master-Trol® | ||
![]() | EVSPFV-FTE | Option: Piezo Button Flush Valve with Flood-Trol® Anti-Flood System Application Master-Trol® | ||
![]() | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
![]() | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
![]() | FVBO | Option: Flush Valve by Others | ||
![]() | FVH | Option: Hydraulic Flush Valve | ||
![]() | FVT | Option: Flush Valve Thru Wall Connection | ||
![]() | GBC | Option: Grab Bar Closure Plate | ||
![]() | GW | Option: Gasketed Waste | ||
![]() | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
![]() | HPS | Option: High Polish Seat #7 Finish | ||
![]() | LGB (Comby) | Option: Less Grab Bar on Comby | ||
![]() | LO | Option: Left Offset Toilet Configuration for Toilet-Lav Comby | ||
![]() | LPFV | Option: Less Punching For Flush Valve (For Remote Activation) | ||
![]() | LWE | Option: Lavy Waste Extended To Be Specified | ||
![]() | MA2 | Option: Manifolded Valves, 2 Set | ||
![]() | MT | Option: Metal Template | ||
![]() | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
![]() | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
![]() | MTPFV | Option: Master-Trol® Plus Flush Valve | ||
![]() | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
![]() | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
![]() | MTPPFV | Option: Master-Trol® Plus Piezo Push Button Flush Valve | ||
![]() | MVC1 | Single Temperature Valve Application Time-Trol® | ||
![]() | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
![]() | MVC1-CI | Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol® | ||
![]() | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
![]() | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
![]() | MVC2-CI | Option: Hot & Cold, Cycle Interrupt Valve Application Time-Trol® | ||
![]() | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
![]() | MVCFV-FTE | Push Button Solenoid Flush Valve Application Time-Trol® with Flood-Trol Anti-Flood System | ||
![]() | OF (Security Fixture) | Option: Security Lavatory Overflow | ||
![]() | PBH | Option: Pushbutton, Hemispherical | ||
![]() | PC | Option: Pinned Cleanout Plug | ||
![]() | PFB | Option: Power Failure Bypass on Master-Trol® Plus | ||
![]() | PH | Option: Paper Holder | ||
![]() | RO | Right Offset Toilet Configuration for Toilet-Lav Comby | ||
![]() | TB | Option: Toothbrush Holder | ||
![]() | TF | Option: Transformer for AC Power Valve | ||
![]() | TG | Option Twelve Gauge Type 304 Stainless Steel | ||
![]() | TH | Option: Towel Hook | ||
![]() | TSC | Option: Toilet Shipping Cover | ||
![]() | TWE | Option: Toilet Waste Extended To Be Specified | ||
![]() | VG3 | Option: Ventilation Grille [-VG3] | ||
![]() | WO3B | Option: 2-3/8 Inch P-Trap with 3 Inch Plain End Waste Outlet |
Models
Typical models are shown below

1452-LO
Left Offset Toilet

1452-RO
Right Offset Toilet
FIXTURE MOUNTING AND WASTE
-2 | On-Floor Fixture, Wall Waste Outlet
-3 | On-Floor Fixture, Floor Waste Outlet with Gasket Waste
