Model 1418LMB

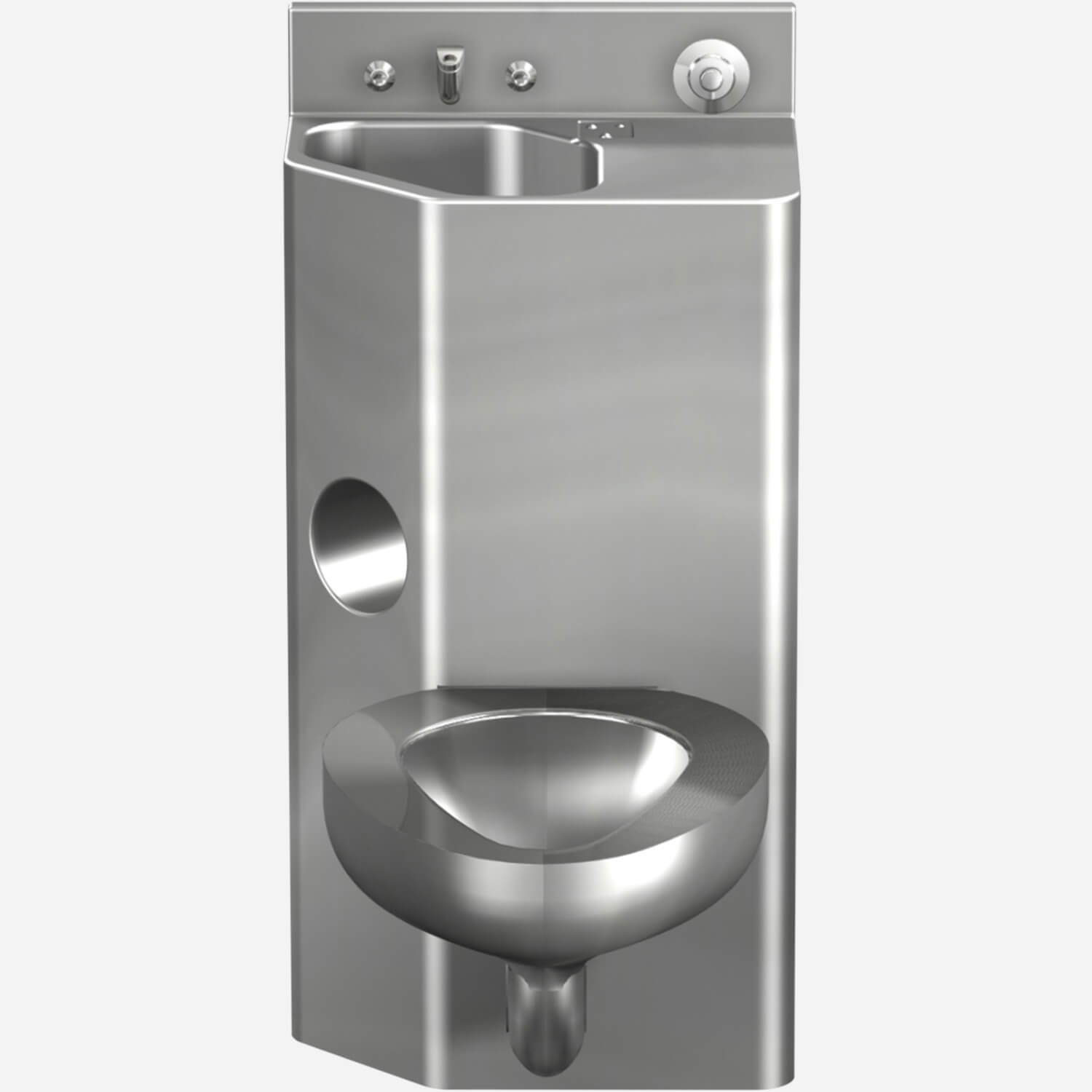

Rear Mount 18 Inch Comby with Toilet and Multi-Sided Lavatory Bowl
Perfect for retrofits and new construction, this space saving 18 inch, stainless steel, vandal resistant comby comes in a left, right, or center orientation. It features a rear mount and is available in off-floor with wall waste outlet, on-floor with wall waste outlet, and on-floor with floor waste outlet combinations.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 18 Inch Comby with Toilet and Multi-Sided Lavatory Bowl | 0 | 719 KB | ||
| | 18" Lav-Toilet Comby with Lavatory Multi-Sided Bowl | 0 | 217 KB | ||
| | Acorn Engineering - Toilet-Lavy Combination units, water closets, urinals, lavatories, drinking fountains, showers. electronic valve controls, service sinks. | 0 | 266 KB | ||
 | | Acorn Engineering - Toilet-Lavy Combination units, water closets, urinals, lavatories, drinking fountains, showers. electronic valve controls, service sinks. | 0 | 406 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Correctional Facility Fixtures HET Toilet/Acorn Vac | 0 | 816 KB | ||
 | | Angle Left Toilet, On-Floor/Wall Waste with Hot & Cold Air-Control Valves, Penal Bubbler, Toilet Paper Roll Holder | 0 | 253 KB | ||
| | Multiple Sided Bowl,Centered Toilet/Left Side Lavy,On-Floor/Wall Waste Outlet, Penal Bubbler, Hot & Cold Pneumatic Lavy Buttons, Toilet Paper Roll Holder | 0 | 197 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Valves: Air-Control™ Non-Metering Servomotor Assembly | 0 | 142 KB | ||
| | Valves: Hot and Cold Air-Control™ Valve Body Assembly (-04) | 0 | 82 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Hot and Cold Penal Air-Trol Fixture Trim | 0 | 80 KB | ||
| | Trims: Suicide Resistant Fixture Trim | 0 | 124 KB | ||
| | Trims: Mounting Hardware, Penal FixtureS | 0 | 96 KB | ||
| | Waste Connections and Thru-Wall Extensions: Cleanout w/ O-Ring No-Hub -C01 and Threaded -CO2 | 0 | 78 KB |
Specifications
| Product Type | Comby |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Brand | Penal-Ware® |
| Material | 14-Gauge Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Toilet Orientation | Angle Left (-AL), Angle Right (-AR), Centered (-CT) |
| High-Efficiency (Water Use) | Option -HET, -VAC Available |
| Vandal Resistant | High |
| Fixture Width | 18" |
| Lead-Free | Yes |
| Bowl Shape | Multi-Sided |
| Compliance | UPC GREEN - Water Efficiency |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -1 | Option: Off-Floor, Wall Outlet | ||
 | 03 | Option: Single Temperature Air-Control® Pneumatic Valve | ||
 | 04-MH | Option: Hot (Metering) & Cold Air-Control® Pneumatic Valve | ||
 | 2 (Comby) | Option: On-Floor, Wall Outlet Comby | ||
 | 3 (Comby) | Option: On-Floor, Floor Outlet Comby | ||
 | AL | Option: Angled Left Toilet Configuration for Toilet-Lav Comby | ||
 | AR | Option: Angled Right Toilet Configuration for Toilet-Lav Comby | ||
 | BC | Option: Bubbler, Code | ||
 | BP | Option: Bubbler, Penal | ||
 | BPH | Option: Hemispherical Penal Bubbler | ||
 | CI | Option: Cycle Interrupt | ||
 | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
 | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
 | COH | Option: Cleanout Treble Hook Assembly | ||
 | CW (Comby) | Option: Combined Waste (Comby) | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSFV | Option: Flush Valve Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | EVSPFV | Option: Piezo Button Flush Valve Application Master-Trol® | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FV (Toilet) | Option: Flush Valve for Toilet | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVO | Option: Flush Valve Opposite Location (Comby) | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | GW | Option: Gasketed Waste | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | HPS | Option: High Polish Seat #7 Finish | ||
 | HS | Option: Hinged Seat | ||
 | IS | Option: Integral Shelf | ||
 | LF | Option: Lavatory Filler | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MA3 | Option: Manifolded Valves, 3 Set | ||
 | MA4 | Option: Manifolded Valves, 4 Set | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPFV | Option: Master-Trol® Plus Flush Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MTPPFV | Option: Master-Trol® Plus Piezo Push Button Flush Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® |
Details
Product Function:
The comby is designed to meet needs of water conservation and the rigorous demands of security facilities.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
