Option: Acorn Type 8 T/P Balancing Commercial Shower Valve
The Acorn Type 8 T/P balancing commercial shower valve automatically mixes hot and cold water to deliver blended water within a specified range. An advanced thermal actuator allows the valve to quickly compensate for temperature fluctuations caused by water temperature and pressure changes.
In the event of cold water failure, the thermostatic motor virtually shuts off the flow of hot water.
The Acorn Type 8 commercial shower valve meets the most stringent performance criteria for temperature and pressure changes, providing uncompromised bather safety and comfort for any tub/shower application.
Key Benefits
- Temperature/Pressure balancing shower valve
- Ligature resistance adds another layer of bather safety
Although designed and built for the challenges of commercial and industrial facilities, it is cost-competitive with high-end Pressure Balancing Valves. The valve combination T/P Valve allows even the most cost-sensitive properties to meet the budget without the scalding risk associated with Type P Valves.
USED IN COMMERCIAL, INSTITUTIONAL, AND INDUSTRIAL APPLICATIONS

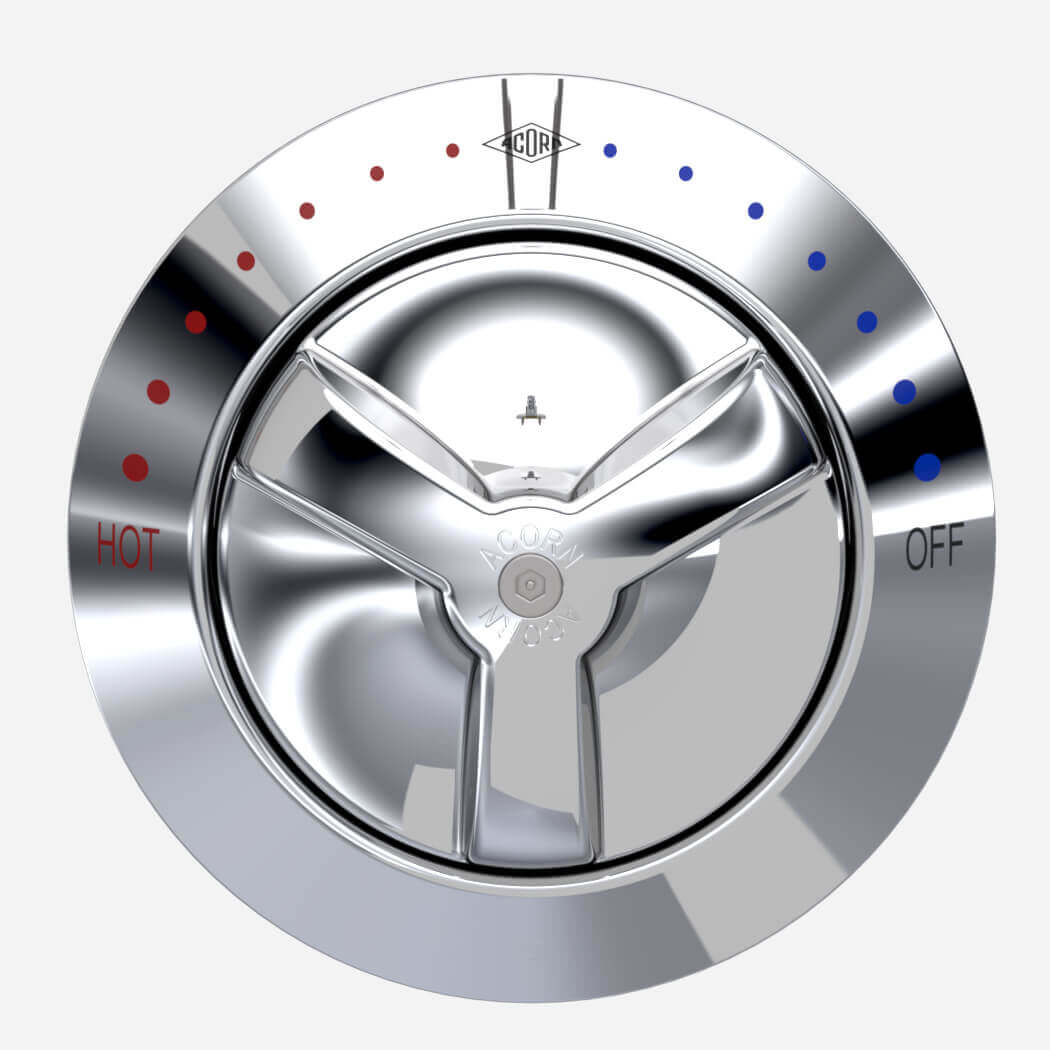

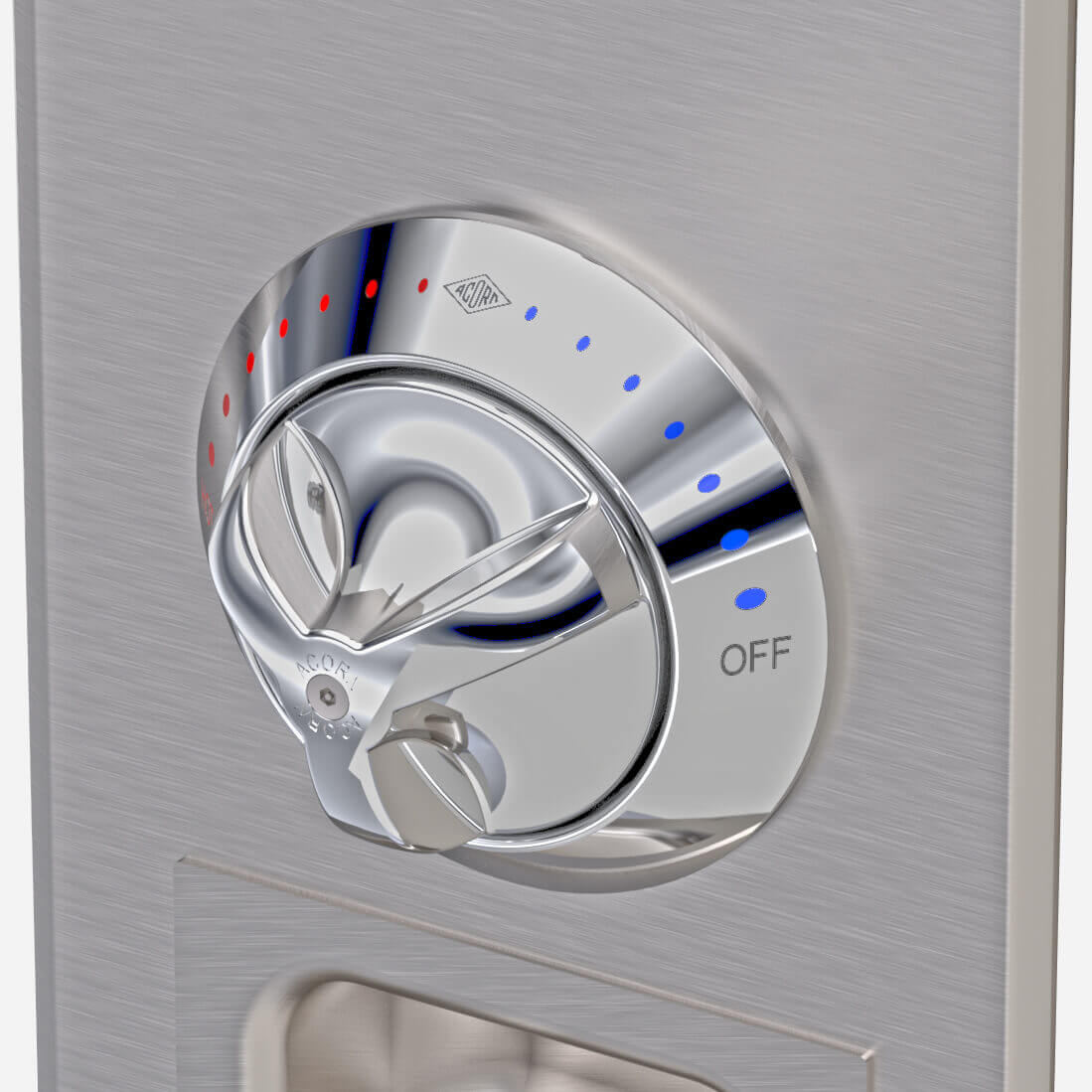

The trim of this valve features a patented ligature-resistant tri-lever design.
Valve Features
- The valve used is an Acorn Controls® Model SV16 Shower Valve.
- Ceramic shut-off components for long-term, drip-free reliability
- Lead-Free certified DZR brass body with corrosion-resistant and lead-free internal components
- A self-contained, field reversible cartridge eliminates cross-piping and offsetting of valves in back-to-back type installation
- Commercial quality paraffin sensor provides repeatable, reliable performance
- Integral check stops to isolate individual valves for servicing and to prevent backflow
- A non-rising stem ensures the benefits of the trim even when the valve is fully open.
- Patented Tri-Lever is Ligature and Vandal-Resistant manufactured in all-metal and provide ADA Compliance throughout the full operating range.
- Optional simple single lever trim is also available - not ADA
- Serviceable inlet screens
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Temperature/Pressure Balancing Mixing Valve for Acorn Commercial Showers | 167 KB | ||
| | Commercial Showers Brochure (pdf) | 2 MB | ||
| | Overview of MGI Divisions | 718 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 134 KB |
Specifications
| Product Type | Valve |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Compliance | ADA Compliant, CSA B125.1, Federal Public Law 111-380 |
| Lead-Free | Yes |
| Commercial Applications | Stadium & Arena |
| Institutional Applications | Educational Building, Hospital & Treatment Center, Train Station & Airport, Other Institutional Buildings |
| Park and Recreation Applications | Yes |
| Patent | 10,474,170 B2, D697,591 |
