Roll-In Cabinet Security Shower - ADA/CBC Compliant

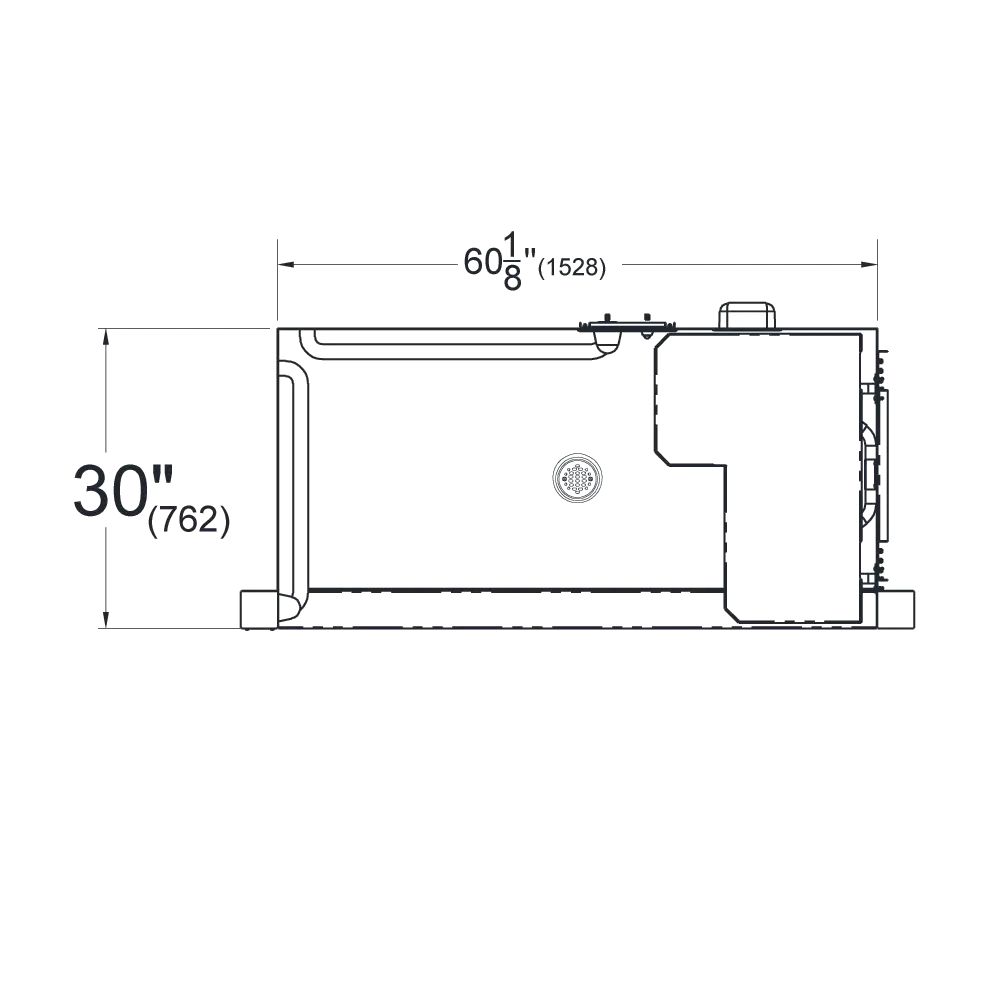

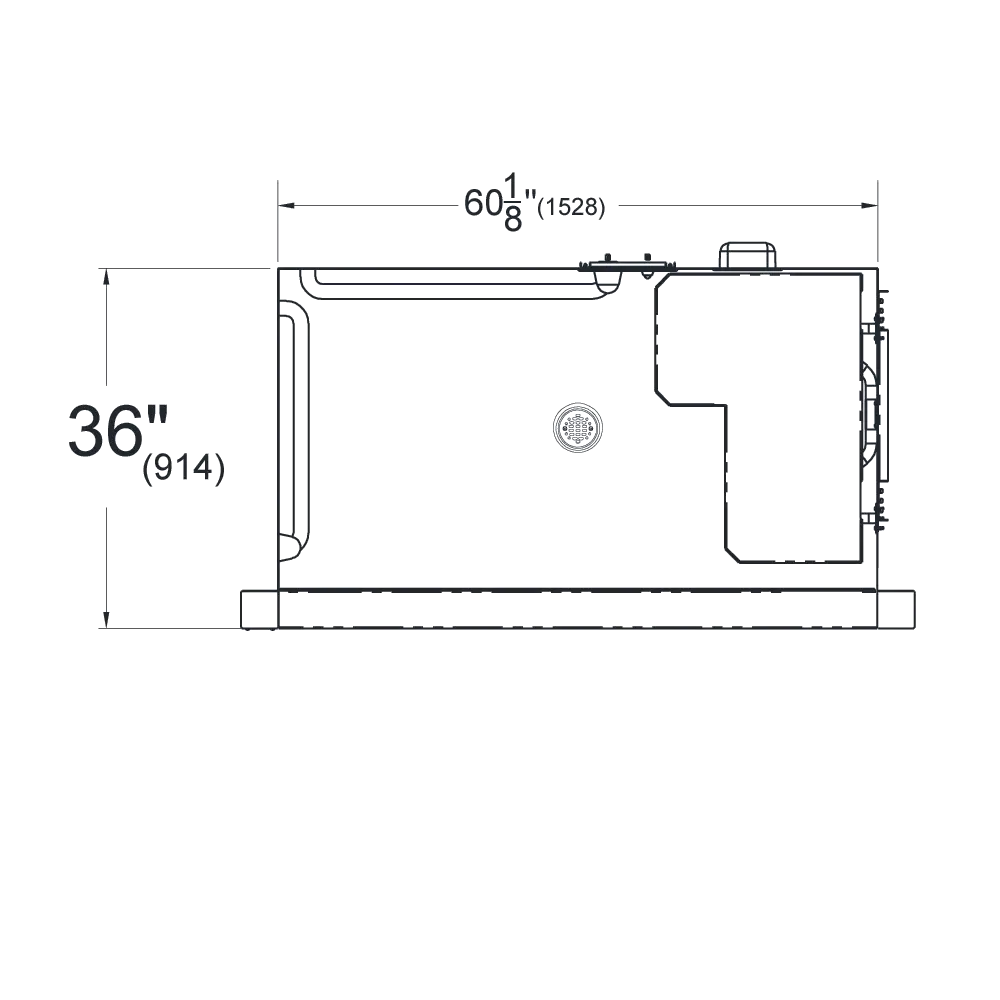

60-Inch (side-to-side) Roll-In Cabinet Shower is available in 30-inch or 36-inch (front-to-back) and fabricated from 14-gauge, type 304 stainless steel with exposed surfaces and a #4 satin finish, including front face, shower columns, and interior walls.

Standard Showerheads include (2) -CSHS Conical Showerheads (1.6 GPM) with Swivel Nozzle adjustment located on Shower Column for standing bather and -FH-CSHS fixed lower Showerhead on Back Wall at 48” (max) height for seated bather.

Control Panel, located on the back wall, includes Showerhead and Valve Controls to activate either upper or lower Showerheads. Shower Panel includes vandal-resistant stainless steel Fasteners and may be removed from the fixture side to service components. Back Wall includes -RD Stainless Steel Recessed Soap Dish as standard.

Shower Floor is 12 gauge type 304 stainless steel with a slip-resistant surface, with a reinforcing, and includes an Integral Drain with a Removable Grid Strainer for Inside Caulk connection to 2” IPS Waste Pipe. Refer also to -DLR Ligature-Resistant Strainer option.

Shower Threshold of 2 inches must be recessed at least 1-1/2 inches into the floor to maintain ADA and CBC (Title 24) compliance.

Accessible Valve Controls are available with dual Metering Pushbuttons or the optional Diverter Valve (option -DV) to serve Upper and Lower showerheads. Refer to the individual Valve Submittal for complete details. Valve Types include:

• -03-M & -04-M Air-Control Metering Pushbutton(s)
• -8 Thermostatic/Pressure Balancing Valve (SV16)
• -8MV Thermostatic/Pressure Balancing Valve (SV16) with Metering Pushbutton in Showerhead Riser
• Electronic Metering Valve Pushbutton(s) including Master-Trol, Master-Trol Plus, Time-Trol, or Piezo.

The showers with the -8, -8MV valve feature ASSE 1016-compliant Thermostatic/Pressure Balancing Valves from Acorn Controls.
