Name: Square Stainless Steel Pylon Shower
Brand: Acorn Engineering Company
SKU: 900 Series

Model 900 Series

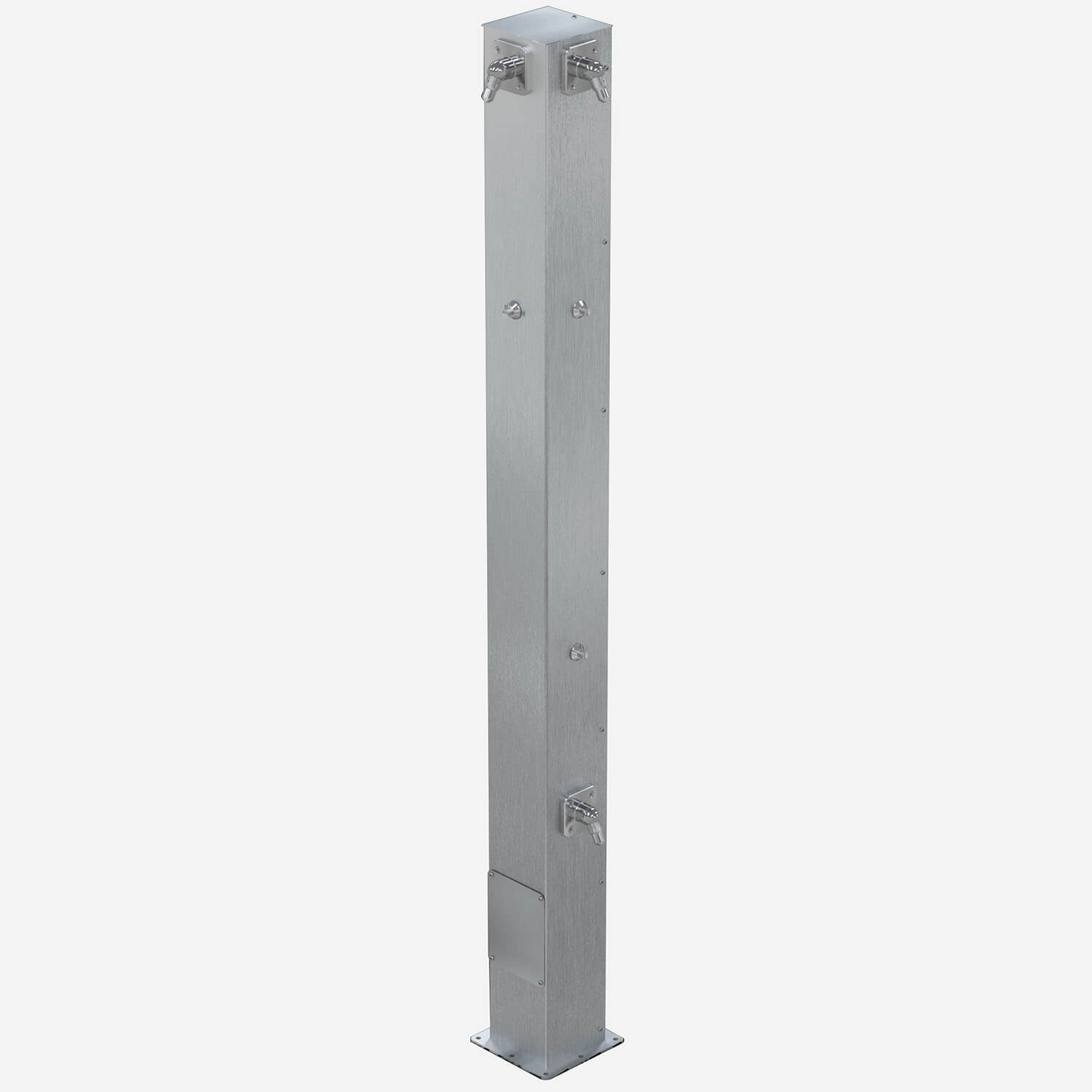

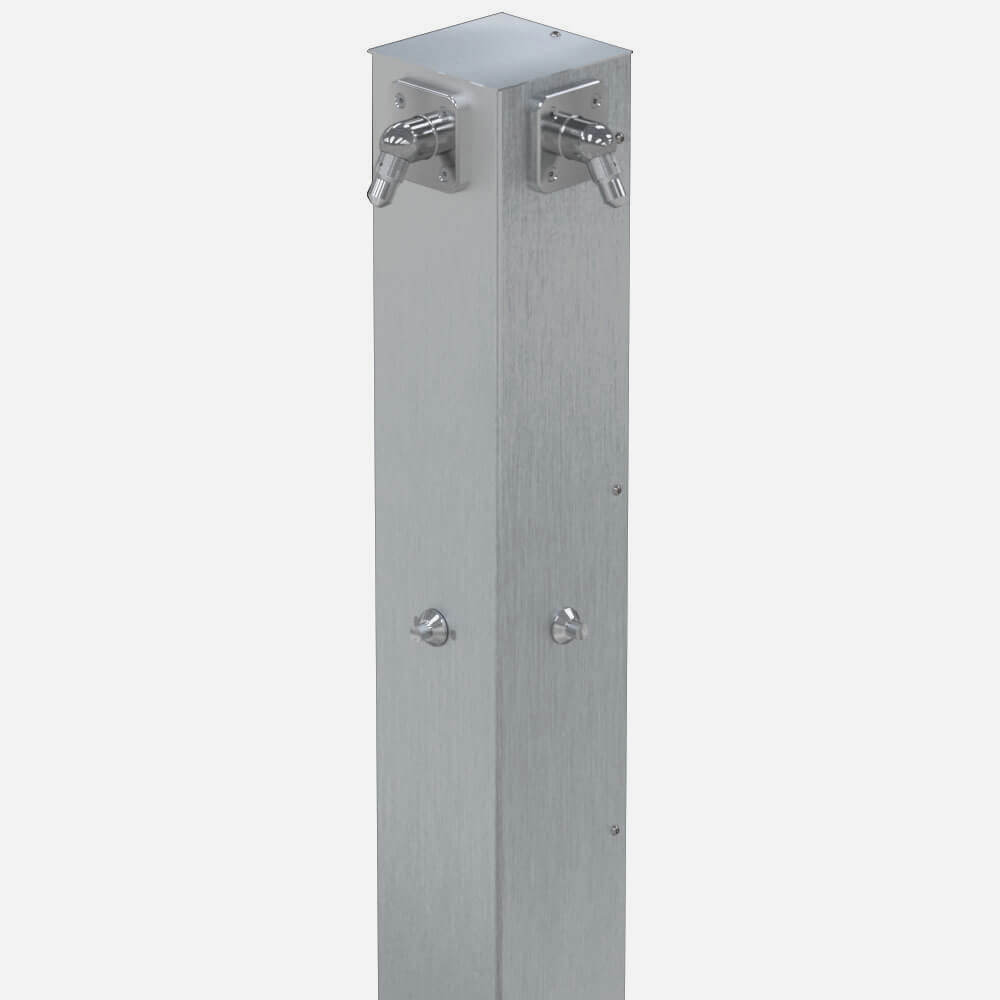

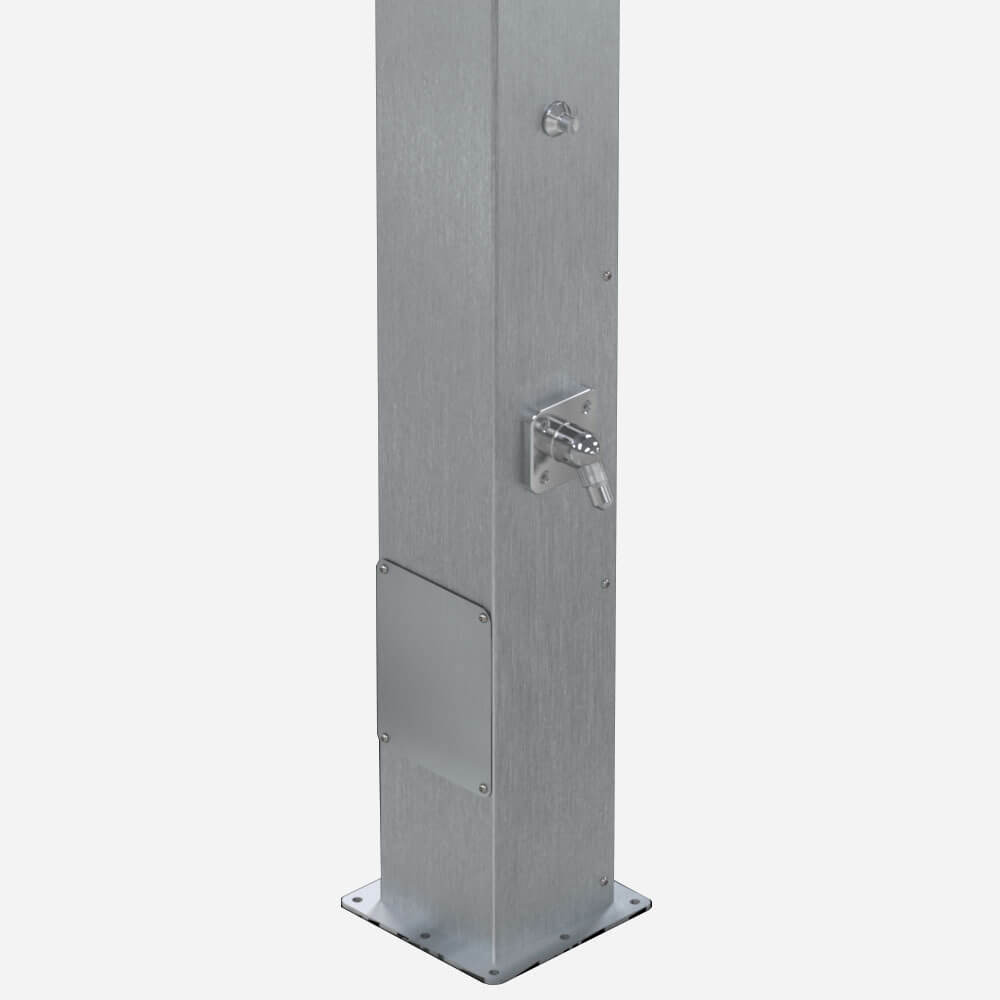

Square Stainless Steel Pylon Shower

Pylon shall be 14 gauge, type 304 stainless steel with a satin finish. Pylon shall be factory pre-piped and hydrostatically tested to 150 PSI. Anchor base shall be heavy steel plate with a rust preventative coating. Shower head discharge height shall be (specify).Shower Heads are solid brass, triple chrome-plated, and include a 1.6 gallon (6 liters) per minute flow restrictor. The Acorn Logan Wizard Shower Head design provides self-cleaning with every use and has an adjustable spray pattern from a coarse stream to a fine mist.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide 900 Series Shower (pdf)	Square Pylon Shower with Single Temp Single Temp Air-Control Pneumatic Pushbutton [One-Station 916; Two-Station 926; Three-Station 936; Four-Station 946]	544 KB
Submittals	Submittal 900 Series Shower (pdf)	Square Pylon Shower with Single Temp Single Temp Air-Control Pneumatic Pushbutton [One-Station 916; Two-Station 926; Three-Station 936; Four-Station 946]	114 KB
BIM/CAD/Revit	916-FS Shower (dwg)	Square Stainless Steel Column Shower [916-FS \| One-Station Shower with Acorn Air-Control Pneumatic Pushbutton Valves and Foot Shower]	202 KB
BIM/CAD/Revit	916-FS Shower (rfa)	Square Stainless Steel Column Shower [916-FS \| One-Station Shower with Acorn Air-Control Pneumatic Pushbutton Valves and Foot Shower]	408 KB
Product MasterSpec	MasterSpec: 224223, Commercial Showers (doc)	Acorn Engineering - Commercial Showers	288 KB
Product MasterSpec	MasterSpec: 224223, Commercial Showers (pdf)	Acorn Engineering - Commercial Showers	221 KB
Brochures/Flyers	Acorn Enviro-Glaze Powder Coating Colors Flyer (pdf)	Enviro-Glaze Powdercoating Color Chart - Update Aug 2026	291 KB
Brochures/Flyers	Commercial Showers Brochure (pdf)	Commercial Showers Brochure (pdf)	2 MB
Brochures/Flyers	Stainless Steel Fixtures and Accessories for Parks	Stainless Steel Fixtures and Accessories for Parks	1 MB
Images	926-FS Shower (hi res jpg)	Square Pylon Shower with Single Temp Single Temp Air-Control Pneumatic Pushbutton - Two-Station, Foot Shower 926-FS	58 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	Overview of MGI Divisions	718 KB
Technical Data Sheets	Cleaning and Care Guide (pdf)	Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo	1 MB
Parts Manuals	Parts Assembly 9970-055-001	Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y	70 KB
Parts Manuals	Parts Assembly 9955-000-003	Valves: Air-Control™ Metering Servomotor Assembly	124 KB
Parts Manuals	Parts Assembly 9956-040-003 (pdf)	Stops: Plastic Air-Control® Check Stop Assembly	74 KB
Parts Manuals	Parts Assembly 9957-300-001	Trims: Air-Trol/Master-Trol Push Button Assembly	130 KB
Parts Manuals	Parts Assembly 9970-101-004	Shower Heads: Shower Nozzle Assembly - Rigid Head	132 KB
Parts Manuals	Parts Assembly 9970-125-003	Shower Heads: Flanged Shower Head w/ Anchor Plate	49 KB
Parts Manuals	Parts Assembly 9975-000-001	Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge	157 KB
Parts Manuals	Parts Assembly 9975-090-001	Shower-Ware - Valves: Single Temp Air-Trol Valve Body Assembly	75 KB
Parts Manuals	Parts Assembly 9970-050-005	Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint	74 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	Shower-Ware®
Material	Stainless Steel
Vandal Resistant	Moderate
Institutional Applications	Correctional, Educational Building, Hospital & Treatment Center, Train Station & Airport, Other Institutional Buildings
Commercial Applications	Stadium & Arena, Health Club
Park and Recreation Applications	Yes
Product Type	Shower
Mounting	Pedestal

Options

Accessories

	Image	Model	Description	Downloads
		HL	Accessory: Hi - Lo Mounting Brackets for Shower

Miscellaneous

	Image	Model	Description	Downloads
		EG	Option: Enviro-Glaze® Powder Coating
		FS	Option: Foot Spray
		FX	Option: Hand Shower
		MSH	Option: Multi-Stream, Ball Joint Shower Head
		P	Option: Penal Shower Head
		QD	Option: Quick Disconnect for Shower
		Y	Option: Universal Ball Joint
		YY	Option: Lockable Universal Ball Joint

Models

Typical models are shown below

Model Number 9__6
Single Temperature
Metering Air-Control Valve
Model 916 | One-Station
Model 926 | Two-Station
Model 936 | Three-Station
Model 946 | Four-Station
