Model 1743
Built-in Stainless Steel Security Shower for Rear Mount (Chase) Application

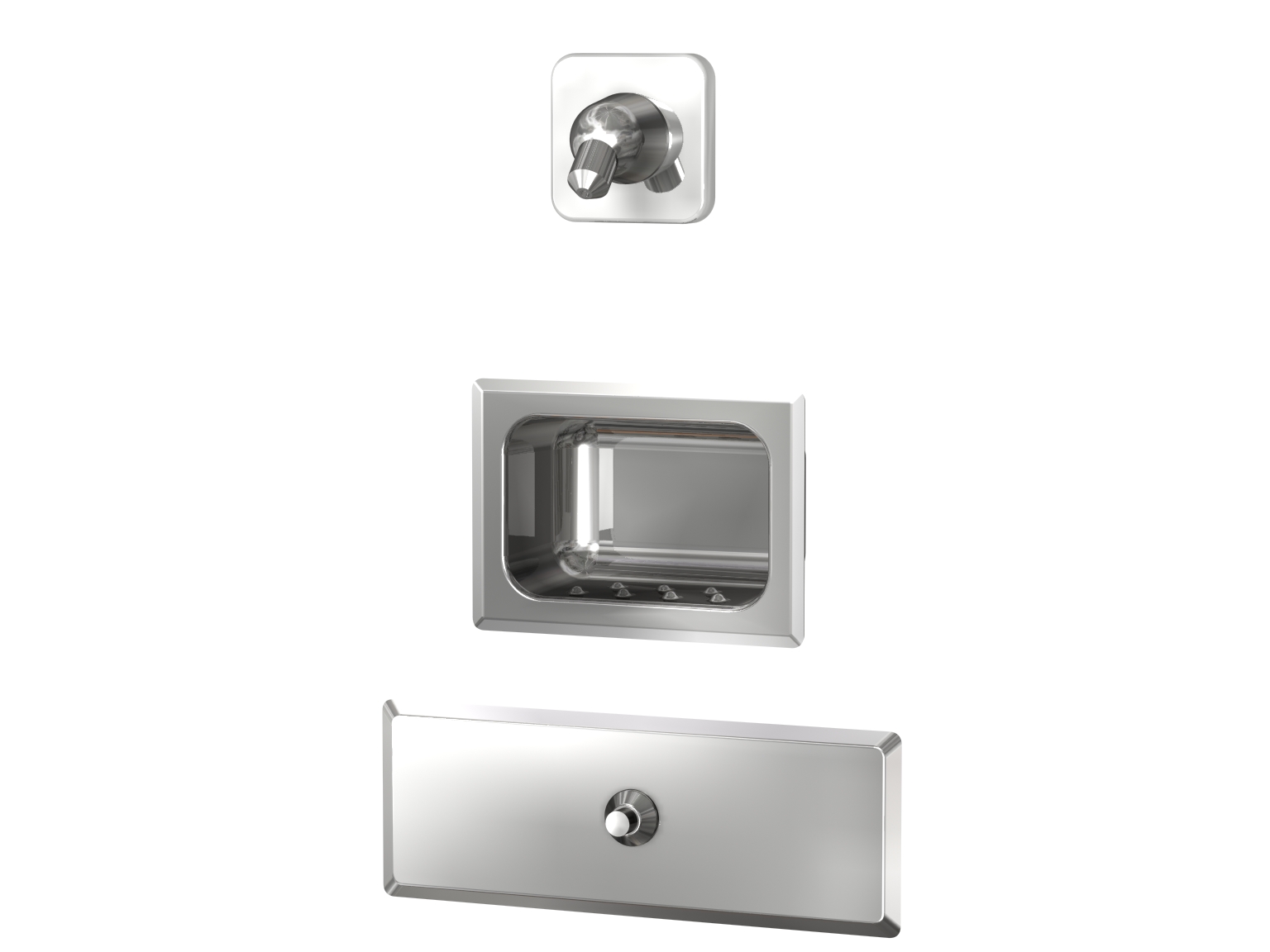

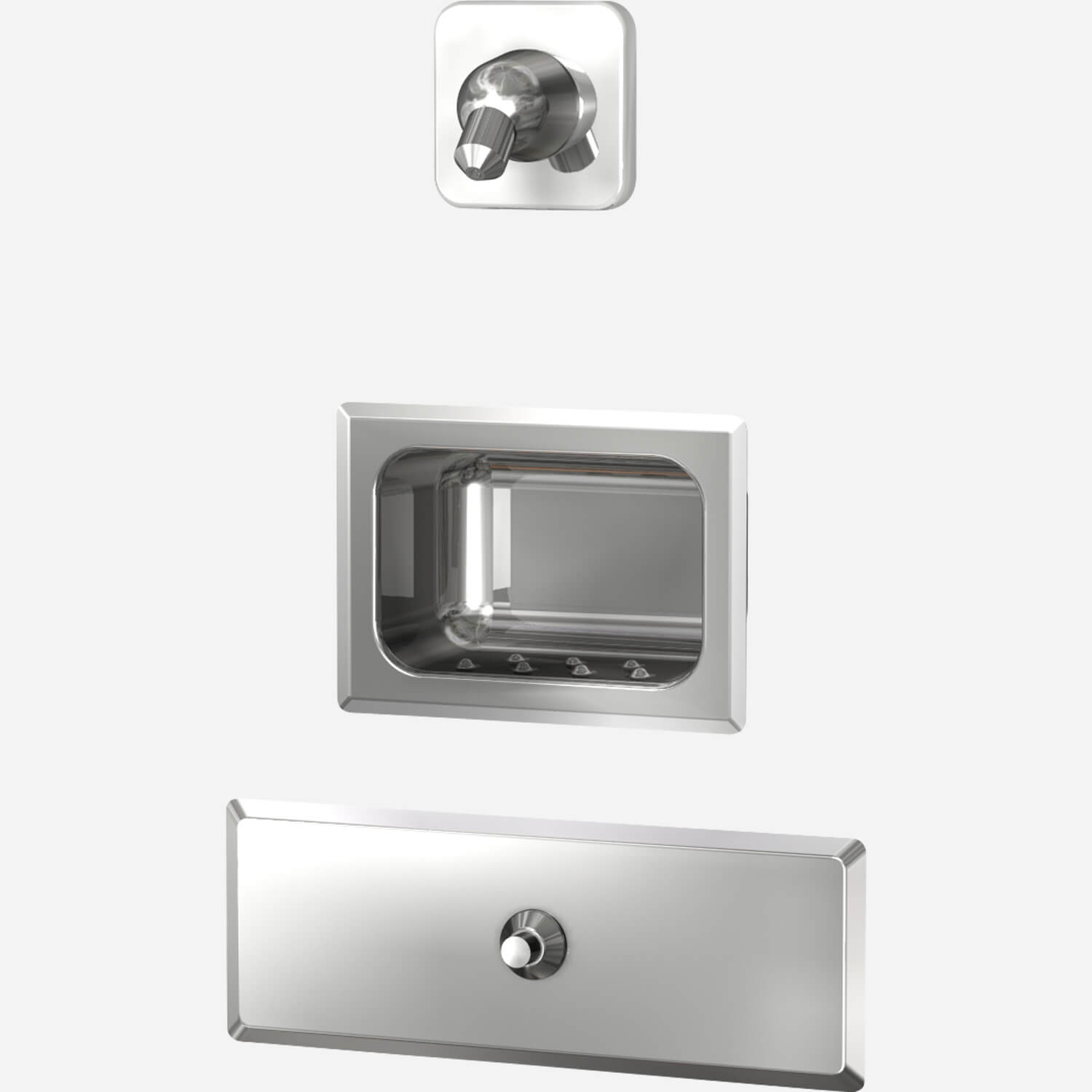

This Acorn security shower is to be built into the wall in a rear chase application. The showerhead is typically mounted with a square escutcheon plate. The valve buttons are mounted on a separate plate. If specified the soap dish (surface or recessed) is to be mounted separately onto/into the wall.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Stainless Steel Security Shower (Head & Single Temperature Air-Control Valve on Separate Panels) for Rear Mount (Chase) Application | 0 | 318 KB | ||
| | Stainless Steel Security Shower (Head & Valve on Separate Panels) for Rear Mount (Chase) Application | 0 | 138 KB | ||
| | Stainless Steel Security Shower (Head & Single Temperature Time-Trol Valve on Separate Panels) for Rear Mount (Chase) Application | 0 | 400 KB | ||
| | Stainless Steel Security Shower (Head & Hot-Cold Air-Control Valve on Separate Panels) for Rear Mount (Chase) Application | 0 | 298 KB | ||
| | Stainless Steel Security Shower (Head & Hot & Cold Time-Trol Valve on Separate Panels) for Rear Mount (Chase) Application | 0 | 346 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
 | | Metering Single Temperature Air Control Valve, Recess Soap Dish | 0 | 144 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 0 | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Mounting Hardware, Penal FixtureS | 0 | 96 KB | ||
| | Shower Heads - Penal: Flanged Penal Shower Head -Catalog #1743 | 0 | 122 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Penal-Ware® |
| Material | Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Other Institutional Buildings |
| Park and Recreation Applications | Yes |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | CSH | Option: Conical Shower Head | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | F1.6 | Option: Flow Control 1.6 GPM | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MT | Option: Metal Template | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||

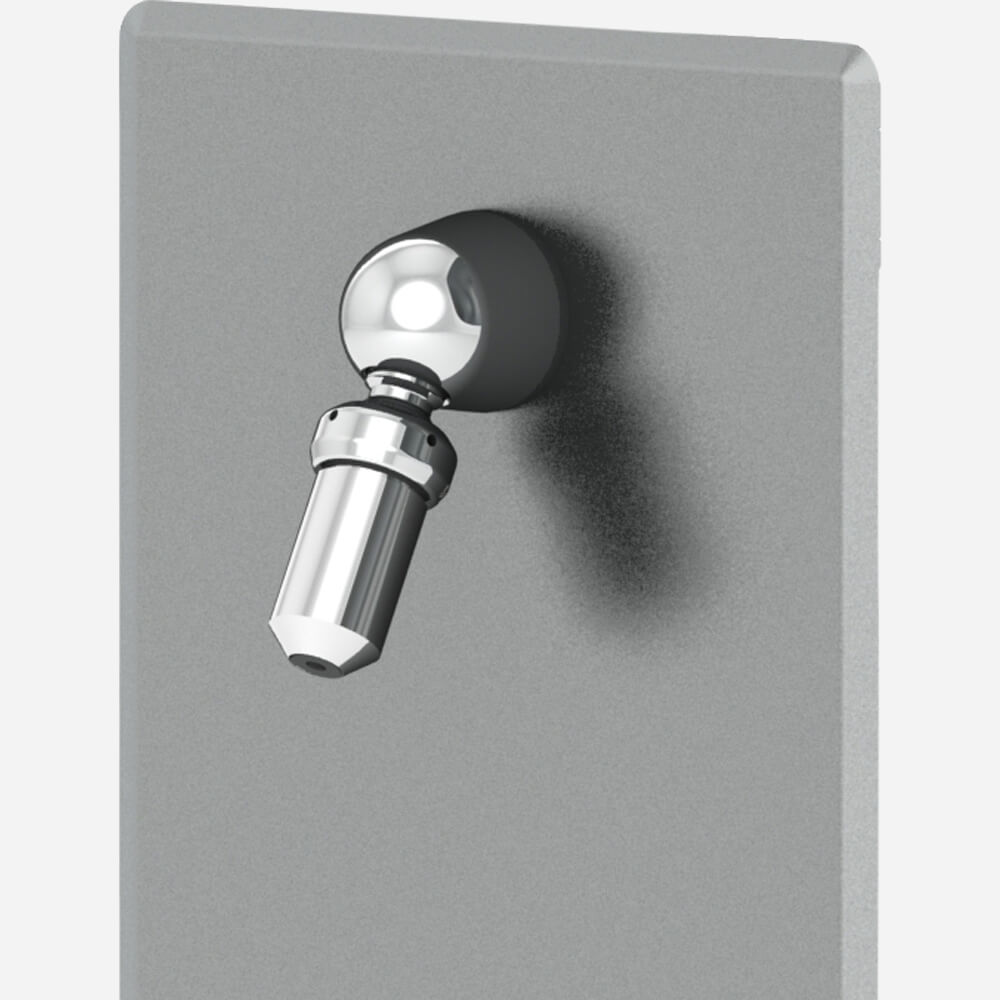

 | PYY | Option: Penal Showerhead with Universal Lockable Joint | ||

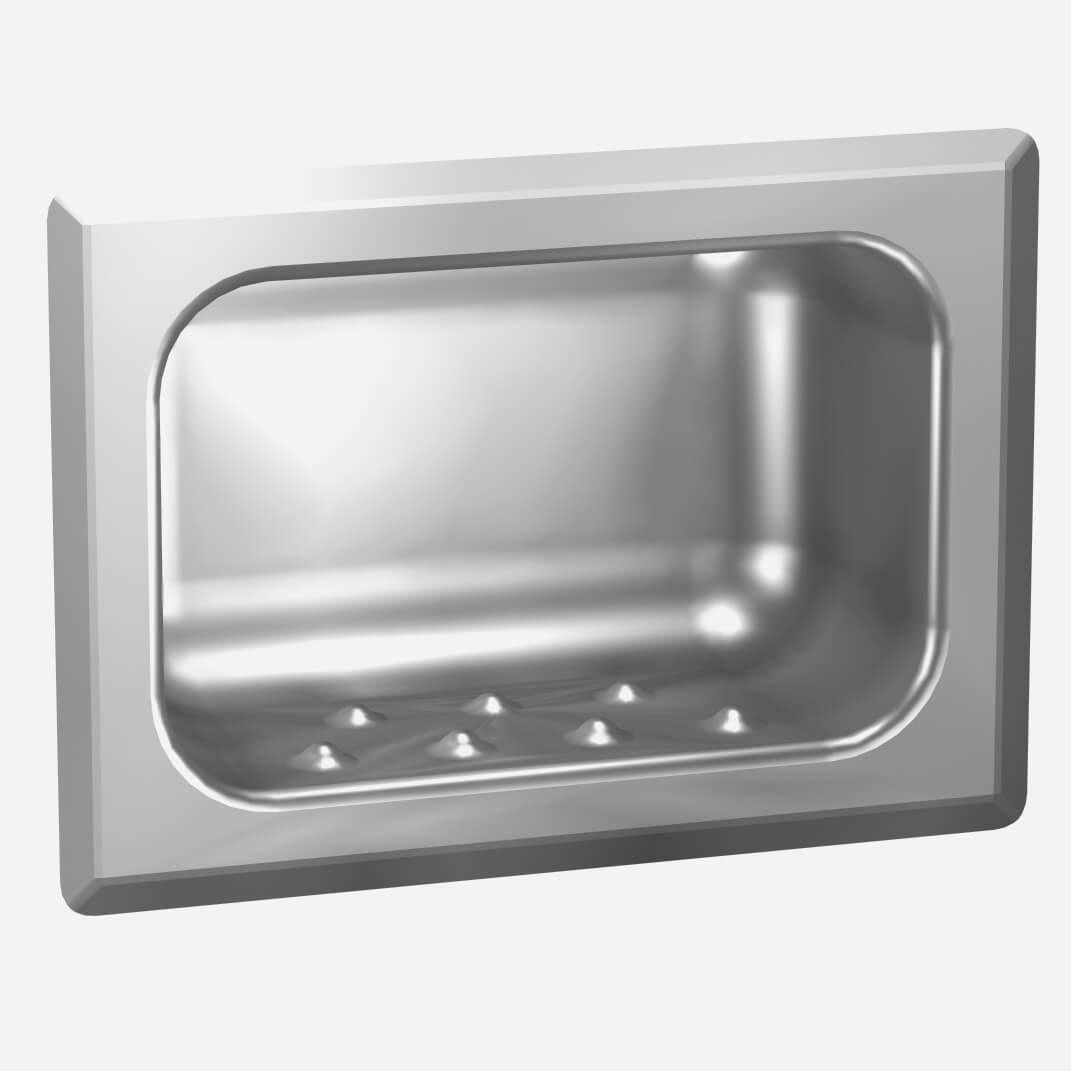

 | RD | Option: Recessed Soap Dish | ||
 | TF | Option: Transformer for AC Power Valve |
