Name: Master-Trol® Plus Retrofit Valves for Flushing Toilets, Hot & Cold for Lavatories
Brand: Acorn Engineering Company
SKU: EZ-MTP-WCL Series

Model EZ-MTP-WCL Series

Master-Trol® Plus Retrofit Valves for Flushing Toilets, Hot & Cold for Lavatories

Acorn provides valve package compatable with the Master-Trol® Plus System. The package retrofits the hot & cold pneumatic valves for a lavatory and flush valve for a toilet. Packages are also available for two or four sets of lavatories and toilets.Note: Lavatory nor toilet units are NOT supplied in any of these valve packages. Reminder: these are valve components for existing lavatories and toilets.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual Master-Trol® Plus Valve System	Includes instructions for MTP1, MTP2, MTPFV, MTPP1, MTPP2, MTPPFV, and EZ-MTP Retrofit Packages	7 MB
Submittals	Submittal Master-Trol Plus (pdf)	Master-Trol® PLUS Water Management System	848 KB
BIM/CAD/Revit	Master-Trol® Plus Component (rfa/zip)	Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve	4 MB
BIM/CAD/Revit	Master-Trol® Plus Component (dwg/zip)	Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve	2 MB
Submittals	Spec Sheet EZ-MTP-WCL Valve Retrofit (pdf)	Master-Trol® Plus Retrofit Valves for Flushing Existing Toilet, Hot & Cold for Existing Lavatory	1 MB
Submittals	Spec Sheet EZ-MTP-WCL-2 Valve Retrofit (pdf)	Master-Trol® Plus Retrofit Valves for Two Sets Flushing Existing Toilet, Hot & Cold for Existing Lavatory	1 MB
Submittals	Spec Sheet EZ-MTP-WCL-4 Valve Retrofit (pdf)	Master-Trol® Plus Retrofit Valves for Four Sets Flushing Existing Toilet, Hot & Cold for Existing Lavatory	1 MB
Brochures/Flyers	Master-Trol Plus Flyer (pdf)	Master-Trol Plus Flyer (pdf)	482 KB
Brochures/Flyers	Master-Trol Plus Sales Flyer (pdf)	Master-Trol Plus Sales Flyer	374 KB
Brochures/Flyers	MGI Brands Flyer (pdf)	Overview of MGI Divisions	718 KB

Can't find what you are looking for? Get in touch

Details

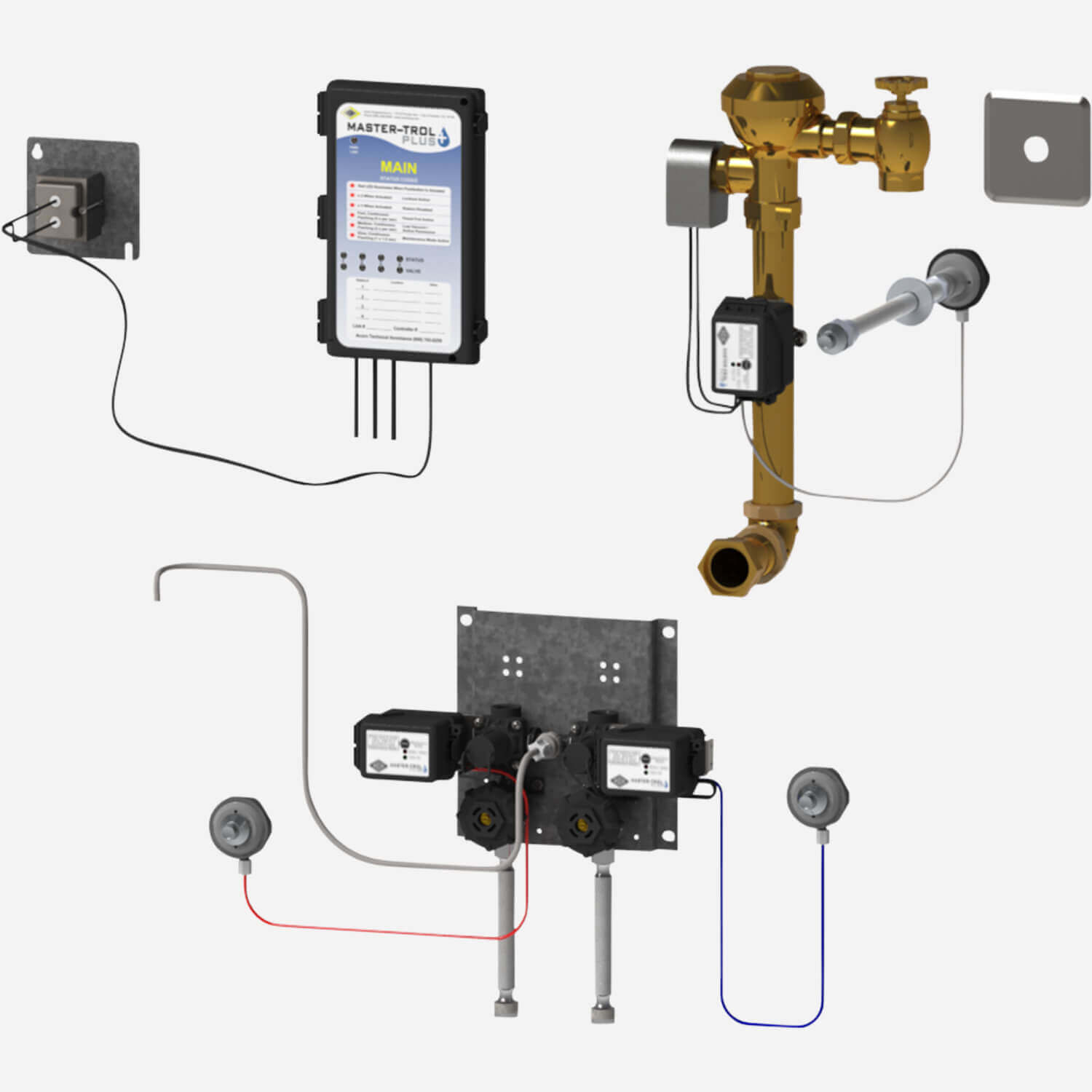

Regularly Furnished:

EZ-MTP-WCLretrofitting a toilet and a lavatory

-MTP Main Controller configured to service a Hot & Cold valves of an existing lavatory and the flush valve for an existing toilet
24 VAC 50 VA Transformer to power -MTP Controller
-MTP2 Valve Hot & Cold 0.5 gallon (1.9 liter) per minute Pneumatic Valve Assembly including Hot & Cold Pneumatic Pushbuttons
Pushbutton escutcheon
Bubbler Adapters
-MTPFV Flush Valve Branch Assembly
Wall Supply Electronic Solenoid Operated Flush Valve
Flushing Air-Control™ Pneumatic Push Rod Assembly for 8 inch (203.2 mm) Wall
Mounting Plate
Controller Cable
Tubing for Pneumatic Pushbutton

EZ-MTP-WCL-2retrofitting two toilets and two lavatories

-MTP Main Controller with Subcontroller configured to service Hot & Cold valves for two existing proximate lavatories and the flush valves for two existing proximate toilets
24 VAC 50 VA Transformer to power -MTP Controller
-MTP2-MA2 Valve Hot & Cold 0.5 gallon (1.9 liter) per minute Pneumatic Valve Assembly including Hot & Cold Pneumatic Pushbuttons (servicing Hot & Cold for both lavatories)
Adequate Pushbutton escutcheon
Adequate Bubbler Adapters
Two -MTPFV Flush Valve Branch Assembly
Two Wall Supply Electronic Solenoid Operated Flush Valve operating with 1.28 Gallon (4.85 Liter) per Flush
Two Flushing Air-Control™ Pneumatic Push Rod Assemblies for 8 inch (203.2 mm) Wall
Two Mounting Plates
Adequate Controller Cable
Adequate Tubing for Pneumatic Pushbutton

EZ-MTP-WCL-4retrofitting four toilets and four lavatories

-MTP Main Controller with two Subcontrollers configured to service Hot & Cold valves of four existing proximate lavatories and the flush valves for four existing proximate toilets
24 VAC 50 VA Transformer to power -MTP Controller
Two sets of -MTP2-MA2 Valve Hot & Cold 0.5 gallon (1.9 liter) per minute Pneumatic Valve Assembly including Hot & Cold Pneumatic Pushbuttons (each -MTP2-MA2 Valve Assembly services Hot & Cold for two lavatories)
Adequate Pushbutton escutcheon
Adequate Bubbler Adapters
Four -MTPFV Flush Valve Branch Assembly
Four Wall Supply Electronic Solenoid Operated Flush Valve
Four Flushing Air-Control™ Pneumatic Push Rod Assemblies for 8 inch (203.2 mm) Wall
Four Mounting Plates
Adequate Controller Cable
Adequate Tubing for Pneumatic Pushbutton
