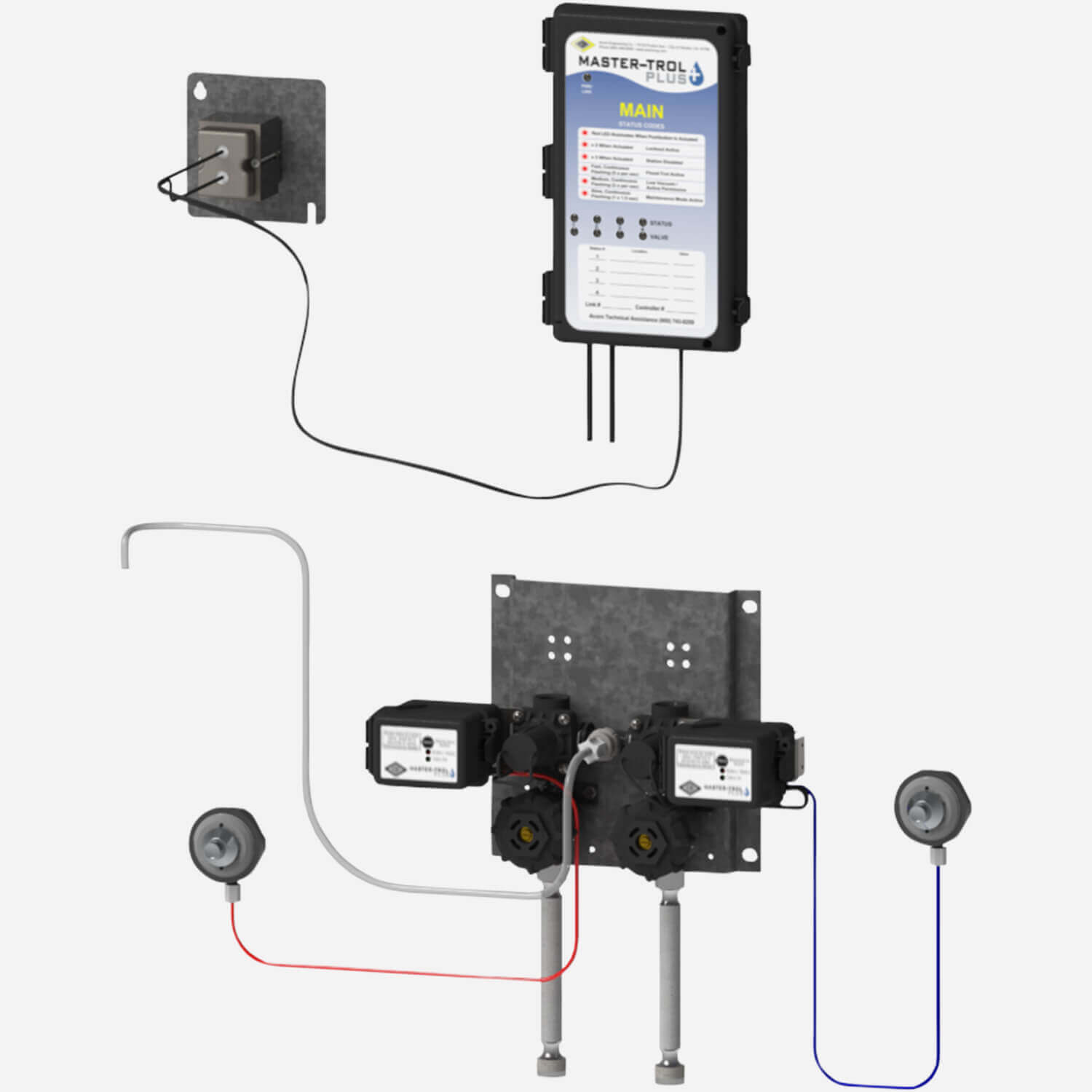

Model EZ-MTP-HC-LV
Master-Trol® Plus Retrofit Hot & Cold Valve Package used on Existing Lavatory
Acorn provides valve package compatable with the Master-Trol® Plus System. The package retrofits the hot & cold pneumatic valve for an existing single lavatory.Note: Lavatory units are NOT supplied in any of these valve packages. Reminder: these are valve components for existing lavatories.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Includes instructions for MTP1, MTP2, MTPFV, MTPP1, MTPP2, MTPPFV, and EZ-MTP Retrofit Packages | 0 | 7 MB | ||
| | Master-Trol® PLUS Water Management System | 0 | 848 KB | ||
 | | Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve | 0 | 4 MB | ||
| | Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve | 0 | 2 MB | ||
| | Master-Trol® Plus Retrofit Hot & Cold Valve Package used on Existing Lavatory | 0 | 751 KB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Master-Trol Plus Flyer (pdf) | 0 | 482 KB | ||
| | Master-Trol Plus Easy-to-Order Valve Package Flyer | 0 | 403 KB |
Details
Regularly Furnished:
This package includes- -MTP Main Controller
- 24 VAC 50 VA Transformer to power -MTP Controller
- -MTP2 Valve Hot & Cold 0.5 gallon (1.9 liter) per minute Pneumatic Valve Assembly including Hot & Cold Pneumatic Pushbuttons
- Pushbutton escutcheons
- Bubbler Adapters
- Controller Cable
- Tubing for Pneumatic Pushbutton
