Name: Master-Trol® Plus Retrofit Valve Package used on Existing Comby
Brand: Acorn Engineering Company
SKU: EZ-MTP-LTC Series

Model EZ-MTP-LTC Series

Master-Trol® Plus Retrofit Valve Package used on Existing Comby

Acorn provides valve package compatable with the Master-Trol® Plus System. The package retrofits the valves on an existing Lavatory-Toilet Comby including the hot and cold pneumatic valves for the lavatory and flush valve for the toilet. Packages are also available for two or four combys.Note: Lavatory-Toilet Comby units are not supplied in any of these valve packages. Reminder: these are valve components for existing combys.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual Master-Trol® Plus Valve System	Includes instructions for MTP1, MTP2, MTPFV, MTPP1, MTPP2, MTPPFV, and EZ-MTP Retrofit Packages	7 MB
Submittals	Submittal Master-Trol Plus (pdf)	Master-Trol® PLUS Water Management System	848 KB
BIM/CAD/Revit	Master-Trol® Plus Component (rfa/zip)	Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve	4 MB
BIM/CAD/Revit	Master-Trol® Plus Component (dwg/zip)	Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve	2 MB
Submittals	Spec Sheet EZ-MTP-LTC Valve Retrofit (pdf)	Master-Trol® Plus Retrofit Valve Package used on Existing Comby	1 MB
Submittals	Spec Sheet EZ-MTP-LTC-2 Valve Retrofit (pdf)	Master-Trol® Plus Retrofit Valve Package used on Existing Two Combys	1 MB
Submittals	Spec Sheet EZ-MTP-LTC-4 Valve Retrofit (pdf)	Master-Trol® Plus Retrofit Valve Package used on Existing Four Combys	1 MB
Brochures/Flyers	Master-Trol Plus Flyer (pdf)	Master-Trol Plus Flyer (pdf)	482 KB
Brochures/Flyers	Master-Trol Plus Sales Flyer (pdf)	Master-Trol Plus Sales Flyer	374 KB

Can't find what you are looking for? Get in touch

Details

Regularly Furnished:

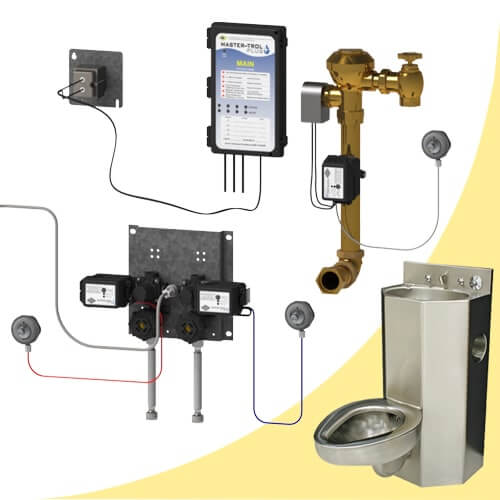

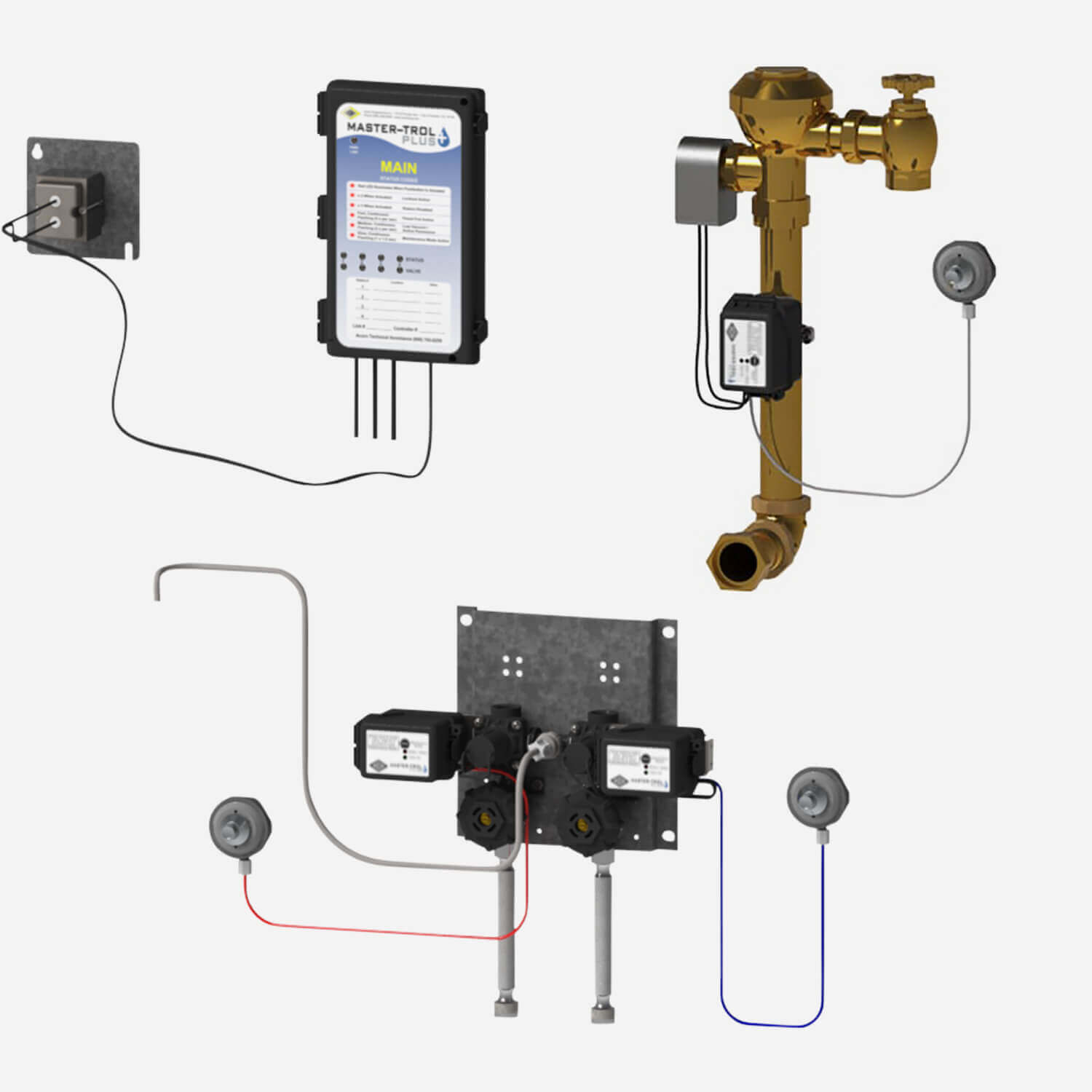

EZ-MTP-LTCretrofitting a single comby

MTP Main Controller
24 VAC 50 VA Transformer to power -MTP Controller
-MTP2 Valve Hot & Cold 0.5 gallon (1.9 liter) per minute Pneumatic Valve Assembly including Hot & Cold Pneumatic Pushbuttons
Pushbutton escutcheon
Bubbler Adapters
-MTPFV Flush Valve Branch Assembly
Electronic Solenoid Operated Flush Valve
Flushing Air-Control™ Pneumatic Pushbutton Assembly
Controller Cable
Tubing for Pneumatic Pushbuttons

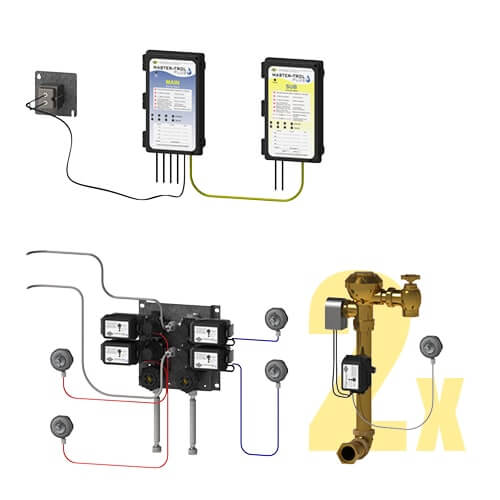

EZ-MTP-LTC-2retrofitting two combys

MTP Main Controller with Subcontroller configured to service Hot & Cold valves for lavatories and the flush valves for two existing proximate comby
24 VAC 50 VA Transformer to power -MTP Controllers
-MTP2-MA2 Valve Hot & Cold 0.5 gallon (1.9 liter) per minute Pneumatic Valve Assembly including Hot & Cold Pneumatic Pushbuttons (servicing Hot & Cold for both lavatories of the combys)
Pushbutton escutcheon
Bubbler Adapters
Two -MTPFV Flush Valve Branch Assembly
Two Electronic Solenoid Operated Flush Valve
Flushing Air-Control™ Pneumatic Pushbutton Assembly
Controller Cable
Tubing for Pneumatic Pushbuttons

EZ-MTP-LTC-4 retrofitting four combys

-MTP Main Controller with two Subcontrollers configured to service Hot & Cold valves of four lavatories and the flush valves on four existing proximate combys
24 VAC 50 VA Transformer to power -MTP Controllers
Two sets of -MTP2-MA2 Valve Hot & Cold 0.5 gallon (1.9 liter) per minute Pneumatic Valve Assembly including Hot & Cold Pneumatic Pushbuttons (each -MTP2-MA2 Valve Assembly services Hot & Cold for the lavatories of two combys)
Pushbutton escutcheon
Bubbler Adapters
Four -MTPFV Flush Valve Branch Assembly
Four Electronic Solenoid Operated Flush Valve
Flushing Air-Control™ Pneumatic Pushbutton Assembly
Controller Cable
Tubing for Pneumatic Pushbuttons
