Name: Master-Trol® Plus Retrofit Flush Valve Package used on Existing Toilets
Brand: Acorn Engineering Company
SKU: EZ-MTP-WC Series

Model EZ-MTP-WC Series

Master-Trol® Plus Retrofit Flush Valve Package used on Existing Toilets

Acorn provides valve package compatable with the Master-Trol® Plus System. The package retrofits the flush valve for existing toilets. Packages are available to accomodate a single toilet, two proximate toilets or four proximate toilets.Note: Toilet units are NOT supplied in any of these valve packages. Reminder: these are valve components for existing toilets.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual Master-Trol® Plus Valve System	Includes instructions for MTP1, MTP2, MTPFV, MTPP1, MTPP2, MTPPFV, and EZ-MTP Retrofit Packages	7 MB
Submittals	Submittal Master-Trol Plus (pdf)	Master-Trol® PLUS Water Management System	848 KB
BIM/CAD/Revit	Master-Trol® Plus Component (rfa/zip)	Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve	4 MB
BIM/CAD/Revit	Master-Trol® Plus Component (dwg/zip)	Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve	2 MB
Submittals	Spec Sheet EZ-MTP-WC Valve Retrofit (pdf)	Master-Trol® Plus Retrofit Flush Valve Package used on Existing Toilet	744 KB
Submittals	Spec Sheet EZ-MTP-WC-2 Valve Retrofit (pdf)	Master-Trol® Plus Retrofit Flush Valve Package used on Two Existing Toilet	792 KB
Submittals	Spec Sheet EZ-MTP-WC-4 Valve Retrofit (pdf)	Master-Trol® Plus Retrofit Flush Valve Package used on Four Existing Toilet	787 KB
Brochures/Flyers	Master-Trol Plus Flyer (pdf)	Master-Trol Plus Flyer (pdf)	482 KB
Brochures/Flyers	Master-Trol Plus Sales Flyer (pdf)	Master-Trol Plus Sales Flyer	374 KB
Brochures/Flyers	MGI Brands Flyer (pdf)	Overview of MGI Divisions	718 KB

Can't find what you are looking for? Get in touch

Details

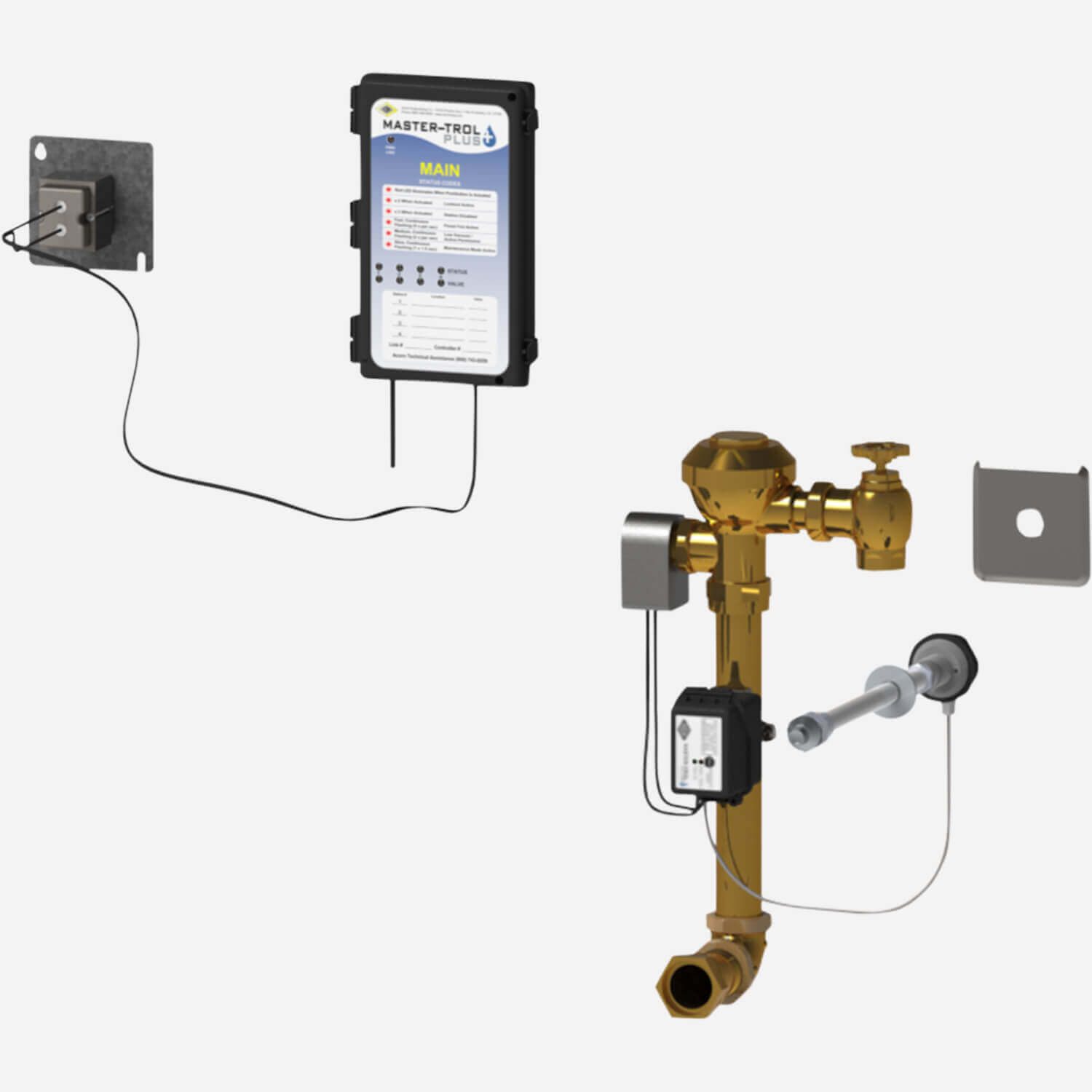

Regularly Furnished:

EZ-MTP-WCretrofitting a single toilet

-MTP Main Controller configured to service the flush valve on a single existing toilet
24 VAC 50 VA Transformer to power -MTP Controller
-MTPFV Flush Valve Branch Assembly
Wall Supply Electronic Solenoid Operated Flush Valve
Flushing Air-Control™ Pneumatic Push Rod Assembly for 8 inch (203.2 mm) Wall
Mounting Plate
Controller Cable
Tubing for Pneumatic Pushbutton

EZ-MTP-WC-2retrofitting two toilets

-MTP Main Controller configured to service the flush valves for two existing proximate toilets
24 VAC 50 VA Transformer to power -MTP Controller
Two -MTPFV Flush Valve Branch Assemblies
Two Wall Supply Electronic Solenoid Operated Flush Valve
Two Flushing Air-Control™ Pneumatic Push Rod Assemblies for 8 inch (203.2 mm) Wall
Two Mounting Plates
Adequate Controller Cable
Adequate Tubing for Pneumatic Pushbuttons

EZ-MTP-WC-4retrofitting four toilets

-MTP Main Controller configured to service the flush valves for four existing proximate toilets
24 VAC 50 VA Transformer to power -MTP Controller
Four -MTPFV Flush Valve Branch Assemblies
Four Wall Supply Electronic Solenoid Operated Flush Valve
Four Flushing Air-Control™ Pneumatic Push Rod Assemblies for 8 inch (203.2 mm) Wall
Four Mounting Plates
Adequate Controller Cable
Adequate Tubing for Pneumatic Pushbuttons
