Model 1652FA

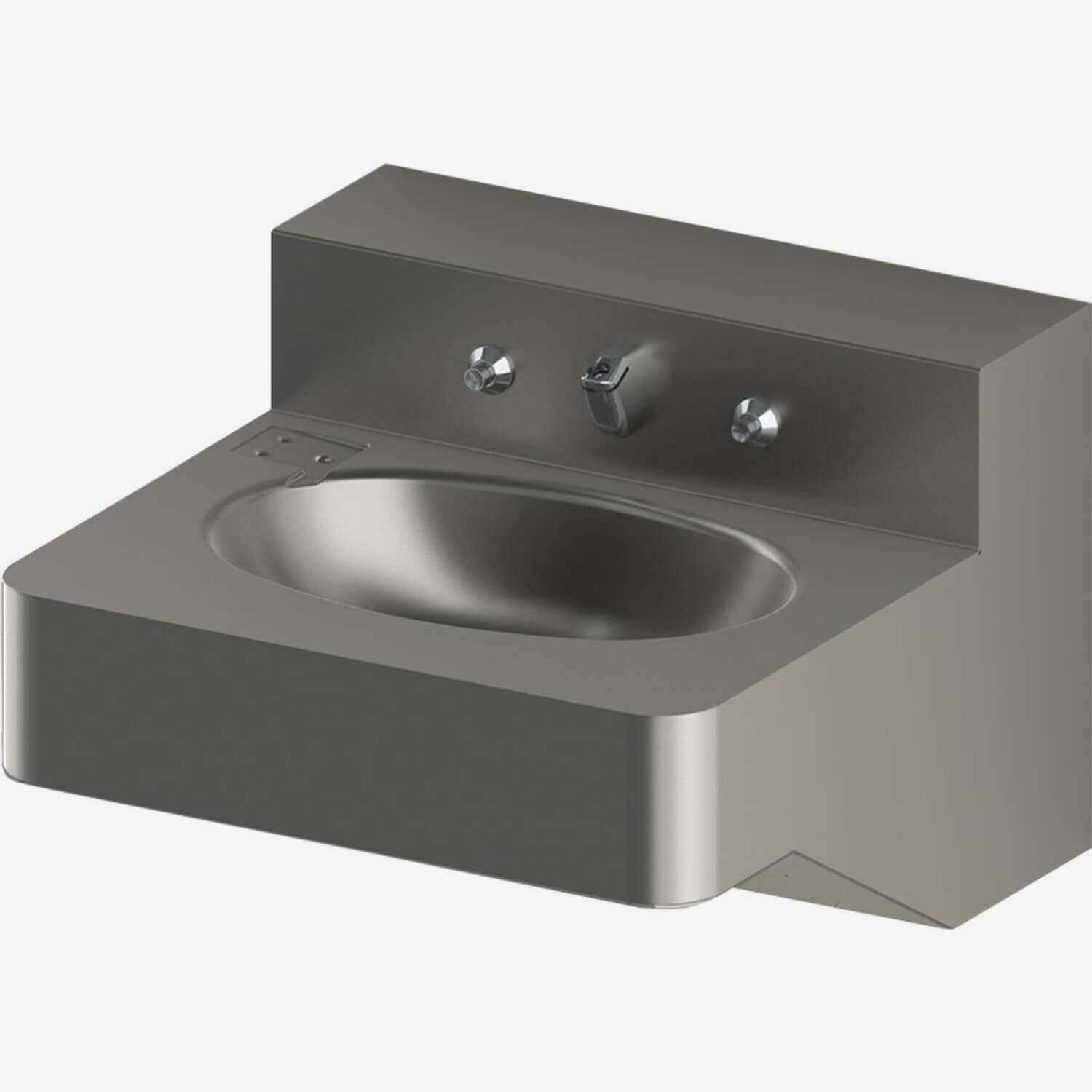

Front Access, 18" ADA Compliant Stainless Steel Security Lavatory with Oval Bowl
This 18" vandal-resistant, stainless steel security lavatory features an oval bowl, self-draining soap dish, and is designed for a wall mount application. It mounts off-floor and has a wall waste outlet. The fixture is configured with front access for installation and maintenance, where a typical security servicing chase is not available. When installed properly this lavatory is ADA compliant.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Front Access, 18 inch, ADA Compliant Stainless Steel Security Lavatory with Oval Bowl | 0 | 2 MB | ||
| | 18 Inch Lavatory with Oval Bowl - ADA 2010 Complaint - Front Access | 0 | 552 KB | ||
 | | 1652FA Lavatory (rfa) | 0 | 252 KB | ||
| | Front Access | 0 | 112 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 2 MB | ||
 | | Front Access, 18" ADA Rectangular Security Stainless Steel Lavatory with Oval Bowl, optional Penal Bubbler, Metered Hot & Cold Pushbutton Valves, Deck Mounted Penal Bubbler. | 0 | 168 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Valves: Air-Control™ Non-Metering Servomotor Assembly | 0 | 142 KB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 0 | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Single Temp Air-Trol Fixture Trim | 0 | 115 KB | ||
| | Trims: Mounting Hardware, Penal FixtureS | 0 | 96 KB |
Specifications
| Product Type | Lavatory |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1) |
| Brand | Penal-Ware® |
| Material | Stainless Steel |
| Mounting | Front Access - Security |
| Vandal Resistant | High |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Bowl Shape | Oval |
| Compliance | ADA Compliant, Federal Public Law 111-380 |
| Overall Dimensions | 18" (Side-to-Side) x 20" (Front-to-Back) |
| Stations-Users | 1 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | BC | Option: Bubbler, Code | ||
 | BP | Option: Bubbler, Penal | ||
 | BPH | Option: Hemispherical Penal Bubbler | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | CI | Option: Cycle Interrupt | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | LF | Option: Lavatory Filler | ||
 | LWE | Option: Lavy Waste Extended To Be Specified | ||
 | MT | Option: Metal Template | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
 | OF (Security Fixture) | Option: Security Lavatory Overflow | ||
 | PBH | Option: Pushbutton, Hemispherical | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
 | TB | Option: Toothbrush Holder | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | TG | Option Twelve Gauge Type 304 Stainless Steel | ||
 | TH | Option: Towel Hook | ||
 | VAC | Option: Configuration for Vacuum Plumbing |
