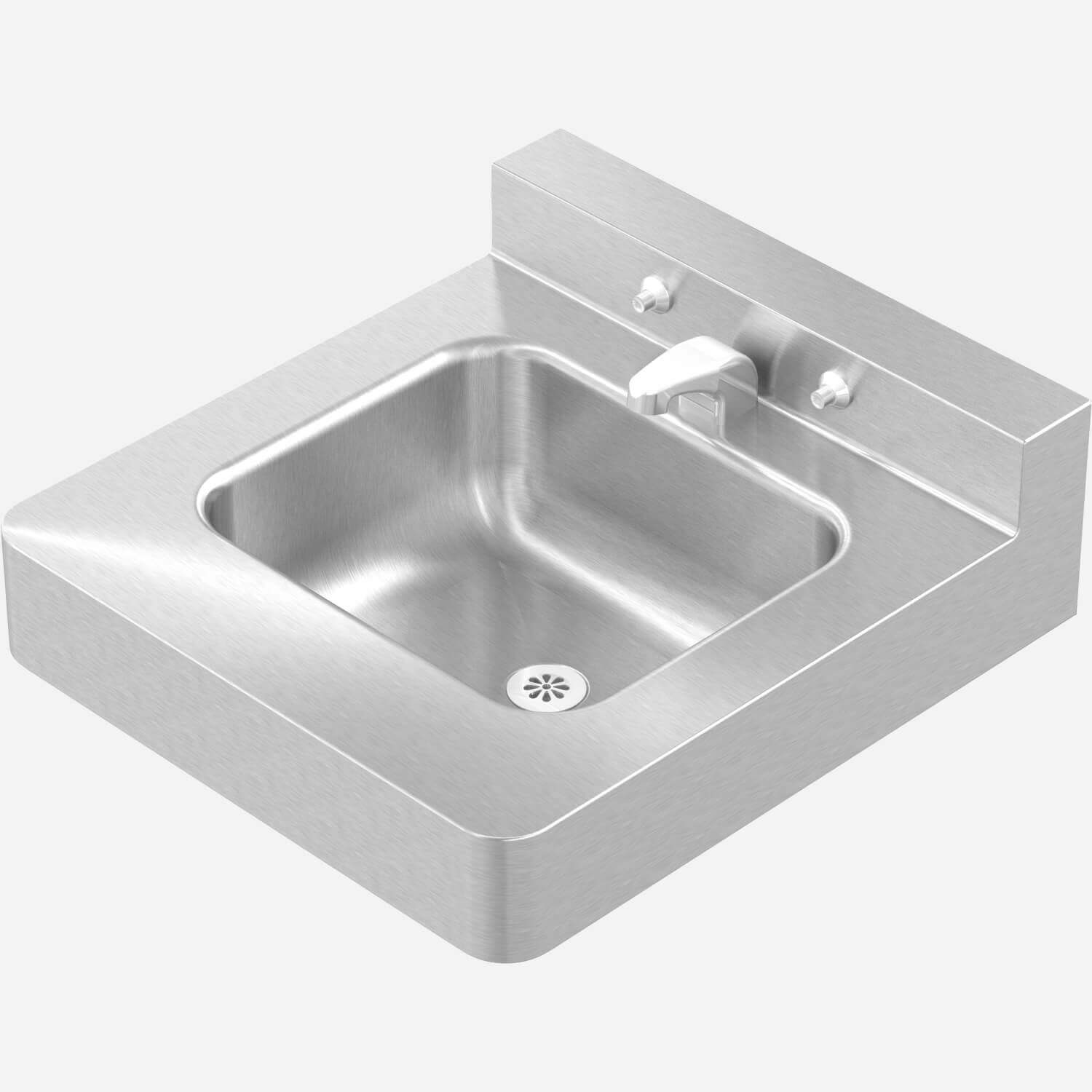

Model 1953-LC
Front Mount, 20" x 22" ADA Compliant Stainless Steel Lavatory with Rectangular Bowl Configured for Mounting Carrier
This 20" x 22" vandal resistant, stainless steel lavatory features a rectangular bowl, self-draining soap dish, and is designed for a wall mount application utilizing a concealed arm carrier. It mounts off-floor and has a wall waste outlet. When installed properly this lavatory is ADA compliant.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 20" x 22" Front Mount ADA Stainless Steel Lavatory with Rectangular Bowl Configured for Mounting Carrier | 0 | 625 KB | ||
| | 20" x 22" Front Mount ADA Stainless Steel Lavatory with Rectangular Bowl Configured for Mounting Carrier | 0 | 115 KB | ||
 | | 0 | 340 KB | |||
 | | Front Mount, 20-inch x 22-inch ADA-Compliant Stainless Steel Lavatory with Rectangle Bowl Configured for Mounting Carrier, Hot & Cold Pushbutton Valves, Tubular P-Trap 1-1/4" x 1-1/2" (-TPT), Trap Enclosure (-TE) | 0 | 708 KB | ||
| | Front Mount, 20-inch x 22-inch ADA-Compliant Stainless Steel Lavatory with Rectangle Bowl Configured for Mounting Carrier, Hot & Cold Pushbutton Valves, Tubular P-Trap 1-1/4" x 1-1/2" (-TPT), Trap Enclosure (-TE) | 0 | 262 KB | ||
 | | Acorn Engineering - Lavatories, Shampoo bowls, Faucets, Supply Fittings, Waste Fittings, Supports | 0 | 117 KB | ||
| | Acorn Engineering - Lavatories, Shampoo bowls, Faucets, Supply Fittings, Waste Fittings, Supports | 0 | 150 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 2 MB | ||
 | | 20 x 22 Inch Front Mount ADA Stainless Steel Lavatory with Rectanglar Bowl, Deck Mounted Spout 1.4 gpm Air-Control Hot & Cold Metering, configured for Mounting Carrier | 0 | 112 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Valves: Air-Control™ Non-Metering Servomotor Assembly | 0 | 142 KB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 0 | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Single Temp Air-Trol Fixture Trim | 0 | 115 KB |
Specifications
| Product Type | Lavatory |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1) |
| Brand | Dura-Ware® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Vandal Resistant | Moderate |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Bowl Shape | Rectangular |
| Compliance | ADA Compliant, Federal Public Law 111-380 |
| Overall Dimensions | 20" (Side-to-Side) x 22" (Front-to-Back) |
| Stations-Users | 1 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | CSG | Option: Centerset Gooseneck Spout | ||
 | DMS | Option: Deck-Mounted Spout | ||
 | EE | Option: Elbow Enclosure | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | FG | Option: Fourteen Gauge Type 304 Stainless Steel | ||
 | GE | Option: Grid Strainer and Close Elbow | ||
 | GT | Option: Grid Strainer and Tailpiece | ||
 | H1 | Option: Single Hole Punch for Valve by Others | ||
 | H24 | Option: Two Hole Punch 4" Center for Valve by Others | ||
 | H28 | Option: Two Hole Punch 8" Center for Valve by Others | ||
 | H38 | Option: Three Hole Punch 8" Center for Valve by Others | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | OF (Security Fixture) | Option: Security Lavatory Overflow | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
 | TE | Option: Trap Enclosure | ||
 | TPT | Option: Tubular P-Trap |
