Model 3424-ES-ADA Series

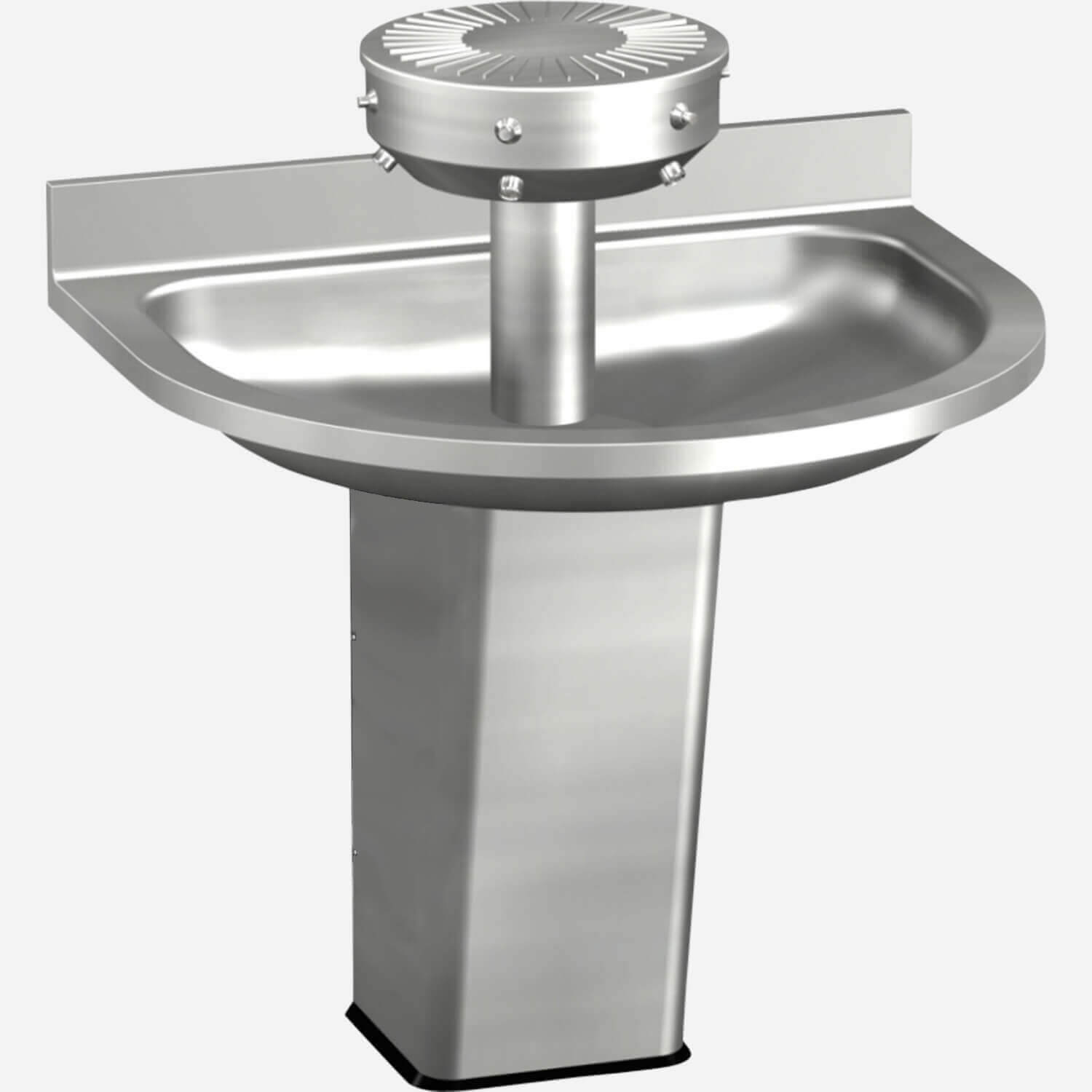

Four Station, ADA, Semi-Circular Wash Fountain with Contour Base
Perfect for high-traffic institutional, commercial, and public applications, this semi-circular stainless steel hand washing station accommodates up to four users at a time and is available in off-floor and on-floor configurations. It features wall-mounted configuration and contour base, and various activation options. It is ADA-compliant when installed properly.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 0 | 2 MB | |||
| | ADA Semi-Circular Stainles Steel Wash Fountain [3423-ADA Three Station; 3423-ES-ADA Three Station with Contour Base; 3424-ADA Four Station; 3424-ES-ADA Four Station with Contour Base] | 0 | 128 KB | ||
| | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 188 KB | ||
 | | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 201 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Take Students’ Safety Seriously with Acorn® Wash-Ware® Products. Schools often overlook one of the biggest dangers to student health: GERMS. | 0 | 850 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Hand Washing Products Brochure (pdf) | 0 | 2 MB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 2 MB | ||
 | | Four Station, ADA, Countour Base Off-Floor, Hand Operation | 0 | 145 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Wrenches | 0 | 62 KB | ||
| | Wash-Ware Nozzles: Wash-Ware Nozzle Assembly | 0 | 77 KB | ||
| | Wash-Ware Nozzles: Wash-Ware Nozzle Assembly | 0 | 81 KB |
Specifications
| Product Type | Wash Fountain |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2) |
| Brand | Wash-Ware® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Bowl Shape | Semi-Circular |
| Compliance | ADA Compliant, Federal Public Law 111-380 |
| Overall Dimensions | 38" (Side-to-Side) x 32" (Front-to-Back) |
| Stations-Users | 4 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 1 (Hand Wash) | Option: Off-Floor, Wall Outlet Hand Wash Station | ||
 | 2 (Hand Wash) | Option: On-Floor, Wall Outlet Hand Wash Station | ||
 | CB | Option: Column Braced to Back Splash | ||
 | DV | Option: Liquid/Lotion Soap Dispenser | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | HB (Hand Wash) | Option: Hose Bibb on Washfountain | ||
 | LBS | Option: Less Backsplash | ||
 | PCB | Option: Column Arranged to Receive 1-1/2" Pipe Brace | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | SPX | Option: 16 Gage Stainless Steel Enclosure | ||
 | ST | Option: Single Temperature | ||
 | TM | Option: Multi-Fold Paper Towel Dispenser (Wash Fountain only) | ||
 | TS | Option: Single-Fold Paper Towel Dispenser (Wash Fountain only) |
Models
The model numbers are defined by their configuration (on-floor/off-floor) and valve that is specified.
Off-Floor Models
(16" off floor)
3424-ES-ADA-1-H
Hand Operation
3424-ES -ADA-1-PPZ
Piezo Pushbutton
3424-ES-ADA-1-SO
Sensor Operation
On-Floor, Wall Waste Models
(base/housing extends to floor)
3424-ES-ADA-2-H
Hand Operation
3424-ES-ADA-2-PPZ
Piezo Pushbutton
3424-ES-ADA-2-SO
Sensor Operation
Product Variations
Image | Model ID | Description |
|---|---|---|
 | 3423-ADA Series | Three Station, ADA, Semi-Circular Wash Fountain |

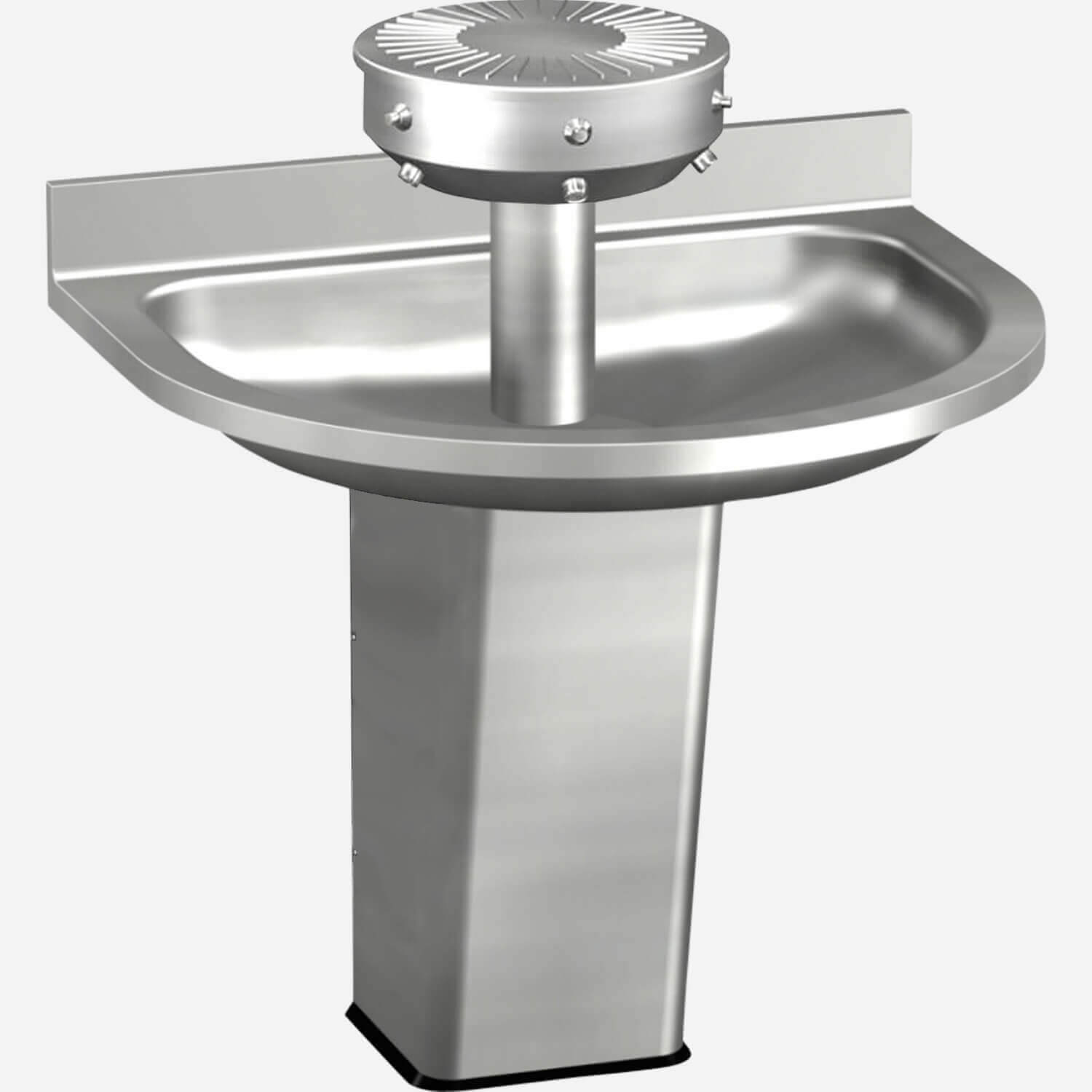

 | 3423-ES-ADA Series | Three Station, ADA, Semi-Circular Wash Fountain with Contour Base |
 | 3424-ADA Series | Four Station, ADA, Semi-Circular Wash Fountain |
