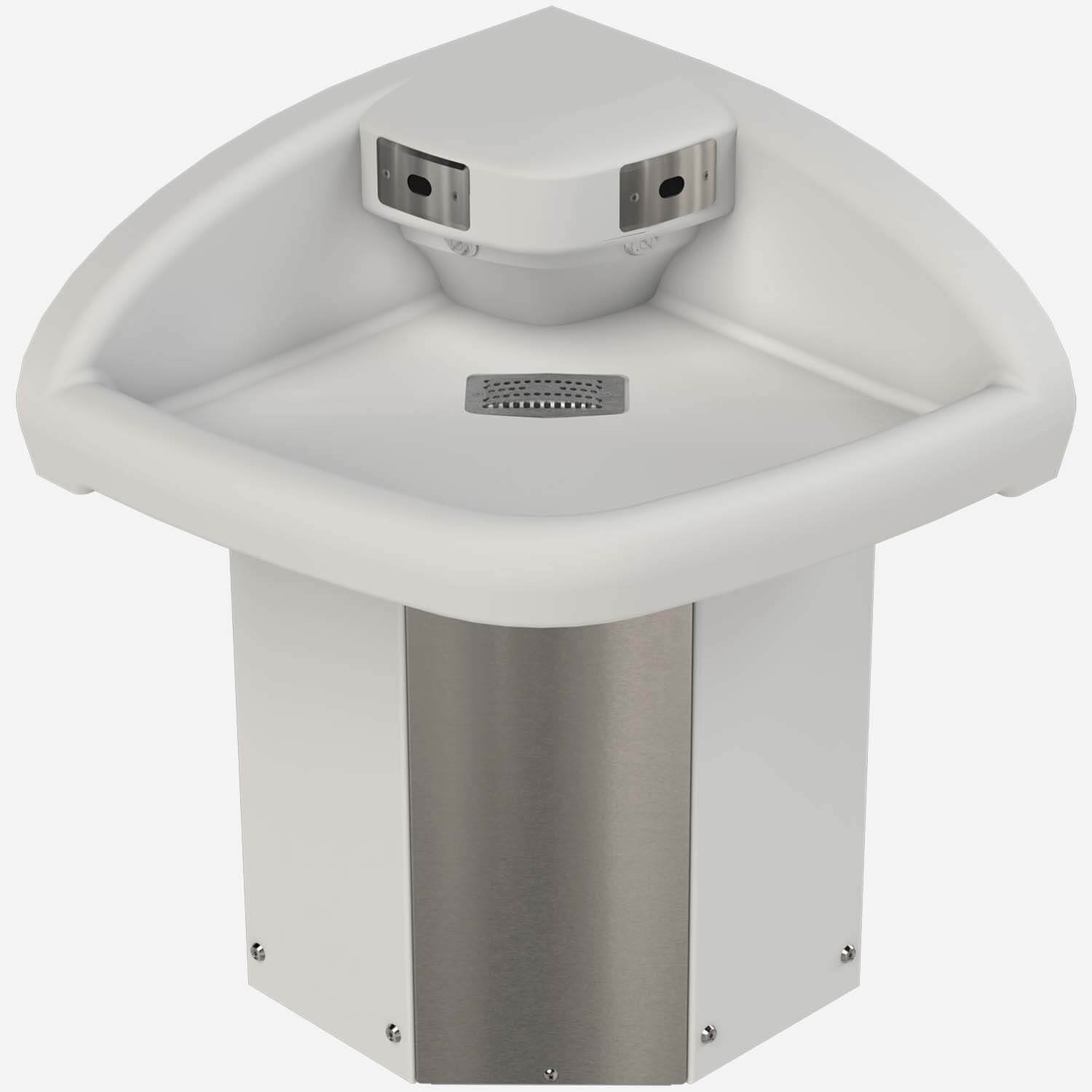

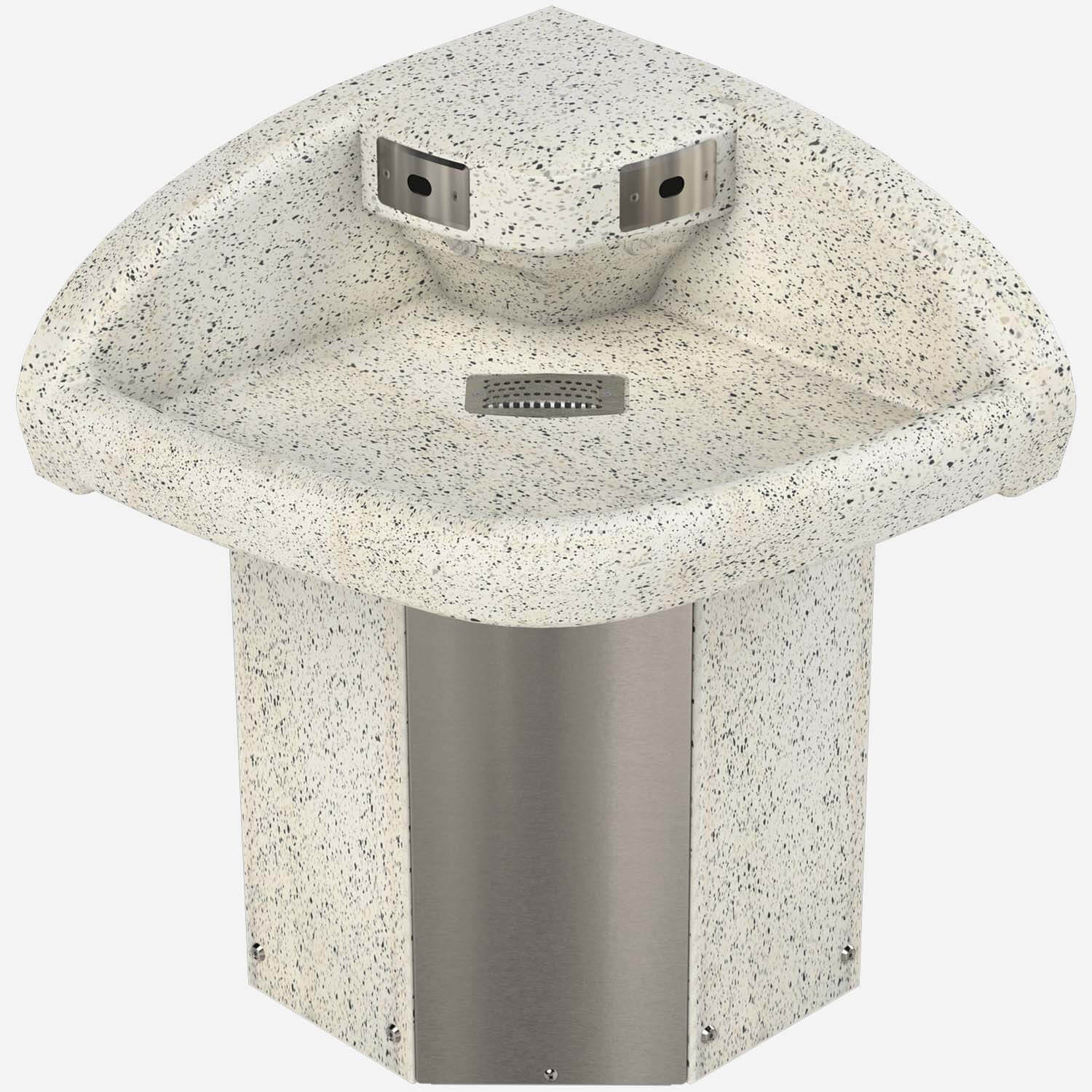

Two-Station Solid Surface Corner Wash Fountain
Perfect for institutional, commercial and public applications, this two-station hand washing fountain is made from design-flexible cast solid surface Corterra®. This material is sleek, sturdy and ensures long-lasting universal aesthetics. The wash fountain features a wall-mount and is available in off-floor and on-floor configurations.
Hot & Cold Supply are blended in an ASSE 1070 Compliant Temperature/Pressure Balancing Mixing Valve with integral Checks and Strainers. A minimum of 30 PSI supply pressure is required.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 201 KB | ||
 | | 71 KB | |||
 | | Two Station, Solid Surface, Hand Operation | 155 KB | ||
 | | Two Station, Cast Solid Surface, Corner-Lav Wash Fountain - Standard Height | 2 MB | ||
| | Two Station Cast Solid Surface (Corterra®) Corner-Lav Washfountain [3622-1 | Off-Floor, 3622-2 | On-Floor, Wall Waste] | 248 KB | ||
| | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 188 KB | ||
| | Two Station, Cast Solid Surface, Corner-Lav Wash Fountain -Junior Height 31" Rim Height | 2 MB | ||
| | Enviro-Glaze Powdercoating Color Chart - Update Aug 2026 | 291 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Overview of MGI Divisions | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
| | Tools / Fasteners: Wrenches | 62 KB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 56 KB | ||
| | Valves: 24VAC-SO Sensor and Solenoid Valve Assembly | 132 KB | ||
| | Valves: 9 VDC -SO Sensor, -PPZ Programmable Piezo Pushbutton and Solenoid Assembly | 166 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 74 KB | ||
| | Trims: Single Temp Air-Trol Fixture Trim | 115 KB | ||
| | Wash-Ware Nozzles: Terrazzo Wash-Ware Nozzle Assembly | 85 KB | ||
| | Wash-Ware Nozzles: Corterra Nozzle Assembly for Models 3622, 3633, 3644 | 55 KB | ||
| | Acorn Engineering Corterra® Solid Surface a solid-surface polymer resin (with aluminum trihydrate and other fillers) (also used for Neo-Metro and Whitehall) - Document features Product Description, Product Qualities, Cleaning Tips, ANSI Standard Compliance, CSA Standard Compliance and Burning Character Test Data | 93 KB |
Specifications
| Product Type | Wash Fountain |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2) |
| Brand | Wash-Ware® |
| Material | Corterra® Solid Surface |
| Mounting | Wall Mounted |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Bowl Shape | Corner |
| Compliance | Federal Public Law 111-380, UL Greenguard |
| Overall Dimensions | 26.75" (Side-to-Side) x 26.75" (Front-to-Back) |
| Stations-Users | 2 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 1 (Hand Wash) | Option: Off-Floor, Wall Outlet Hand Wash Station | ||
 | 2 (Hand Wash) | Option: On-Floor, Wall Outlet Hand Wash Station | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | OCC | Option: Corterra® Solid Surface | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | ST | Option: Single Temperature |
Models
Bowl, Sprayhead, and Pedestal Side Panels are constructed of Corterra® Solid Surface polymer resin (with aluminum trihydrate and other fillers) and conform with ANSI Z124.3 and Z124.6 load ratings and is ICPA SS-1 approved. See options for available color selections. Bowl is 26.75 inches (686 mm) wide and includes backsplashes and sprayheads. Sprayhead includes an access cover and vandal-resistant spray nozzles. Bowl includes a grid strainer and tailpiece. Pedestal housing features Corterra side panels and a heavy-gauge, stainless steel front access panel with a vandal-resistant fastener.

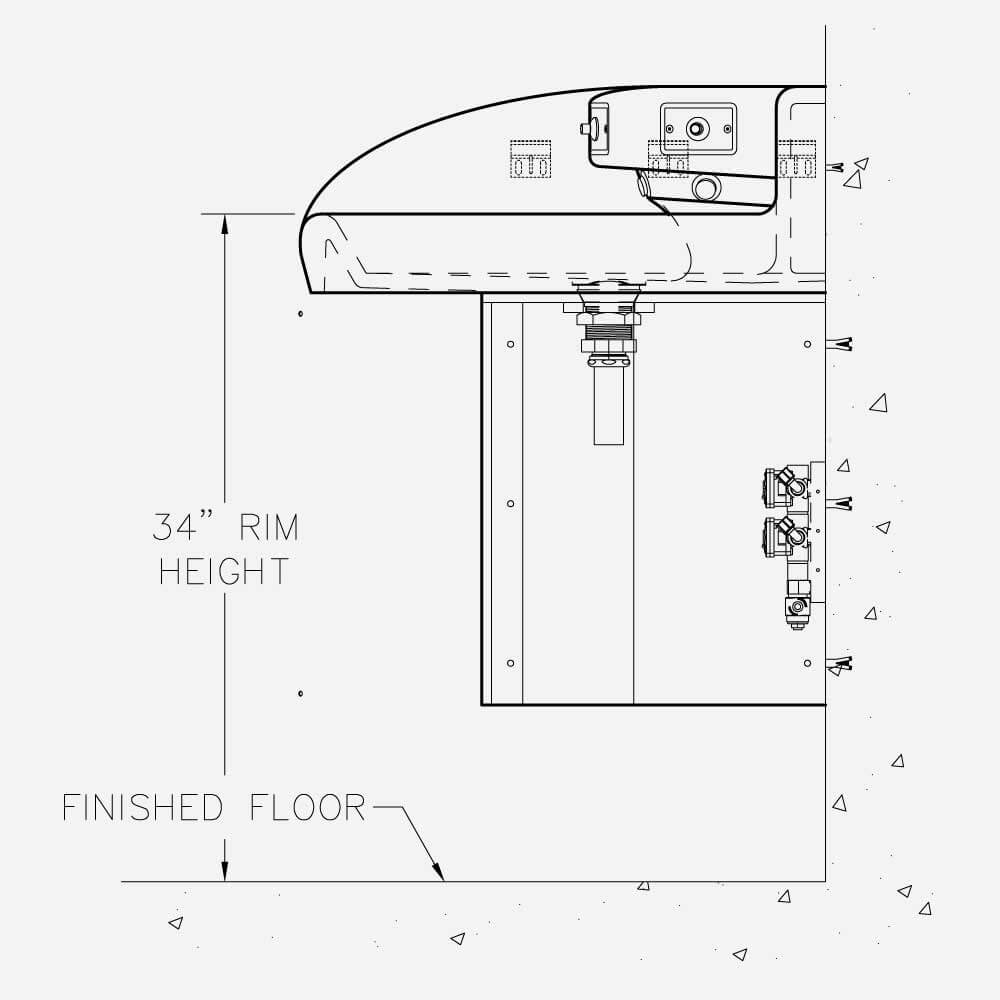

3622-1
Standard Height -Off-Floor
3622-2
Standard Height - On-Floor

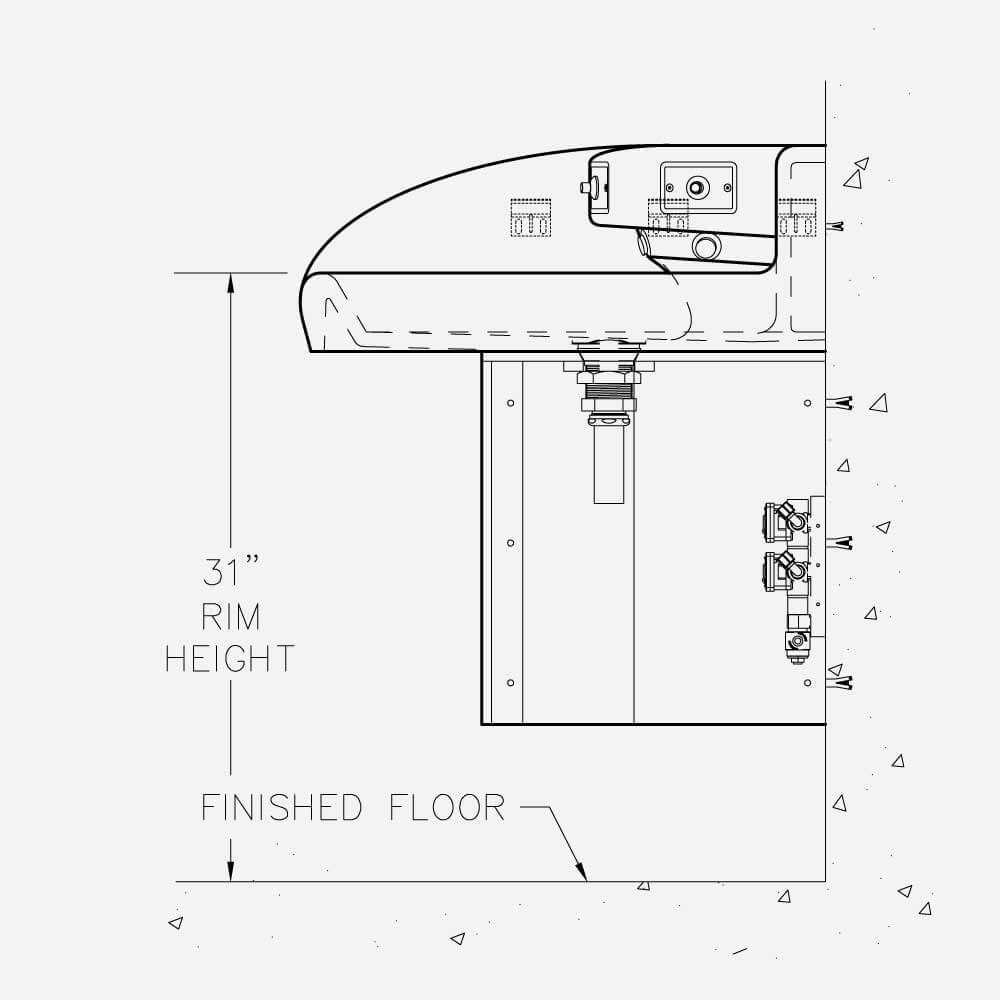

3622-1-JH31
31" Rim Junior Height - Off-Floor
Install Guide for -JH31 models

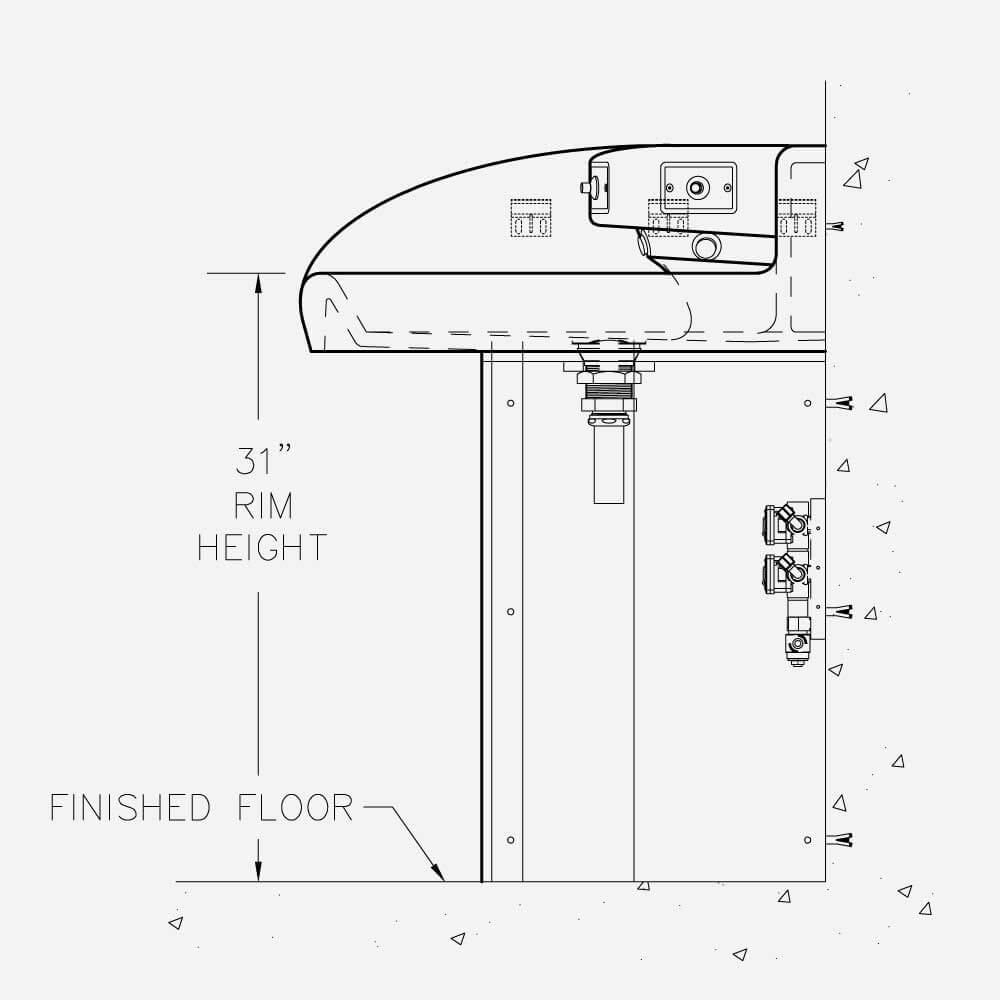

3622-2-JH31
31" Rim Junior Height - On-Floor
Install Guide for -JH31 models
