Four-Station Solid Surface Wash Fountain, ADA Compliant

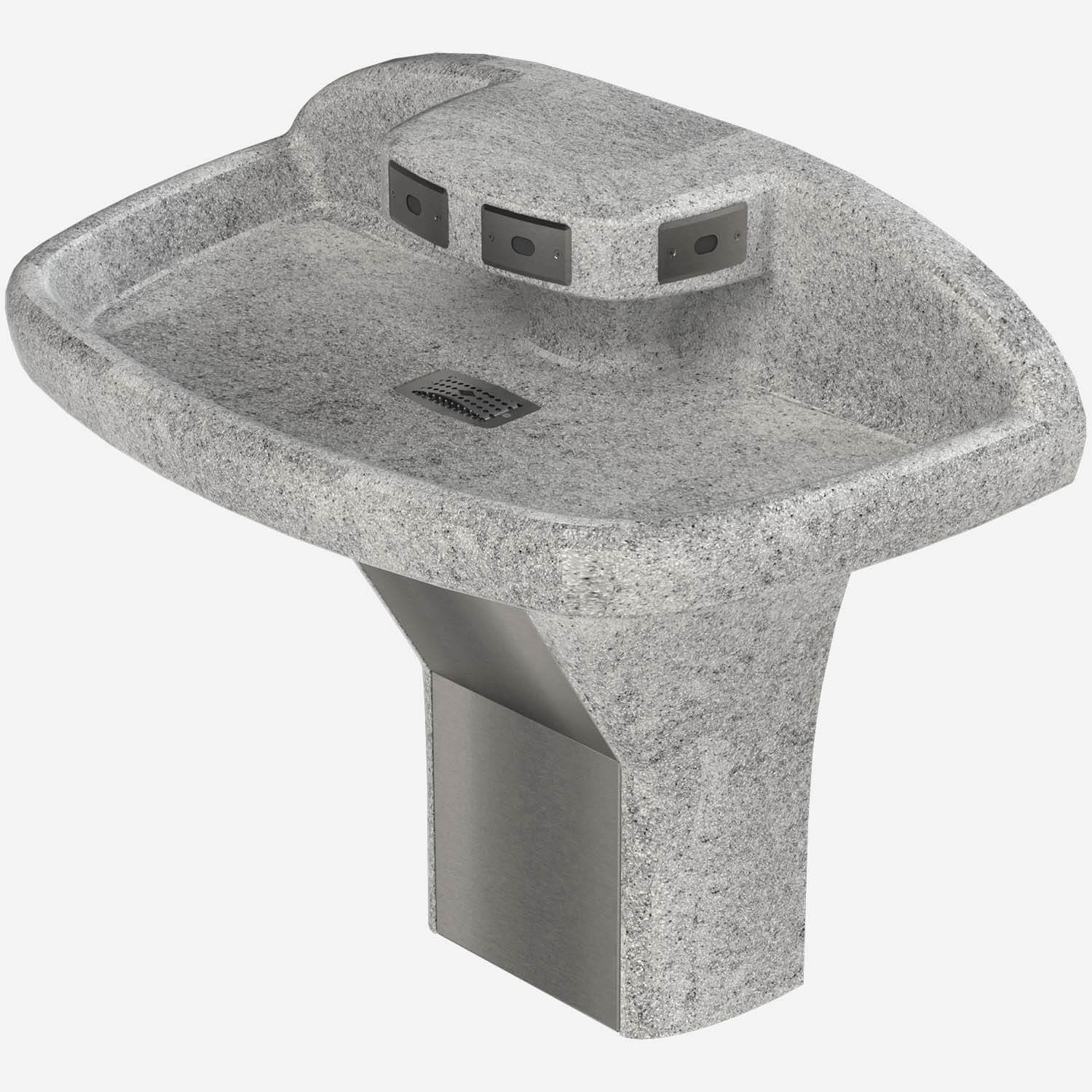

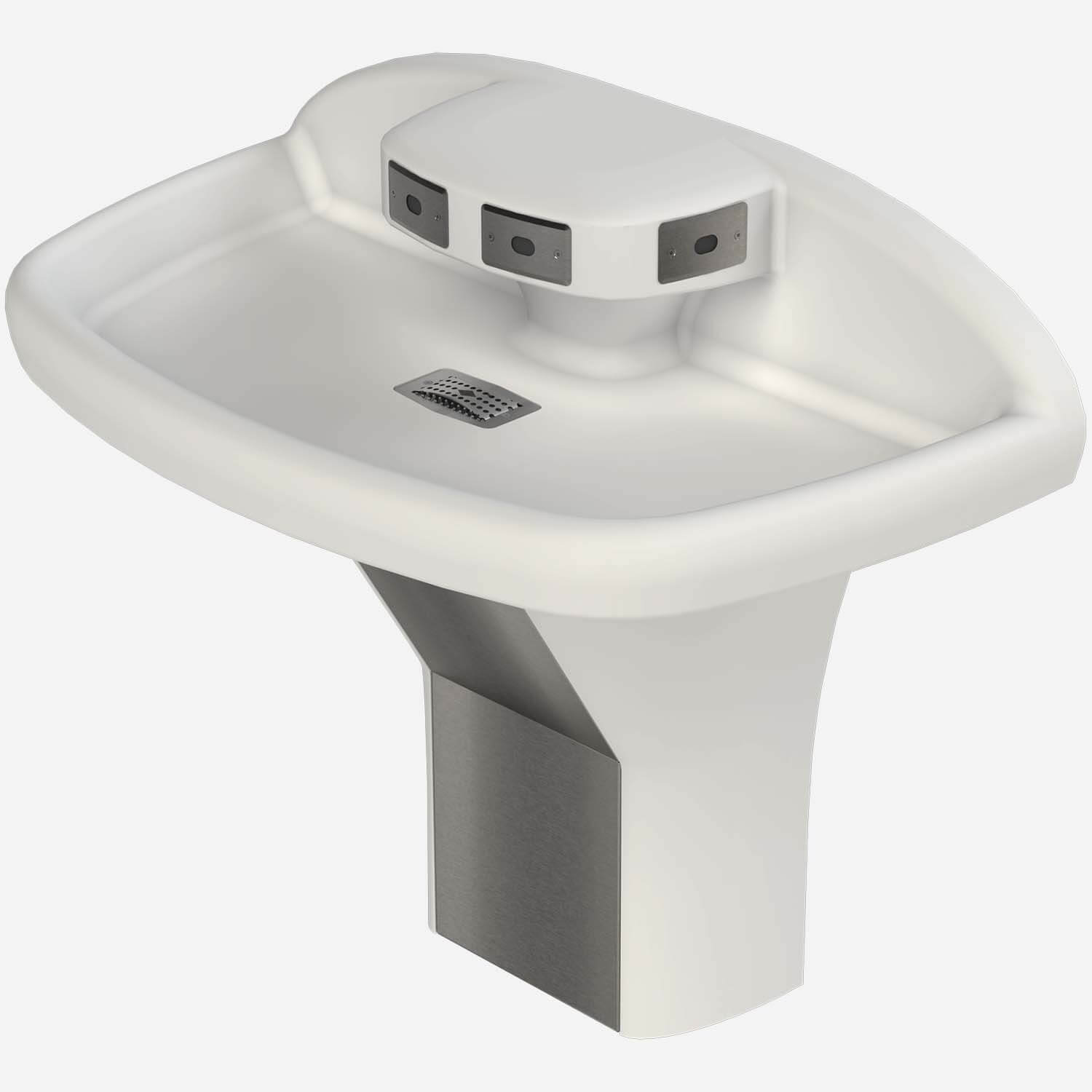

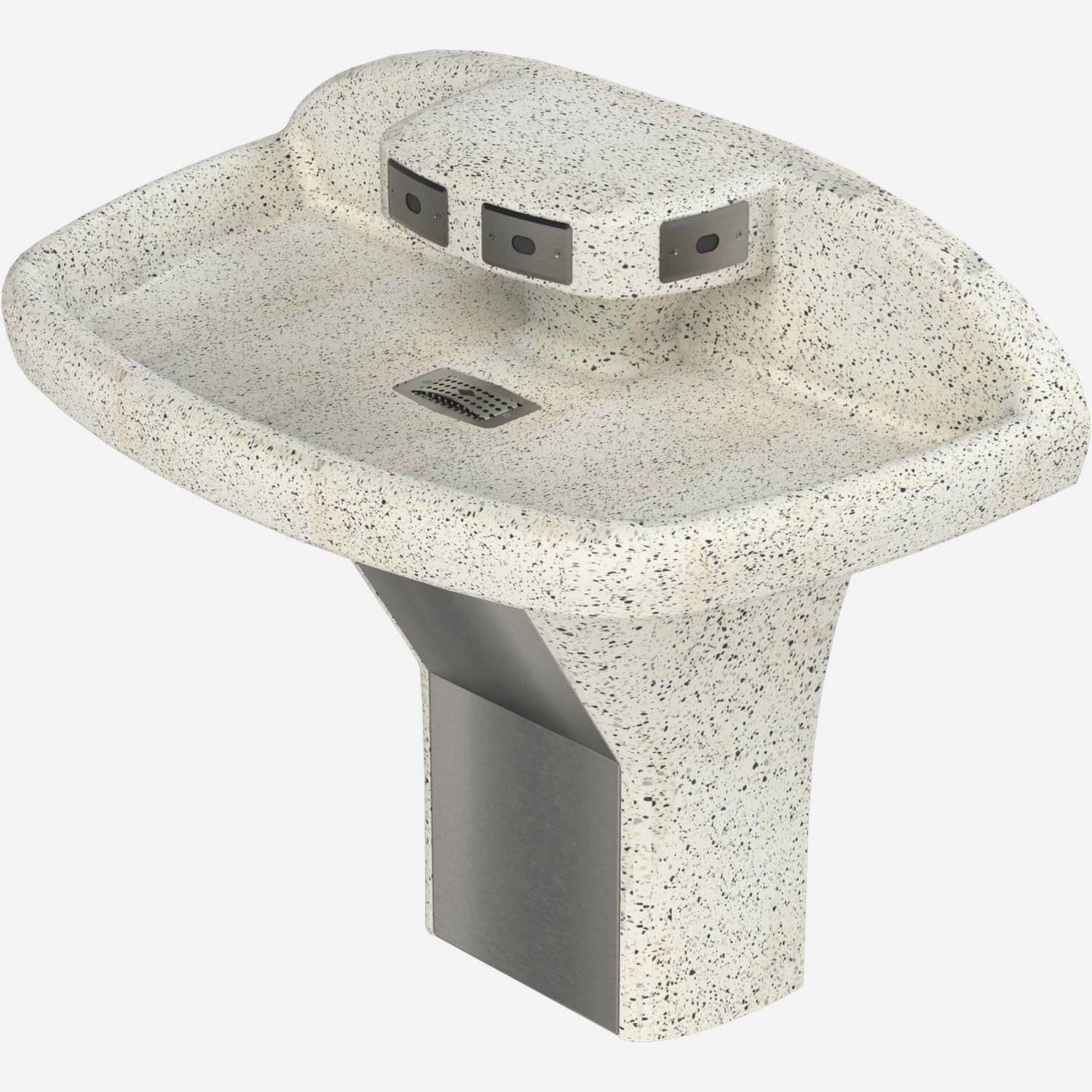

Perfect for institutional, commercial and public applications, this four-station hand washing fountain is made from design-flexible cast solid surface Corterra®. This material is sleek, sturdy and ensures long-lasting universal aesthetics. The wash fountain features a wall-mount and is available in off-floor and on-floor configurations.
Hot & Cold Supply are blended in an ASSE 1070 Compliant Temperature/Pressure Balancing Mixing Valve with integral Checks and Strainers. A minimum of 30 PSI supply pressure is required.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA Compliant Cast Solid Surface Wash Fountain - Standard Height [3633 - Three-Station; 3644 - Four-Station] | 0 | 2 MB | ||
| | Corterra® Cast Solid Surface Quad-Lav (Four-Station) Washfountain [3644-1 | Off-Floor, 364-2 | On-Floor, Wall Waste] | 0 | 306 KB | ||
 | | ADA Compliant Four Station Cast Solid Surface Wash Fountain | 0 | 716 KB | ||
| | ADA Compliant Four Station Cast Solid Surface Wash Fountain | 0 | 362 KB | ||
| | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 188 KB | ||
 | | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 201 KB | ||
| | Cast Solid Surface Wash Fountain - Junior Height 30-1/2" (774.7 mm) Rim [3633-JH31- Three-Station; 3644-JH31 - Four-Station] | 0 | 2 MB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
 | | Four Station, Solid Surface (Sahara),Hand Operation | 0 | 136 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Wrenches | 0 | 62 KB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 0 | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Single Temp Air-Trol Fixture Trim | 0 | 115 KB | ||
| | Wash-Ware Nozzles: Corterra Nozzle Assembly for Models 3622, 3633, 3644 | 0 | 55 KB |
Specifications
| Product Type | Wash Fountain |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2) |
| Brand | Wash-Ware® |
| Material | Corterra® Solid Surface |
| Mounting | Wall Mounted |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Bowl Shape | D-Shaped |
| Compliance | OBC, Federal Public Law 111-380, ADA Compliant, UL Greenguard |
| Overall Dimensions | 46" (Side-to-Side) x 26" (Front-to-Back) |
| Stations-Users | 4 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 1 (Hand Wash) | Option: Off-Floor, Wall Outlet Hand Wash Station | ||
 | 2 (Hand Wash) | Option: On-Floor, Wall Outlet Hand Wash Station | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | OCC | Option: Corterra® Solid Surface | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | ST | Option: Single Temperature |
Models
Bowl, Sprayhead and Pedestal Side Panels are constructed of Corterra® Solid Surface polymer resin (with aluminum trihydrate and other fillers) and conform with ANSI Z124.3 and Z124.6 load ratings and is ICPA SS-1 approved. See options for available color selections. The wash fountain width measures 46 inches (1168 mm) and includes backsplash and sprayhead. Sprayhead includes access cover and vandal resistant spray nozzles. Bowl includes grid strainer and tailpiece. Pedestal housing features Corterra side panels and a heavy gage, stainless steel front access panel with vandal-resistant fastener.
3644-1 | Off-Floor, Wall Waste Unit
3644-2 | On-Floor, Wall Waste Unit
