Model LR1653

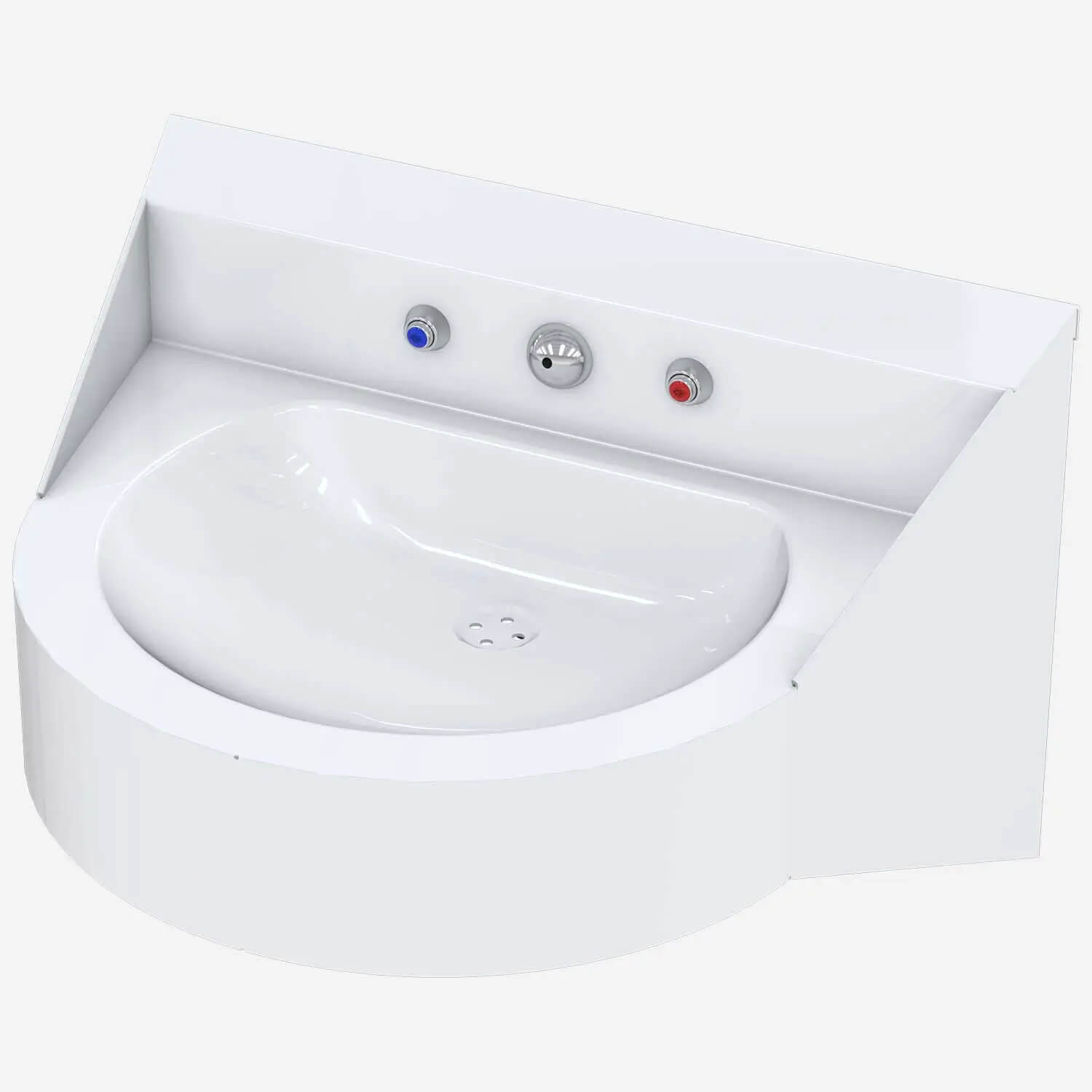

Secur-Care® Ligature-Resistant, ADA Compliant Rear Mount Stainless Steel Security Lavatory with D-Shaped Bowl
This 18" (457 mm) vandal resistant, stainless steel security lavatory is designed with tapered side splashes and a sloped back splash top. The tapered design reduces the risk of the fixture being used as a ligature device. It features a D-shaped bowl and self-draining soap dish, and it is designed for a rear (chase) application. It mounts off-floor and has a wall waste outlet. When installed properly this lavatory is ADA compliant.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Ligature Resistant ADA Compliant 'D' Bowl Stainless Steel Security Lavatory | 0 | 568 KB | ||
| | Ligature Resistant ADA Compliant 18" Security Lavatory with D-Shaped Bowl | 0 | 131 KB | ||
 | | Secur-Care® Ligature-Resistant, ADA Compliant Rear Mount Stainless Steel Security Lavatory with D-Shaped Bowl; [LR1653-1-04-M | Hot & Cold Metering Air-Control Pneumatic Valves; -SW | Wall Sleeve] | 0 | 702 KB | ||
| | Secur-Care® Ligature-Resistant, ADA Compliant Rear Mount Stainless Steel Security Lavatory with D-Shaped Bowl; [LR1653-1-04-M | Hot & Cold Metering Air-Control Pneumatic Valves; -SW | Wall Sleeve] | 0 | 315 KB | ||
| | Secur-Care® Ligature-Resistant Brochure (pdf) | 0 | 3 MB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Secur-Care® Ligature-Resistant Flyer (pdf) | 0 | 458 KB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Brand | Secur-Care® |
| Product Type | Lavatory |
| Material | Stainless Steel |
| Material Detail | 14-Gauge Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Bowl Shape | D-Shaped |
| Patent | D809,112 |
| Compliance | ADA Compliant, CBC (Calif. Title 24), NSF61, Section 9, 1997, Federal Public Law 111-380, Ligature-Resistant |
| Overall Dimensions | 23" (Side-to-Side) x 18" (Front-to-Back) |
| Stations-Users | 1 |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | CI | Option: Cycle Interrupt | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MA3 | Option: Manifolded Valves, 3 Set | ||
 | MA4 | Option: Manifolded Valves, 4 Set | ||
 | MT | Option: Metal Template | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | VAC | Option: Configuration for Vacuum Plumbing |
Details
Product Function:
The lavatory is designed to provide ligature resistance and ADA compliance in a chase (rear mount) application.Product Variations
Image | Model ID | Description |
|---|---|---|
 | LR1653FA | Secur-Care® Ligature-Resistant, ADA Compliant Front Access Stainless Steel Security Lavatory with D-Shaped Bowl |
