Name: Deluxe Plus Portable Wash-Ware® Hand Washing Station with On-Demand Pump & Water Heater
Brand: Acorn Engineering Company
SKU: PS1230

Model PS1230

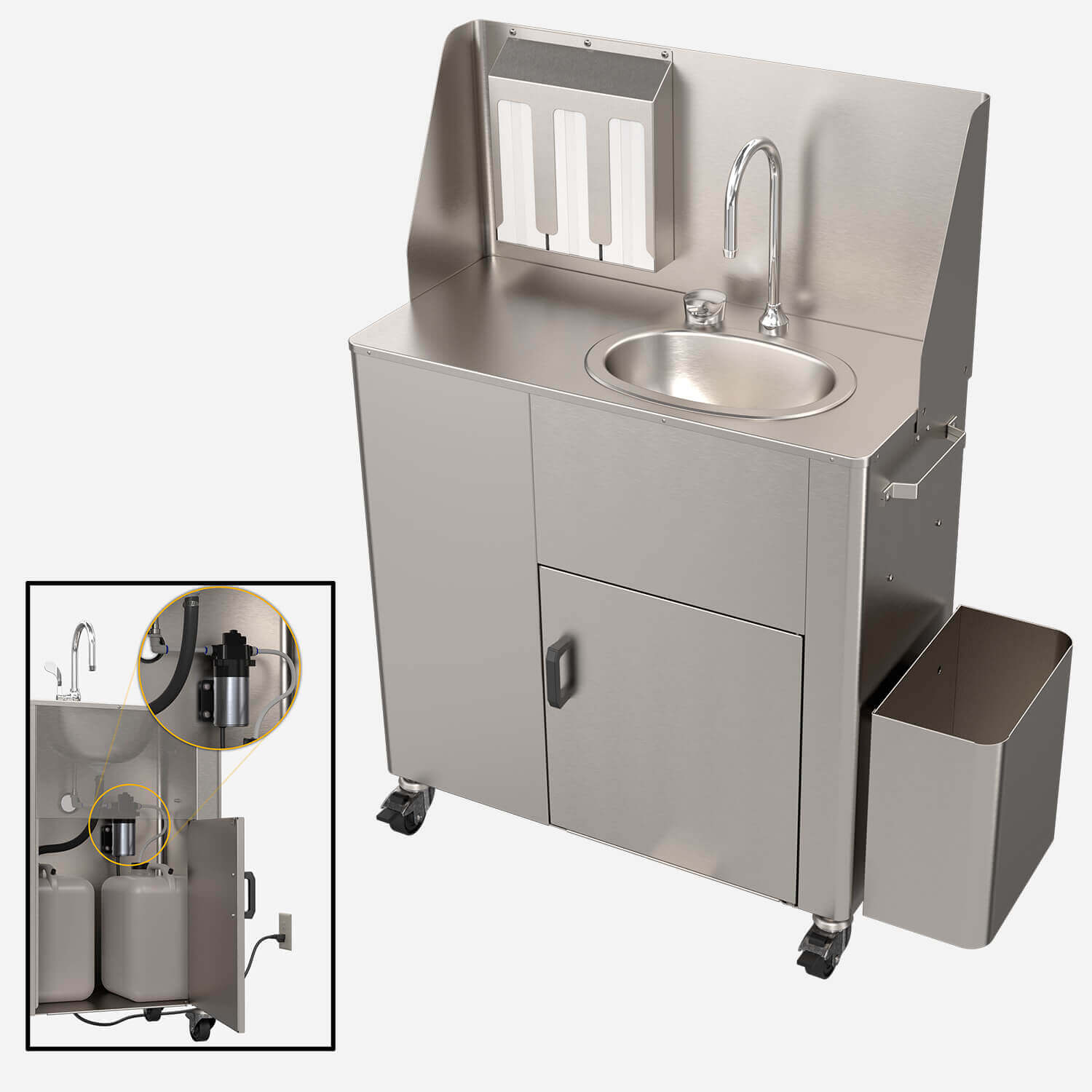

Deluxe Plus Portable Wash-Ware® Hand Washing Station with On-Demand Pump & Water Heater

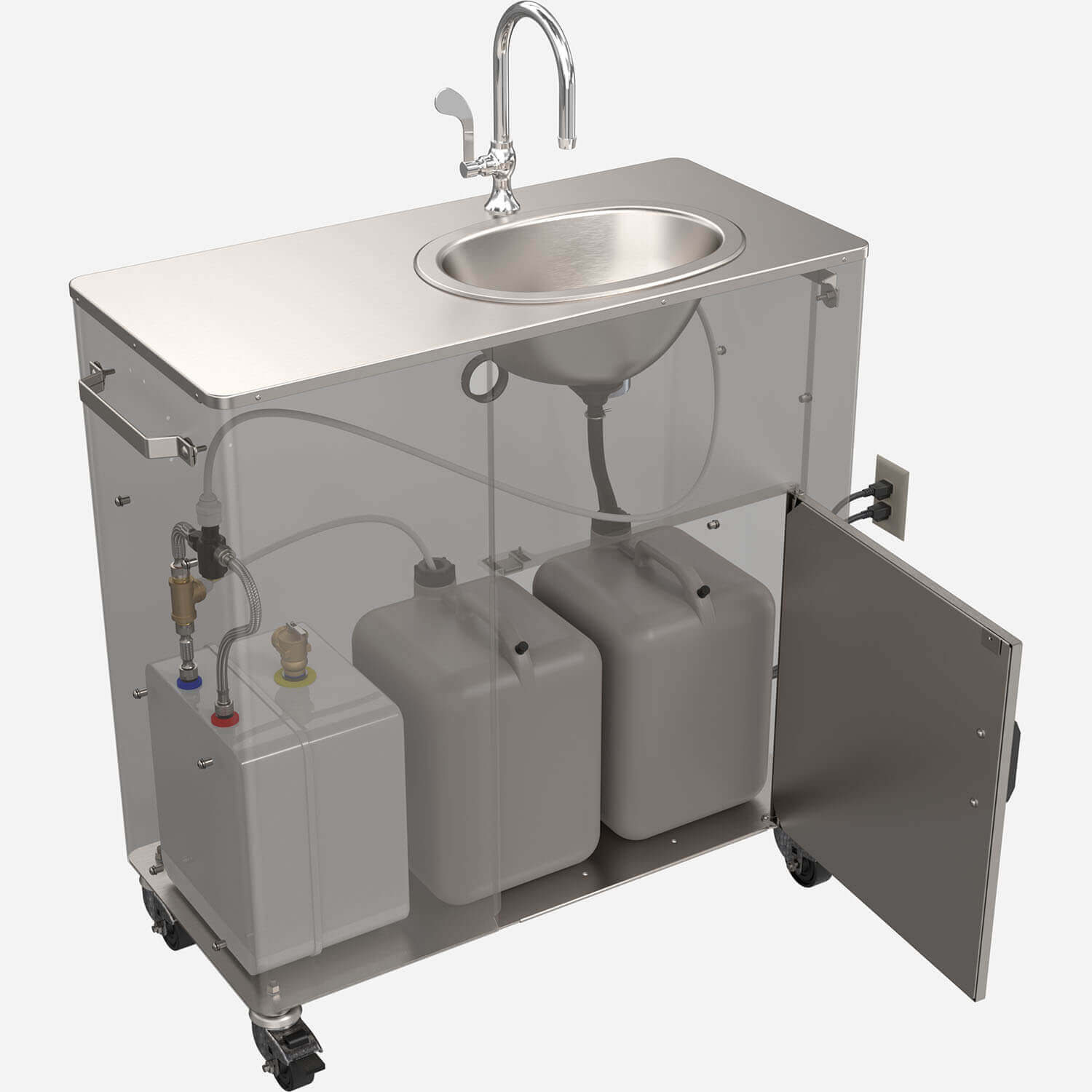

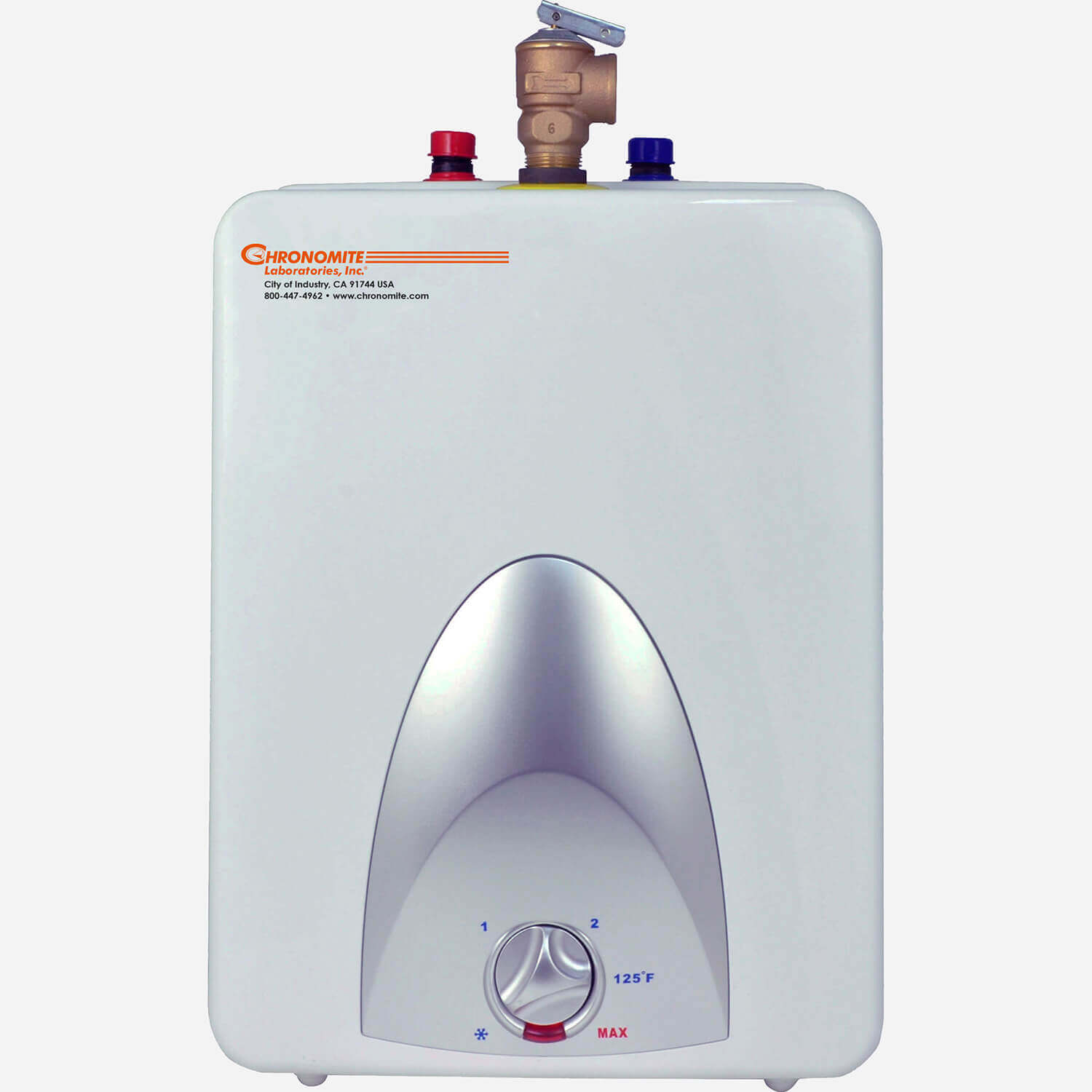

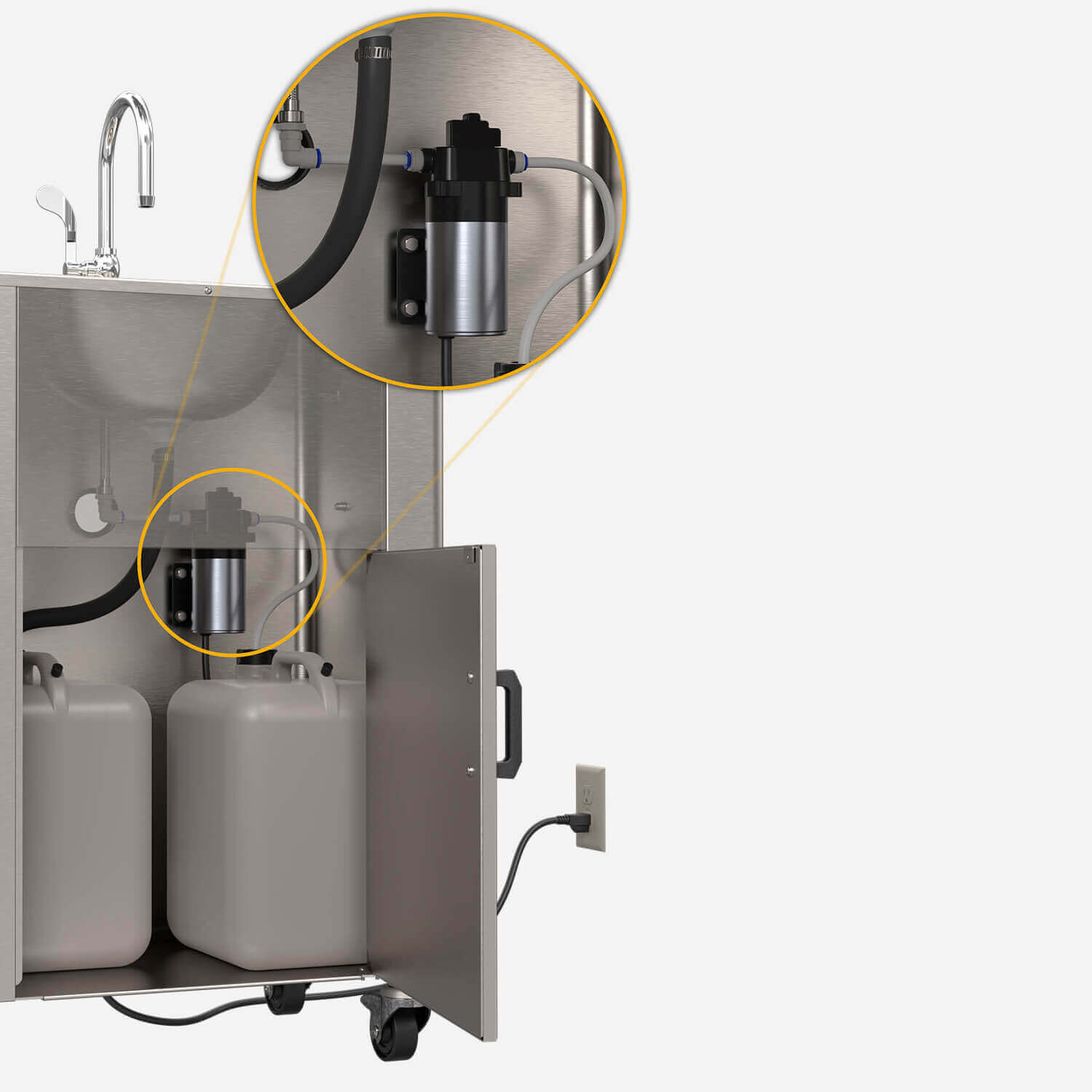

Deluxe Plus Portable Wash-Ware ® stainless steel hand sinks are quick to install and easy to move, adding convenient hand washing capabilities in areas not normally equipped for it. This model features an on-demand electric pump, as well as a wider, 35" housing to accommodate the supplied Chronomite ® Mini-Tank Water Heater

Fresh water is supplied via an onboard 5-gallon (19 liter) tank, and waste is collected in an onboard 6-gallon (22.7 liter) tank. A sensor faucet may be specified for hands-free operation. To accommodate young users, Model PS1230-JR is available with a shorter 31" (787 mm) rim height.

Because this model is provided with an electric water heater and operated by an on-demand electric pump, it is not recommended for outdoor use.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual PS1210, PS1230 Portable Sinks (pdf)	Self-Contained Deluxe Portable Wash-Ware® Hand Washing Station [PS1210 \| Foot Pump & Water Heater; PS1230 \| On-Demand Pump & Water Heater] Doc #9000-M00-010 (PS1200).pdf	1 MB
Submittals	Submittal PS1200 Series Hand Wash (pdf)	Deluxe-Plus Heated, Wide Housing Self-Contained Portable Hand-Wash Station [PS1210 - Foot Pump Operated; PS1230 - On-Demand Pump]	167 KB
Brochures/Flyers	Deluxe Plus Portable Wash-Ware Flyer (pdf)	The Deluxe-Plus Portable Wash-Ware® Sink provides warm water for hand washing yet does not require any plumbing hookup—only an electrical outlet.	752 KB
Brochures/Flyers	MGI National Parks Brochure (pdf)	Whether at the ranger station or out on the trail, Portable Wash-Ware sinks provide clean, running water.	2 MB
Brochures/Flyers	Hand Washing Products Brochure (pdf)	Hand Washing Products Brochure (pdf)	2 MB
Technical Data Sheets	Cleaning and Care Guide (pdf)	Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo	1 MB
Videos	PS1200 Series Overview: Deluxe Plus Self-Contained Portable Sink, Warm Water, No Plumbing	PS1200 Series Overview: Deluxe Plus Self-Contained Portable Sink, Warm Water, No Plumbing	133 KB
Videos	Using a Funnel to Prime Tankless Water Heater for Select Portable Wash-Ware® Sinks (video)	Using a Funnel to Prime Tankless Water Heater for Select Portable Wash-Ware® Sinks	132 KB
Videos	How to Prime an Electric Tankless Water Heater Using the Foot Pedal for Portable Wash-Ware® Sinks (video)	How to Prime an Electric Tankless Water Heater Using the Foot Pedal for Portable Wash-Ware® Sinks	132 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	Deluxe Plus Portable Wash-Ware®
Material	Stainless Steel
Product Type	Lavatory
Indoor/Outdoor Use	Indoor Use Only
Portable Sink Water Supply	Self-Contained
Patent	Pending
Bowl Shape	Oval
Fresh Water Capacity	5 gallon
Gray Water Capacity	6 gallon
Overall Dimensions	35" (Side-to-Side) x 16.5" (Front-to-Back)
Water Heater	Yes
Faucet Operation	Foot Activation, On-Demand Electric Pump
Stations-Users	1

Options

Accessories

	Image	Model	Description	Downloads

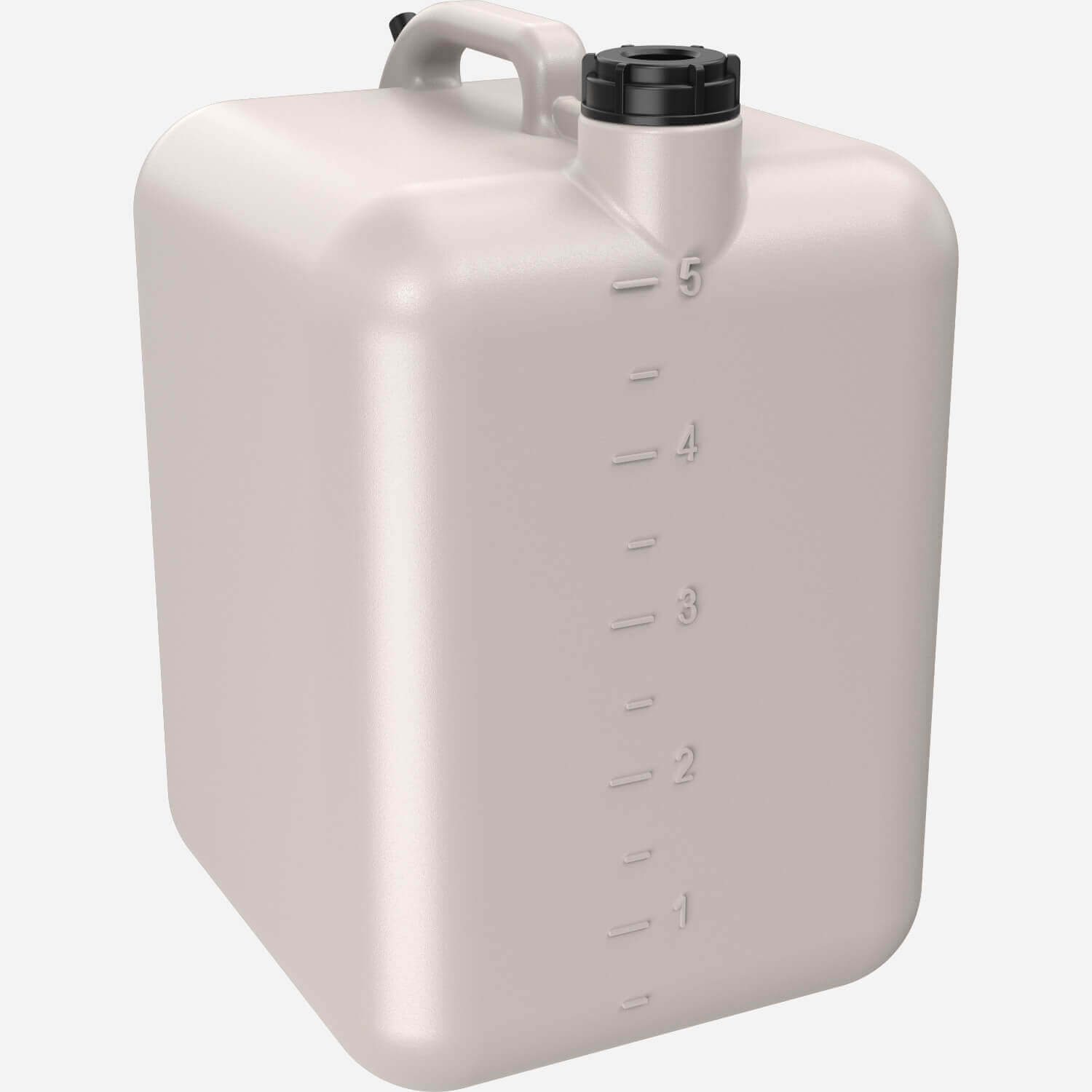

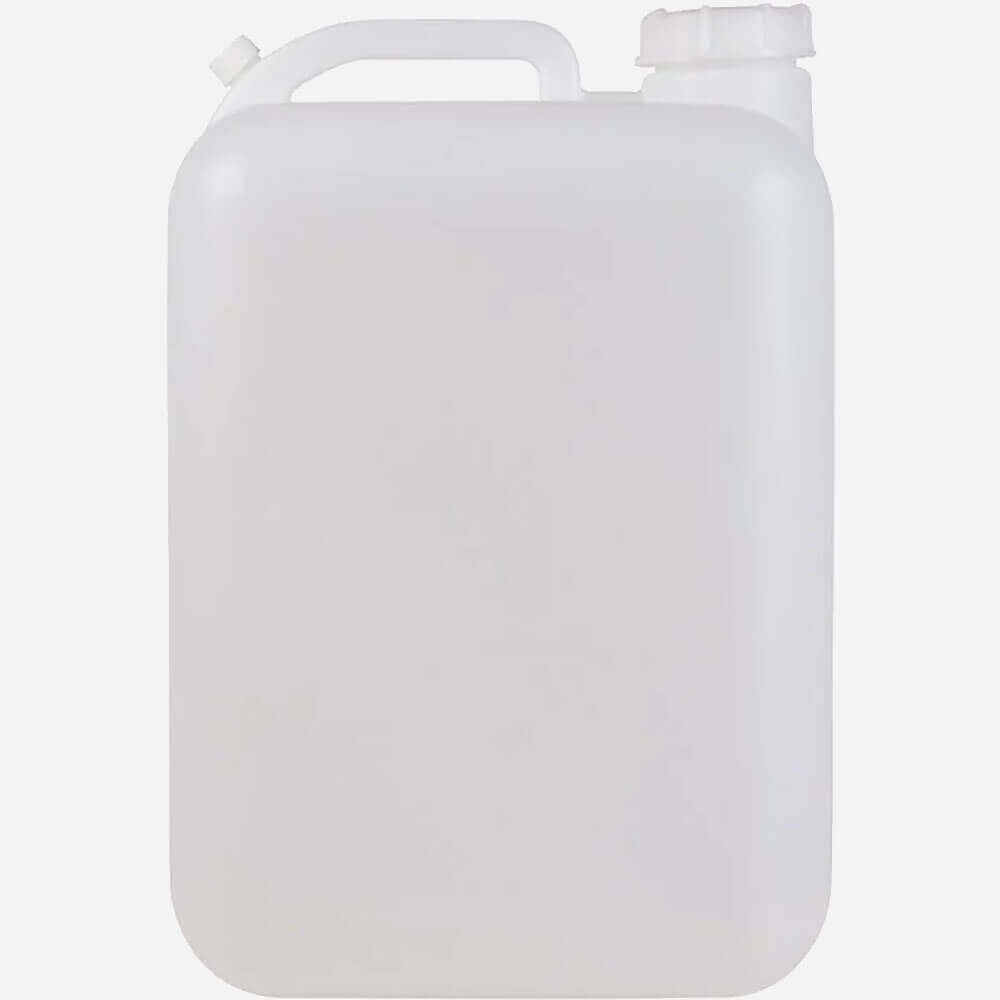

		PS1000-5GF	Accessory: Additional 5 Gallon Fresh Water Tank
		PS1000-6GW	Accessory: Additional 6 Gallon Waste Container for PS1000 Series Hand Wash

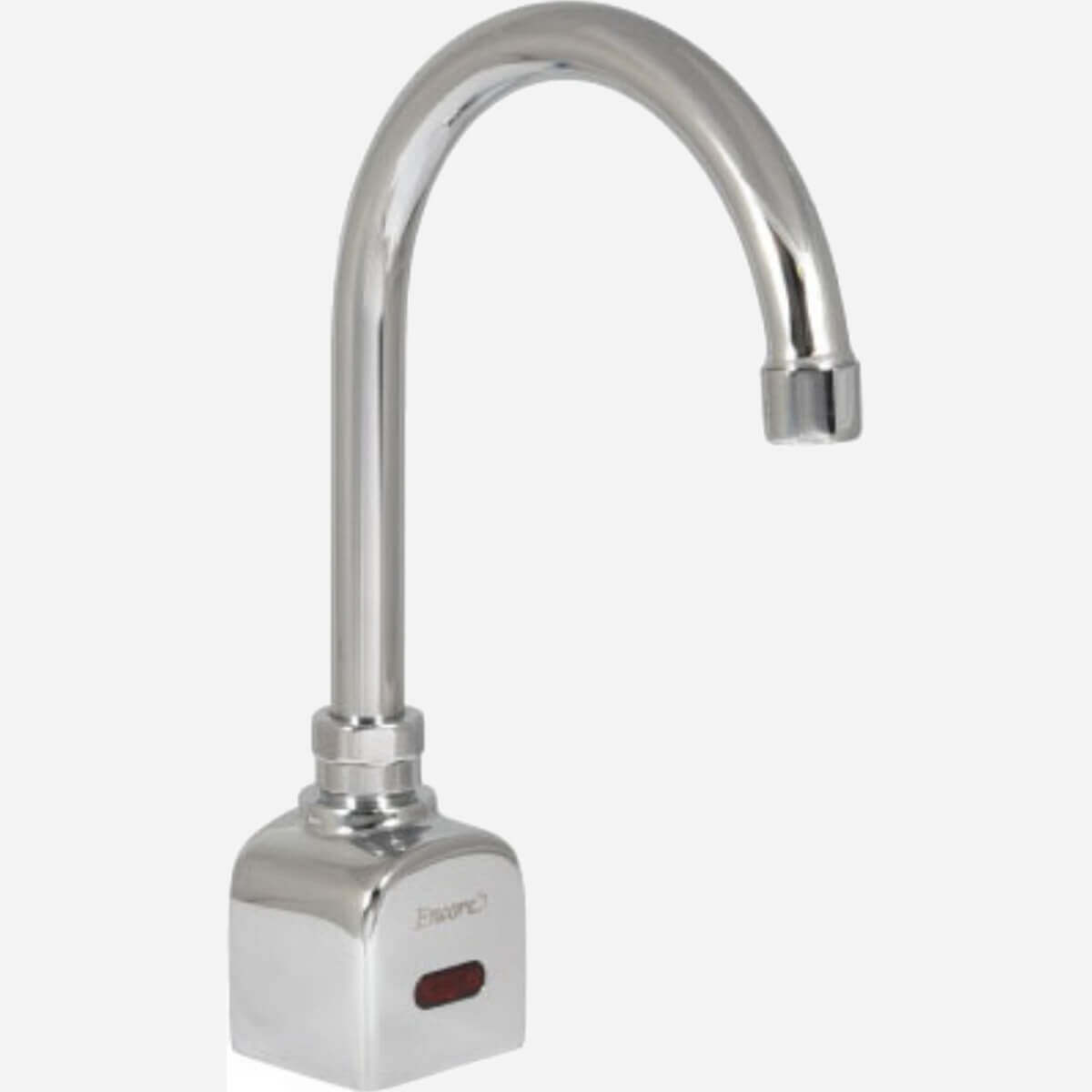

		PS1000-F31	Accessory: Gooseneck Faucet with Battery Powered Sensor

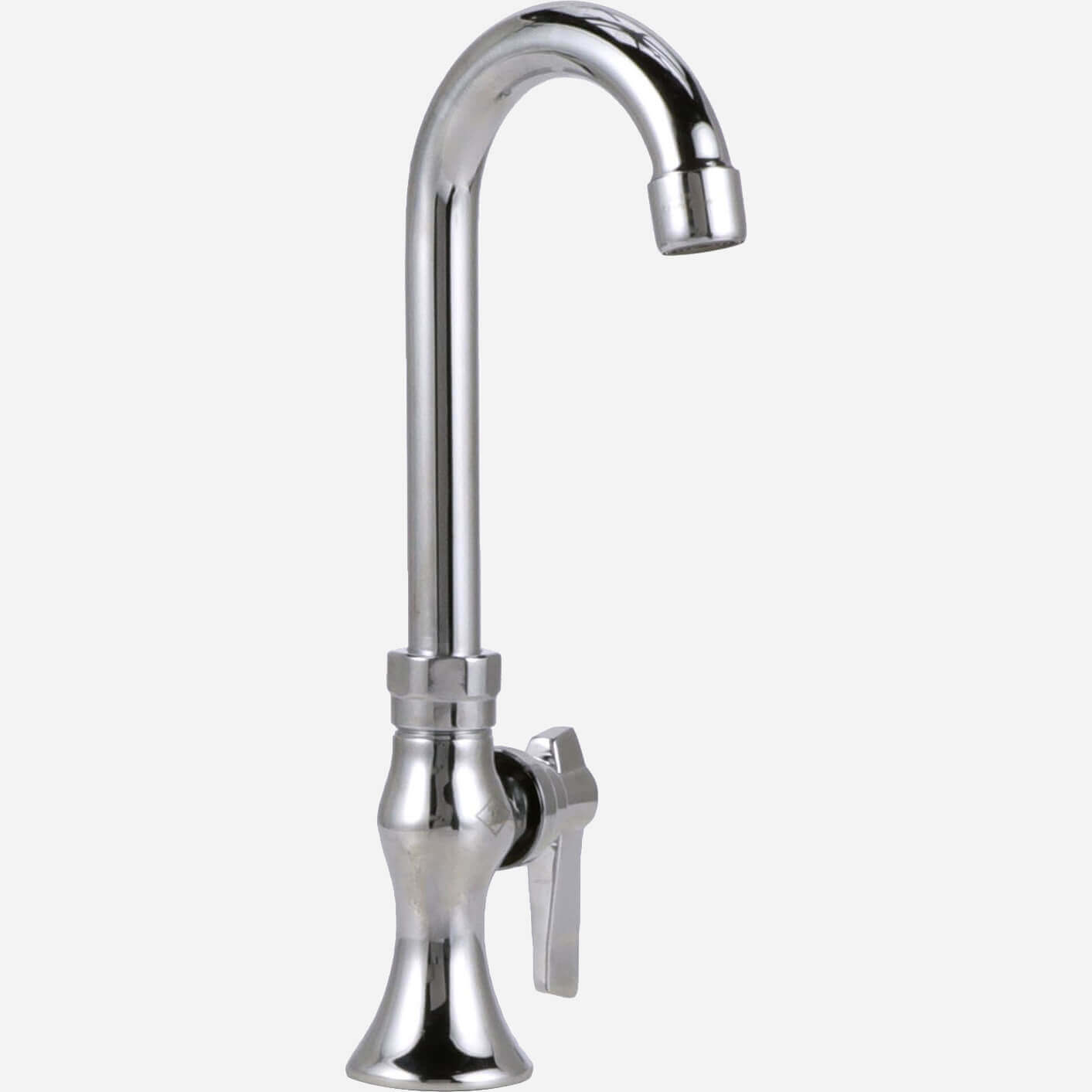

		PS1000-F40	Accessory: Gooseneck Faucet with Single Temp Lever Valve

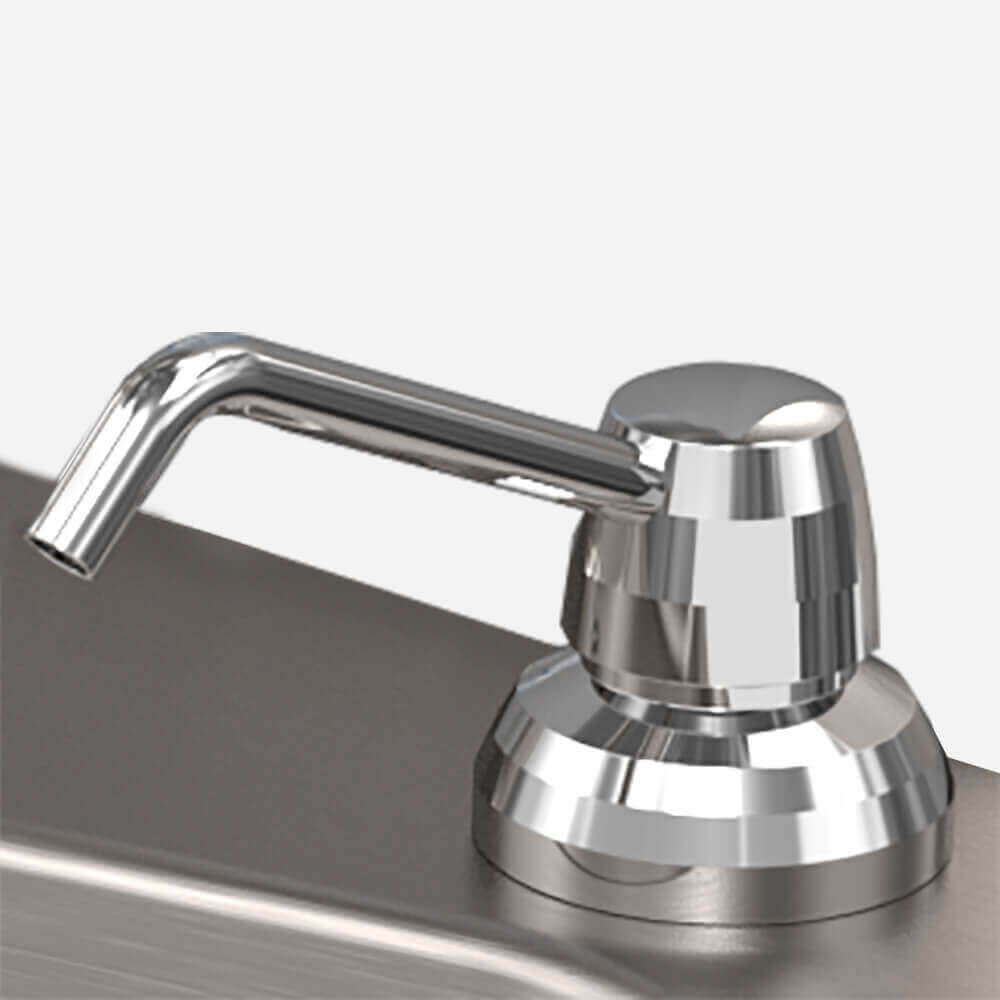

		PS1000-PS	Accessory: Deck Mount Pump Soap Dispenser

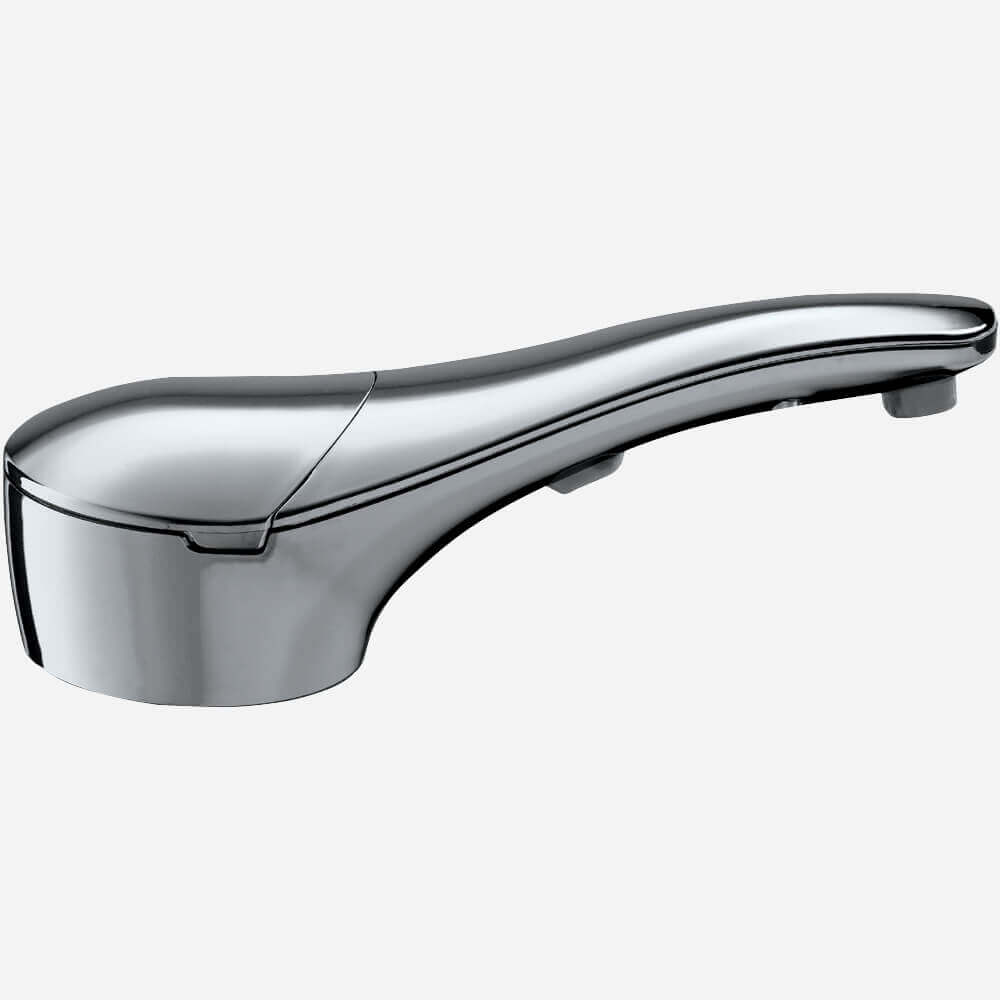

		PS1000-SSO	Accessory: Sensor Operated Soap Dispenser

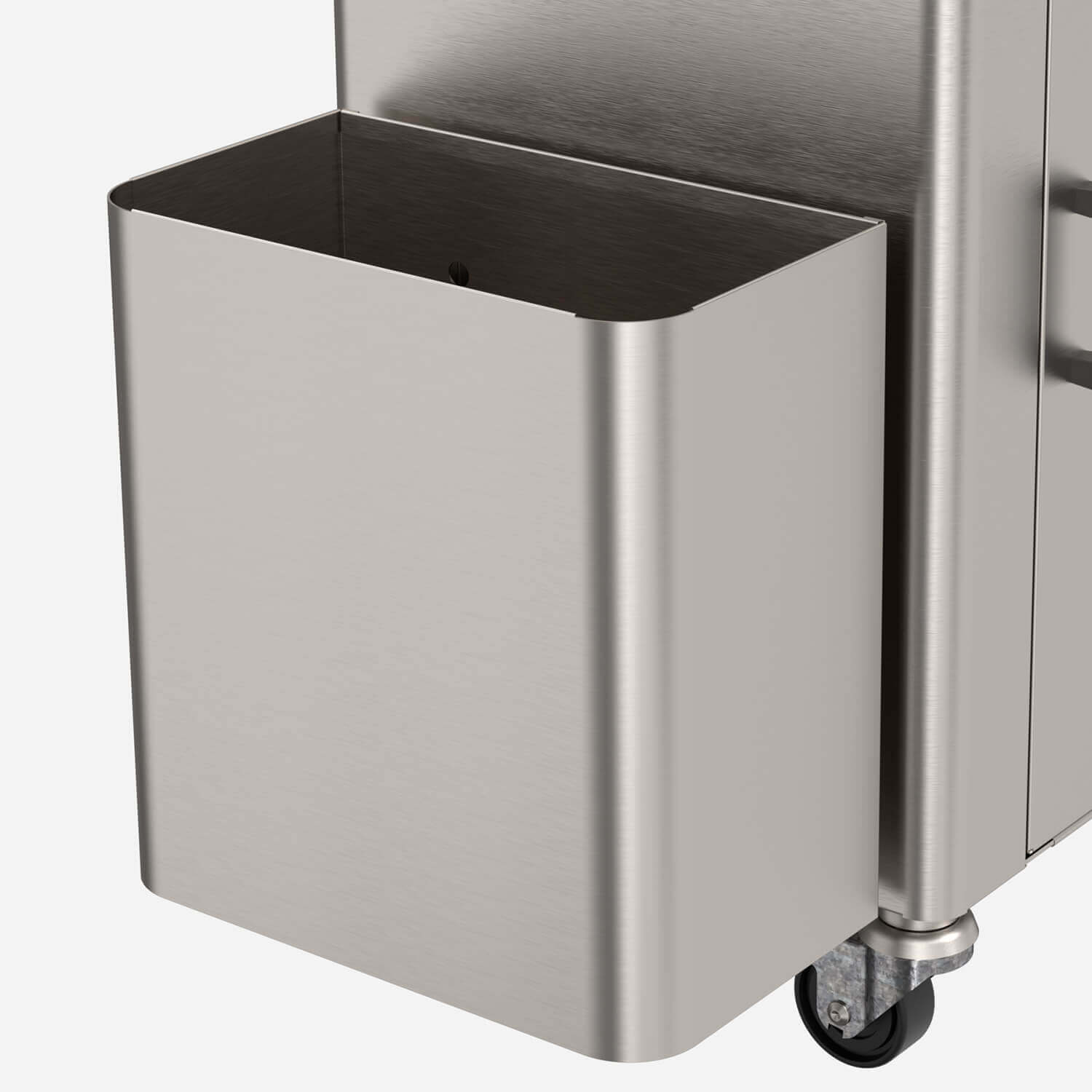

		PS1000-TR	Accessory: Trash Receptacle for PS1000 Series
		PS1200-SG	Accessory: Wrap Around Splash Guard for 35" Portable Sink

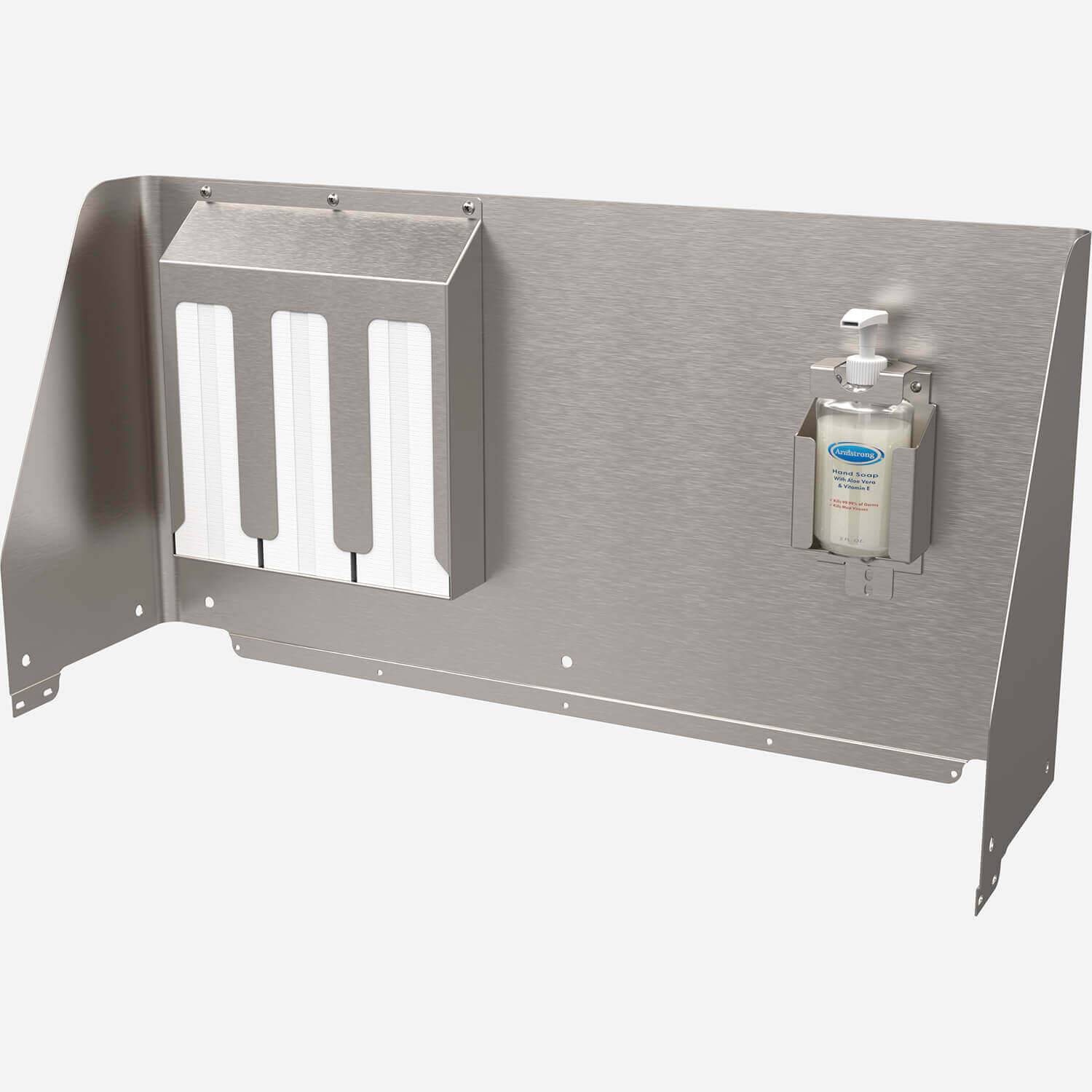

		PS1200-SG1	Accessory: Wrap Around Splash Guard for 35" Portable Sink, 3-Bay Paper Holder and Soap Bottle Holder

Miscellaneous

	Image	Model	Description	Downloads
		-JR (for PS1000 Series)	31" Rim Junior Height for Deluxe Portable Wash-Ware Sink

Details

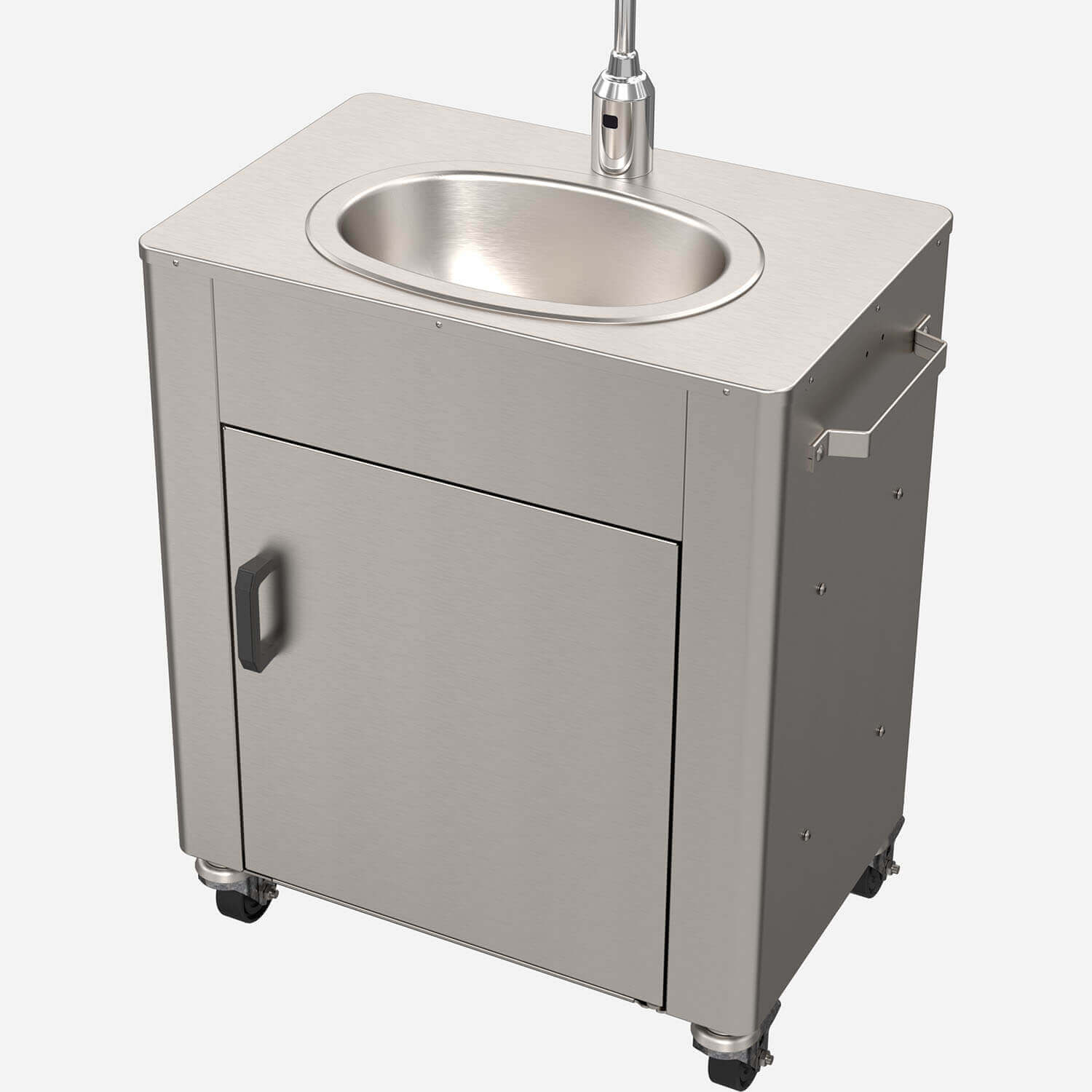

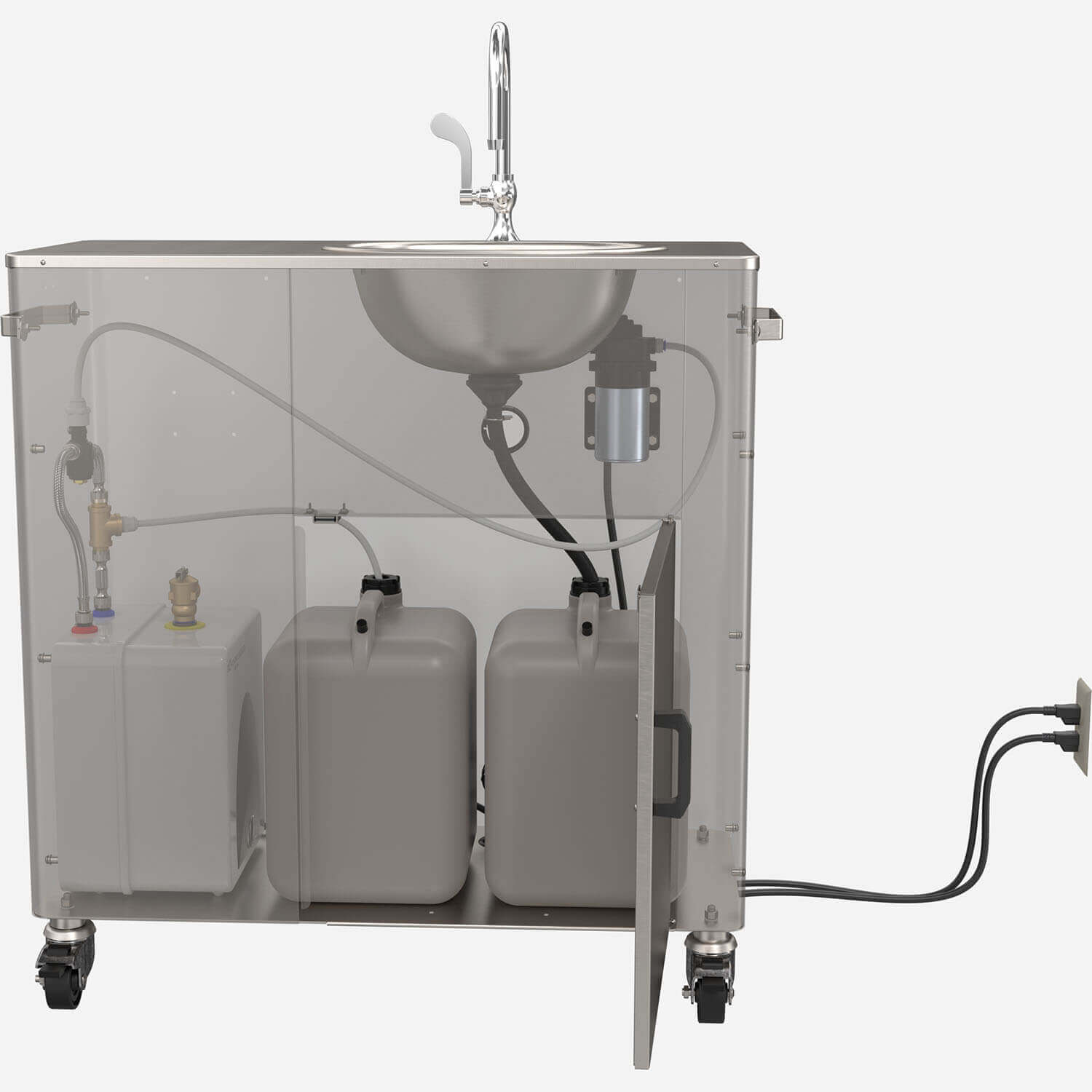

This portable sink is fabricated from Type 304 22-gauge stainless steel with a 14-gauge, 14-3/8"L x 9-5/8"W x 6"D (365 x 244 x 152 mm) oval drop-in bowl mounted on the deck. The unit is provided with four swivel casters (two locking, two standard), and a door is provided to conceal the plumbing connections and tanks. Various faucets are available from Acorn and sold separately. A battery-powered, sensor-activated faucet (PS1000-F31) can provide hands-free operation.
