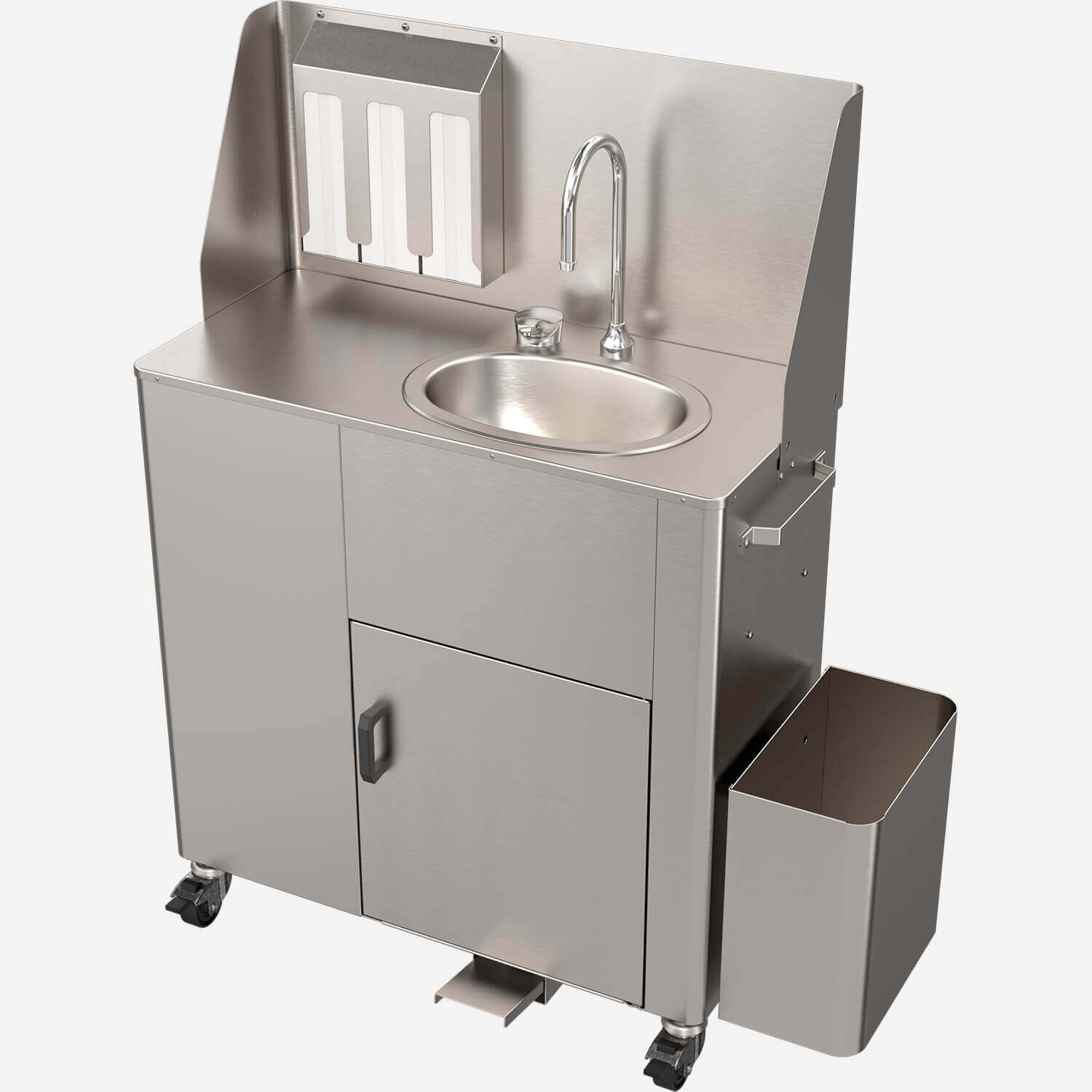

Deluxe Plus Portable Wash-Ware® Hand Washing Station with Foot Pump & Water Heater

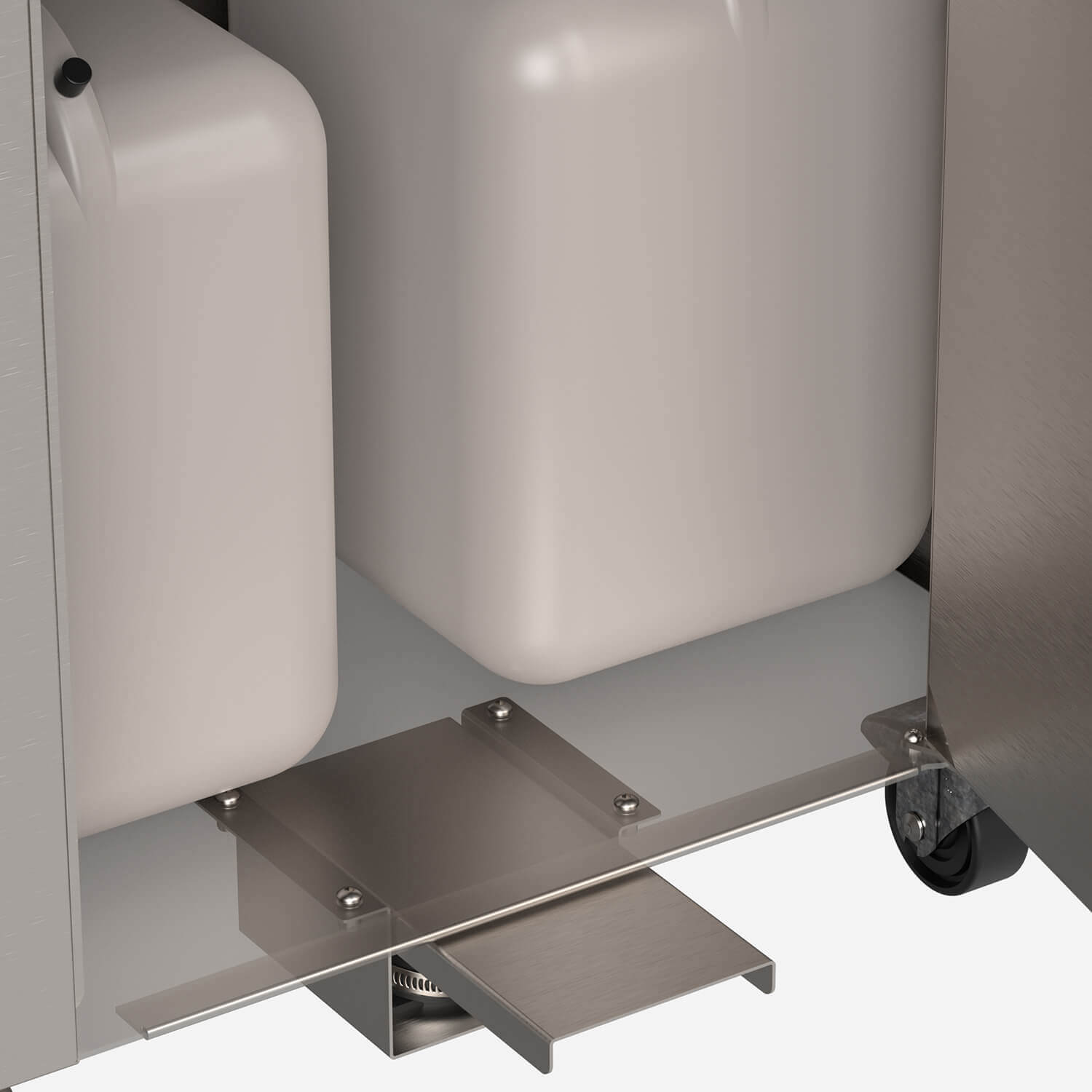

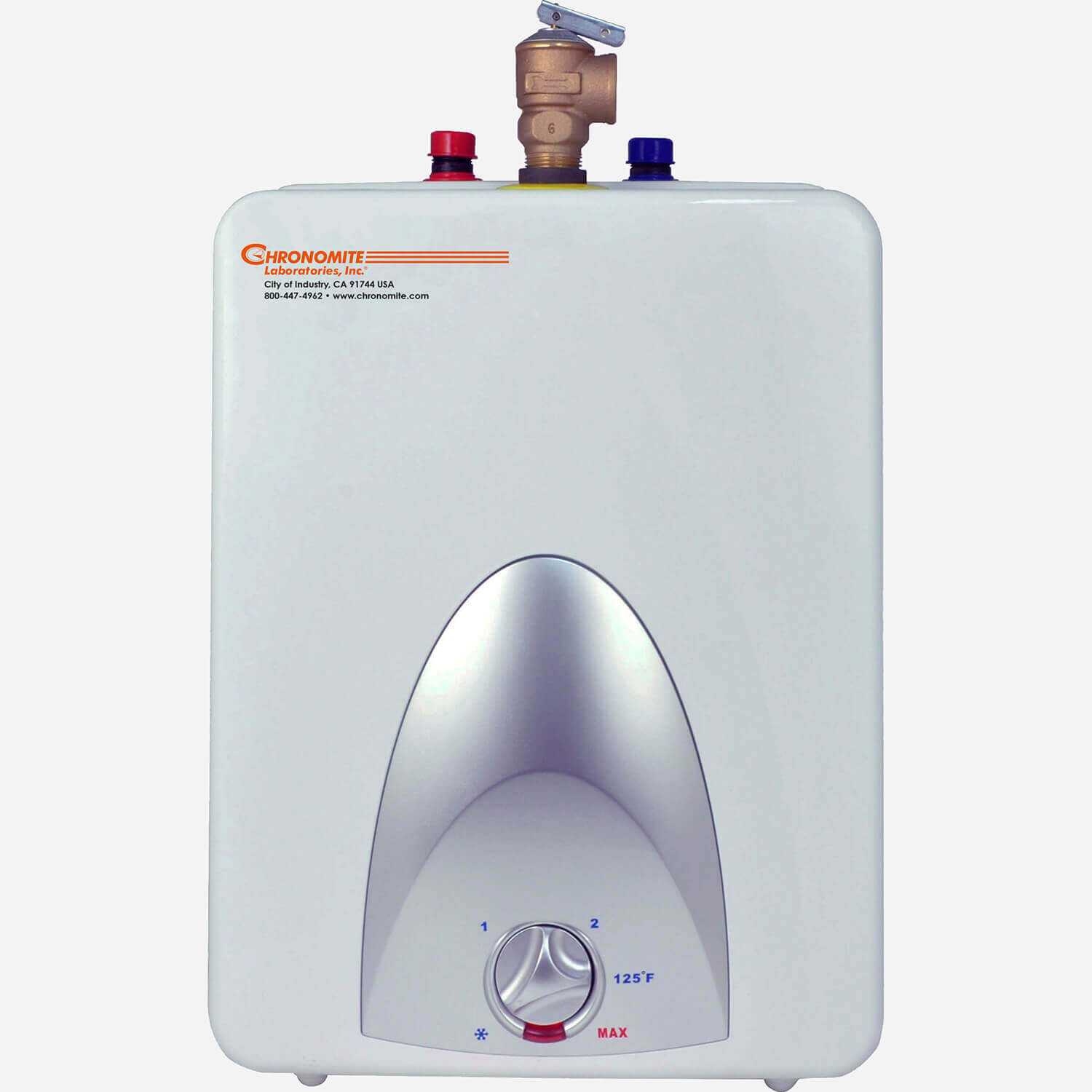

Deluxe Plus Portable Wash-Ware ® stainless steel hand sinks are quick to install and easy to move, adding convenient hand washing capabilities in areas not normally equipped for it. This model features hands-free, foot pedal operation and a wider, 35" housing to accommodate the supplied Chronomite ® Mini-Tank Water Heater

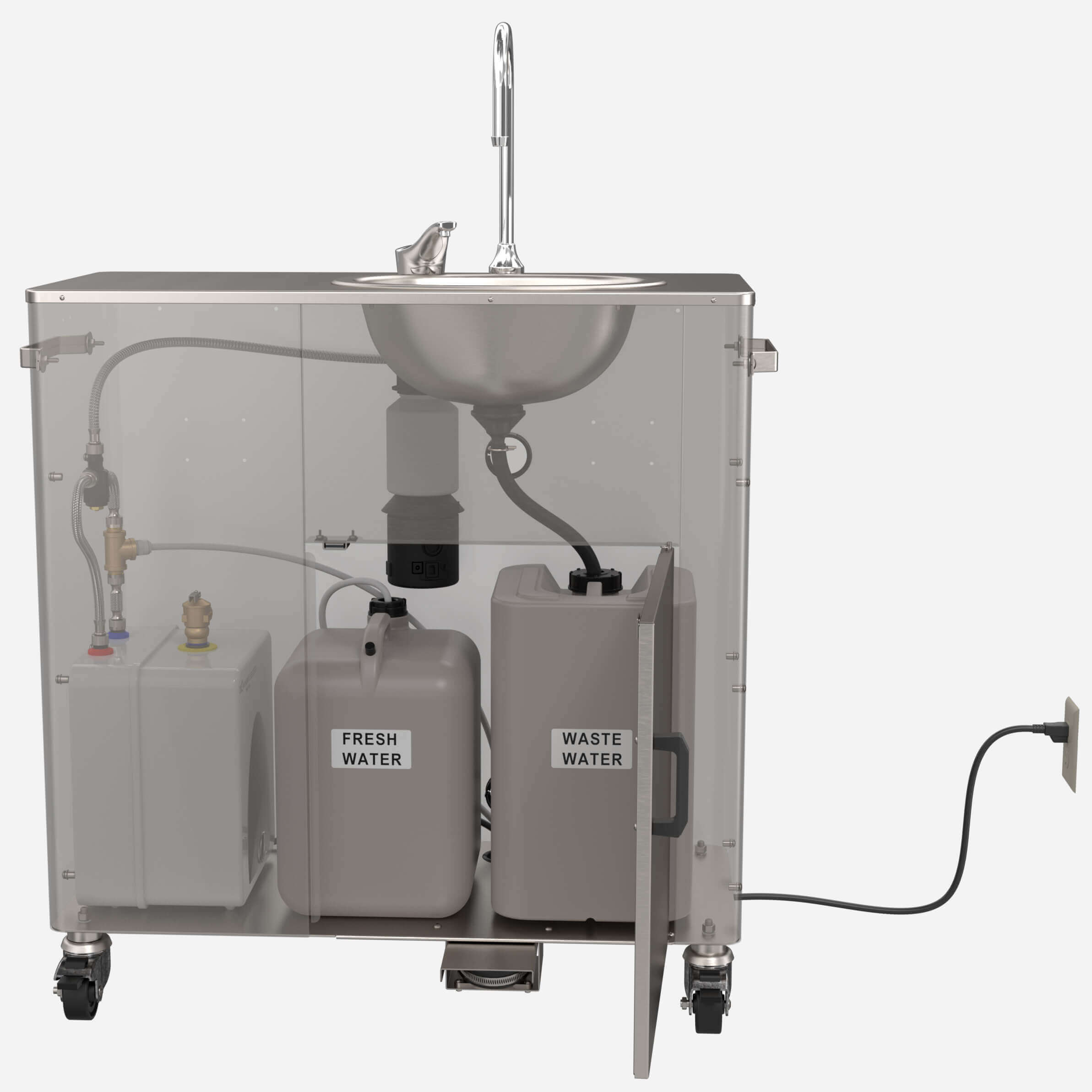

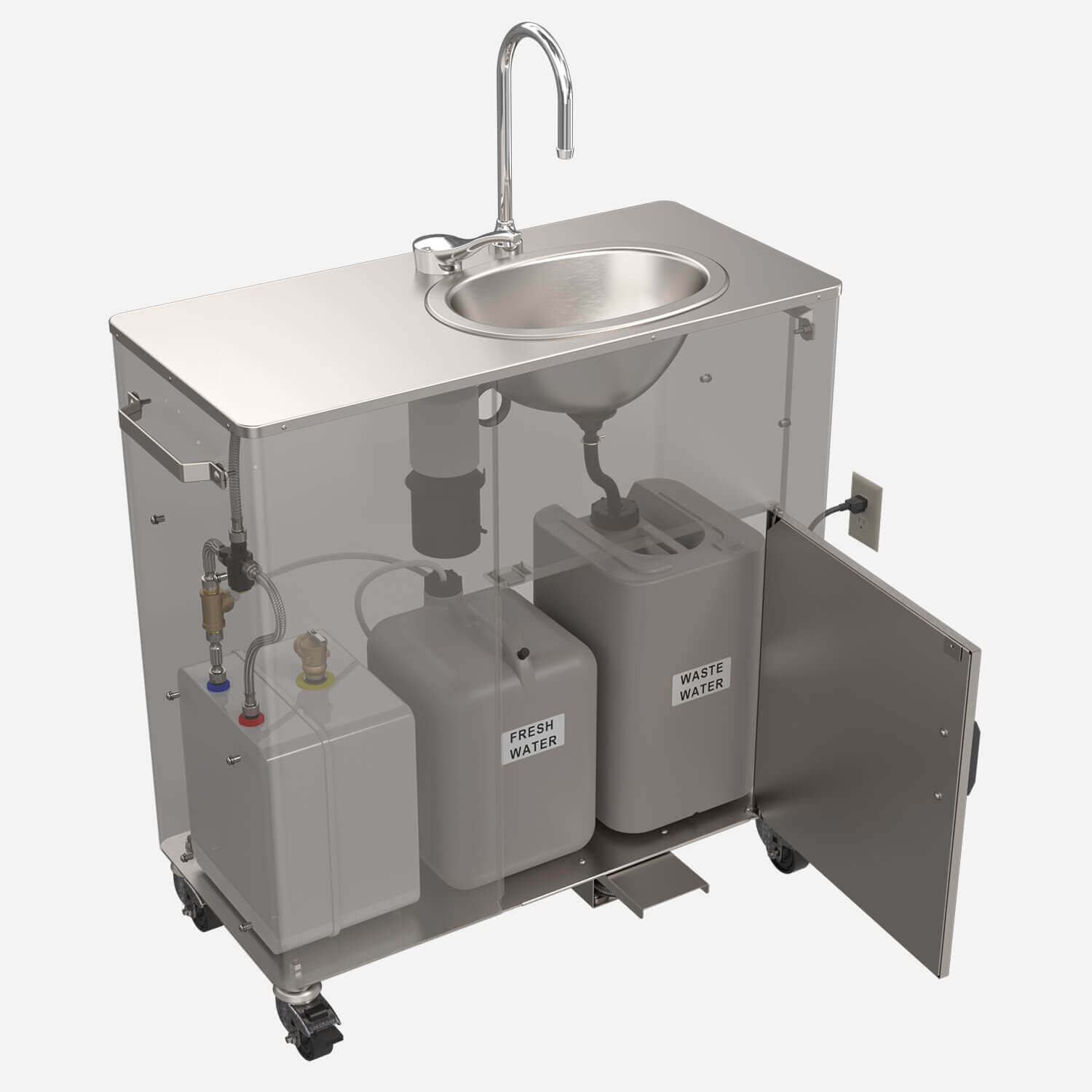

Fresh water is supplied via an onboard 5-gallon (19 liter) tank, and waste is collected in an onboard 6-gallon (22.7 liter) tank. To accommodate young users, Model PS1210-JR is available with a shorter 31" (787 mm) rim height.
Because this model is provided with an electric water heater, it is not recommended for outdoor use.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Deluxe-Plus Heated, Wide Housing Self-Contained Portable Hand-Wash Station [PS1210 - Foot Pump Operated; PS1230 - On-Demand Pump] | 0 | 150 KB | ||
| | The Deluxe-Plus Portable Wash-Ware® Sink provides warm water for hand washing yet does not require any plumbing hookup—only an electrical outlet. | 0 | 752 KB | ||
| | Whether at the ranger station or out on the trail, Portable Wash-Ware sinks provide clean, running water. | 0 | 2 MB | ||
| | Hand Washing Products Brochure (pdf) | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
 | | PS1200 Series Overview: Deluxe Plus Self-Contained Portable Sink, Warm Water, No Plumbing | 0 | 133 KB | ||
| | Using a Funnel to Prime Tankless Water Heater for Select Portable Wash-Ware® Sinks | 0 | 132 KB | ||
| | How to Prime an Electric Tankless Water Heater Using the Foot Pedal for Portable Wash-Ware® Sinks | 0 | 132 KB |
Specifications
| Brand | Deluxe Plus Portable Wash-Ware® |
| Material | Stainless Steel |
| Product Type | Lavatory |
| Indoor/Outdoor Use | Indoor Use Only |
| Portable Sink Water Supply | Self-Contained |
| Patent | Pending |
| Bowl Shape | Oval |
| Overall Dimensions | 35" (Side-to-Side) x 16.5" (Front-to-Back) |
| Fresh Water Capacity | 5 gallon |
| Gray Water Capacity | 6 gallon |
| Faucet Operation | Foot Activation |
| Water Heater | Yes |
| Stations-Users | 1 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | PS1000-5GF | Accessory: Additional 5 Gallon Fresh Water Tank | ||
 | PS1000-6GW | Accessory: Additional 6 Gallon Waste Container for PS1000 Series Hand Wash | ||

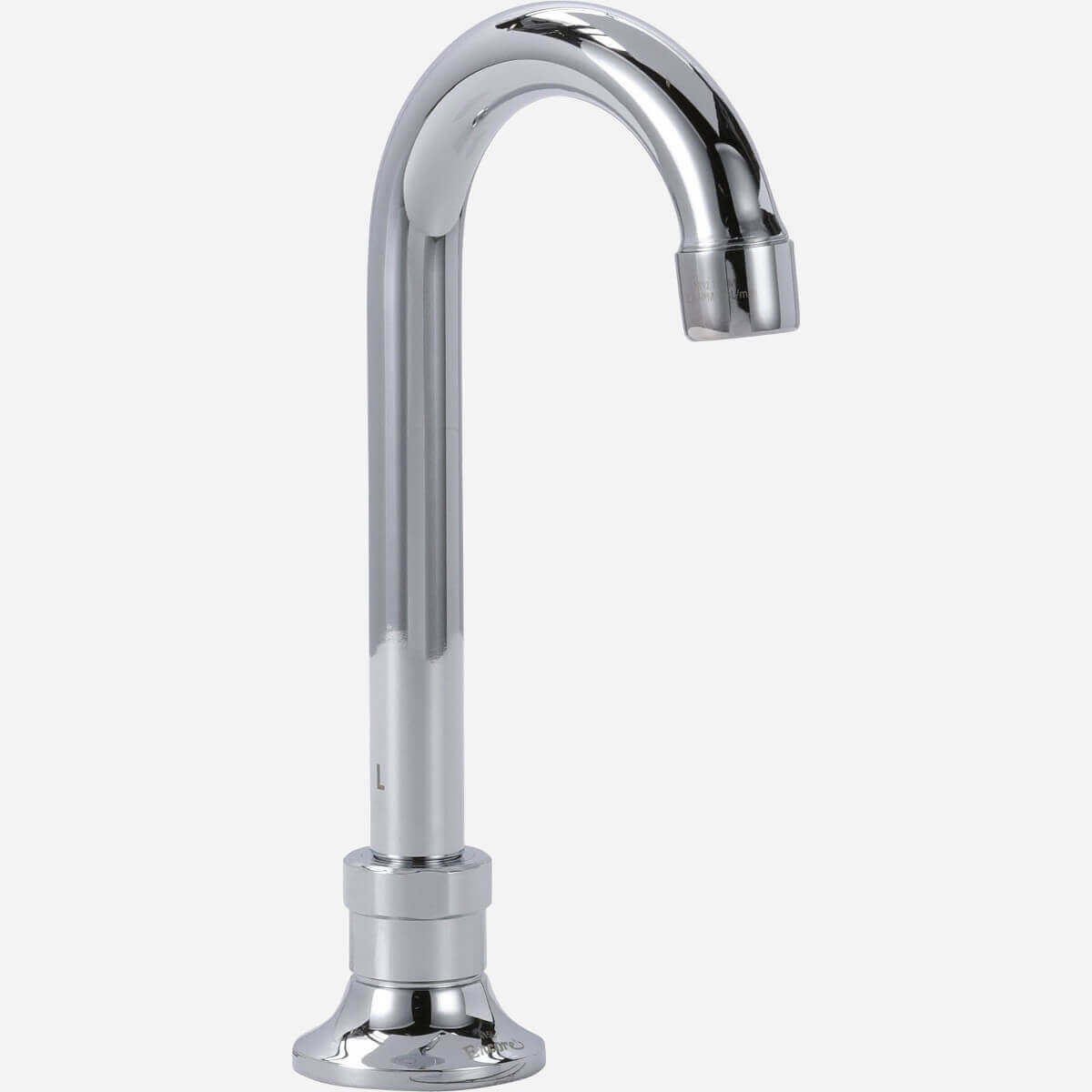

 | PS1000-F11 | Accessory: Gooseneck Faucet for Foot Activated Lavatory | ||
 | PS1000-PS | Accessory: Deck Mount Pump Soap Dispenser | ||
 | PS1000-SSO | Accessory: Sensor Operated Soap Dispenser | ||
 | PS1000-TR | Accessory: Trash Receptacle for PS1000 Series | ||
 | PS1200-SG | Accessory: Wrap Around Splash Guard for 35" Portable Sink | ||
 | PS1200-SG1 | Accessory: Wrap Around Splash Guard for 35" Portable Sink, 3-Bay Paper Holder and Soap Bottle Holder |
Miscellaneous
Details
This portable sink is fabricated from Type 304 22-gauge stainless steel with a 14-gauge, 14-3/8"L x 9-5/8"W x 6"D (365 x 244 x 152 mm) oval drop-in bowl mounted on the deck. The cabinet is 35" (889 mm) wide, and a door is provided to conceal the tanks and connections. The unit is provided with four swivel casters (two locking, two standard). The PS1000-F11 faucet appropriate for foot pump operation is sold separately.
