Model ELSC2

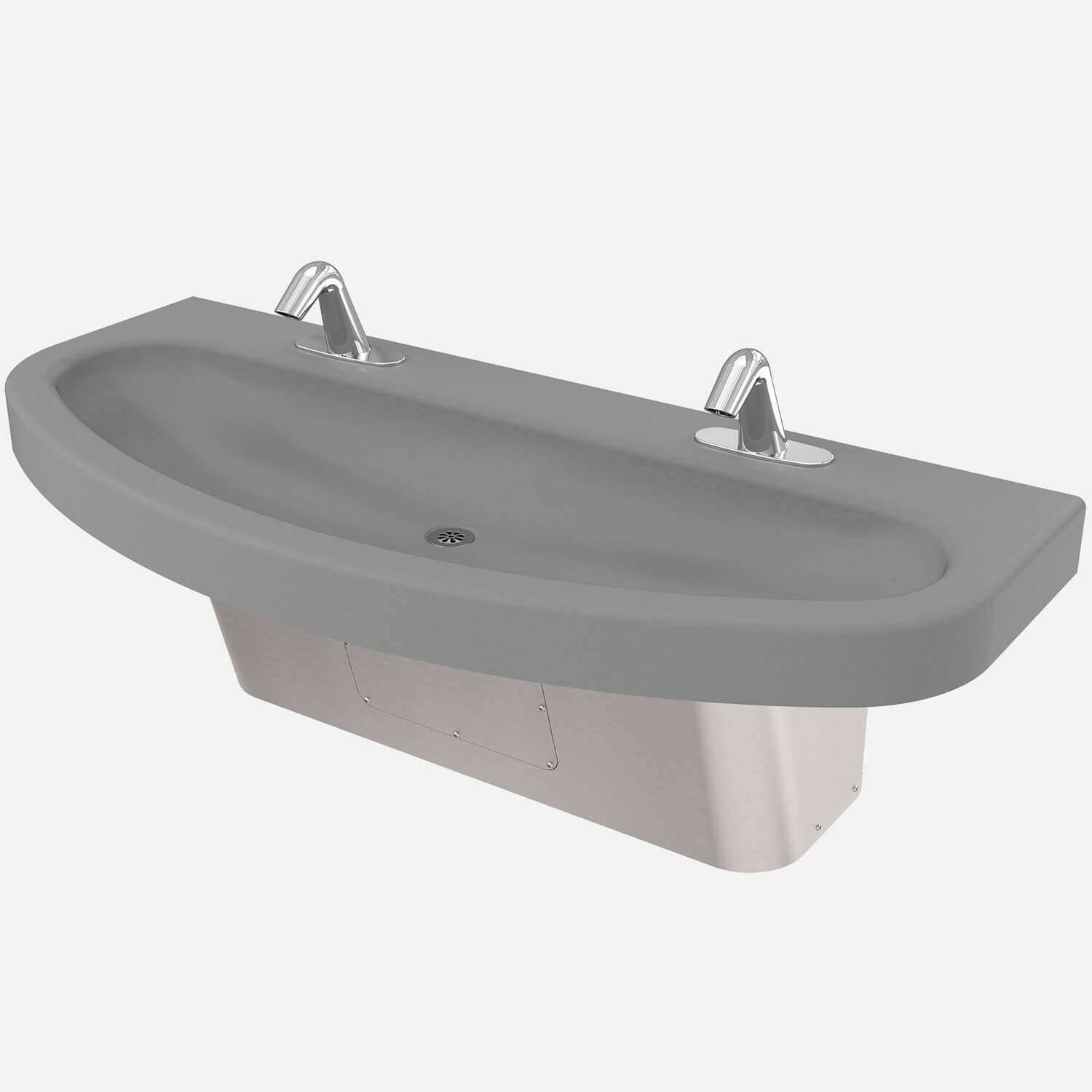

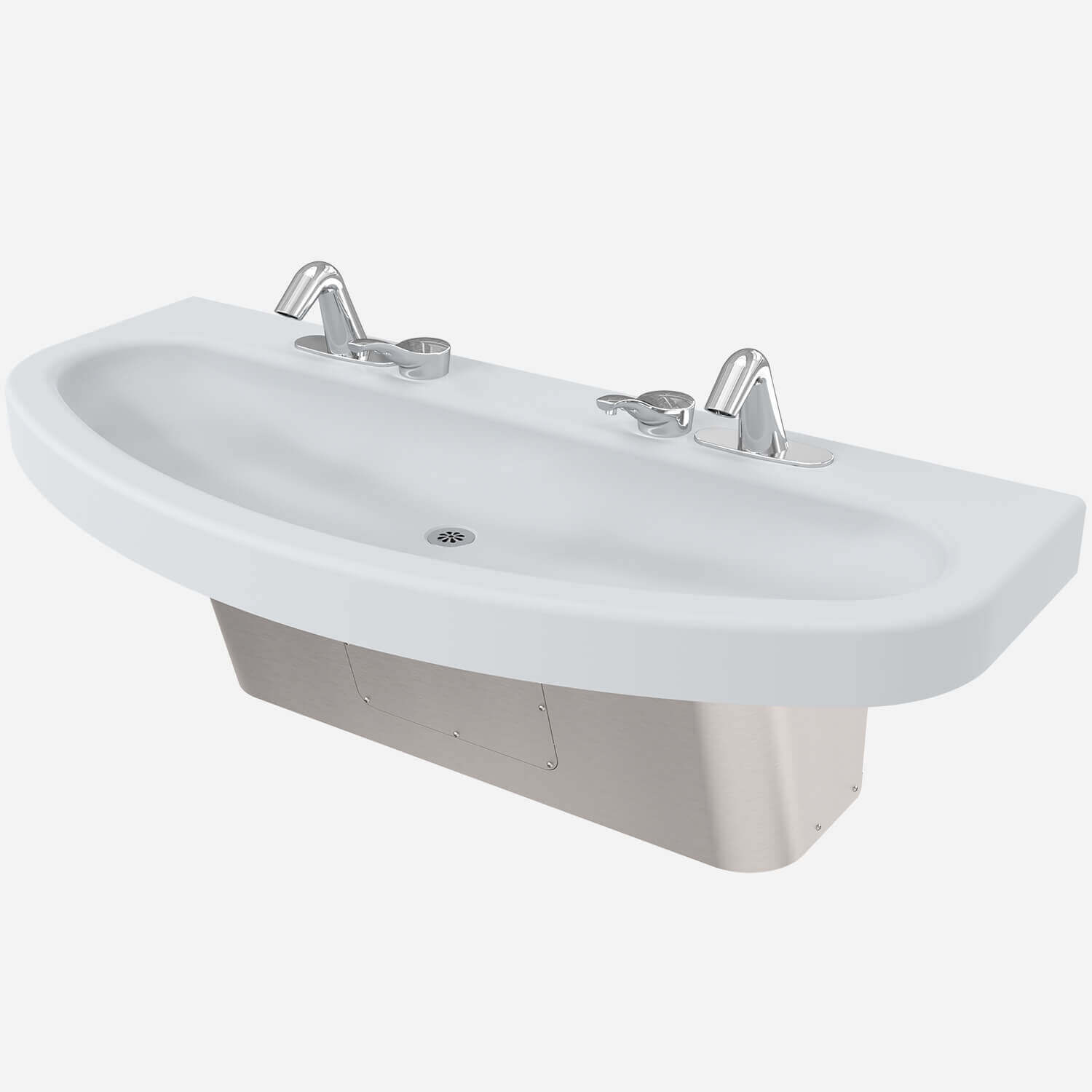

Ellipse™ Solid Surface, Wall-Mounted Trough Sink, Two Stations
Acorn’s Ellipse™ solid surface wall-mounted trough sink is intended to assist with public safety. Its cost-effective, space-saving design is ideal for use in buildings of all types to expand hand washing capabilities. The unit conforms with ADA and OBC guidelines for accessibility.

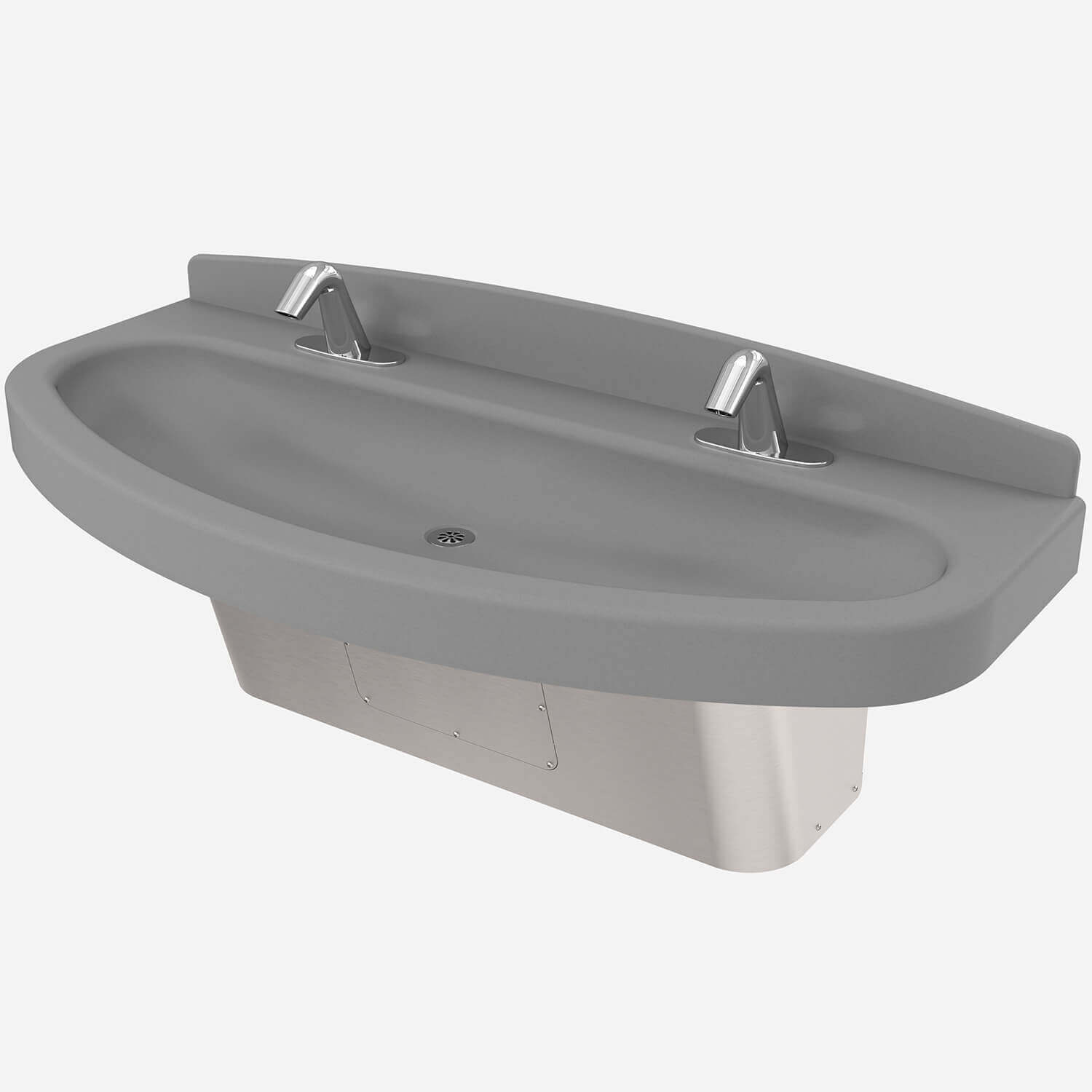

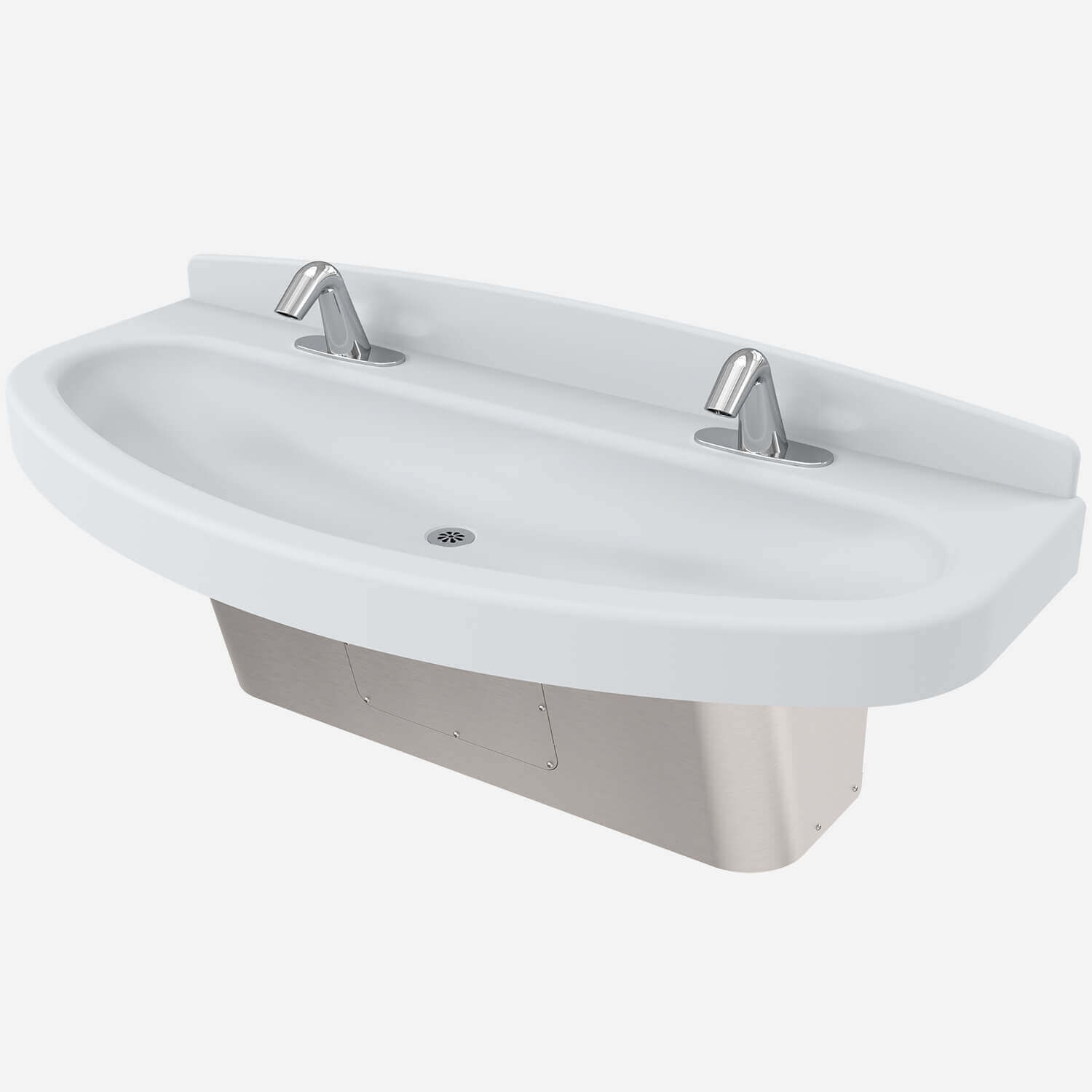

This Corterra ® solid surface sink measures 52"W (1,321 mm) and accommodates two users. The standard provided color is Blanco Matte, but additional options are available. A matching 4.25"H (108 mm) curved backsplash may also be specified.
The trap cover is 16-gauge, type 304 stainless steel polished to a #4 satin finish, optionally available with an Enviro-Glaze ® powder coating.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Solid Surface Ellipse™ Wall Mounted Basin [ELSC1 One-Station 28.75" wide; ELSC2 Two-Station 52" wide] | 327 KB | ||
| | Solid Surface Ellipse™ Wall Mounted Basin [ELSC1 One-Station 28.75" wide; ELSC2 Two-Station 52" wide] | 176 KB | ||
 | | Corterra® Solid Surface Ellipse™ Wall Mounted Basin [ELSC1 One-Station 28-3/4"; ELSC2 Two-Station 52"] also SW000-F60 Faucet | 1 MB | ||
| | Corterra® Solid Surface Ellipse™ Wall Mounted Basin [ELSC1 One-Station 28-3/4"; ELSC2 Two-Station 52"] also SW000-F60 Faucet | 767 KB | ||
| | Hand Washing Products Brochure (pdf) | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB |
Specifications
| Material | Corterra® Solid Surface |
| Brand | Ellipse™, Wash-Ware® |
| Mounting | Wall Mounted |
| Bowl Shape | Elliptical |
| Product Type | Wash Basin |
| Compliance | ADA Compliant, Federal Public Law 111-380, OBC, UL Greenguard, UPC, ASME A112.19.3/CSA B45.4 |
| Overall Dimensions | 52" (Side-to-Side) x 23" (Front-to-Back) |
| Stations-Users | 2 |
| Patent | Pending |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BKS | Accessory: Corterra® Solid Surface Backsplash for ELSC Series Basins | ||
 | PS1000-PS | Accessory: Deck Mount Pump Soap Dispenser | ||
 | PS1000-SSO | Accessory: Sensor Operated Soap Dispenser | ||
 | SW000-F50 | Accessory: Faucet, Hot and Cold Wristblade Gooseneck | ||
 | SW000-F51 | Accessory: Faucet, Hot and Cold Wristblade | ||
 | SW000-F60 | Accessory: Single Temp Sensor Faucet with Stainless Steel Spout and Stainless Steel Deck Plate | ||
 | SW000-F70 | Accessory: Single Temp Push Button Metering Faucet with Plate | ||
 | SW000-PT | Accessory: Daisy Strainer with Tailpiece and 1-1/2” P-Trap | ||
 | SW000-PTC | Accessory: Chrome Plated Brass Daisy Strainer and 1-1/2" P-Trap |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | OCC | Option: Corterra® Solid Surface |
Product Variations
Image | Model ID | Description |
|---|---|---|
 | ELSC1 | Ellipse™ Solid Surface, Wall-Mounted Trough Sink, One Station |
