Name: Ellipse™ Stainless Steel, Wall-Mounted Trough Sink, One Station
Brand: Acorn Engineering Company
SKU: ELPS1

Model ELPS1

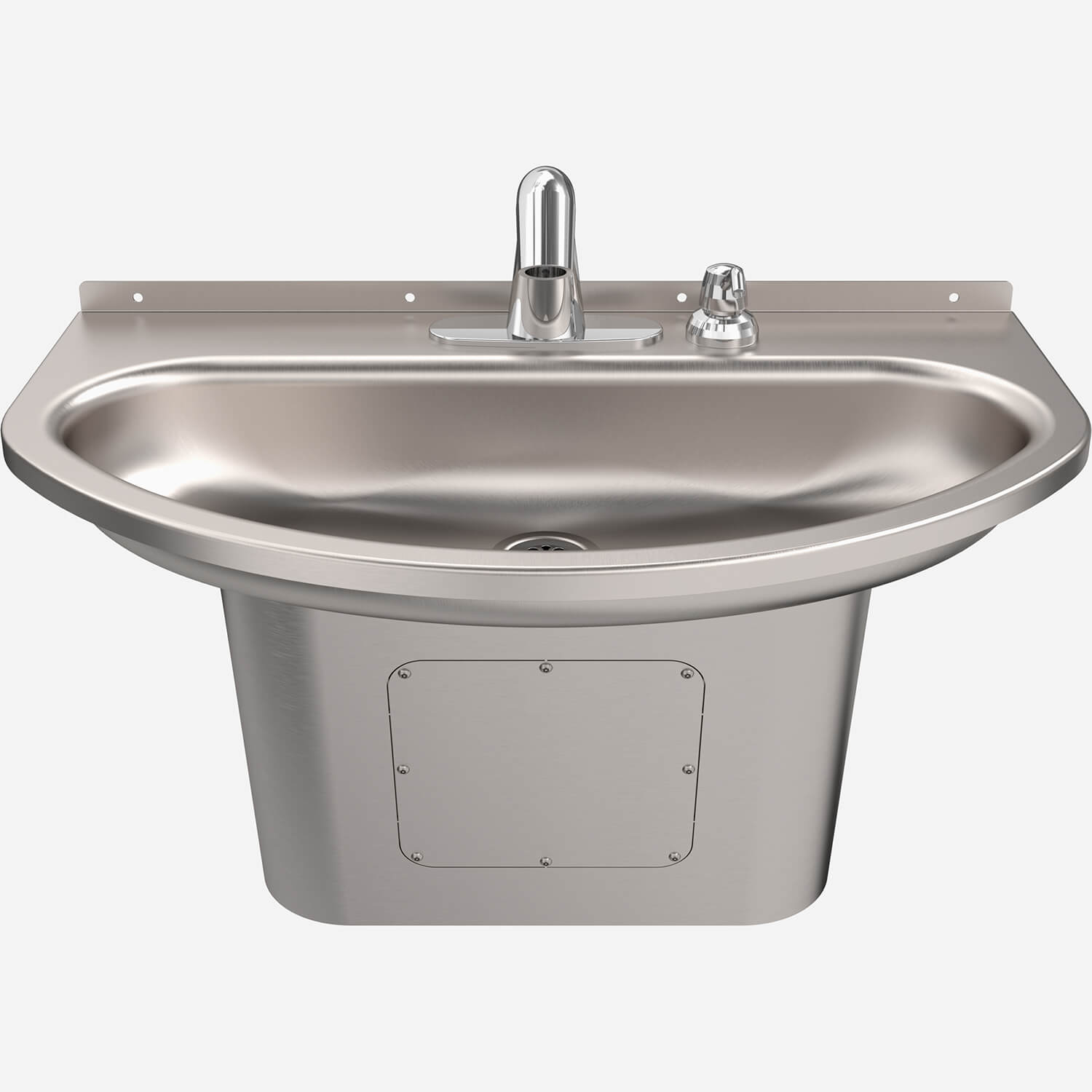

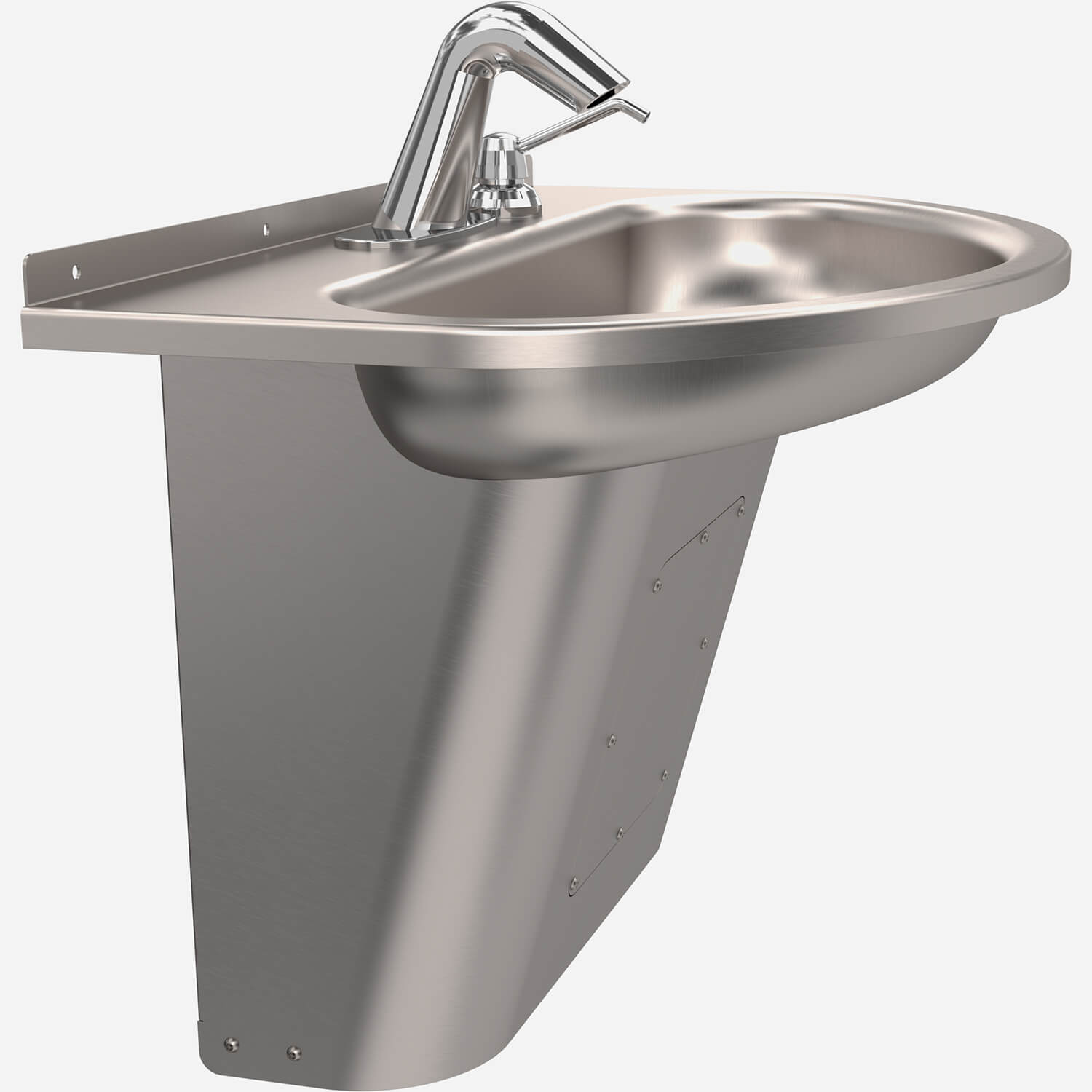

Ellipse™ Stainless Steel, Wall-Mounted Trough Sink, One Station

Acorn’s Ellipse™ stainless steel, wall-mounted trough sink is intended to assist with public safety. Its cost-effective, space-saving design is ideal for use in buildings of all types to expand hand washing capabilities. The unit conforms with ADA and OBC guidelines for accessibility.

Model no. ELPS1 measures 27.75"W (705 mm) and accommodates one user. Both basin and trap enclosure are fabricated from 16-gauge, type 304 stainless steel, polished to a #4 satin finish; Enviro-Glaze ® powder coating is optionally available.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual ELPS1 or ELPS2 Basin (pdf)	Ellipse™ Wall Mounted Stainless Steel Hand Wash Basin [ELPS1 One Station 27.75" wide; ELPS2 Two Station 48" wide]	700 KB
Submittals	Submittal ELPS1 and ELPS2 Basin (pdf)	Ellipse™ Wall Mounted Stainless Steel Hand Wash Basin [ELPS1 One Station 27.75" wide; ELPS2 Two Station 48" wide]	200 KB
BIM/CAD/Revit	ELPS1 and ELPS2 Basin (rfa/zip)	Stainless Steel Ellipse™ Wall Mounted Basin [ELPS1 One-Station 27-3/4"; ELPS2 Two-Station 48"] also SW000-F60 Faucet	2 MB
BIM/CAD/Revit	ELPS1 and ELPS2 Basins (dwg/zip)	Stainless Steel Ellipse™ Wall Mounted Basin [ELPS1 One-Station 27-3/4"; ELPS2 Two-Station 48"] also SW000-F60 Faucet	1 MB
Product MasterSpec	MasterSpec: 224233, Wash Fountains (pdf)	Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains	188 KB
Product MasterSpec	MasterSpec: 224233, Wash Fountains (doc)	Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains	201 KB
Brochures/Flyers	Ellipse Sink Wash-Ware Hand Wash Basin Flyer (pdf)	Ellipse Sink Wash-Ware Hand Wash Basin Flyer (pdf)	565 KB
Technical Data Sheets	Cleaning and Care Guide (pdf)	Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo	1 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Wash Basin
Brand	Ellipse™, Wash-Ware®
Material	Stainless Steel
Bowl Shape	Elliptical
Mounting	Wall Mounted
Compliance	ADA Compliant, Federal Public Law 111-380, OBC, UPC, ASME A112.19.3/CSA B45.4
Overall Dimensions	27.75" (Side-to-Side) x 17-3/8" (Front-to-Back)
Stations-Users	1
Patent	Pending

Options

Accessories

	Image	Model	Description	Downloads
		PS1000-PS	Accessory: Deck Mount Pump Soap Dispenser
		PS1000-SSO	Accessory: Sensor Operated Soap Dispenser
		SW000-F50	Accessory: Faucet, Hot and Cold Wristblade Gooseneck
		SW000-F51	Accessory: Faucet, Hot and Cold Wristblade
		SW000-F60	Accessory: Single Temp Sensor Faucet with Stainless Steel Spout and Stainless Steel Deck Plate
		SW000-F70	Accessory: Single Temp Push Button Metering Faucet with Plate
