Secur-Care® Ligature-Resistant Corner Lavatory with D-Shaped Bowl - ADA 2010 Compliant

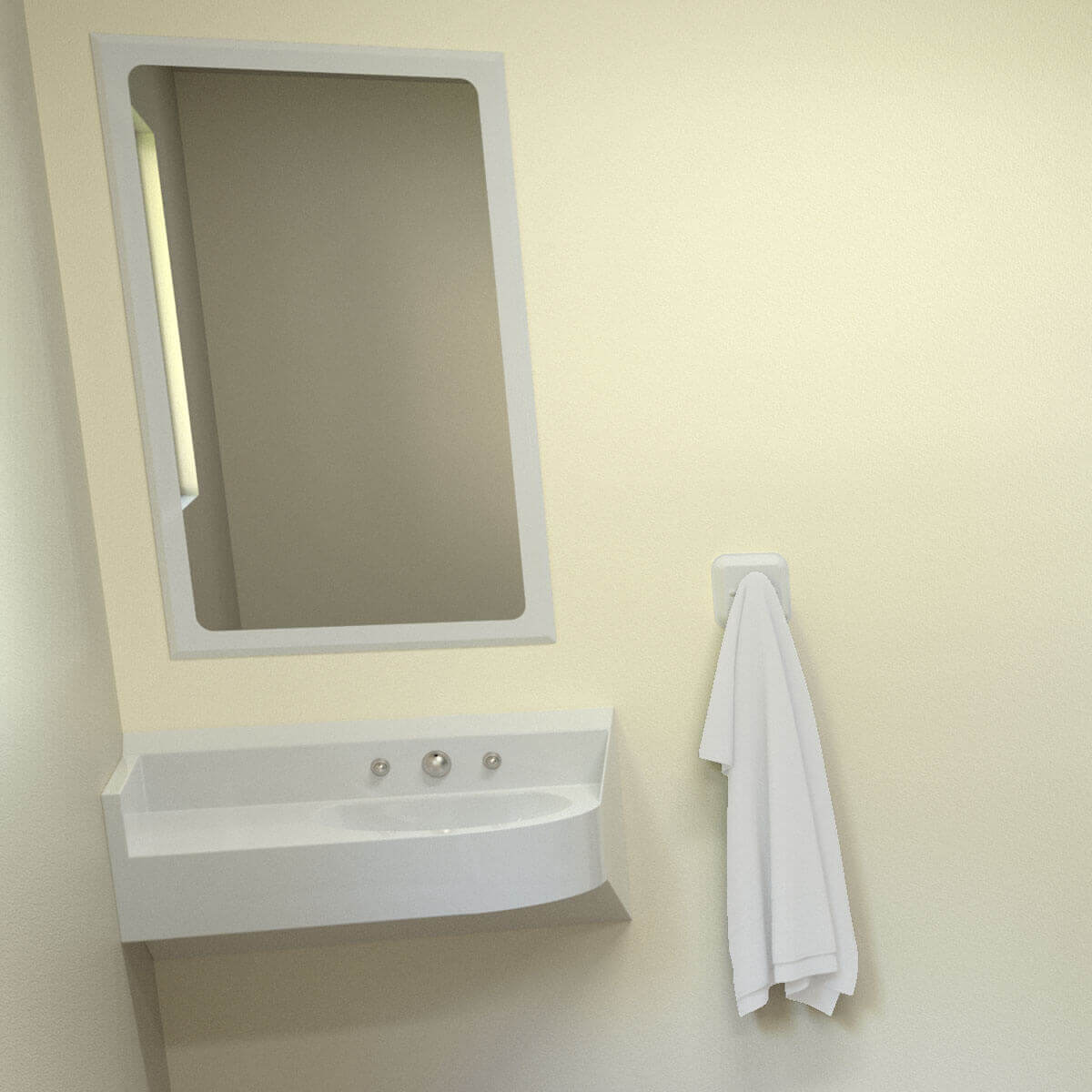

The Model LR1677 Series Lavatory is a stainless steel ligature-resistant fixture designed to be installed in a corner. The fixture is designed to be installed on a finished wall and serviced from an accessible pipe chase. Optional Wall Sleeve or Metal Template is recommended for all installations for required wall openings. Lavatory complies with ANSI, UFAS, CBC, and ADA 2010 requirements for accessibility. Compliance is subject to the interpretation and requirements of the local code authority.
The lavatory features an integral D-shaped bowl with a ligature-resistant fast drain. The sloped top backsplash, the tapered shape, the hemispherical bubbler/spout, and spout activation buttons also contribute to ligature resistance.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Secur-Care® Ligature-Resistant Corner Lavatory with D-Shaped Bowl - ADA 2010 Compliant | 0 | 2 MB | ||
| | Secur-Care® Ligature-Resistant Corner Lavatory with D-Shaped Bowl - ADA 2010 Compliant | 0 | 605 KB | ||
 | | Secur-Care® Ligature-Resistant Corner Lavatory with D-Shaped Bowl - ADA 2010 Compliant [LR1677-1-L | Mounts on Corner on Left Side; LR1677-1-R | Mounts on Corner on Right Side] | 0 | 820 KB | ||
| | Secur-Care® Ligature-Resistant Corner Lavatory with D-Shaped Bowl - ADA 2010 Compliant [LR1677-1-L | Mounts on Corner on Left Side; LR1677-1-R | Mounts on Corner on Right Side] | 0 | 403 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Secur-Care® Ligature-Resistant Flyer (pdf) | 0 | 458 KB | ||
| | Secur-Care® Ligature-Resistant Brochure (pdf) | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Brand | Secur-Care® |
| Product Type | Lavatory |
| Material | Stainless Steel |
| Material Detail | 14-Gauge Stainless Steel, 7-Gauge Hot-Rolled Steel Mounting Angles |
| Mounting | Rear-Chase Mounted |
| Bowl Shape | D-Shaped, Corner |
| Compliance | ADA Compliant, Ligature-Resistant, CBC (Calif. Title 24), NSF61, Section 9, 1997 |
| Overall Dimensions | 29.5" (Side-to-Side) x 18" (Front-to-Back) |
| Stations-Users | 1 |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | LWE | Option: Lavy Waste Extended To Be Specified | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MA3 | Option: Manifolded Valves, 3 Set | ||
 | MA4 | Option: Manifolded Valves, 4 Set | ||
 | MT | Option: Metal Template | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
| MVC1-CI | Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
| MVC2-CI | Option: Hot & Cold, Cycle Interrupt Valve Application Time-Trol® | ||
 | PFB | Option: Power Failure Bypass on Master-Trol® Plus | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | TG | Option Twelve Gauge Type 304 Stainless Steel | ||
 | TH | Option: Towel Hook | ||
 | TW1 | Option: Cabinet Shower/Mop Sink Wall Waste Connection with P-Trap & Cleanout | ||
 | VAC | Option: Configuration for Vacuum Plumbing |
Models
The model numbers are defined by the location of the corner edge as user faces the fixture.
Model Number LR1677-1-L
Left Corner Model
Model Number LR1671-1-R
Right Corner Model
Details
The toilet is designed to meet the needs for ligature resistance, ADA, water conservation, and the rigorous demands of security facilities in a chase (rear mount) application.
DISCLAIMERS: This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide. WaterSense recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements. Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority.
