Name: One Station, Elliptical Wash Fountain with Contour Base
Brand: Acorn Engineering Company
SKU: 3401-ES

Model 3401-ES

One Station, Elliptical Wash Fountain with Contour Base

Perfect for high-traffic institutional, commercial, and public applications, this single-user stainless steel wall-mounted hand washing station is available in off-floor and on-floor waste outlet configurations. The wash fountain is designed with an elliptical bowl and contour base and is ADA compliant when installed properly. Various activation options are also available.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Installing 3401-ES, 3402-ES Wash Fountain		2 MB
Submittals	Submittal 3401-ES-1, 3402-ES-1, 3403-ES-1 Wash Fountain (pdf)	Elliptical Wash Fountain with Contour Base [3401-ES-1 \| One-Station Off-Floor; 3402-ES-1 \| Two-Station, Off-Floor; 3403-ES-1 \| Three- Station, Off-Floor]	185 KB
BIM/CAD/Revit	3401-ES Elliptical Wash Fountain (rfa)	One Station, Elliptical Wash Fountain with Contour Base, Off-Floor, Wall Outlet, ADA Compliant	676 KB
BIM/CAD/Revit	3401-ES Elliptical Wash Fountain (dwg/zip)	One Station, Elliptical Wash Fountain with Contour Base, Off-Floor, Wall Outlet, ADA Compliant	384 KB
Product MasterSpec	MasterSpec: 224233, Wash Fountains (pdf)	Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains	188 KB
Product MasterSpec	MasterSpec: 224233, Wash Fountains (doc)	Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains	201 KB
Submittals	Submittal 3401-ES-2, 3402-ES-2, 3403-ES-2 Wash Fountain (pdf)	Elliptical Wash Fountain with Contour Base [3401-ES-1 \| One-Station, On-Floor, Wall Waste; 3402-ES-2 \| Two-Station, On-Floor, Wall Waste; 3403-ES-2 \| Three- Station, On-Floor, Wall Waste]	221 KB
Brochures/Flyers	Acorn Enviro-Glaze Powder Coating Colors Flyer (pdf)	Enviro-Glaze Powdercoating Color Chart - Update Aug 2026	291 KB
Brochures/Flyers	Stainless Steel Hand Washing Products Brochure (pdf)	The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated.	2 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	Overview of MGI Divisions	718 KB
Brochures/Flyers	School hand washing with Wash-Ware	Take Students’ Safety Seriously with Acorn® Wash-Ware® Products. Schools often overlook one of the biggest dangers to student health: GERMS.	975 KB
Brochures/Flyers	MGI Stainless Steel Hand Washing Products Brochure (pdf)	The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated.	3 MB
Brochures/Flyers	Hand Washing Products Brochure (pdf)	Hand Washing Products Brochure (pdf)	2 MB
Technical Data Sheets	Cleaning and Care Guide (pdf)	Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo	1 MB
Parts Manuals	Parts Assembly 9951-000-001	Tools / Fasteners: Wrenches	62 KB
Parts Manuals	Parts Assembly 9955-006-003	Valves: Single Temp Air-Control™ Valve Body Assembly (-03)	56 KB
Parts Manuals	Parts Assembly 9956-040-003 (pdf)	Stops: Plastic Air-Control® Check Stop Assembly	74 KB
Parts Manuals	Parts Assembly 9957-051-001	Trims: Single Temp Air-Trol Fixture Trim	115 KB
Parts Manuals	Parts Assembly 9971-001-001	Wash-Ware Nozzles: Wash-Ware Nozzle Assembly	81 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Wash Fountain
Configurations Available	Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2)
Brand	Wash-Ware®
Material	Stainless Steel
Mounting	Wall Mounted
Vandal Resistant	Moderate
Institutional Applications	Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings
Commercial Applications	Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena
Park and Recreation Applications	Yes
Bowl Shape	Elliptical
Compliance	ADA Compliant, Federal Public Law 111-380
Overall Dimensions	27.75" (Side-to-Side) x 17.25" (Front-to-Back)
Stations-Users	1

Options

Miscellaneous

	Image	Model	Description	Downloads
		1 (Hand Wash)	Option: Off-Floor, Wall Outlet Hand Wash Station
		2 (Hand Wash)	Option: On-Floor, Wall Outlet Hand Wash Station
		EG	Option: Enviro-Glaze® Powder Coating
		H (Hand Wash)	Option: Hand Operation for Hand Wash Station
		HB	Option: Hose Bibb
		PPZ	Option: Programmable Piezo Button
		SO	Option: (Hands-Free) Sensor Operation
		SO-BAT	Option: (Hands-Free) Sensor Activated - Battery Powered
		ST	Option: Single Temperature
		FRA	Option: Above Ground, Freeze-Resistant Valve

Models

Typical models are shown below

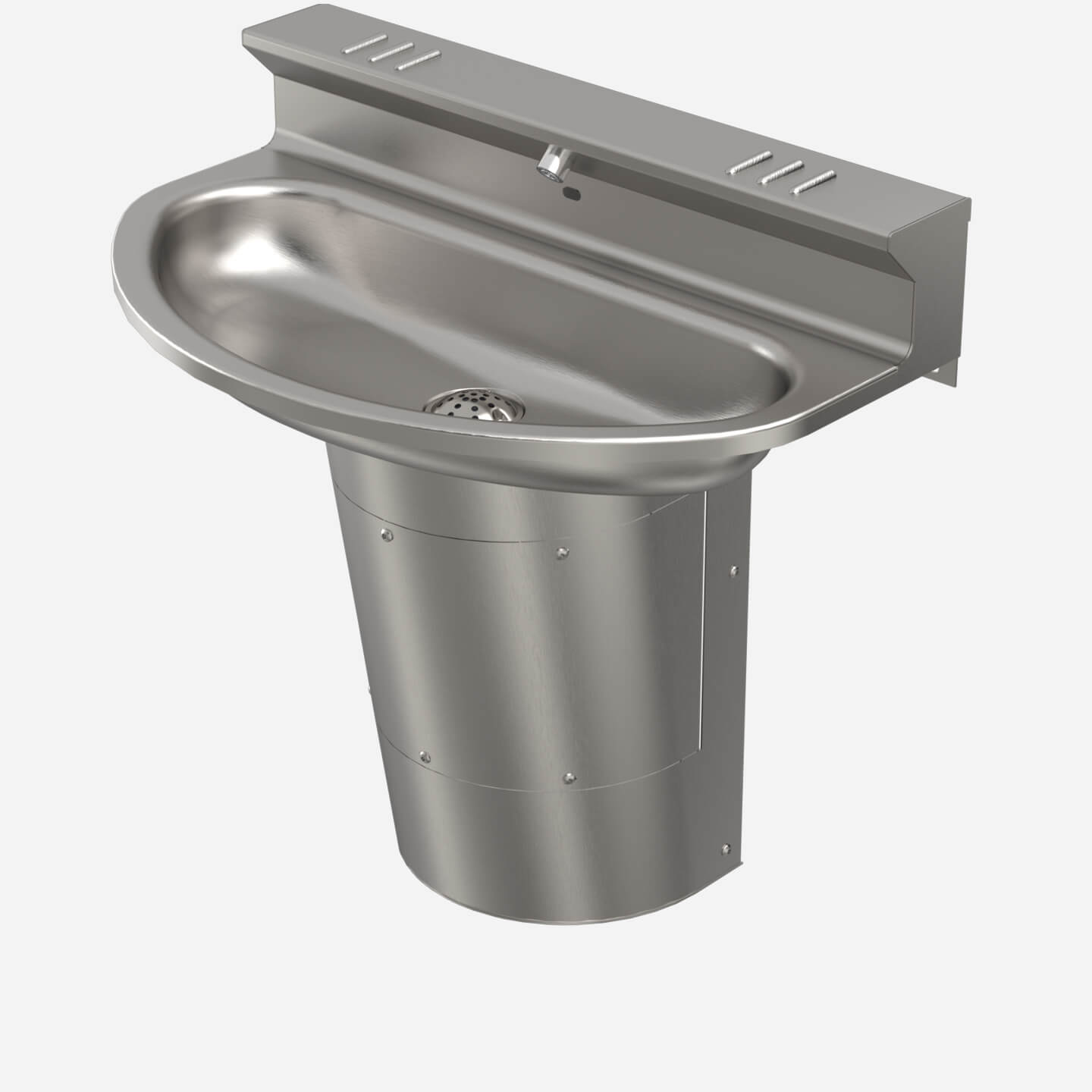

Off-Floor, Wall Waste
[submittal]
27-3/4" (699 mm) Side-to-Side
22-1/2" (572 mm) Height
17-1/4" (438 mm) Front-to-Back
Typical mount with Rim
at 34" (864 mm)
Additional Activation Options:
PPZ (Piezo Buttons),
SO-BAT (Sensor/Battery-Powered)

3701-ES-1-H
Off-Floor, Wall Waste
Hand Operation

3701-ES-1-SO
Off-Floor, Wall Waste
Sensor Operation

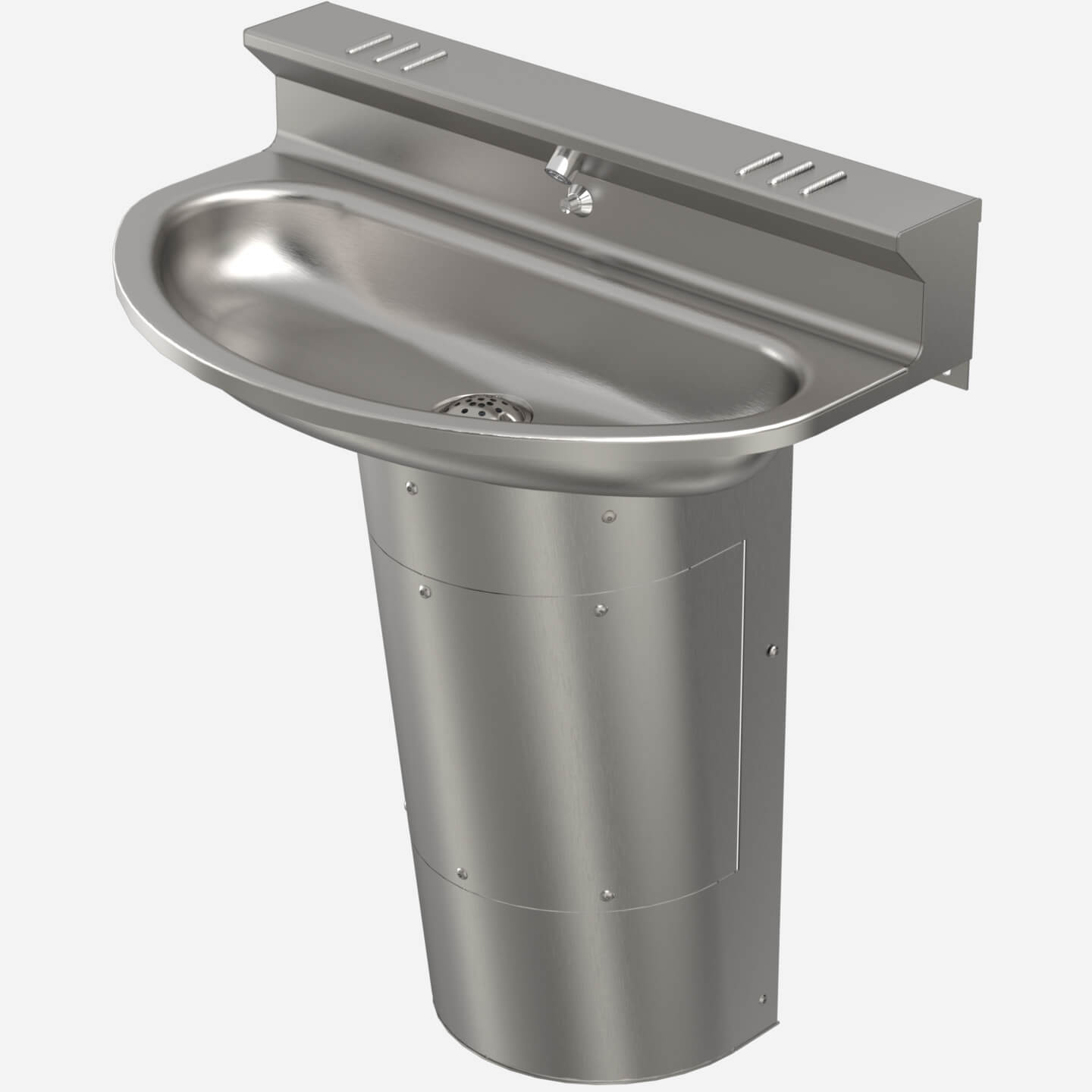

On-Floor, Wall Waste
[submittal]
27-3/4" (699 mm) Side-to-Side
38-1/2" (978 mm) Height
17-1/4" (438 mm) Front-to-Back
Typical mount with Rim
at 34" (864 mm)
Junior Height
at 31" (787 mm)
Additional Activation Options:
Piezo Button (PPZ),
Sensor/Battery-Powered (SO-BAT)
