Model 3351

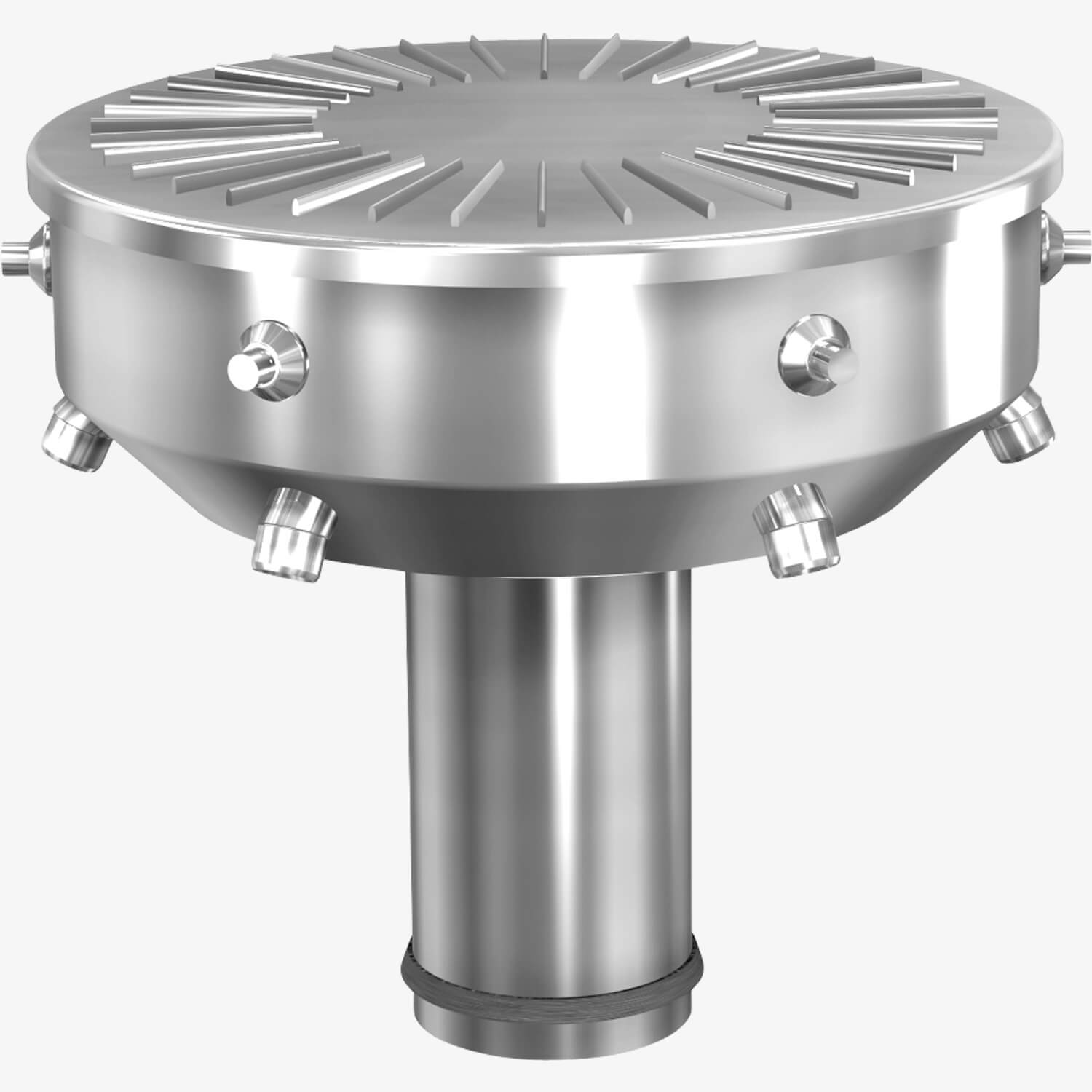

Replacement Stainless Steel Wash Fountain Sprayhead for HC Models
The Acorn Retro-Pak replaces the sprayhead, soap dispensing system, and valve assembly for Bradley HC Model wash fountains. This vandal-resistant stainless steel wash fountain sprayhead assembly is mounted to the existing bowl, using tie rods and supporting castings, and it can be specified with nozzles for up to four users. Available with pneumatic push button valve or sensor activation.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 505 KB | |||
| | Replacement Stainless Steel Wash Fountain Sprayhead for HC Models | 600 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Overview of MGI Divisions | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 3 MB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 2 MB | ||
 | | Hand Operation | 223 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
| | Tools / Fasteners: Wrenches | 62 KB | ||
| | Tools / Fasteners: Fasteners | 83 KB | ||
| | Washfountain Soap Equipment: DV Vertical Liquid/Lotion Gravity Soap Dispenser | 88 KB | ||
| | Washfountain Soap Equipment: DV Vertical Liquid/Lotion Gravity Soap Dispenser | 79 KB | ||
| | Washfountain Soap Equipment: PDM Metering Liquid Soap Tank -Washfountain | 81 KB | ||
| | Wash-Ware Nozzles: Wash-Ware Nozzle Assembly | 81 KB |
Specifications
| Product Type | Wash Fountain |
| Brand | Wash-Ware® |
| Material | Stainless Steel |
| Vandal Resistant | Moderate |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Warehouse, Stadium & Arena |
| Compliance | Federal Public Law 111-380 |
| Stations-Users | 4, 3, 2 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | DV | Option: Liquid/Lotion Soap Dispenser | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | ST | Option: Single Temperature | ||
 | SC (Washfountain) | Option: Supply Cover for Washfountain |
