Name: Two User, Stainless Steel Wudu Ablution Sink
Brand: Acorn Engineering Company
SKU: WD-2

Model WD-2

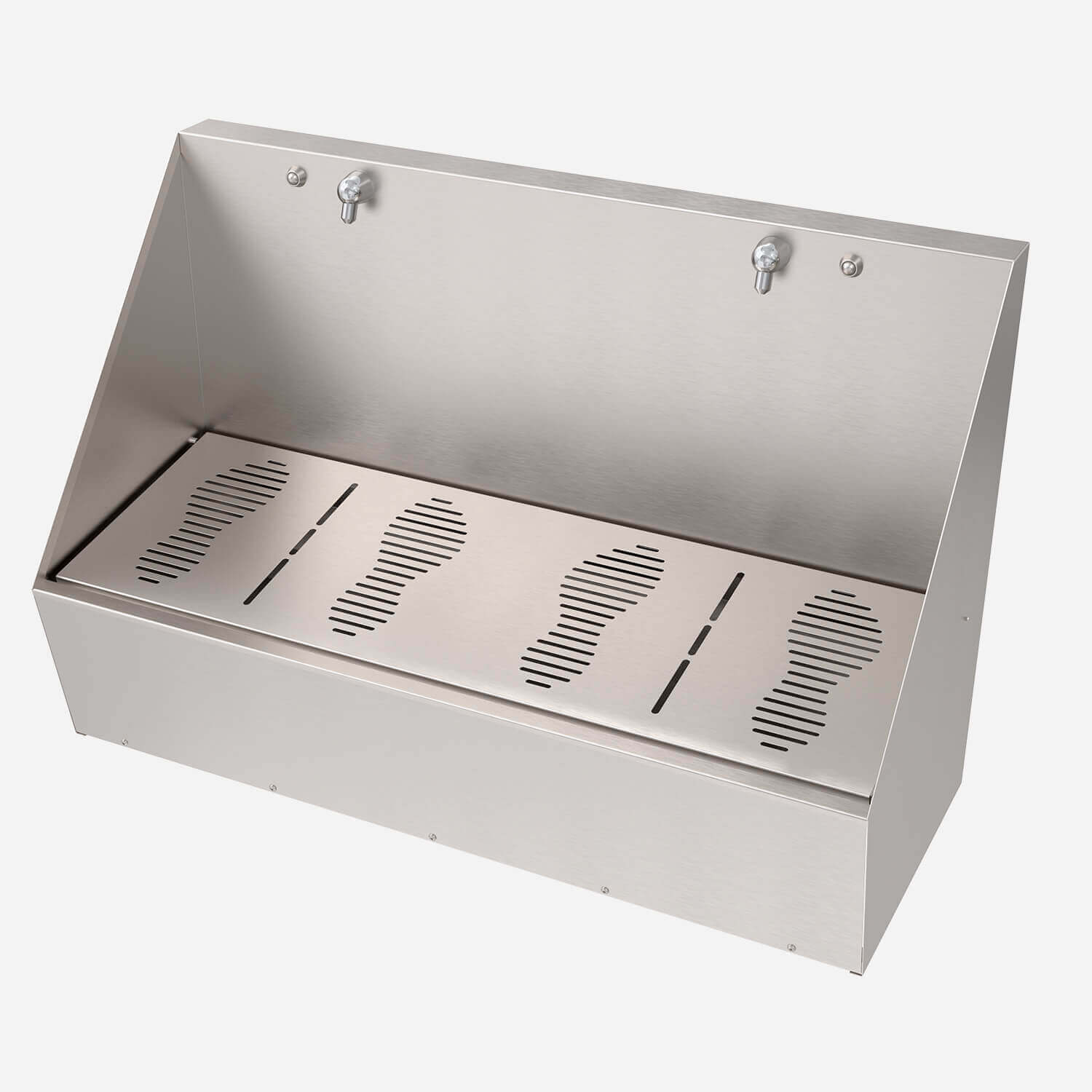

Two User, Stainless Steel Wudu Ablution Sink

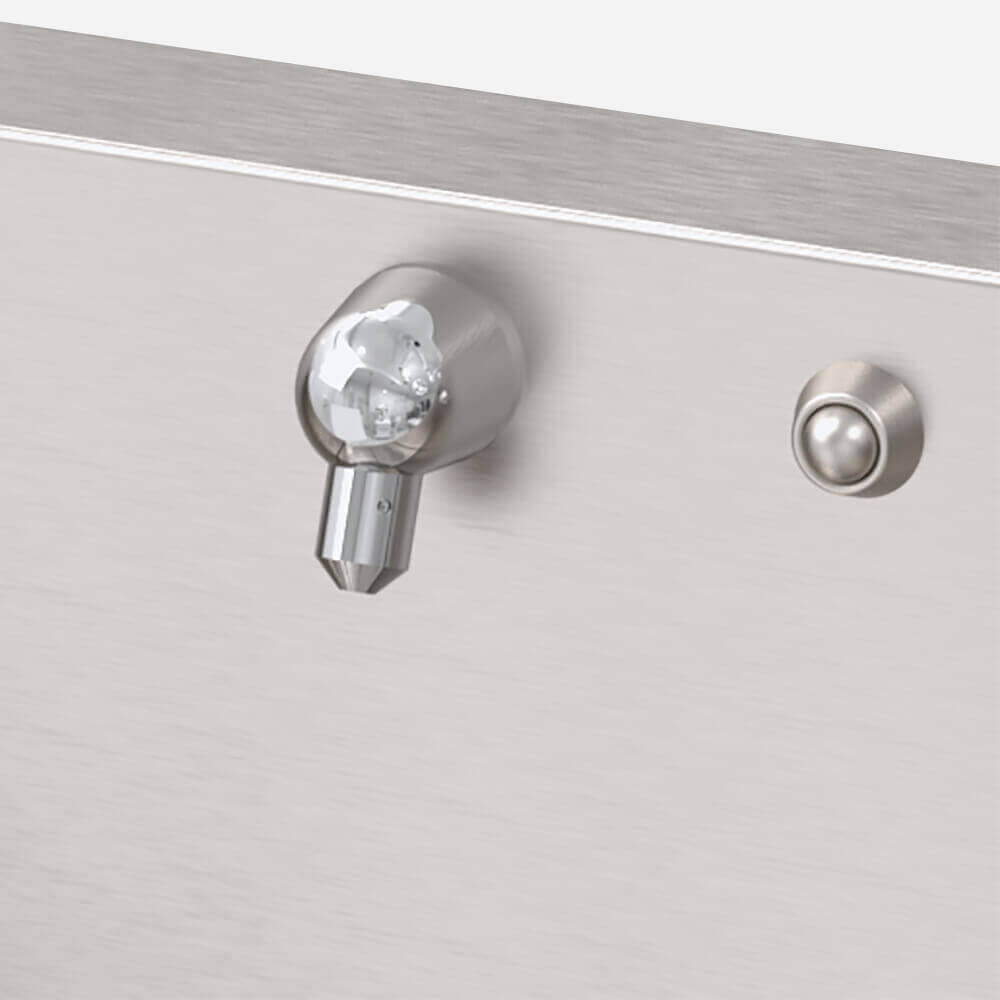

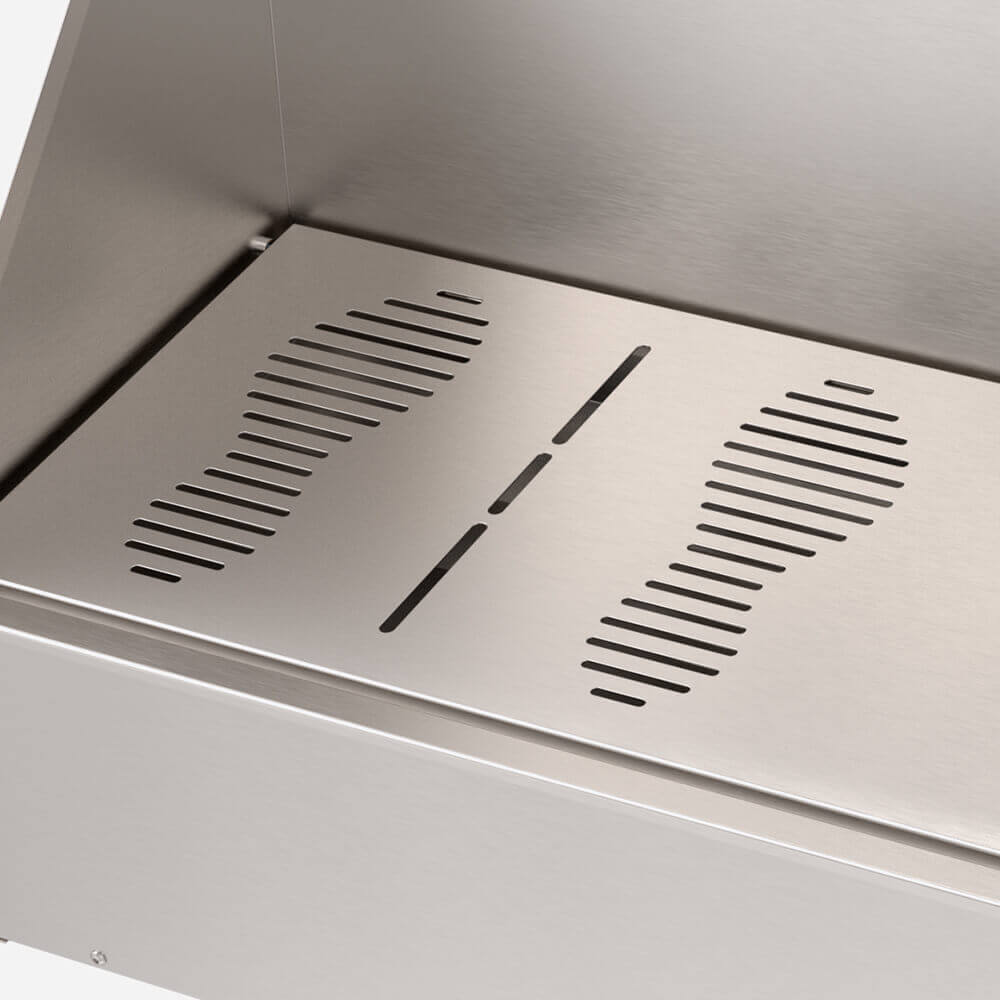

Acorn's Wudu Wash Station provides an ideal solution for washing in preparation for ritual prayer, making them ideal for places of worship. The Wudu Wash unit is fabricated of stainless steel to ensure durability and features a hinged grate assembly to facilitate cleaning and an adjustable spray nozzle. A metering valve is provided and cycle time is adjustable up to 60 seconds.

This trough wash station is 47-1/4" (1,200 mm) wide servicing two users. The overall height is 31-1/2" (800 mm); the base platform is 10-5/8" (269.88 mm) high. The front to back dimension is 19-5/8" (498.48 mm).

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide WD-2 Wudu Sink (pdf)	Two User Wudu Stainless Steel Trough Wash Station	532 KB
Submittals	Submittal WD Series Wudu Station (pdf)	Wudu Stainless Steel Trough Wash Station [WD-1 \| One-Station; WD-2 \| Two-Station; WD-3 \| Three-Station]	256 KB
BIM/CAD/Revit	WD Series Wudu Sink (dwg/zip)	Acorn Wudu Stainless Steel Wash Station [WD-1 One-station 23.625" wide unit; WD-2 Two-station 47.25" wide unit; WD-3 Three-station 70.75" wide unit]	750 KB
BIM/CAD/Revit	WD Series Wudu Sink (rfa/zip)	Acorn Wudu Stainless Steel Wash Station [WD-1 One-station 23.625" wide unit; WD-2 Two-station 47.25" wide unit; WD-3 Three-station 70.75" wide unit; Accessory WDS Stainless steel stool]	4 MB
Brochures/Flyers	Hand Washing Products Brochure (pdf)	Hand Washing Products Brochure (pdf)	2 MB
Brochures/Flyers	Wudu Station Flyer (pdf)		522 KB
Technical Data Sheets	Cleaning and Care Guide (pdf)	Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo	1 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Stainless Steel
Configurations Available	On-Floor with Wall Waste Outlet (-2)
Compliance	UPC
Overall Dimensions	47.25" (Side-to-Side) x 19-5/8" (Front-to-Back)
Stations-Users	2

Options

Accessories

	Image	Model	Description	Downloads
		WDS	Accessory: Floor-Mounted Stool for Wudu Wash Station

Miscellaneous

	Image	Model	Description	Downloads
		EG	Option: Enviro-Glaze® Powder Coating
