Name: Bent Nose Hose Valve w/ Wall Flange
Brand: Acorn Engineering Company
SKU: 8120-LF

Model 8120-LF

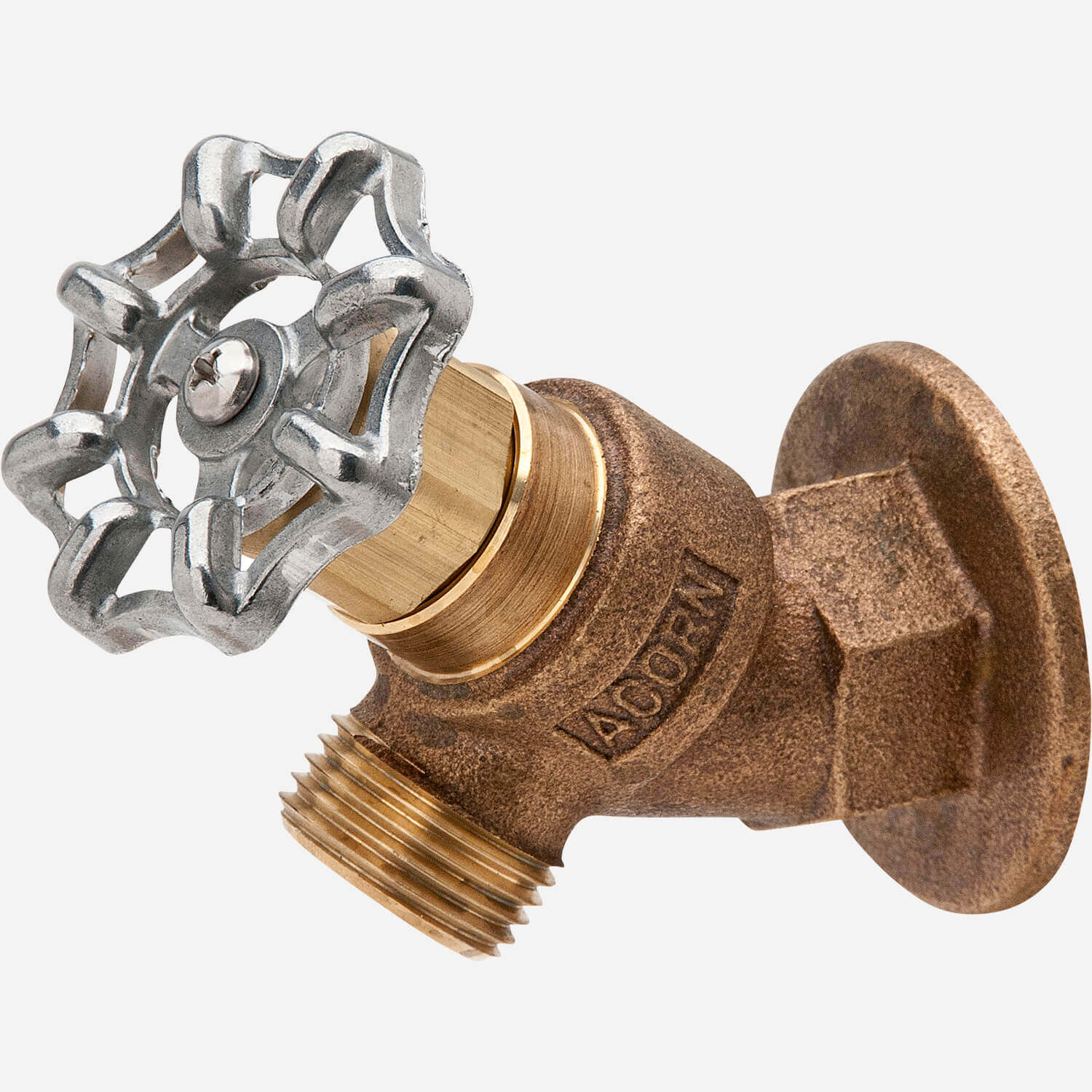

Bent Nose Hose Valve w/ Wall Flange

The 8120-LF bent nose hose valve with wall flange features a heavy rough brass body optionally available in chrome-plated or rough chrome finish. It is intended for indoor and outdoor locations not subject to freezing. The cartridge-operated valve features a lockshield bonnet and removable loose key wheel handle.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide 8120-LF, 8121-LF Hose Bibb (pdf)	Bent Nose Hose Valve [8120-LF \| with wall flange; 8121-LF \| with wall flange and vacuum breaker]	143 KB
Submittals	Submittal 8120-LF, 8121-LF, 8125-LF, 8126-LF Hose Bibb (pdf)	Bent Nose Hose Valve [8120-LF \| with wall flange; 8121-LF \| with wall flange and vacuum breaker; 8125-LF \| no wall flange; 8126-LF \| with vacuum breaker, no wall flange]	181 KB
BIM/CAD/Revit	8120-LF, 8121-LF, 8125-LF, 8126-LF Hose Bibbs (rfa/zip)	Bent Nose Hose Valve [8120-LF \| with wall flange; 8121-LF \| with wall flange and vacuum breaker; 8125-LF \| no wall flange; 8126-LF \| with vacuum breaker, no wall flange]	2 MB
BIM/CAD/Revit	8120-LF, 8121-LF, 8125-LF, 8126-LF Hose Bibbs (dwg/zip)	Bent Nose Hose Valve [8120-LF \| with wall flange; 8121-LF \| with wall flange and vacuum breaker; 8125-LF \| no wall flange; 8126-LF \| with vacuum breaker, no wall flange]	1 MB
Images	8120-LF Bent Nose With Flange	8120-LF Bent Nose With Flange	25 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	Overview of MGI Divisions	718 KB
Technical Data Sheets	Cleaning and Care Guide (pdf)	Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo	1 MB
Parts Manuals	Parts Assembly 9989-000-002	Hose and Supply Boxes - Hose Bibbs: 3/4" Bent Nose Flange Hose Valve Assembly (8120-LF/8121-LF)	66 KB
Parts Manuals	Parts Assembly 9989-005-002	Hose and Supply Boxes - Hose Bibbs: Lockshield Cartridge Assembly (for obsolete 8120 thru 8936 and current 8120-LF thru 8126-LF models)	76 KB
Parts Manuals	Parts Assembly 9989-006-001	Hose and Supply Boxes - Hose Bibbs: Standard Cartridge Assembly	52 KB
Parts Manuals	Parts Assembly 9989-007-001	Hose and Supply Boxes - Hose Bibbs: Cartridge Assembly-Divert Valve	51 KB
Parts Manuals	Parts Assembly 9989-008-001	8120-LF Bent Nose with Flange for Wall Install, No VB, Hose Valves Hose Bibbs: Stop Assembly	54 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Hose Bibb
Material	Brass
Product Features	Bent Nose
Institutional Applications	Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings
Commercial Applications	Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena
Park and Recreation Applications	Yes
Lead-Free	Yes

Options

Miscellaneous

	Image	Model	Description	Downloads

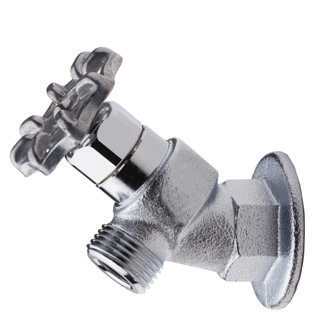

		CP	Option: Chrome-Plated Polished
		CR	Option: Chrome-Plated Rough

Details

Additional Info:

Product Function:

The 8120-LF horizontally supplied valves have integral wall flanges and both are used indoor and outdoor.

Regularly Furnished:

Hose valves include a heavy rough brass body, furnished with a lockshield bonnet and removable loose key wheel handle. Valves close with the water pressure and feature a replaceable cartridge which contains all wearing parts including the seat. Inlet is 3/4” NPTI, outlet is 3/4” NPSH.

Product Function:

The 8120-LF horizontally supplied valves have integral wall flanges and both are used indoor and outdoor.

Product Variations

Image	Model ID	Description

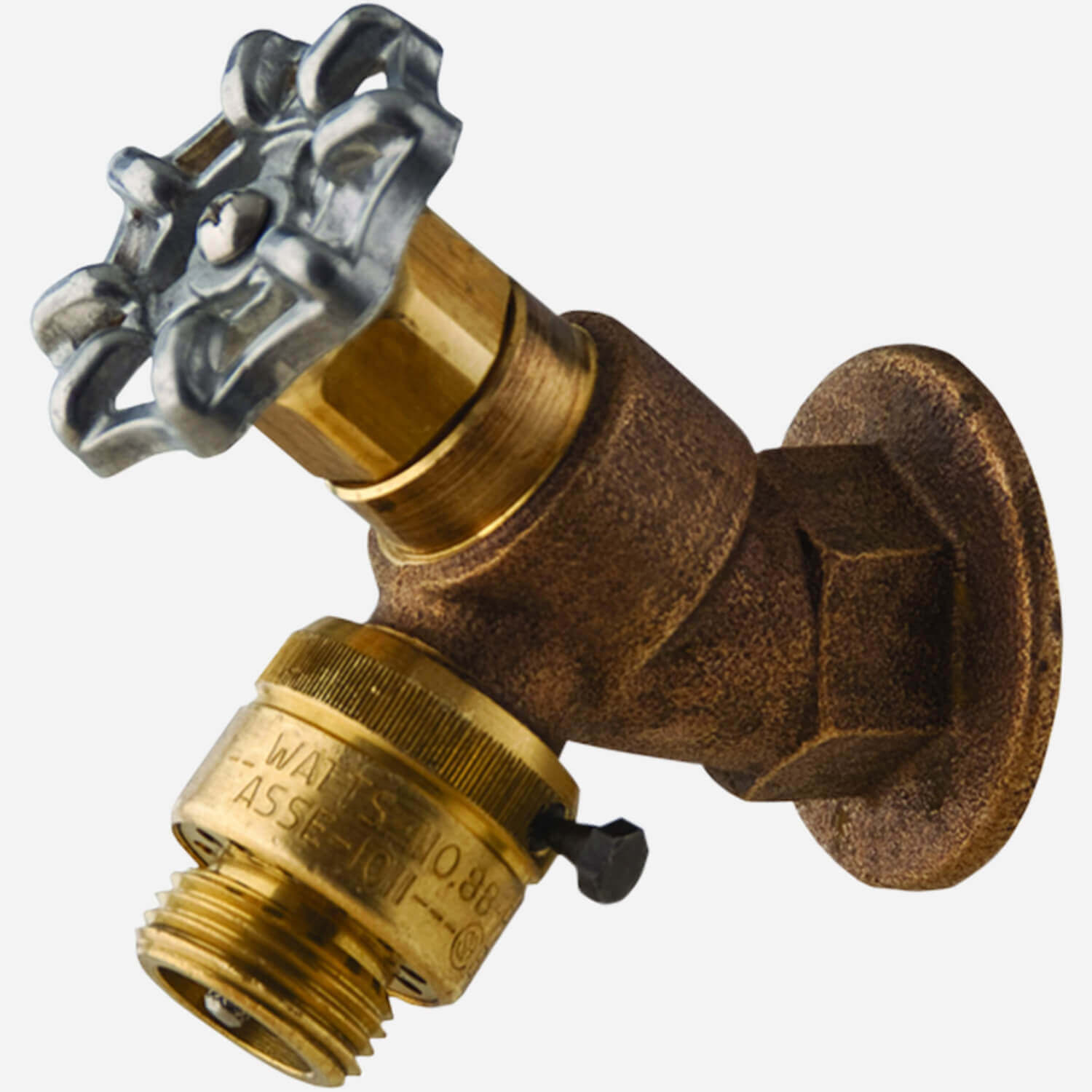

	8121-LF	Bent Nose Hose Valve w/ Wall Flange & Vacuum Breaker

Bent Nose Hose Valve w/ Wall Flange
