Name: Bent Nose Hose Valve w/ Vacuum Breaker
Brand: Acorn Engineering Company
SKU: 8126-LF

Model 8126-LF

Bent Nose Hose Valve w/ Vacuum Breaker

The 8126-LF bent nose hose valve with wall flange and vacuum breaker features a heavy rough brass body optionally available in chrome-plated or rough chrome finish. This vertically-supplied valve is normally used in outdoor planting areas. It is cartridge-operated and features a lockshield bonnet and removable loose key wheel handle.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide 8125-LF, 8126-LF Hose Bibb (pdf)	Lead-Free Bent Nose Hose Valve [8125-LF \| no vacuum breaker; 8126-LF \| with vacuum breaker]	70 KB
Submittals	Submittal 8120-LF, 8121-LF, 8125-LF, 8126-LF Hose Bibb (pdf)	Bent Nose Hose Valve [8120-LF \| with wall flange; 8121-LF \| with wall flange and vacuum breaker; 8125-LF \| no wall flange; 8126-LF \| with vacuum breaker, no wall flange]	181 KB
BIM/CAD/Revit	8120-LF, 8121-LF, 8125-LF, 8126-LF Hose Bibbs (rfa/zip)	Bent Nose Hose Valve [8120-LF \| with wall flange; 8121-LF \| with wall flange and vacuum breaker; 8125-LF \| no wall flange; 8126-LF \| with vacuum breaker, no wall flange]	2 MB
BIM/CAD/Revit	8120-LF, 8121-LF, 8125-LF, 8126-LF Hose Bibbs (dwg/zip)	Bent Nose Hose Valve [8120-LF \| with wall flange; 8121-LF \| with wall flange and vacuum breaker; 8125-LF \| no wall flange; 8126-LF \| with vacuum breaker, no wall flange]	1 MB

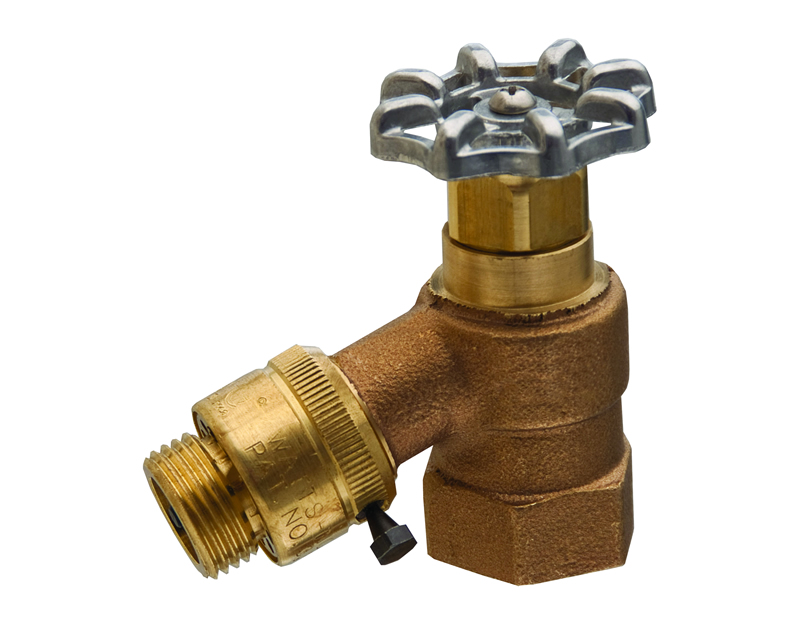

Images	8126-LF Bent Nose (jpg)	Bent Nose, With Vacuum Breaker, Hose Valves	179 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	Overview of MGI Divisions	718 KB
Technical Data Sheets	Cleaning and Care Guide (pdf)	Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo	1 MB
Parts Manuals	Parts Assembly 9989-003-002	Hose and Supply Boxes - Hose Bibbs: 3/4" Bent Nose Hose Valve Assembly (8125-LF/8126-LF)	66 KB
Parts Manuals	Parts Assembly 9989-005-002	Hose and Supply Boxes - Hose Bibbs: Lockshield Cartridge Assembly (for obsolete 8120 thru 8936 and current 8120-LF thru 8126-LF models)	76 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Hose Bibb
Material	Brass
Product Features	Vacuum Breaker, Bent Nose
Institutional Applications	Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings
Commercial Applications	Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena
Park and Recreation Applications	Yes
Lead-Free	Yes

Options

Miscellaneous

	Image	Model	Description	Downloads
		CP	Option: Chrome-Plated Polished
		CR	Option: Chrome-Plated Rough

Details

Additional Info:

Product Function:

8126-LF, vertically standpipe valves are normally used in outdoor planting areas and often provided in a rough brass finish.

Regularly Furnished:

Hose valves include a heavy rough brass body, furnished with a lockshield bonnet and removable loose key wheel handle. Valves close with the water pressure and feature a replaceable cartridge which contains all wearing parts including the seat. Inlet is 3/4" NPTI, outlet is 3/4" NPSH. Vacuum breakers are atmospheric type and conform to the requirements of ASSE Standard 1011.

Product Function:

8126-LF, vertically standpipe valves are normally used in outdoor planting areas and often provided in a rough brass finish.

Product Variations

Image	Model ID	Description

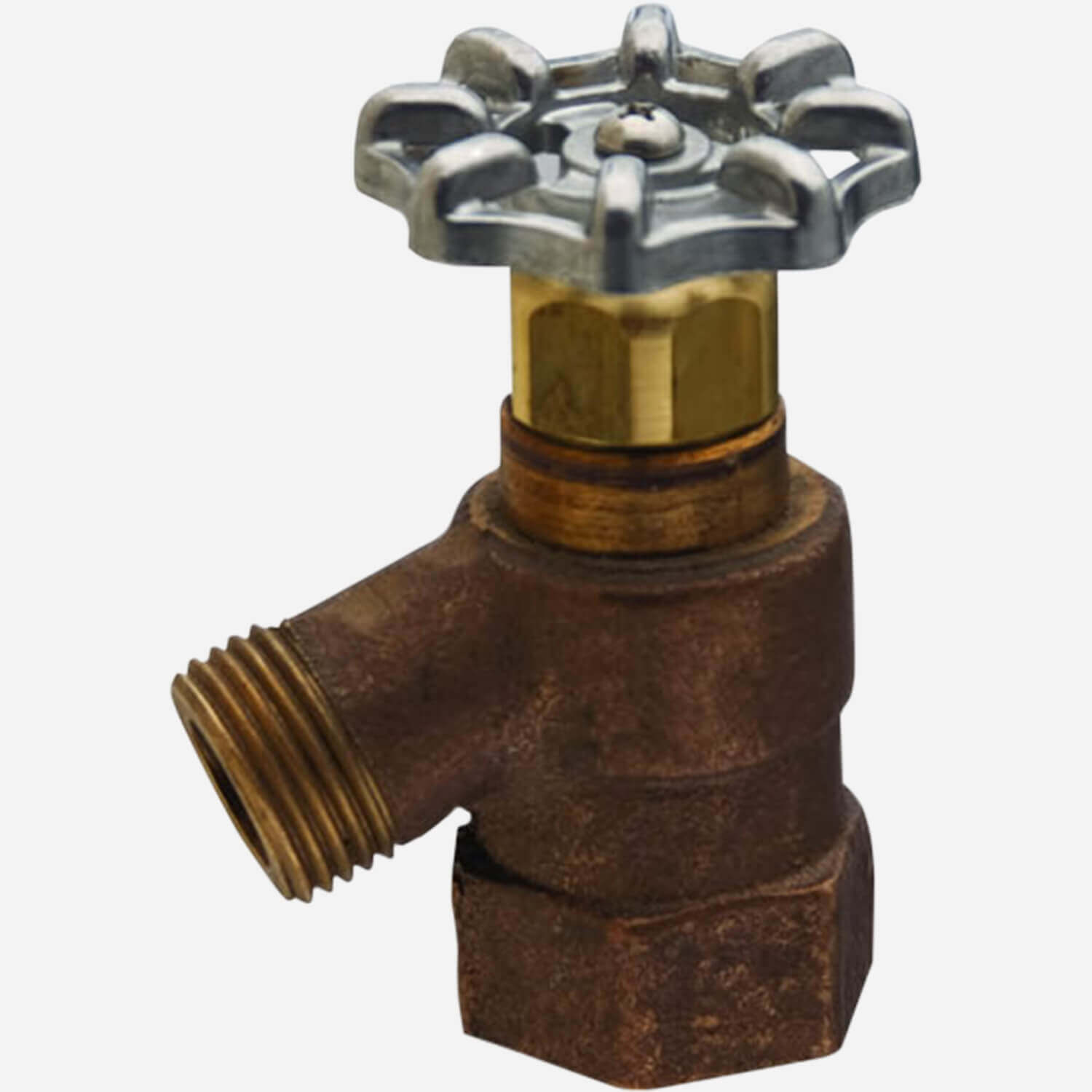

	8125-LF	Bent Nose Hose Valve

Bent Nose Hose Valve w/ Vacuum Breaker
