Option: Drain Gasket 3"

Compression sealing, flexible PVC donut-shaped ring drain gasket provides simple, quick connection with Inside Caulk (IC) or Inside Gasket (IG) waste outlet on mop sink to 3” OR 2” drain DWV plastic, Sch. 40, steel or X.H. (extra heavy) cast iron pipe. Requires no special tools gluing, threading or lead caulking.

Two sizes are available in the 3-inch size.

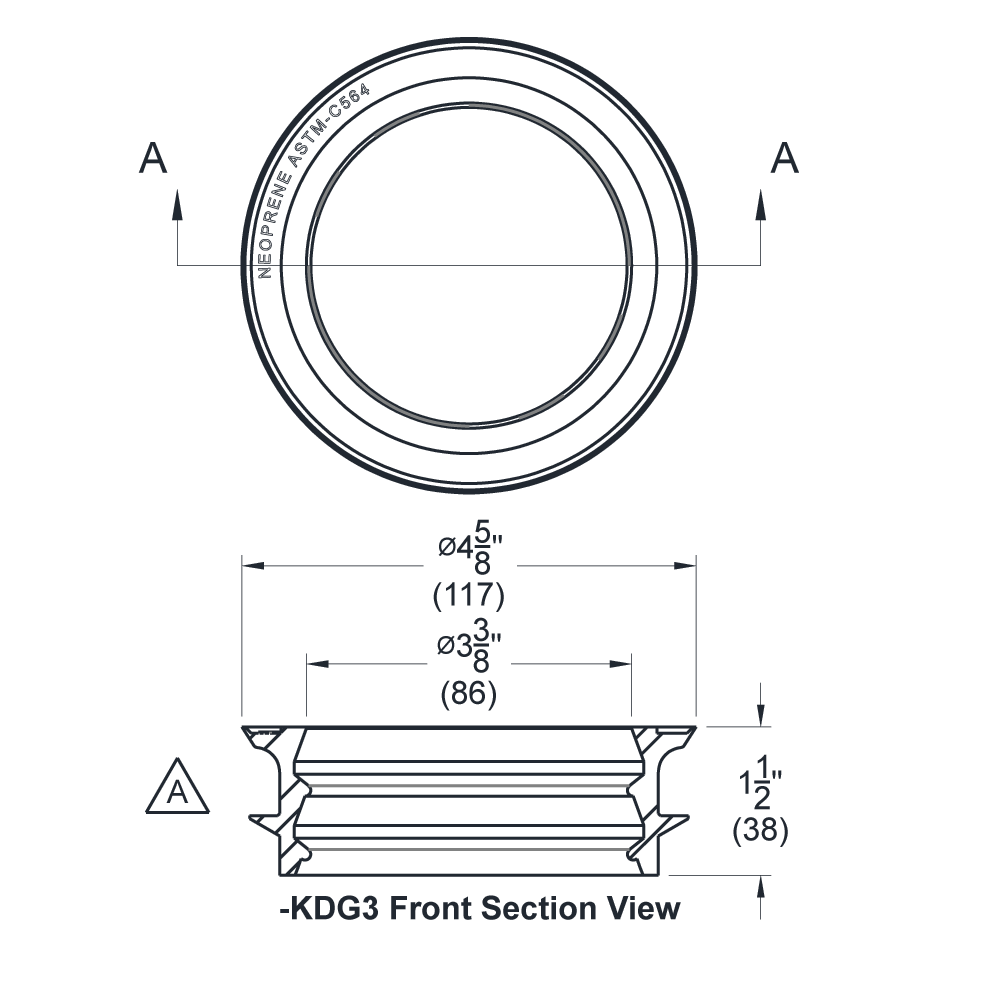

• KDG3 - 3" IPS Size
  4-5/8" (117 mm) overall diameter
  3-3/8" (86 mm) inner diameter
  1-1/2" (38 mm) overall height

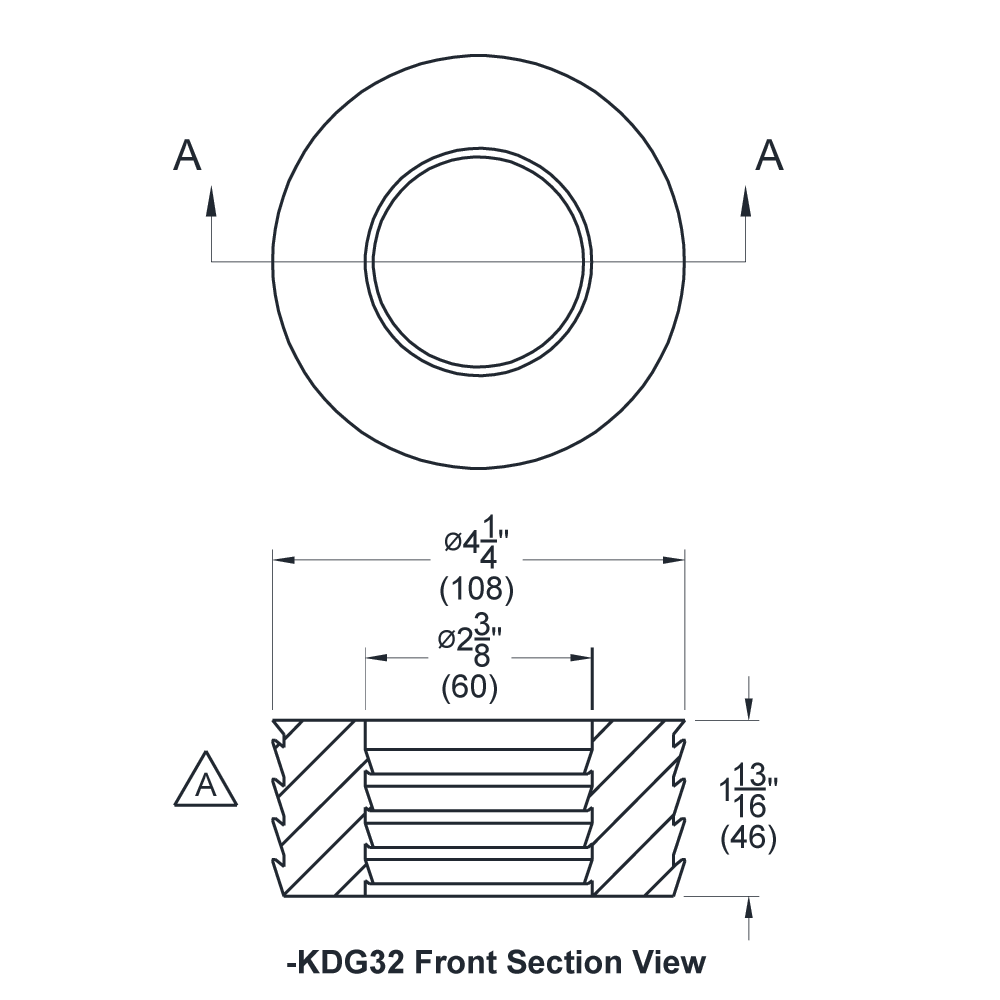

• KDG32 - 3" x 2" IPS Size
  4-1/4" (108 mm) overall diameter
  2-3/8" (60 mm) inner diameter
  1-13/16" (46 mm) overall height

Note: When needed, a comparable Drain Gasket may be available from a Commercial Plumbing Supplier. Installer shall determine suitability to accommodate jobsite conditions.
