Name: Secur-Care® Ligature-Resistant Flush Valve Access Panel
Brand: Acorn Engineering Company
SKU: LR2898

Model LR2898

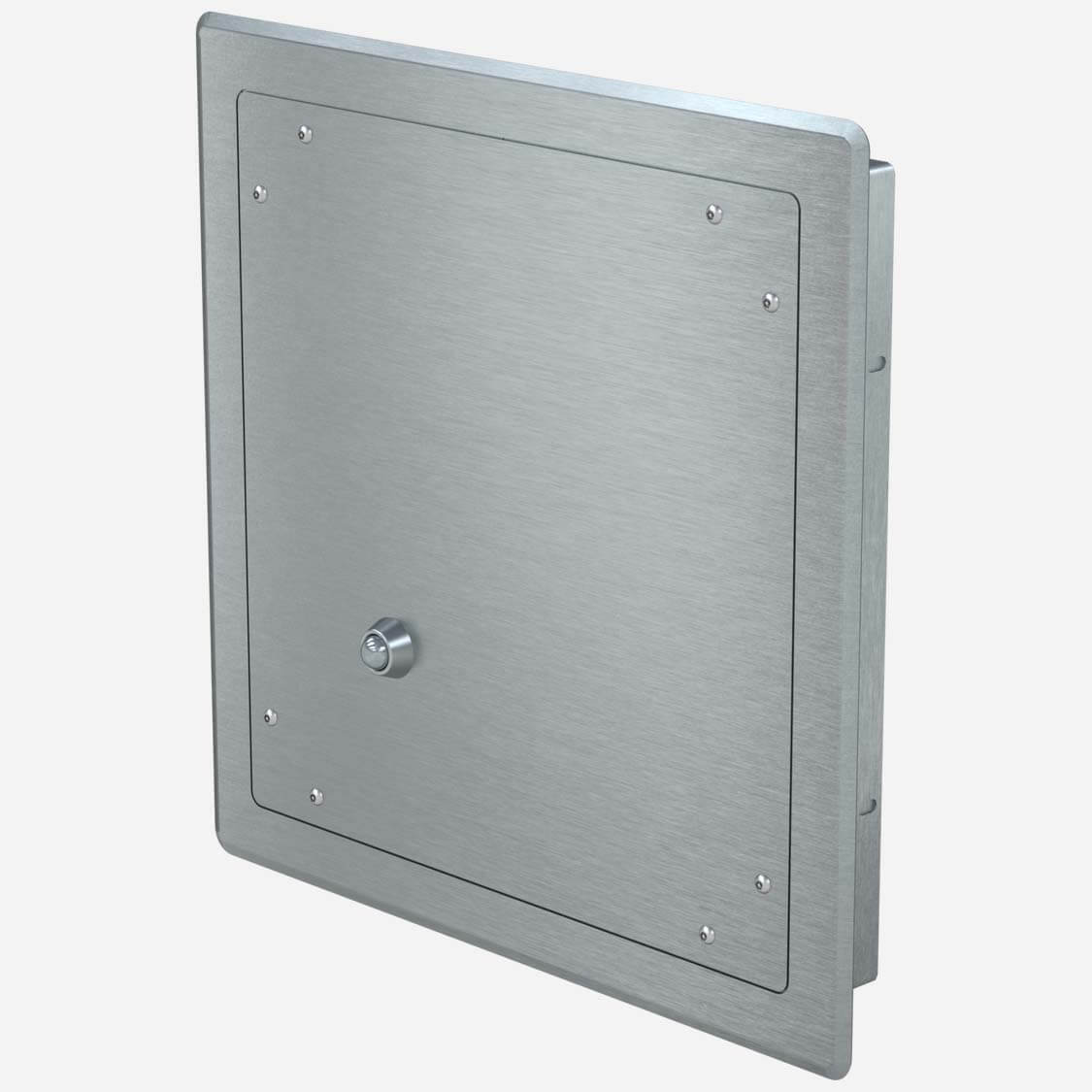

Secur-Care® Ligature-Resistant Flush Valve Access Panel

The Acorn Flush Valve Access Panel is recommended for use with non-ADA toilets as well as ADA and non-ADA urinals, and floor drains with concealed flush valve connections where vandalism is a concern. The Flush Valve Access Panel design provides easy access to the concealed flush valve when no access is available behind the wall.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide LR2898 Flush Valve Access Panel (pdf)	Secur-Care® Ligature-Resistant Flush Valve Access Panel	107 KB
Submittals	Submittal LR2898 Access Panel with Flush Valve (pdf)	Secur-Care® Ligature-Resistant Flush Valve Access Panel	171 KB
Technical Data Sheets	Cleaning and Care Guide (pdf)	Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo	1 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Stainless Steel
Accessibility	ADA Compliant
Compliance	Ligature-Resistant

Options

Miscellaneous

	Image	Model	Description	Downloads
		EG	Option: Enviro-Glaze® Powder Coating
		EVSFV	Option: Flush Valve Application Master-Trol®
		EVSPFV	Option: Piezo Button Flush Valve Application Master-Trol®
		LPFV	Option: Less Punching For Flush Valve (For Remote Activation)
		MTPFV	Option: Master-Trol® Plus Flush Valve
		MTPPFV	Option: Master-Trol® Plus Piezo Push Button Flush Valve

Models

Typical models are shown below

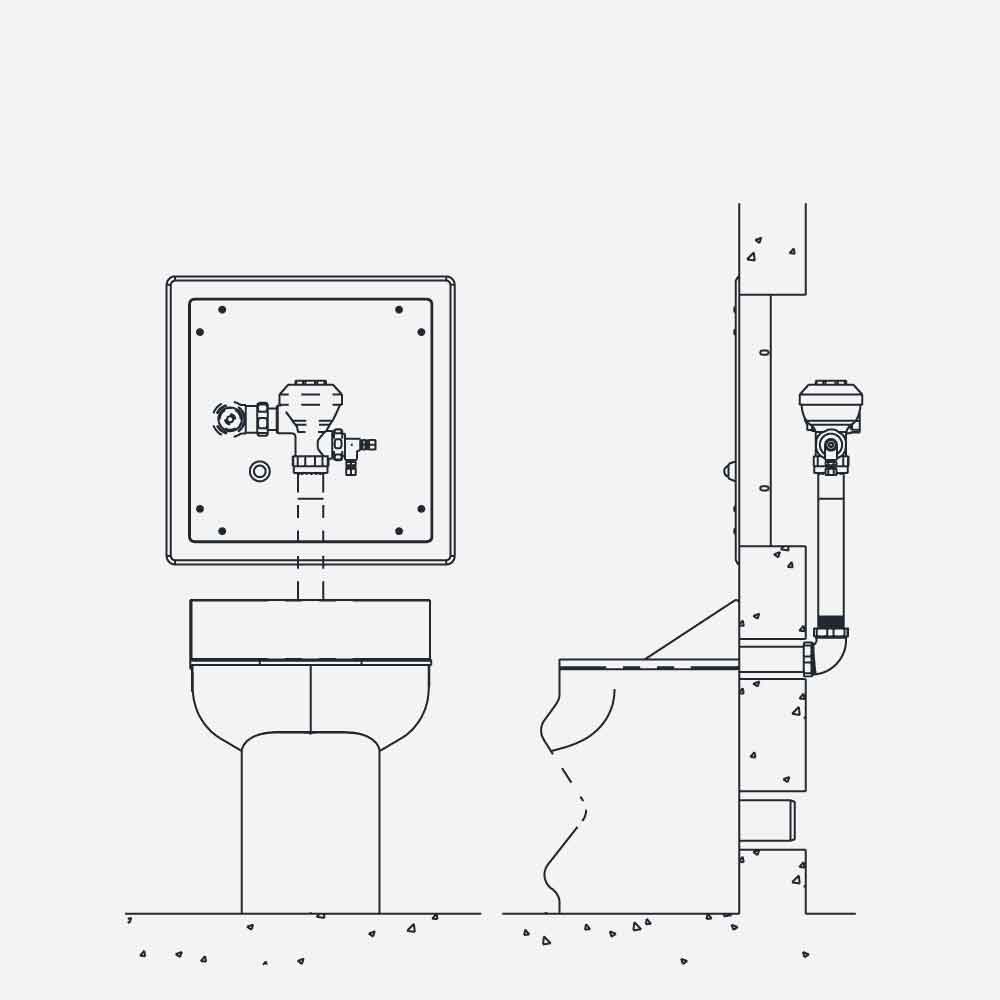

TOILET APPLICATION
Specify with Toilet Flush Valve Rated:
• 1.28 gallons (4.85 liters) per flush
• 1.6 gallons (6 liters) per flush
• 3.5 gallons (13.25 liters) per flush

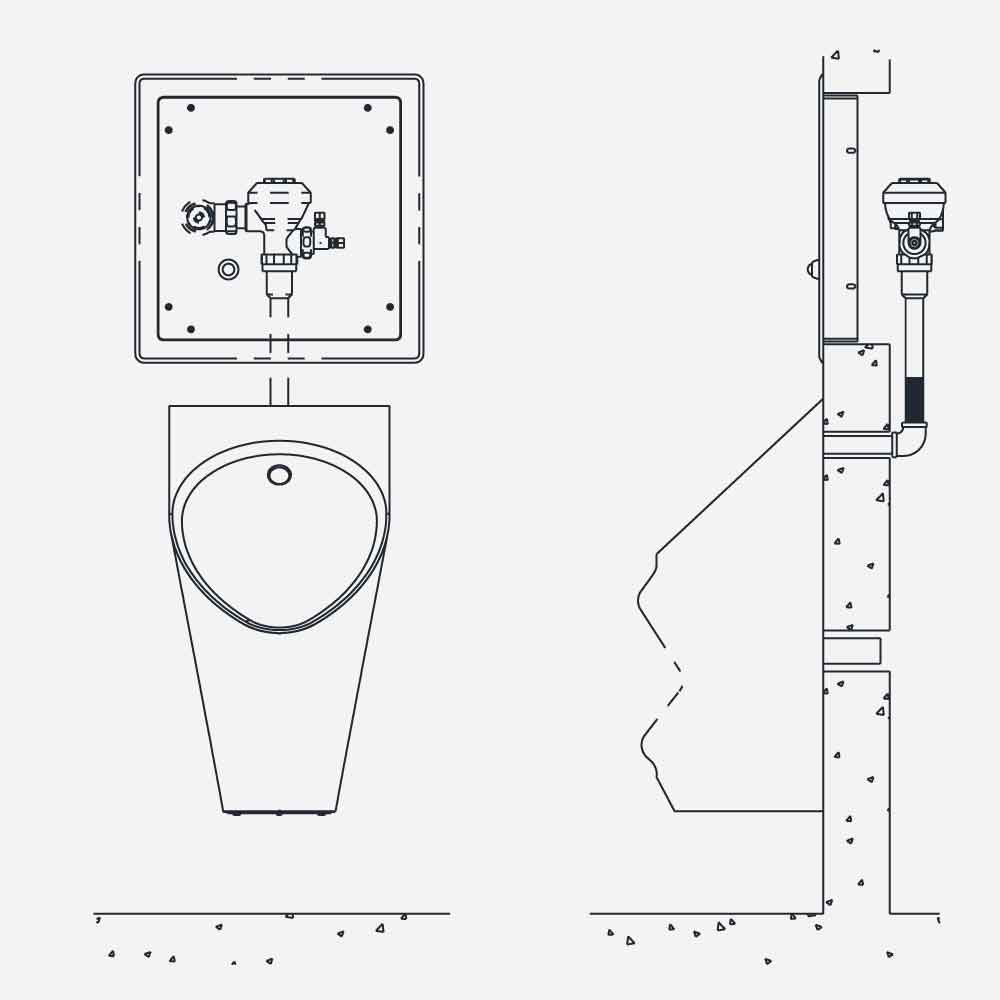

URINAL APPLICATION
Specify with Urinal Flush Valve Rated:
• 0.128 gallons (0.48 liters) per flush
• 0.5 gallons (18. liters) per flush
• 1 gallon (3.79 liters) per flush
• 1.5 gallons (5.68 liters) per flush
• 3.5 gallons(13.25 liters) per flush

ELECTRONIC VALVES
-EVSFV | Master-Trol®
-EVSPFV | Master-Trol® with Piezo Button
-MTPFV | Master-Trol® Plus
-MTPPFV | Master-Trol® Plus with Piezo Button
Electronic Valve by others (specify size and shape)

OTHER OPTIONS

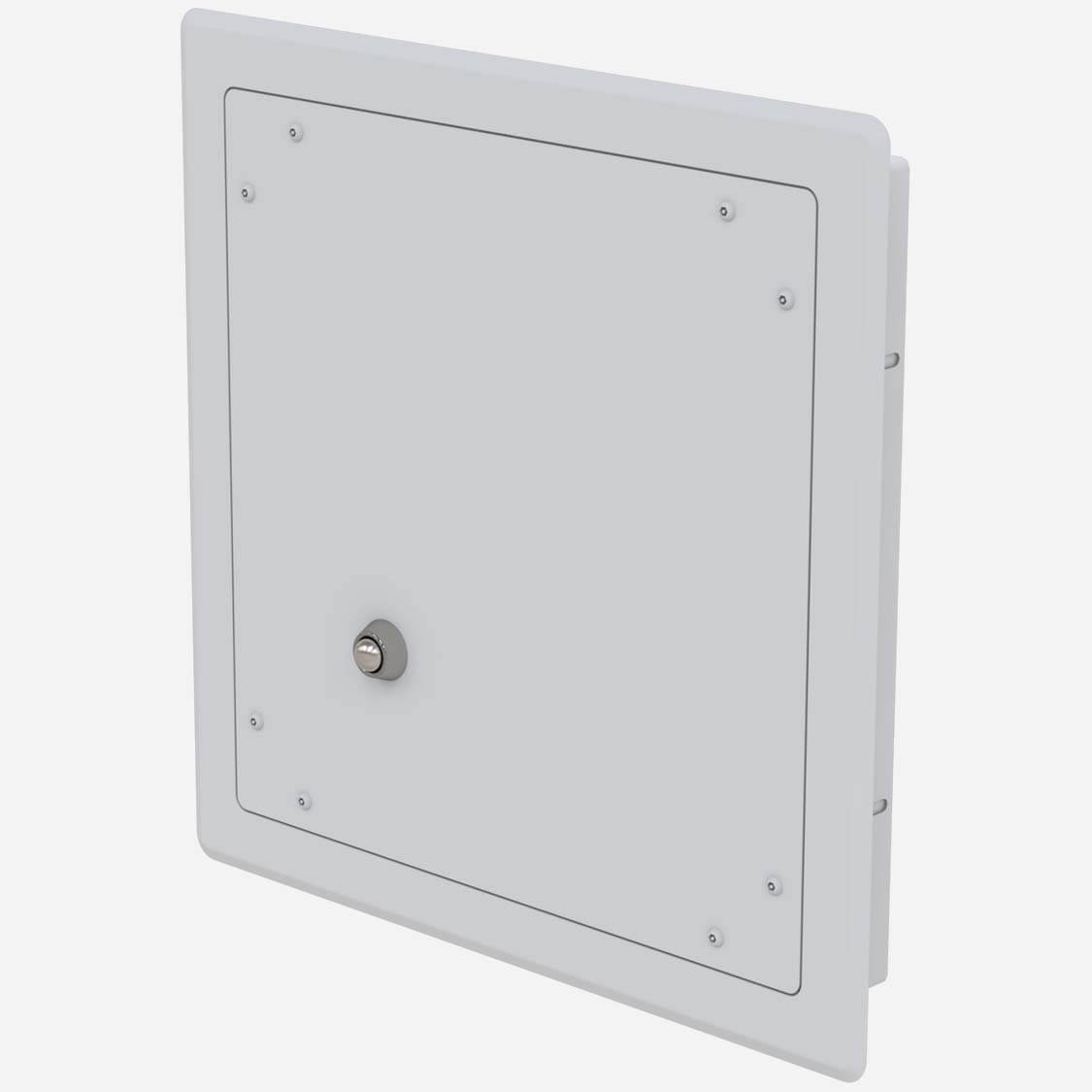

-EG10 | Snow White EnviroGlaze® Powder Coating
-EG _ _ | Other EnviroGlaze® Powder Coating available
-LPFV | Less Flush Valve Punching
