Name: 24" x 24" x 12" Drop Front Terrazzo Mop Sink
Brand: Acorn Engineering Company
SKU: TDF-24

Model TDF-24

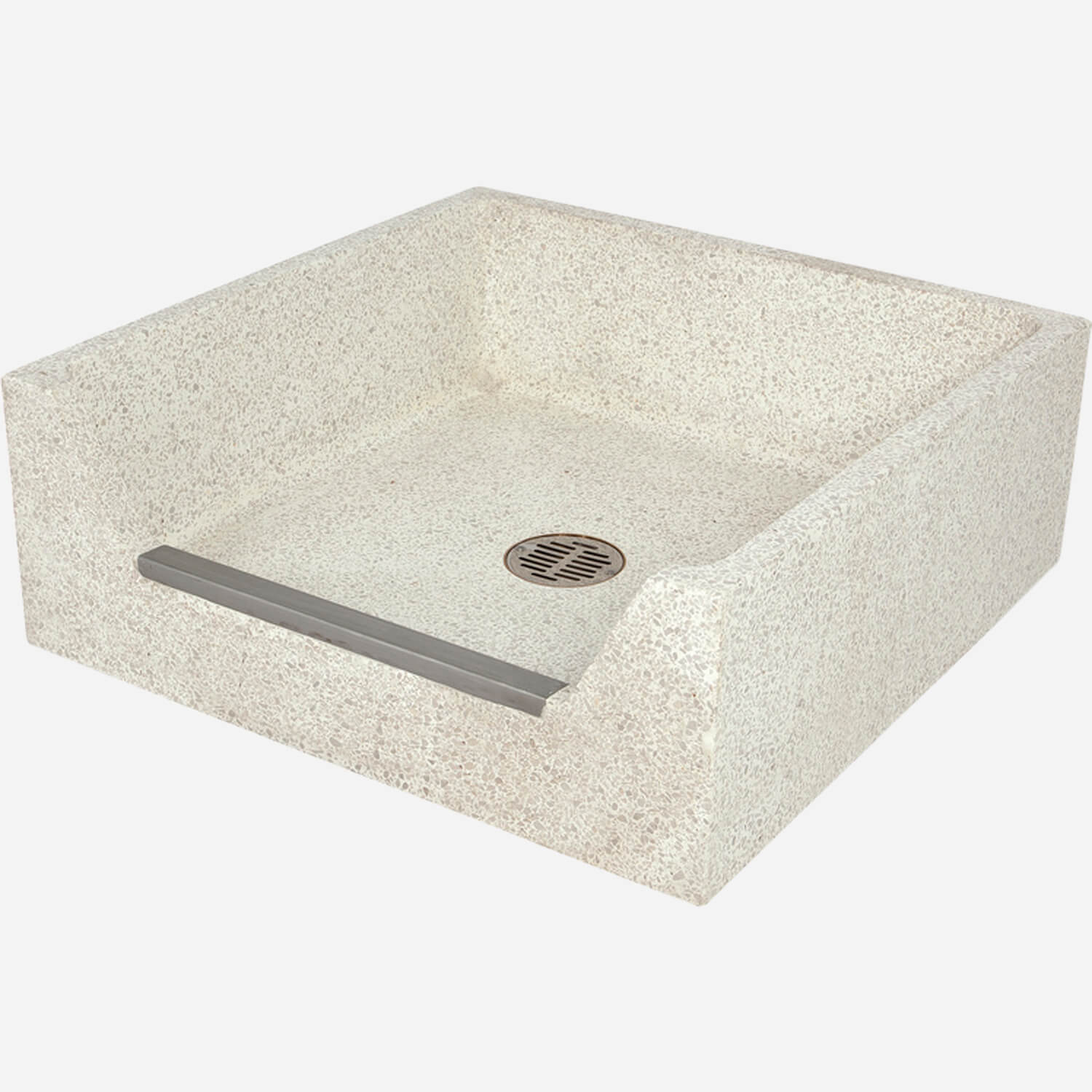

24" x 24" x 12" Drop Front Terrazzo Mop Sink

Acorn Terrazzo-Ware™ precast mop sinks provide flexibility in configuration and size as required by the design of the building and the specific installation. Custom sizes and colors are also available.

Features and Benefits

24" square design
easy to install and maintain
attractive, durable Terrazzo solid surface material
front shoulder dropped 6" for easier bucket tipping
remaining shoulders 12" high, pitched for drainage
stainless steel cap provided for additional protection

Neo-Corner mop sinks are ideal for new construction and renovation projects.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual Terrazzo Mop Sinks	Installation and Maintenance Manual for Terrazzo Mop Sinks	374 KB
Submittals	Submittal TDF Series Mop Sink (pdf)	Drop-Front Terrazzo Mop Sink [TDF-24 \| 24" x 24" x 12" Square Sink; TDF-32 \| 32" x 32" x 12" Square Sink; TDF-36 \| 36" x 36" x 12" Square Sink; TDF-3624 \| 36" x 24" x 12" Rectangular Sink]	647 KB
BIM/CAD/Revit	TDF-24 Mop Sink (dwg/zip)	24" x 24" x 12" Height Drop Front Terrazzo Mop Sink	96 KB
BIM/CAD/Revit	Dropped Front Terrazzo Mop Sinks (rfa/zip)	Dropped Front Terrazzo Mop Sinks TDF-24 (24 x 24"), TDF-36 (36x36") and TDF-3624" (36x24" drop front on 36" side)	2 MB
Product MasterSpec	MasterSpec: 224216.16, Commercial Sinks (doc)	Acorn Engineering - Service basins, Service sinks, Utility sinks, Handwash sinks, Sacristy sinks, Sink faucets, Laminar-flow, faucet-spout outlets, Supports	108 KB
Product MasterSpec	MasterSpec: 224216.16, Commercial Sinks (pdf)	Acorn Engineering - Service basins, Service sinks, Utility sinks, Handwash sinks, Sacristy sinks, Sink faucets, Laminar-flow, faucet-spout outlets, Supports	149 KB
Brochures/Flyers	Terrazzo Colors Flyer (pdf)	Terrazzo Colors for Terrazzo Shower Base, Mop Sinks and Wash Fountains(pdf)	511 KB
Images	JPG TDF-24 Mop Sink	Dropped Front, 24" Square	71 KB
Brochures/Flyers	Kwik Ship® Brands: Terrazzo Mop & Service Sinks (pdf)	Kwik Ship® Brands: Terrazzo Mop & Service Sinks (pdf)	864 KB
Brochures/Flyers	Kwik Ship® Brands: Brochure (pdf)	Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay.	4 MB
Brochures/Flyers	Kwik Ship® Brands: Commercial Engineering Approval Form	Kwik Ship® Brands: Commercial Engineering Approval Form	1 MB
Brochures/Flyers	Kwik Ship® Brands: Acorn Terrazzo (pdf)	Kwik Ship® Brands: Acorn Terrazzo (pdf)	978 KB
Technical Data Sheets	Cleaning and Care Guide (pdf)	Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo	1 MB
Cross References	Acorn Engineering Kwik Ship® Visual Competitive Cross Reference - Terrazzo-Ware® Mop Sinks (pdf)	Acorn Engineering Kwik-Ship® Terrazzo-Ware® Mop Sinks vs Fiat, Stern-Williams [TSH-24, TSH-3624, TSH-36, TSH-24-SSC, TSH-32-SSC, TSH-3624-SSC, TSH-36-SSC, TDF-24, TDF-32, TDF-36, TDF-24-SSC, TDF-32-SSC, TDF-3624-SSC, TDF-36-SSC, TCR-28, TNC-24, TNC-32, TNC-36, TRH-2424-10, TRH-363606, KDG2, KDG3, KDG32, KFC, KH36, KMH, KWG2-24, KWG2-32, KWG2-36 ] Lit# L1001776 6/26	619 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Mop Sink
Brand	Terrazzo-Ware®
Material	Terrazzo
Product Features	Drop Front, Square
Institutional Applications	Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings
Commercial Applications	Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena
Park and Recreation Applications	Yes

Options

Accessories

	Image	Model	Description	Downloads
		KFC	Accessory: Utility Faucet with Chrome Finish (H & C)
		KH36	Accessory: 36" Hose with Wall Hanger
		KMH	Accessory: Mop Hanger
		KWG	Accessory: Stainless Steel Wall Guard for Mop Sink

Miscellaneous

	Image	Model	Description	Downloads
		BDS	Option: Beehive Dome Strainer
		KDG3	Option: Drain Gasket 3"
		KF24	Option: 24" (610 mm) Stainless Steel Tiling Flange for Mop Sink
		LB	Option: Lint Basket Strainer for Mop Sink
		SSC	Option: Stainless Steel Cap
		TF1	Option: Tiling Flange - Rear
		TF3	Option: Tiling Flange - Rear and Two Sides

Models

Regularly Furnished:

Integral Drain is supplied with a removable, stainless steel grid strainer and provides for an inside caulked connection to a 3 inch pipe. The mop sink has coved corners and is pitched to the drain outlet to provide positive drainage.

Shoulders come standard without caps exposing the natural terrazzo finish.

Tiling Flanges, when ordered, made of galvanized steel are provided loose as an easy to install accessory when flexibility and simplicity are desired.

TDF-24 - 24 x 24 inch (610 x 610 mm)
TDF-24-SSC - 24 x 24 inch (610 x 610 mm) with Stainless Steel Cap on Top Rim

Details

Construction is one piece, precast terrazzo composed of marble chips cast in Portland cement to provide a compressive strength of at least 3,000 PSI seven days after casting. The mop sink surface is ground smooth and sealed to provide years of service. Integral Drain is supplied with a removable, stainless steel grid strainer and provides for an inside caulked connection to a 3" pipe. The mop sink has coved corners and is pitched to the drain outlet to provide positive drainage. A beehive dome strainer is optionally available.Tiling Flanges made of galvanized steel are provided loose as an easy to install accessory when flexibility and simplicity are desired. As an alternative, factory installed galvanized steel tiling flanges extending at least 1" above the shoulder can be specified.

Accessories to complement and complete the installation of the mop sink include:

chrome finish faucets
36" hose to reduce splashing with wall hanger to support the hose
mop hanger for easy storage of the mop over the sink
rubber drain gaskets for easy installation of the fixture
stainless steel wall guards to protect sensitive walls from splashing water
tiling flanges for simple, flexible field installation
