Model R03
Replacement Single Temperature Air-Control® Pneumatic Valve
The Single Temperature valve retro-fit is designed to replace the existing valve mounted to the backsplash of the typically rear mounted lavatory. The retro-fit assembly includes 0.5 gpm flow control intended for most lavy application, index push button, pushrod, Hemispherical Penal Bubbler (-BPH) Valve conforms with the lead-free requirements of NSF61, Section 9, 1997 and ADA requirements. Valve is non-metering unless specified with -M option
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Replacement Air-Control® Pneumatic Valve R03 | Single Temperature (may be tempered) R04 | Hot & Cold | 0 | 739 KB | ||
| | Replacement Air-Control™ Pneumatic Valve [-R03 - Single Temp; -R04 Hot & Cold] | 0 | 349 KB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
 | | How to troubleshoot the Non-Metering Air-Control Valve | 0 | 133 KB | ||
| | How to conduct product maintenance on Acorn’s Metering Air-Controlled Valve | 0 | 133 KB |
Specifications
| Product Type | Valve |
| Product Features | Single Temperature, Replacement, Non-Metering |
| Brand | Air-Control® |
| Compliance | Federal Public Law 111-380, NSF61, Section 9, 1997 |
| Accessibility | ADA Compliant |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BP | Option: Bubbler, Penal | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||

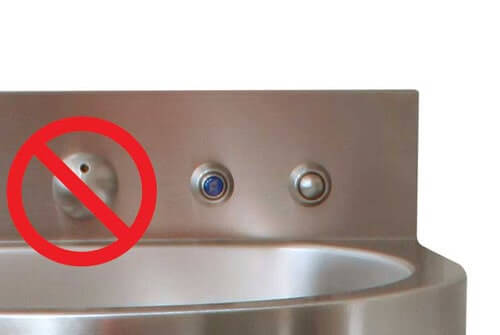

 | LBPH | Option: Less Hemispherical Bubbler | ||
 | LF | Option: Lavatory Filler | ||
 | LPBP | Option: Less Pushrod Activated Pushbuttons | ||
 | M | Option: Metering | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MA3 | Option: Manifolded Valves, 3 Set | ||
 | MA4 | Option: Manifolded Valves, 4 Set | ||
 | PBH | Option: Pushbutton, Hemispherical |
