Prison Bunk Bed
ASF2400 Series wall-mounted prison bunk beds are 10-gauge galvannealed steel with mounting angles fabricated from 7-gauge hot-rolled steel. Also available in stainless steel.
Construction is seamlessly welded with a prime coat finish; Enviro-Glaze ® powder coating is optionally available. Includes punching for optional floor support legs and upper bunk ladder.
Complies with Load Test Requirement ASTM F3277-19 for cantilevered steel bunks used in detention and correctional facilities.

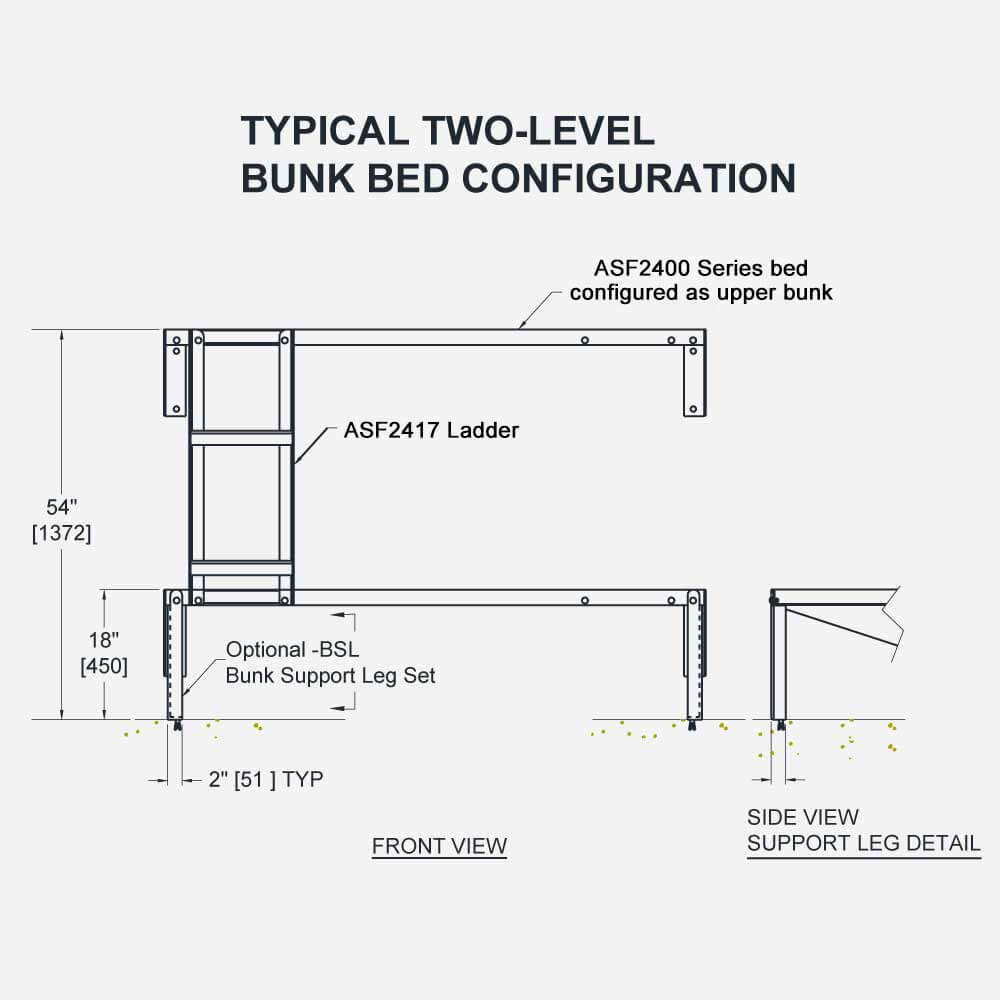

Accessories of ASF2417 Prison Bunk Bed Ladder and/or ASF2418 Prison Bunk Bed Step are sold separately.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Security Bunk Bed [Standard Sizes ASF2400-7525, ASF2400-7530, ASF2400-7536, ASF2400-8036] | 229 KB | ||
| | Acorn Engineering Company offers a wide range of innovative designs for secured furnishings, featuring the durability and security of all steel construction. | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
| | Wall Mounted Security Bunk Bed [ASF2400-7525 | 75" Length x 25" Depth; ASF2400-7530 | 75" Length x 30" Depth; ASF2400-7536 | 75" Length x 36" Depth; ASF2400-8036 | 80" Length x 36" Depth] | 104 KB | ||
 | | Prison Bunk Bed [features standard size ASF2400-7525 | 75"L x 25"D (1,905 mm x 635 mm); ASF2400-7530 | 75"L x 30"D (1,905 mm x 762 mm); ASF2400-7536 | 75"L x 36"D (1,905 mm x 914 mm); ASF2400-8036 | 80"L x 36"D (2,032 mm x 914 mm)] | 420 KB | ||
 | | Prison Bunk Bed [features standard size ASF2400-7525 | 75"L x 25"D (1,905 mm x 635 mm); ASF2400-7530 | 75"L x 30"D (1,905 mm x 762 mm); ASF2400-7536 | 75"L x 36"D (1,905 mm x 914 mm); ASF2400-8036 | 80"L x 36"D (2,032 mm x 914 mm)] | 605 KB |
Specifications
| Brand | Secured Furnishing™ |
| Material | Galvannealed steel |
| Material Detail | 10-Gauge Jet Kote™ Galvannealed Steel, 7-Gauge Hot-Rolled Steel Mounting Angles |
| Compliance | ASTM F3277-19 load testing |
| Mounting | Wall Mounted |
| Product Type | Bed |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BSL | Accessory: Bunk Support Leg Set |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | AMA | Anti-Microbial Additive | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | SS | Option: Stainless Steel Construction |
Models
Four standard sizes are available:

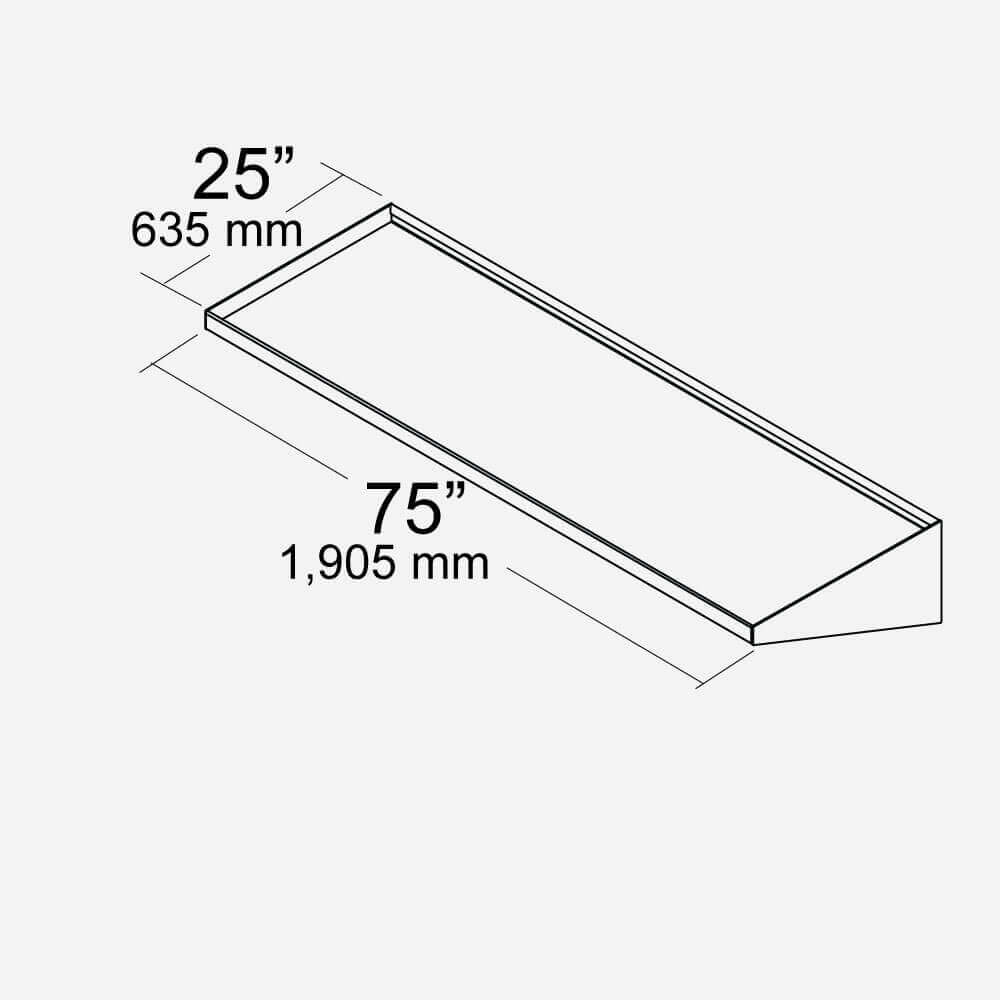

Model No. ASF2400-7525
75"L x 25"D (1,905 mm x 635 mm)

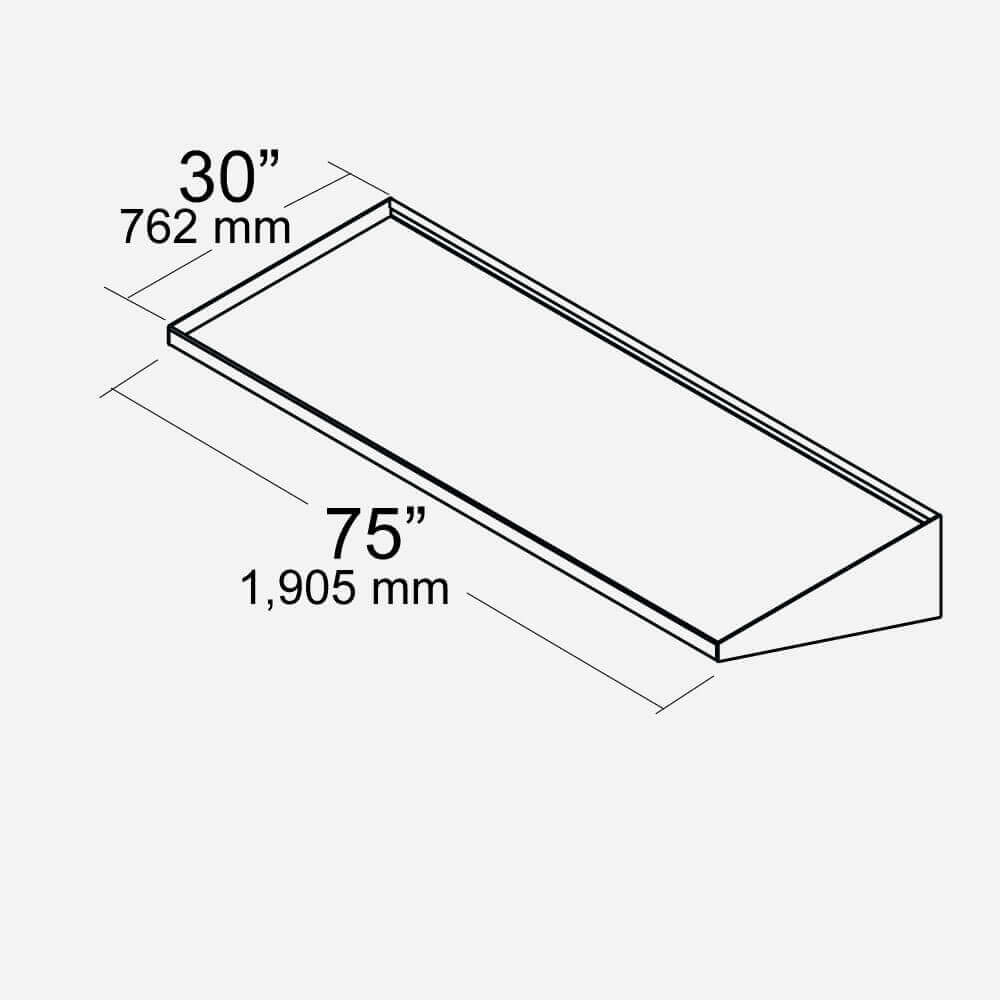

Model No. ASF2400-7530
75"L x 30"D (1,905 mm x 762 mm)

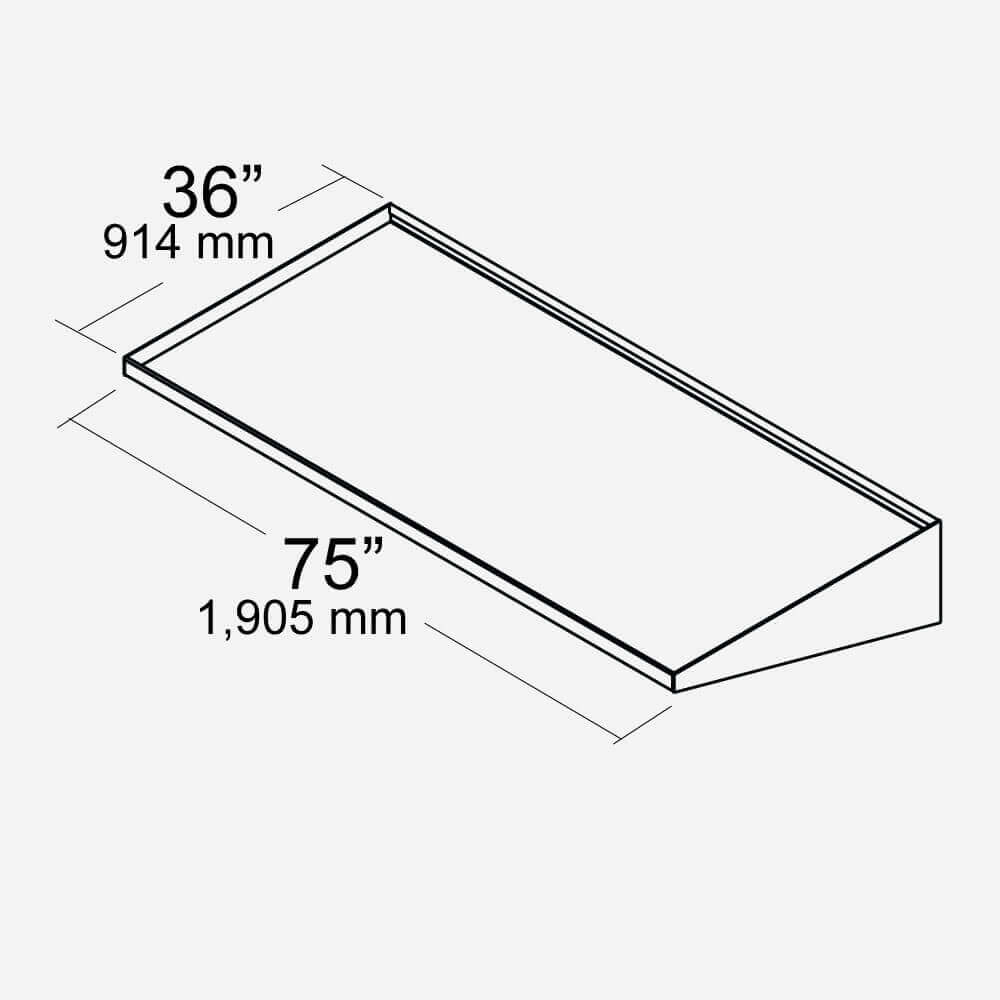

Model No. ASF2400-7536
75"L x 36"D (1,905 mm x 914 mm)

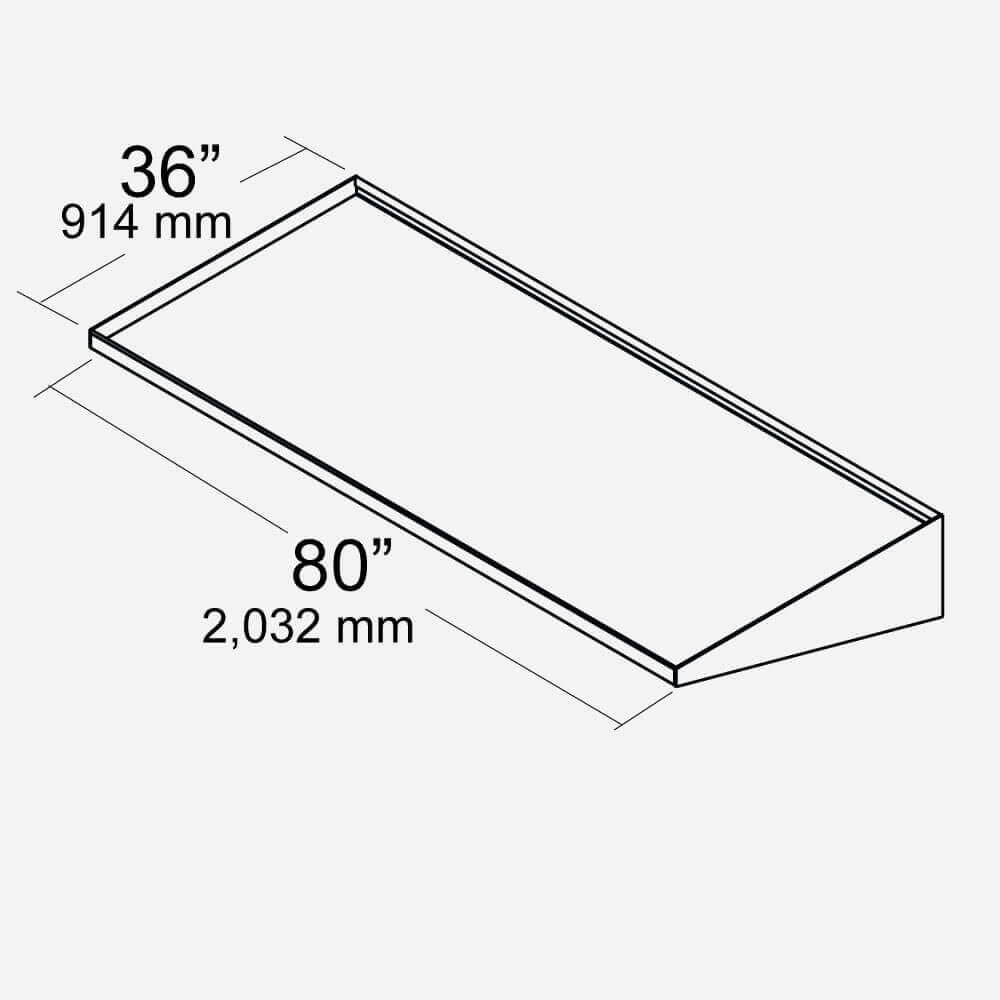

Model No. ASF2400-8036
80"L x 36"D (2,032 mm x 914 mm)
Custom dimensions may be specified:
Model ASF2400- length depth
