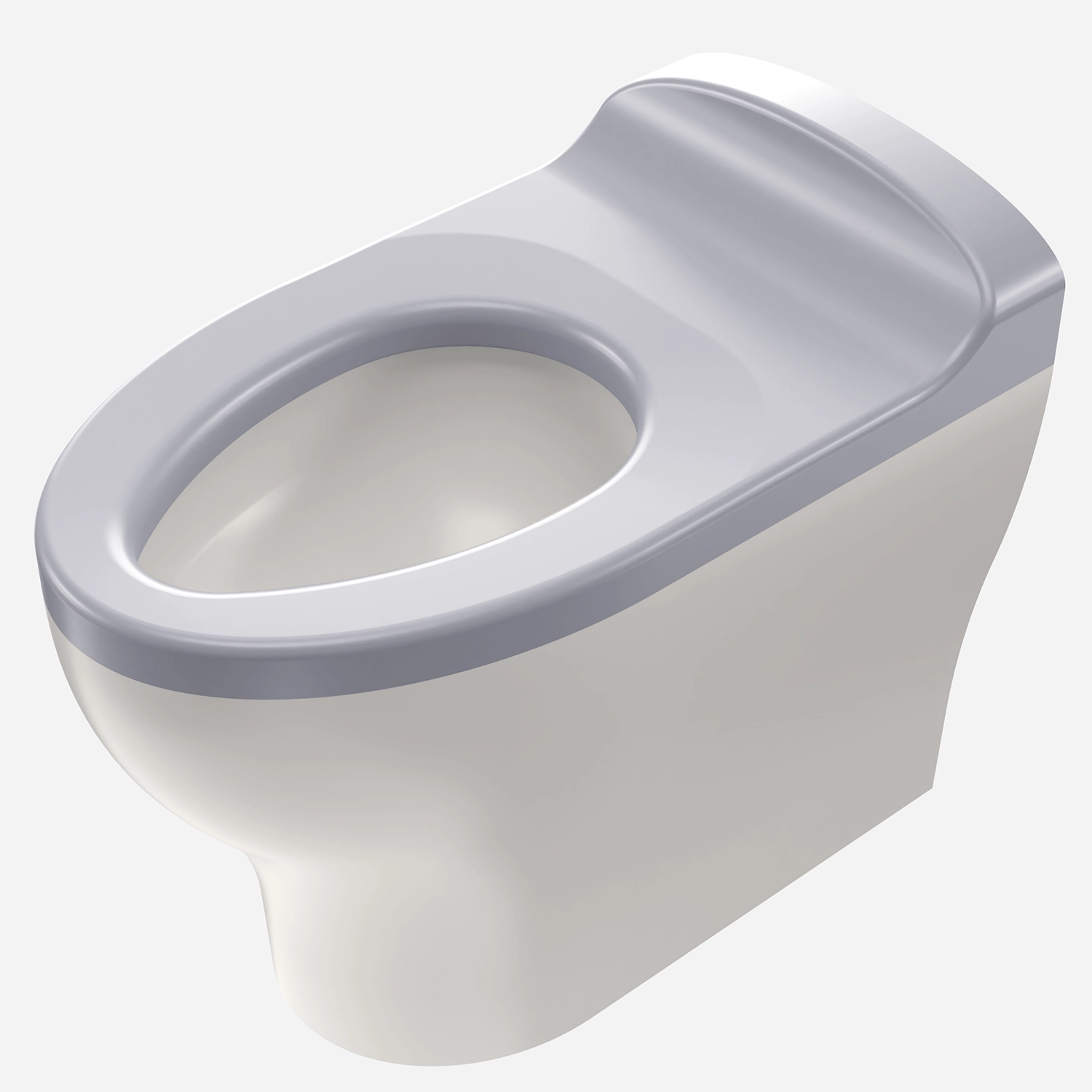

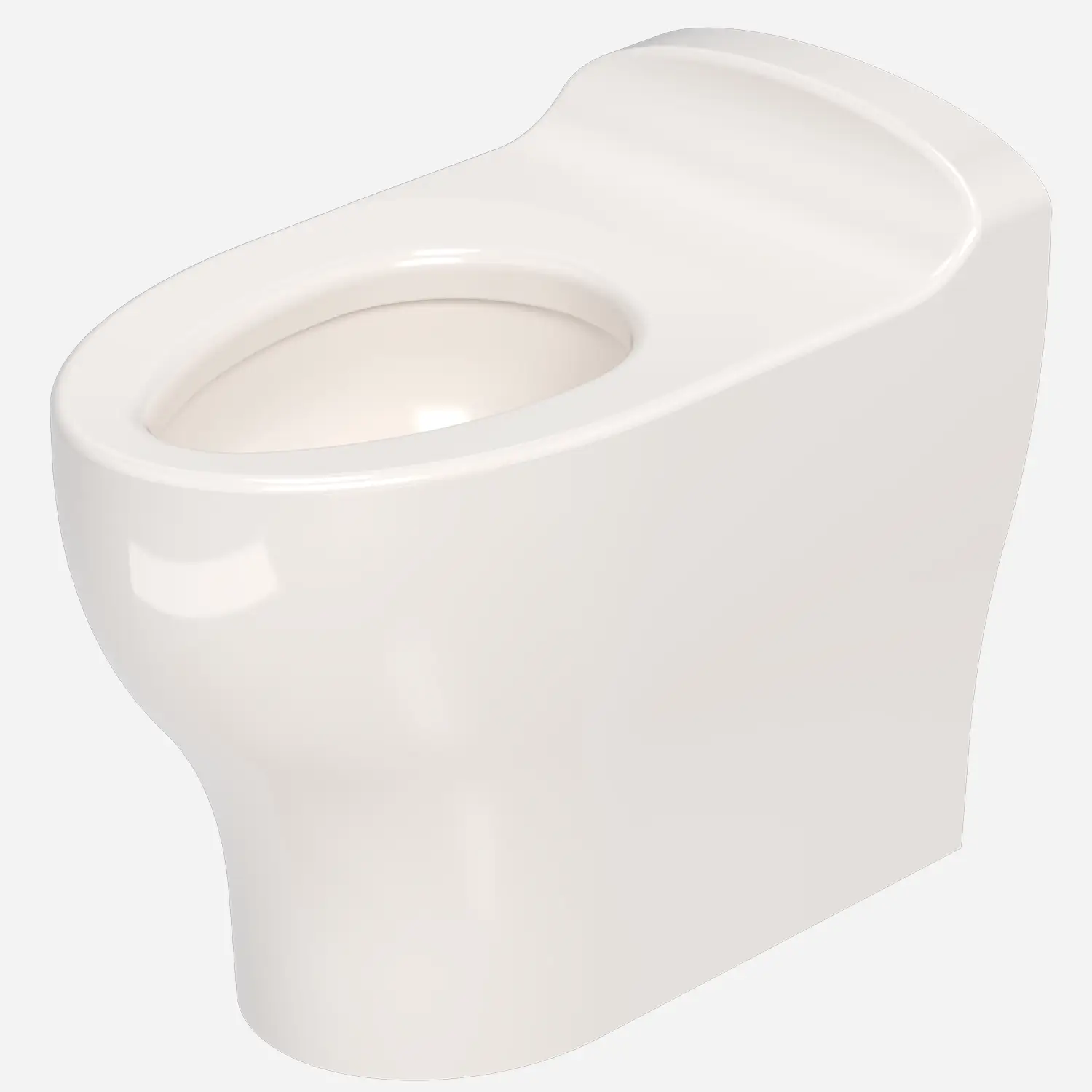

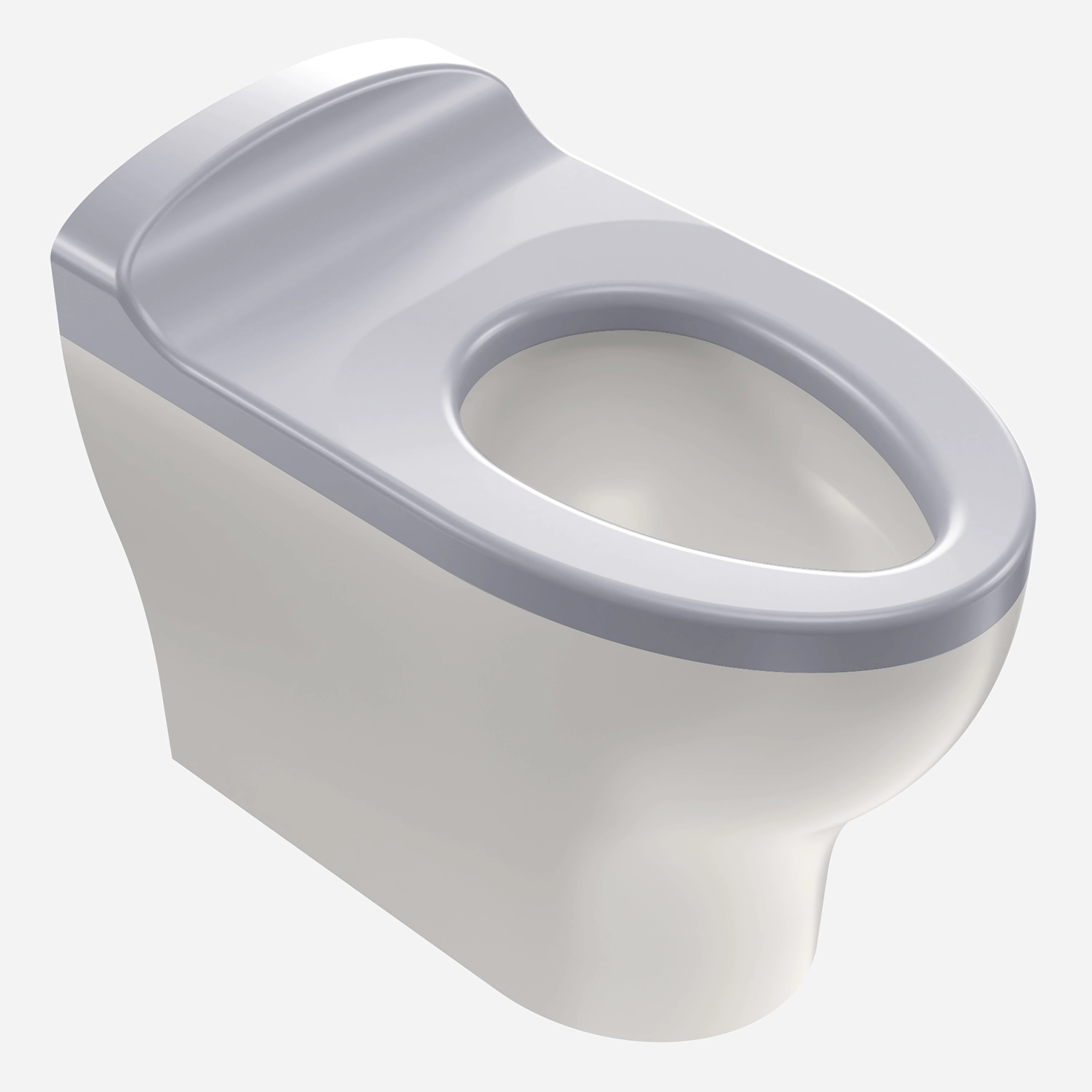

Ligature-Resistant Solid Surface Detention Toilet - Blowout Jet Waste Outlet

The Secur-Care® ADA Compliant Ligature Resistant Fixture is arranged for installation on a finished wall and service from a fully accessible rear pipe chase. Solid Surface Toilet is designed to foster a peaceful, normative environment, combining a stylish, sleek appearance with enhanced safety. Its Universal Design supports ligature resistance and ADA accessibility while combining vandal resistance within detention settings.

Features

• Corterra® Solid Surface - Stronger than vitreous China fixtures; comparable to stainless steel  - can withstand up to 25,000 lbs
• Decreases risk; will not break into shards that can be used as weapons
• Works with standard North American plumbing requirements
• Works with a standard wall-mounted flush valve
• Designed to support a normative environment while maintaining the safety and durability required in justice facilities

Static load rating for the On-Floor Bowl is IAPMO Certified to withstand 25,000 lbs. [11,340 kg] without permanent damage, providing vandal resistance and long-term durability for demanding environments.

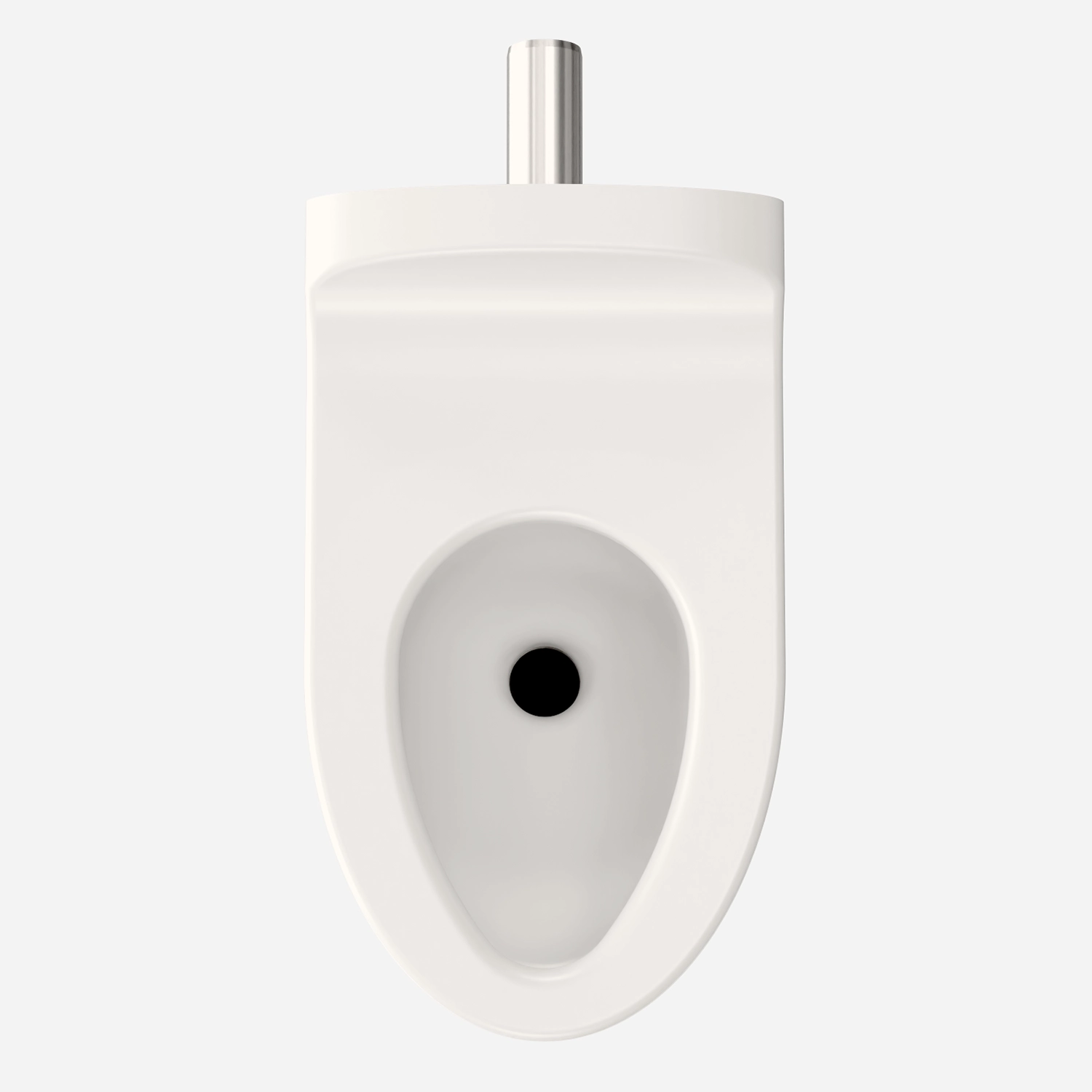

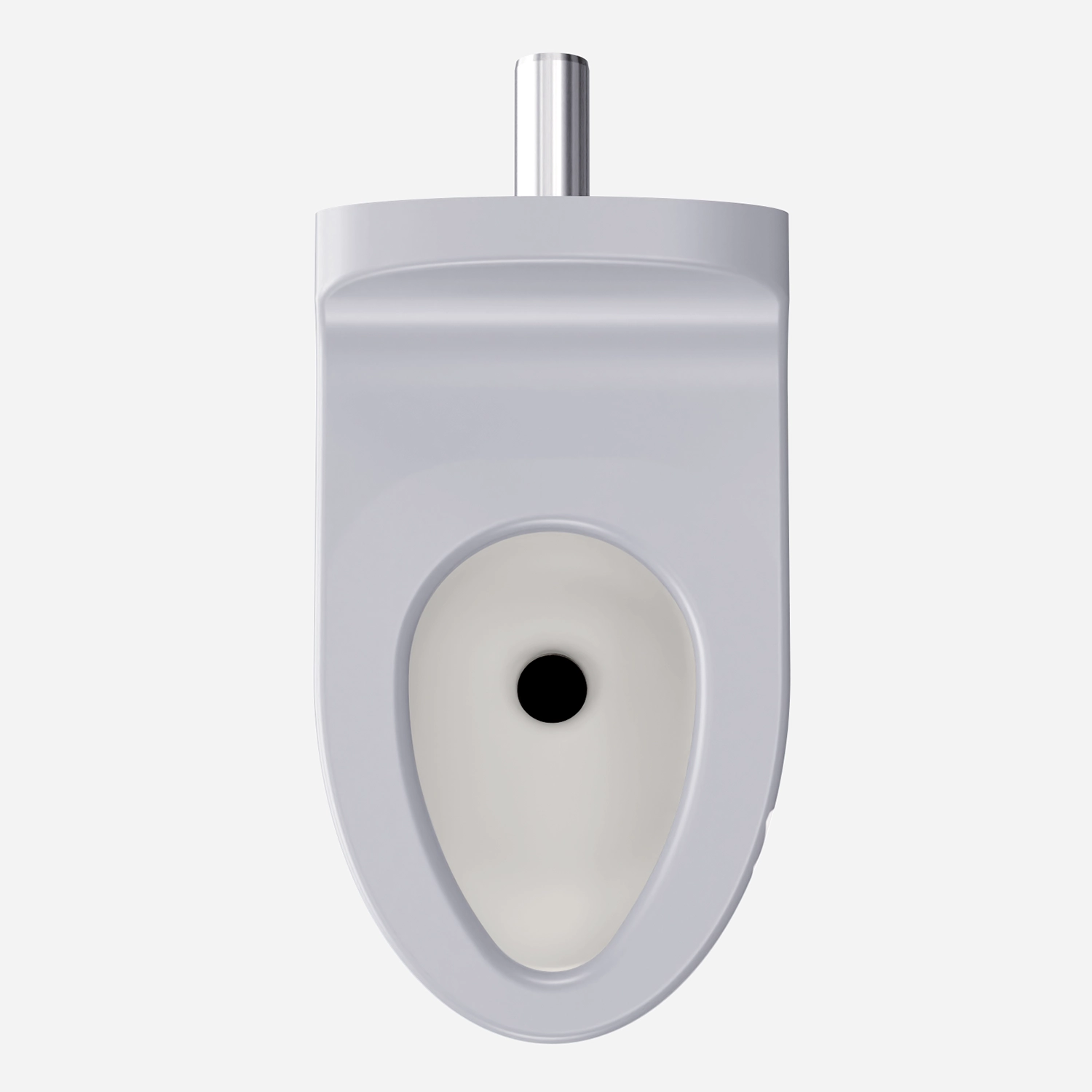

The toilet bowl interior is rimless to allow easier, more sanitary cleaning while eliminating ligature points for wedging objects. Its unique Flushing Rim design delivers a full 360-degree rinse to wash down the Bowl interior.

On-Floor Toilet is a blowout jet type with an Elongated Bowl and conforms to ASME A112.19.2, CSA B45.1, ASME A112.19.3, CSA B45.4, ADA Standards for Accessible Design, and is WaterSense® Certified. The toilet requires a minimum of 25 PSI flow pressure and operates with a minimum water consumption of
1.28 GPF (4.8L). Toilet P-trap and Blowout Jet Fittings are fabricated of type 304 stainless steel. P-trap has a minimum 3-1/2" seal, and will pass a 2-1/8" ball.

Toilet Housing, Bowl, and Seat are constructed of Corterra® Solid Surface Polymer Resin, which is GREENGUARD® Gold listed. The solid-surface components conform to ANSI/ICPA SS-1 for durability, chemical resistance, and impact performance. Toilet Housing color is Blanco Gloss -OCC11 (White).

Integral Toilet Seat features a contrasting color to enhance visibility or assist users with cognitive impairment. Seat color is Corterra® -OCC21 Moonstone Metallic (Gray Gloss) and is optionally available in OCC11 Blanco (Glossy White) to match Toilet Housing and Bowl color.

Corterra® Solid Surface Component Testing: When tested in accordance with ASTM E84-21a, achieved a Flame Spread Index of 0 and a Smoke Developed Index of 20, meeting the requirements for a Class A interior finish material classification (Flame Spread Index 0-25; Smoke Developed Index ≤450)
under the International Building Code (IBC) and NFPA 101 Life Safety Code.
Refer to the Corterra® Technical Data Sheet for additional performance characteristics.

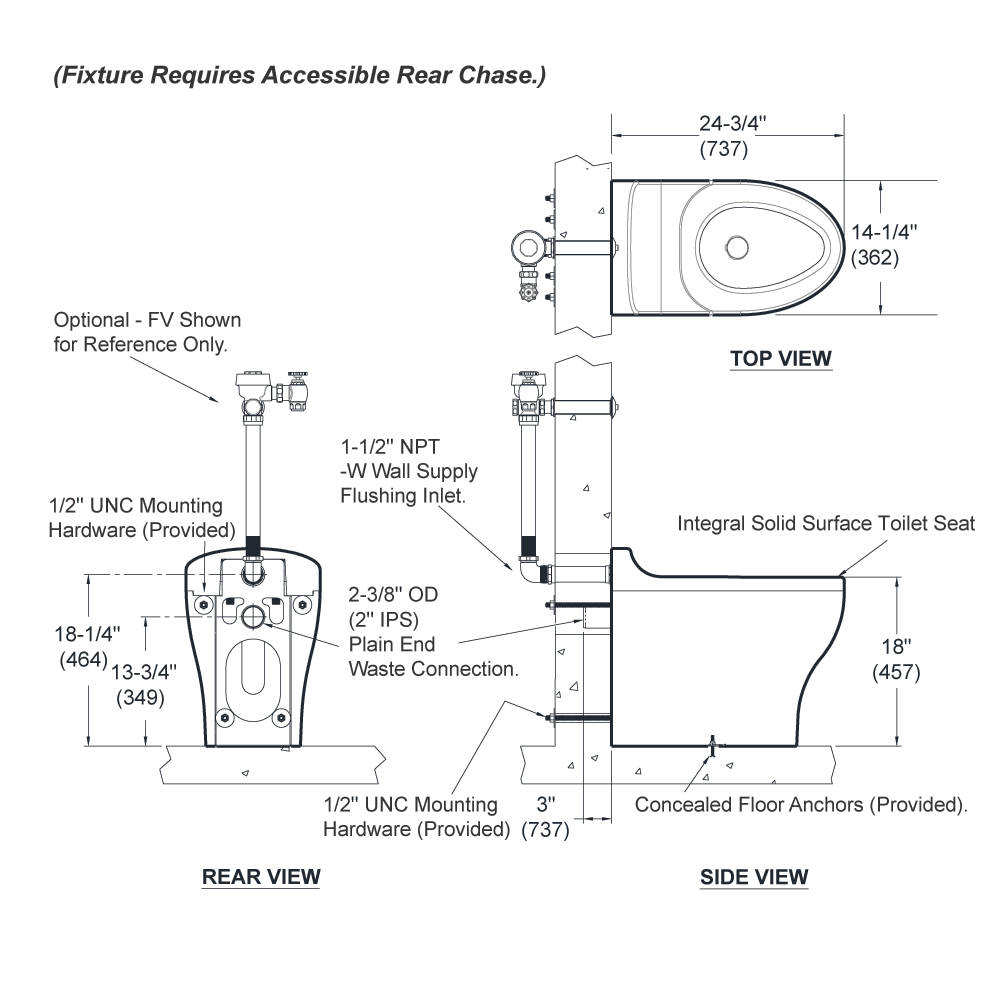

Toilet Waste Outlet connection is offered for Wall Waste and includes a 2-3/8” OD Stainless Steel Plain End (2” IPS) to make-up connection with Industry Standard No-Hub Connector. Toilet Wall Supply Inlet includes a 1-1/2” Female NPT Flushing Inlet connection for Wall (Concealed) Flush Valve supply.
