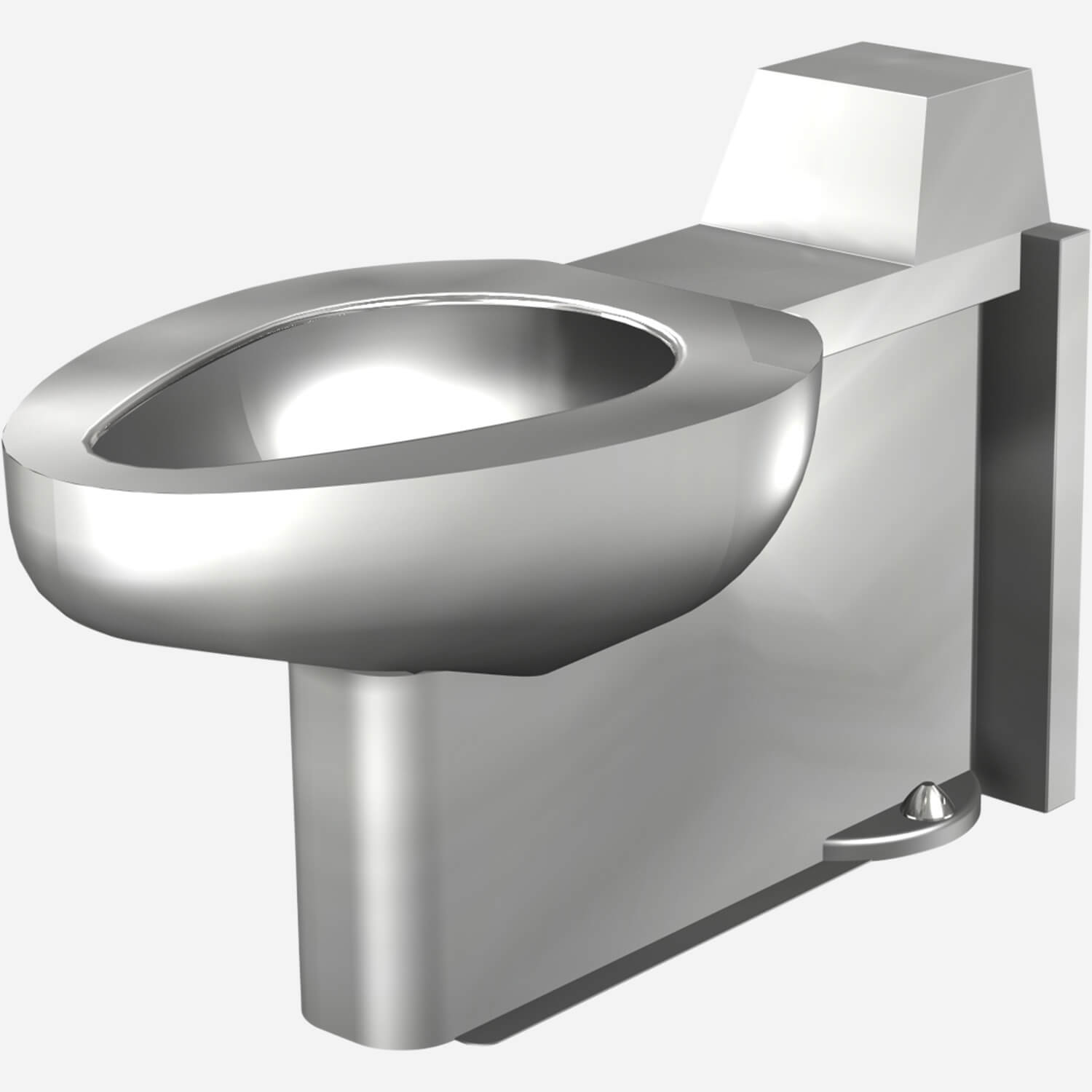

Model 1695
Rear Mount, On-Floor, Floor Waste, Siphon Jet Stainless Steel Security Toilet
This stainless steel security toilet is designed for a rear (chase) application. It is available with siphon jet, mounts on-floor, has a wall water supply, and floor waste outlet. This toilet can be specified with an ADA seat height of 18 inches (457.2 mm).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 0 | 641 KB | |||
| | Rear Mount, On-Floor, Floor Waste, Siphon Jet Stainless Steel Security Toilet | 0 | 204 KB | ||
 | | Wall Supply, On-Floor/Floor Waste | 0 | 244 KB | ||
| | Top Supply, On-Floor/Floor Waste | 0 | 244 KB | ||
| | Wall Supply, On-Floor/Floor Waste | 0 | 142 KB | ||
| | Top Supply, On-Floor/Floor Waste | 0 | 113 KB | ||
| | On-Floor, Floor Waste, Siphon Jet Stainless Steel Security Toilet for Rear Mount (Chase) Application | 0 | 435 KB | ||
| | On-Floor, Floor Waste, Siphon Jet Stainless Steel Security Toilet for Rear Mount (Chase) Application | 0 | 255 KB | ||
| | 0 | 462 KB | |||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Correctional Facility Fixtures HET Toilet/Acorn Vac | 0 | 816 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Tools / Fasteners: Washers, Nuts and Anchors | 0 | 74 KB | ||
| | Trims: Mounting Hardware, Penal FixtureS | 0 | 96 KB | ||
| | Waste Connections and Thru-Wall Extensions: Cleanout w/ O-Ring No-Hub -C01 and Threaded -CO2 | 0 | 78 KB |
Specifications
| Product Type | Toilet |
| Configurations Available | On-Floor with Floor Waste Outlet (-3) |
| Brand | Penal-Ware® |
| Material | Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Accessibility | Option -ADA Available (Taller Toilet) |
| High-Efficiency (Water Use) | Option -HET, -VAC Available |
| Vandal Resistant | High |
| Product Features | Siphon Jet |
| Institutional Applications | Correctional |
| Park and Recreation Applications | Yes |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 3-ADA (Toilet) | Option: On-Floor, Floor Outlet Toilet (increased height to meet ADA requirements) | ||
 | CN | Option: Cap Nuts | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVSFV | Option: Flush Valve Application Master-Trol® | ||
 | EVSPFV | Option: Piezo Button Flush Valve Application Master-Trol® | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FV (Toilet) | Option: Flush Valve for Toilet | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVL | Option: Flush Valve with Lever Activation | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | HPS | Option: High Polish Seat #7 Finish | ||
 | HS | Option: Hinged Seat | ||
 | MT | Option: Metal Template | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | PC | Option: Pinned Cleanout Plug | ||
 | PFS | Option: Punch for Seat (By Others) | ||
 | SPS | Option: Ligature Resistant Skirt for Toilet | ||
 | T (Toilet) | Option: Top Supply for Toilet | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | TG | Option Twelve Gauge Type 304 Stainless Steel | ||
 | TSC | Option: Toilet Shipping Cover | ||
 | ULF (Toilet) | Option: Ultra Low Toilet Flush - 1.6 gallon (6 liter) per Flush | ||
 | VAC | Option: Configuration for Vacuum Plumbing | ||
 | W (Toilet) | Option: Wall Supply for Toilet |
Models
1695-T-3
Top Supply, On-Floor, Wall Waste Toilet
1695-W-3
Wall Supply, On-Floor, Wall Waste Toilet
Top Supply, On-Floor, Wall Waste Toilet
1695-W-3
Wall Supply, On-Floor, Wall Waste Toilet
Details
The toilet is design to meet the needs for the rigorous demands of security facilities, water conservation, and ADA compliancy (if ADA option requested).
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
Product Variations
Image | Model ID | Description |
|---|---|---|

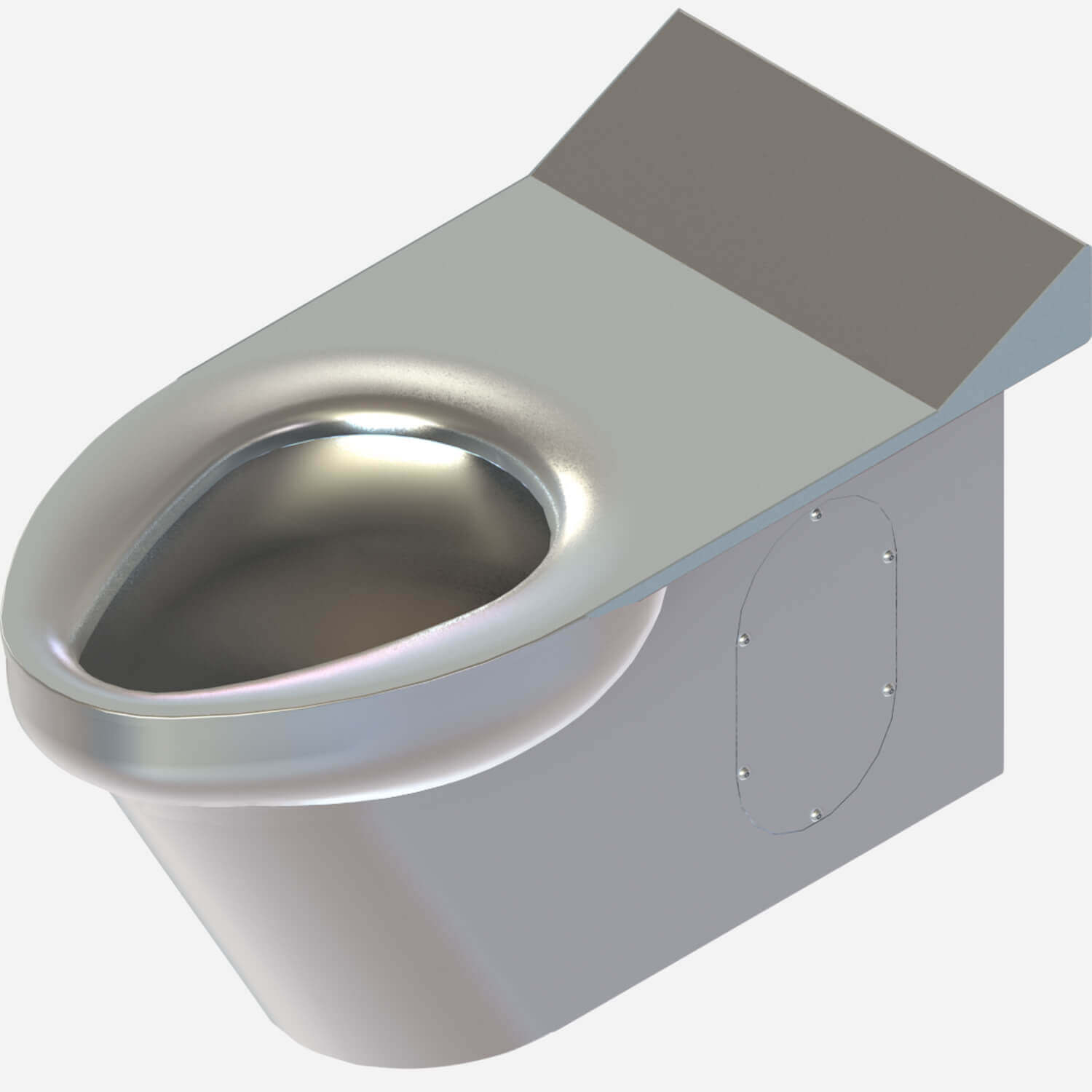

 | LR1695 Series | Secur-Care® Ligature-Resistant, Rear Mount, Floor Waste, Siphon Jet, Stainless Steel Security Toilet |
