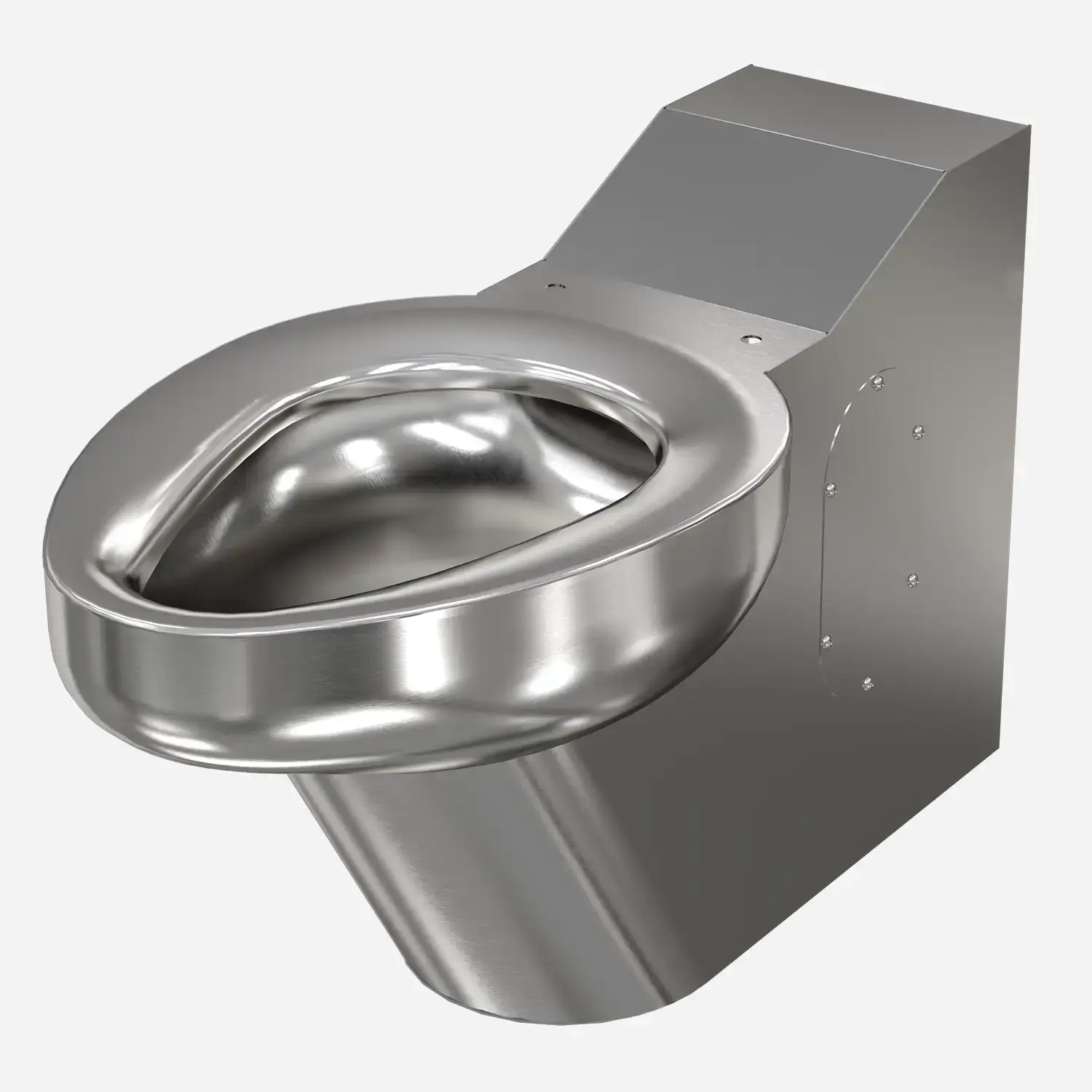

Rear-Chase Mount, Siphon Jet Commercial Stainless Steel Toilet

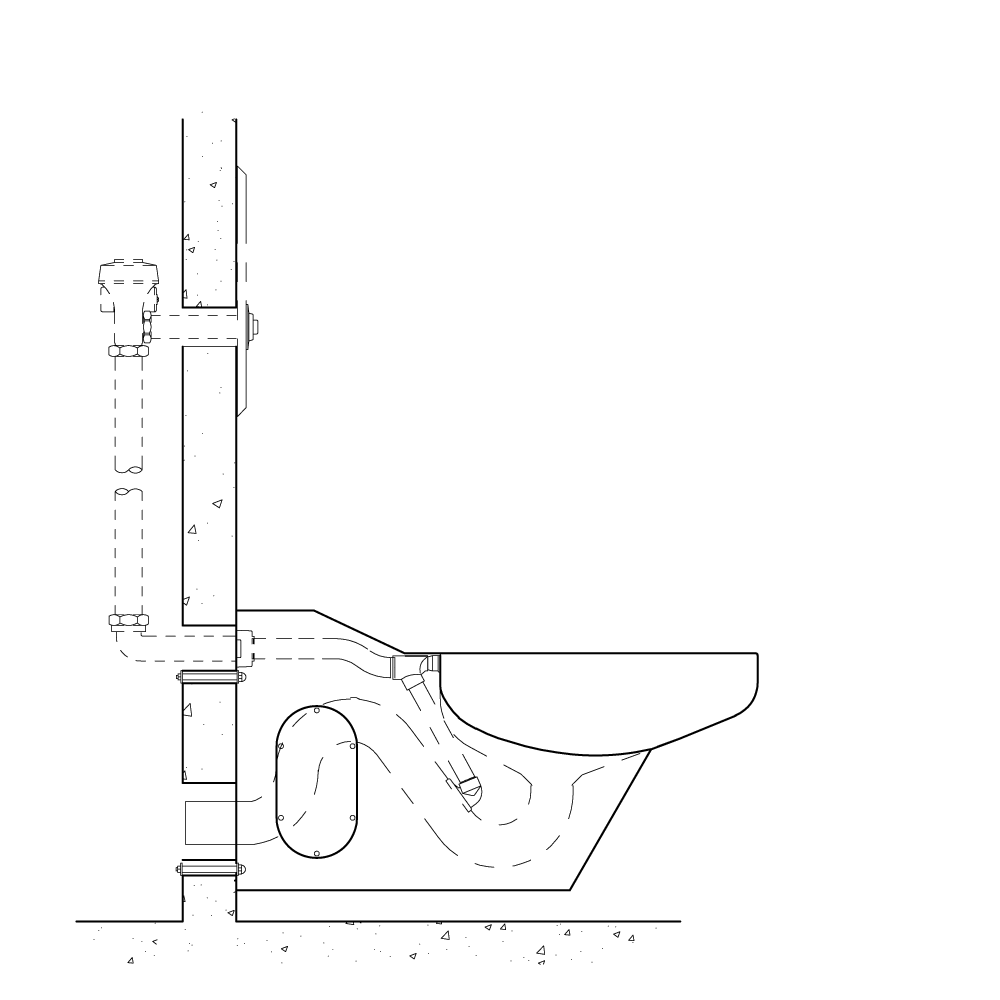

The 2141 Rear Mount Toilet features integral 1/2" UNC anchor tapping and mounting hardware. Unit requires an accessible pipe chase for installation. Wall Waste Outlet connection for Rear Mount (-RM) unit is a 2-3/8" OD stainless steel plain end. Floor Waste Outlet connection is a 7-1/2" Recessed Gasket Flange. The servicing access is typically from the rear (chase).

This siphon jet toilet works by directing a concentrated stream of water through a specialized jet to prime the trapway and create a powerful vacuum that pulls waste out with high velocity, followed by a refill cycle that restores the protective water seal.

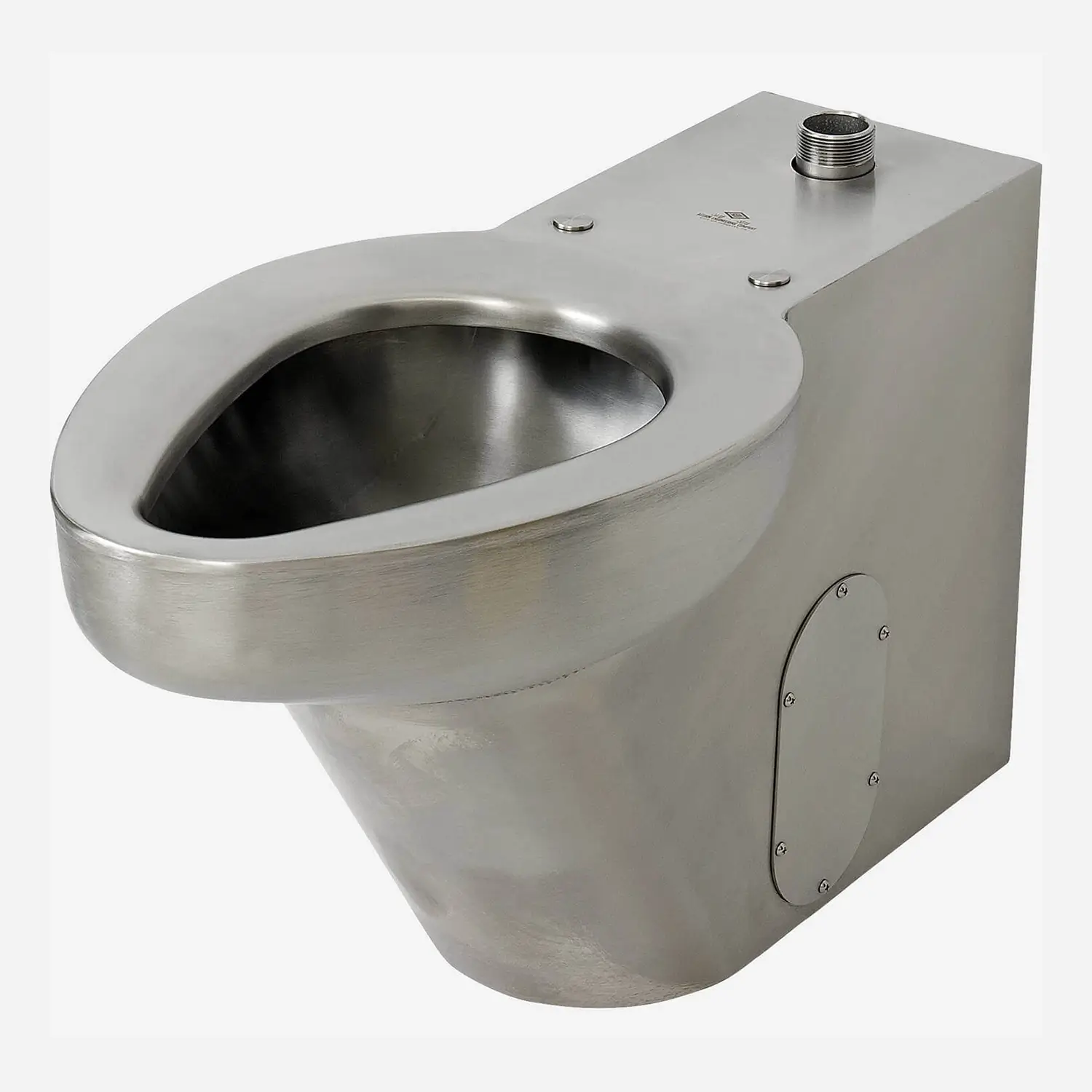

The toilet is configured for a commercial 1" (25 mm) water supply line operating at 25 PSI (1.72 bar). Top Supply configured toilets feature a typically exposed flush valve. A 1-1/2" NPTE flushing inlet connection spud is provided at the top of the toilet housing. Wall Supply configured toilets typically feature a valve concealed in the wall. A 1-1/2" NPTE flushing inlet connection spud is provided at the rear of the toilet.

Off-Floor toilet (2141-1-FM) shall be mounted on the wall. Wall-waste toilets (2141-1-FM and 2141-2-FM) feature a wall-waste rough-in of 5-1/2" (140 mm) above the finished floor. The On-Floor toilet (2141-3-FM) shall be mounted to a finished wall with a floor waste of 4-1/4" (108 mm) from the finished wall.

• Rear-Chase Mount Commercial Toilet
• Requiring a commercial water supply line to operate. Water flow pressure 25 psi (1.72 bars); Water supply line 1" (25 mm).

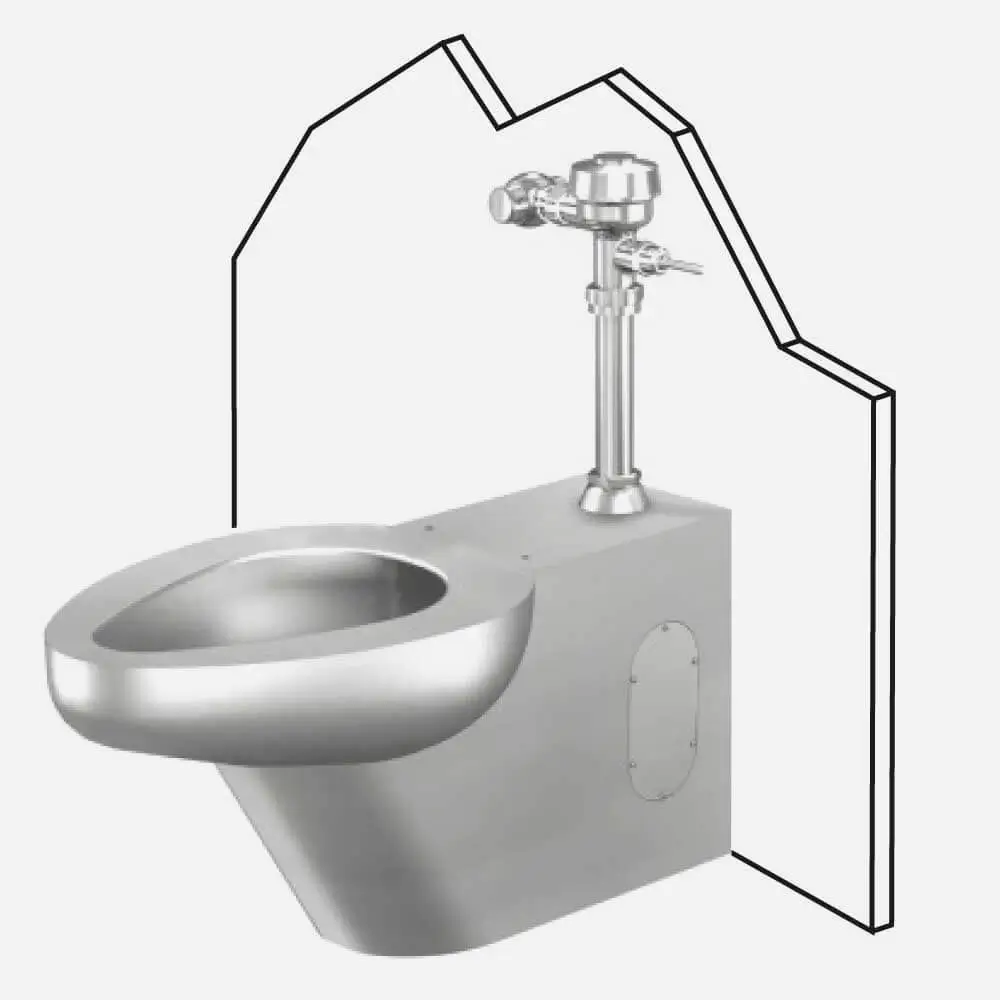

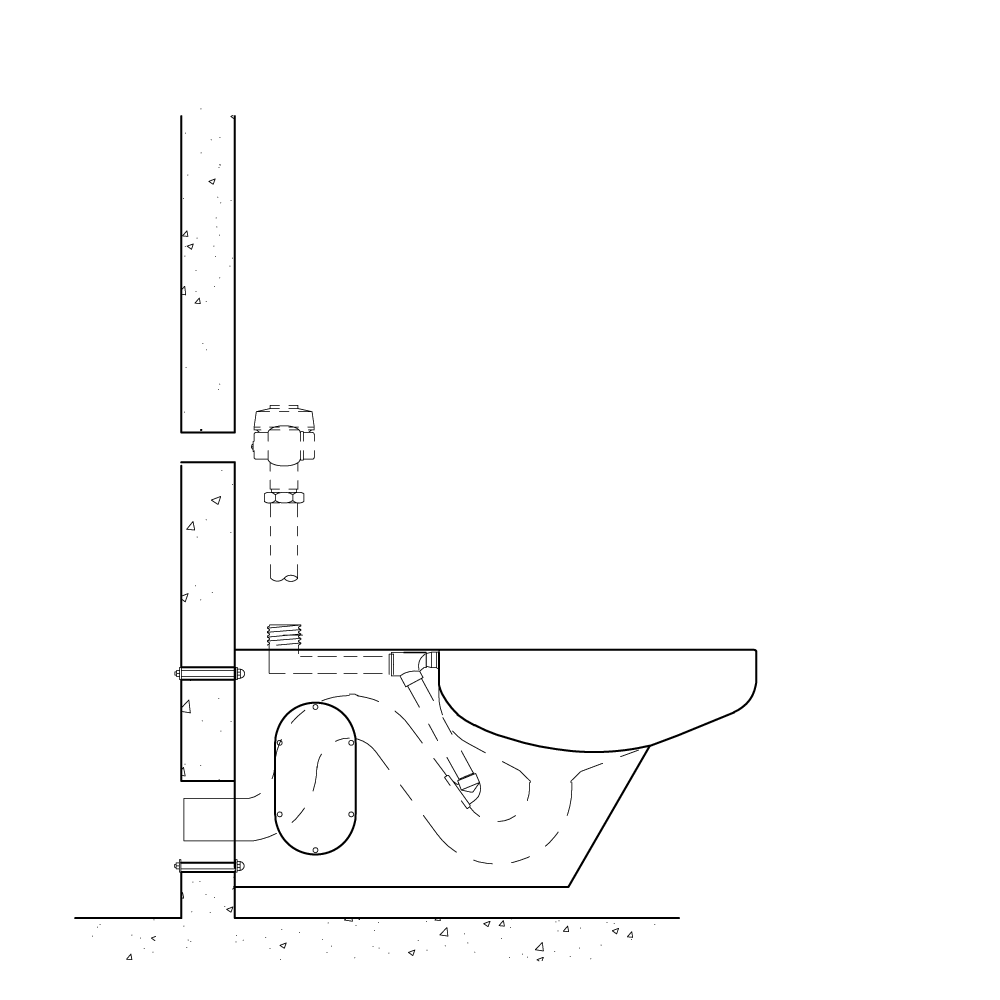

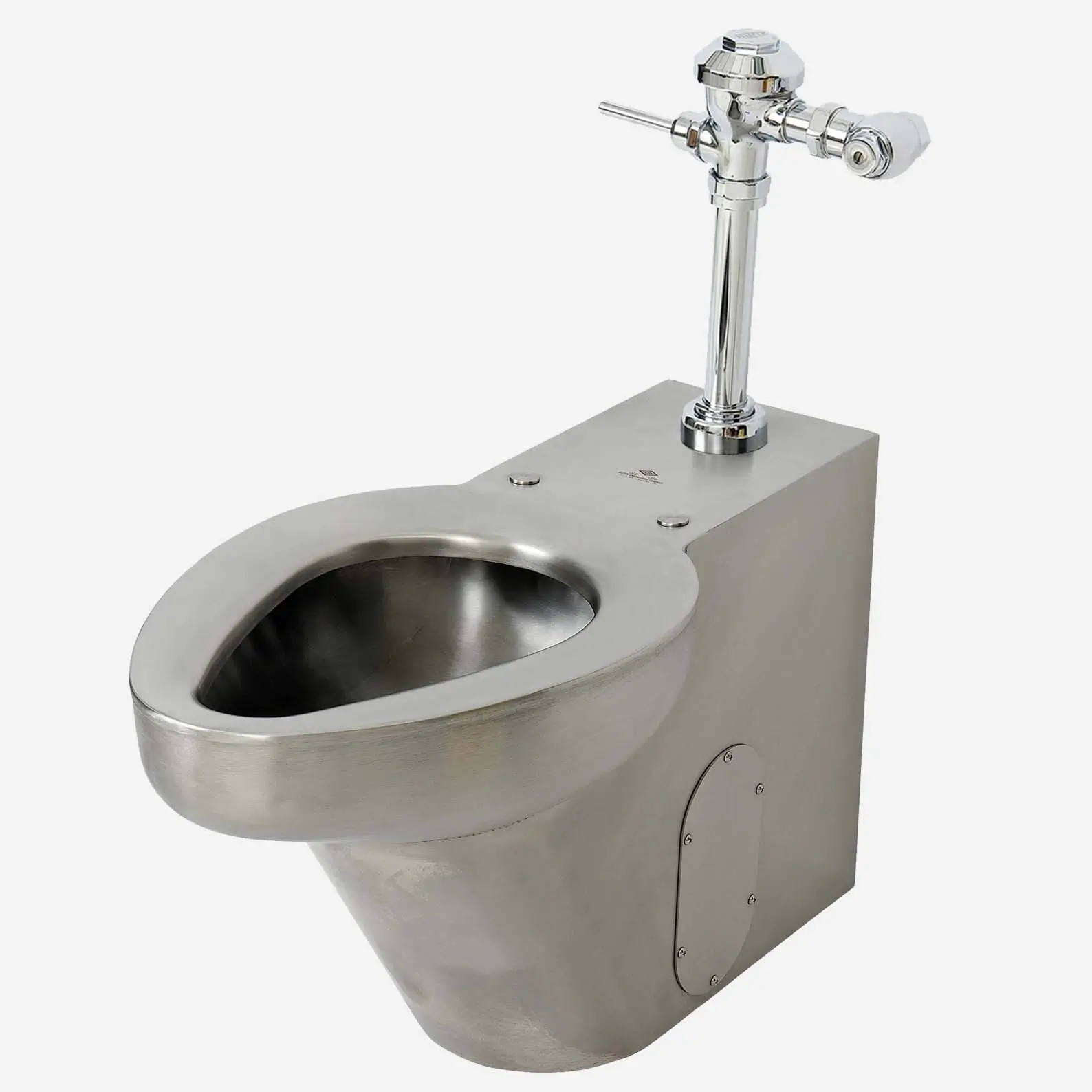

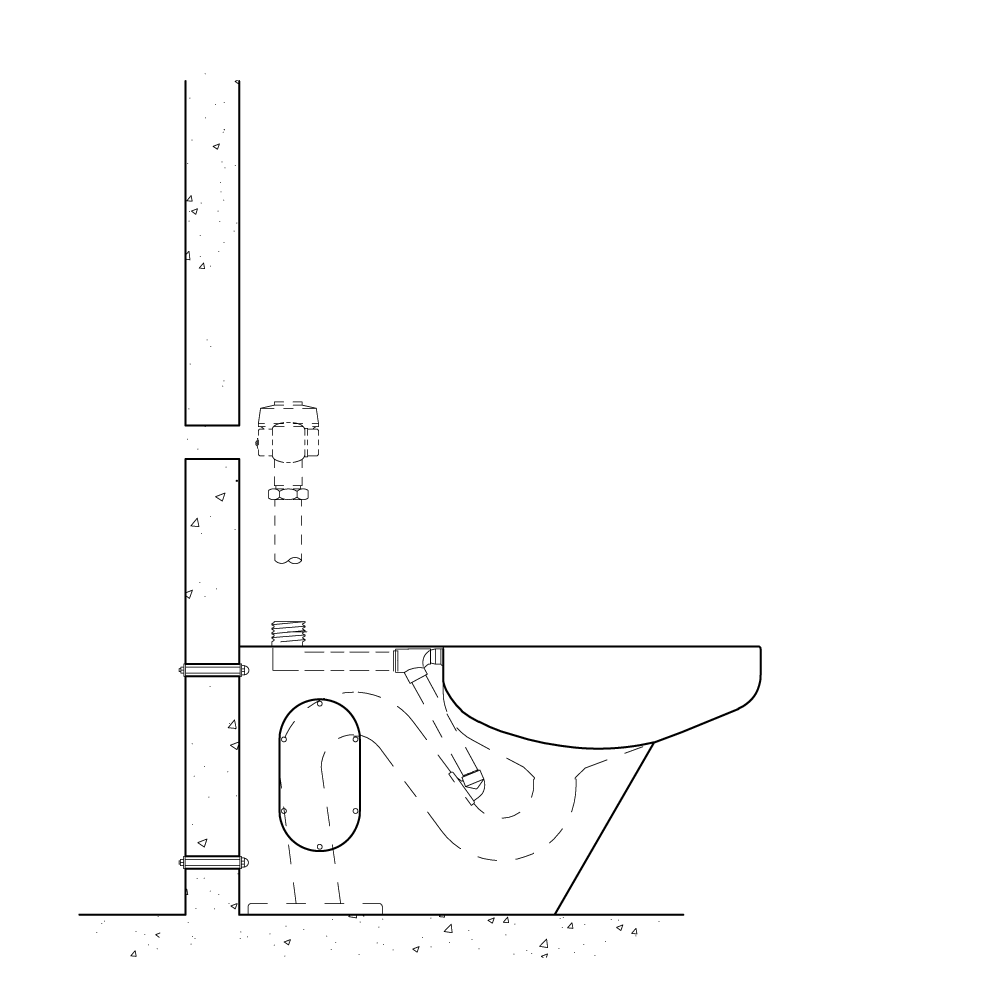

  • TOP SUPPLY Configuration
    Typically, an exposed valve mounted on top of the toilet housing

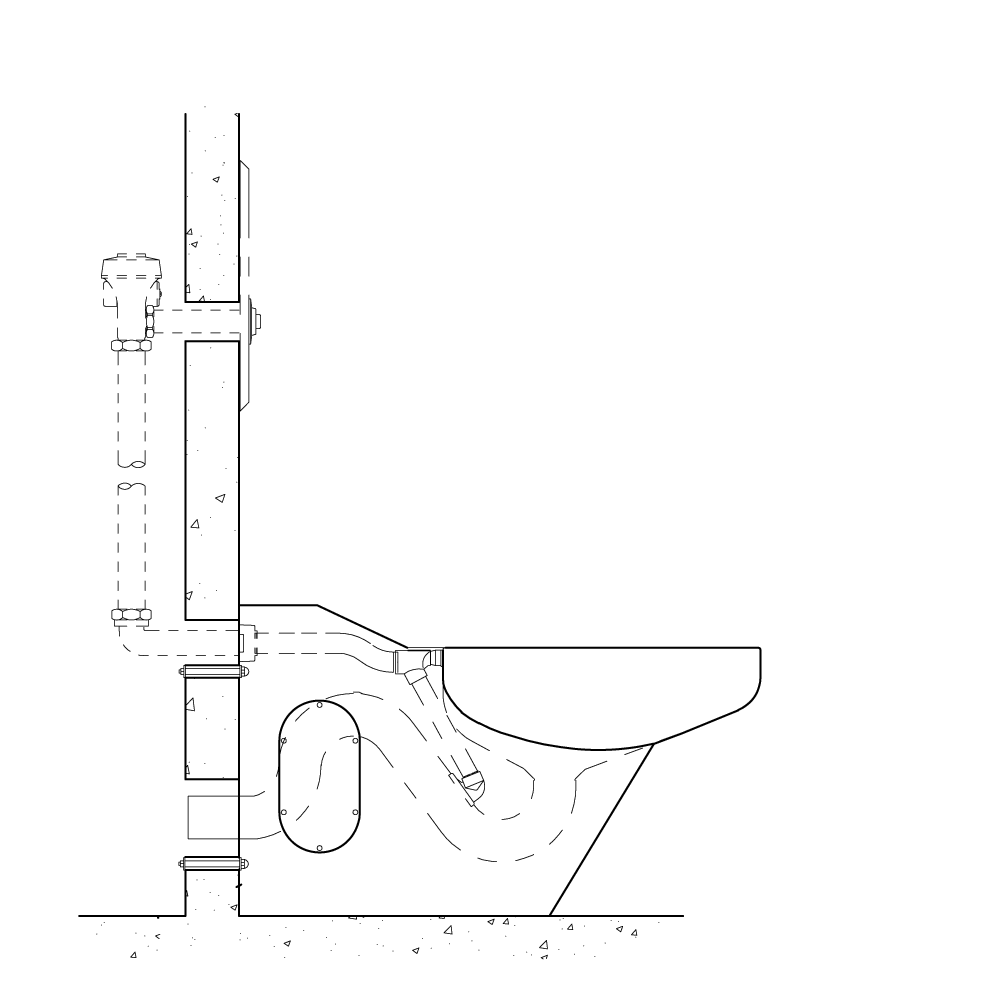

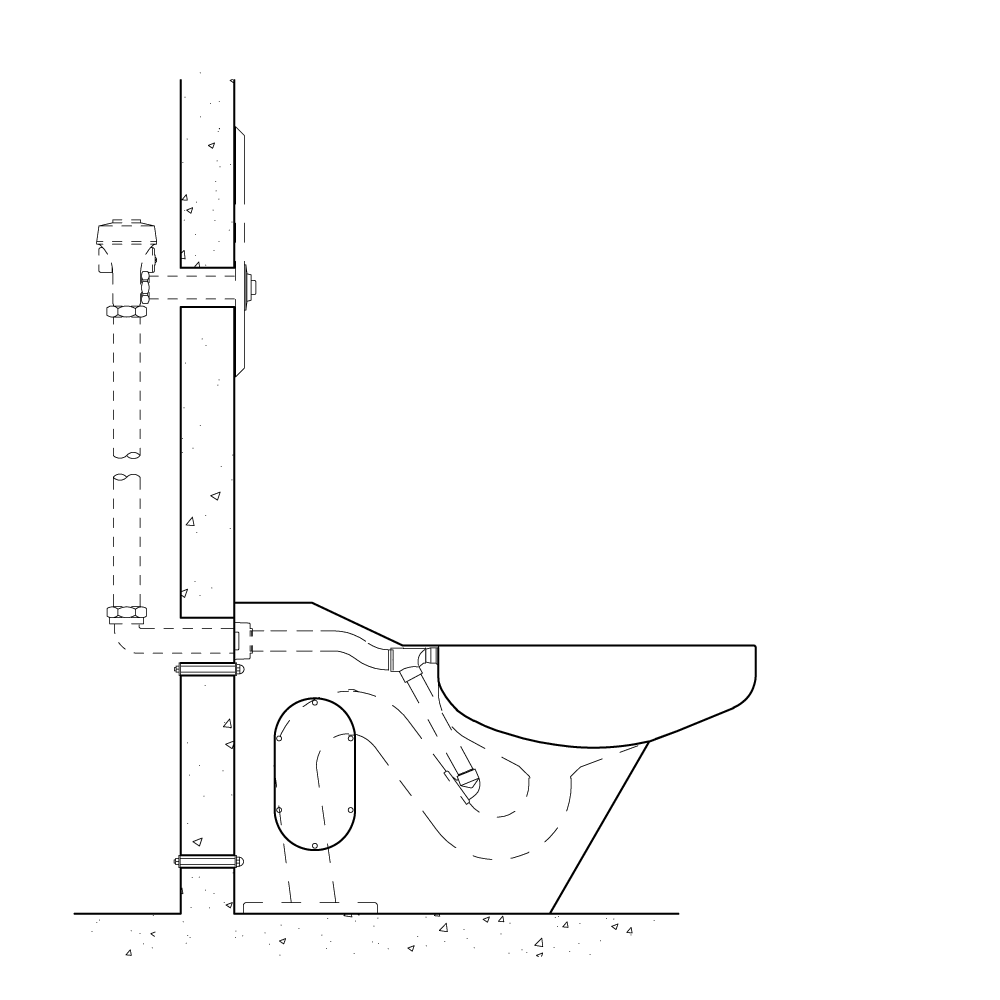

  • WALL SUPPLY Configuration
    Typically, a concealed in-wall valve
  • Specify Flush Rates per Flush

    • HET (high efficiency toilet) 1.28 gallon (4.84 liter) Watersense® certified
    • 1.6 gallon (6.05 liter) Federal EPA standard
    • 3.5 gallon (13.25 liter) verify with local code authorities
• 16-Gauge stainless steel construction
• Mounting/Wall Waste Configurations:
  • -1 | Off-Floor, Wall Waste
  • -2 | On-Floor, Wall Waste
  • -3 | On-Floor, Floor Waste
• Elongated Toilet Bowl
  Punched for an elongated toilet seat (not included) with 5-1/2" (140 mm) mounting centers
• ADA-compliant toilets are available
• ASME A112.19.3-2008 and CSA B45.4-2008 compliant

The toilet is designed to meet the needs of heavy-duty use, water conservation, and ADA compliance (when mounted properly).  Special-height toilets are available for the 2141-2 and 2141-3 models, meeting the 18" (457 mm) seat height. 2141-1 toilets can meet the ADA 18" height if installed properly.

WaterSense® advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.

Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority.
