Model 2176

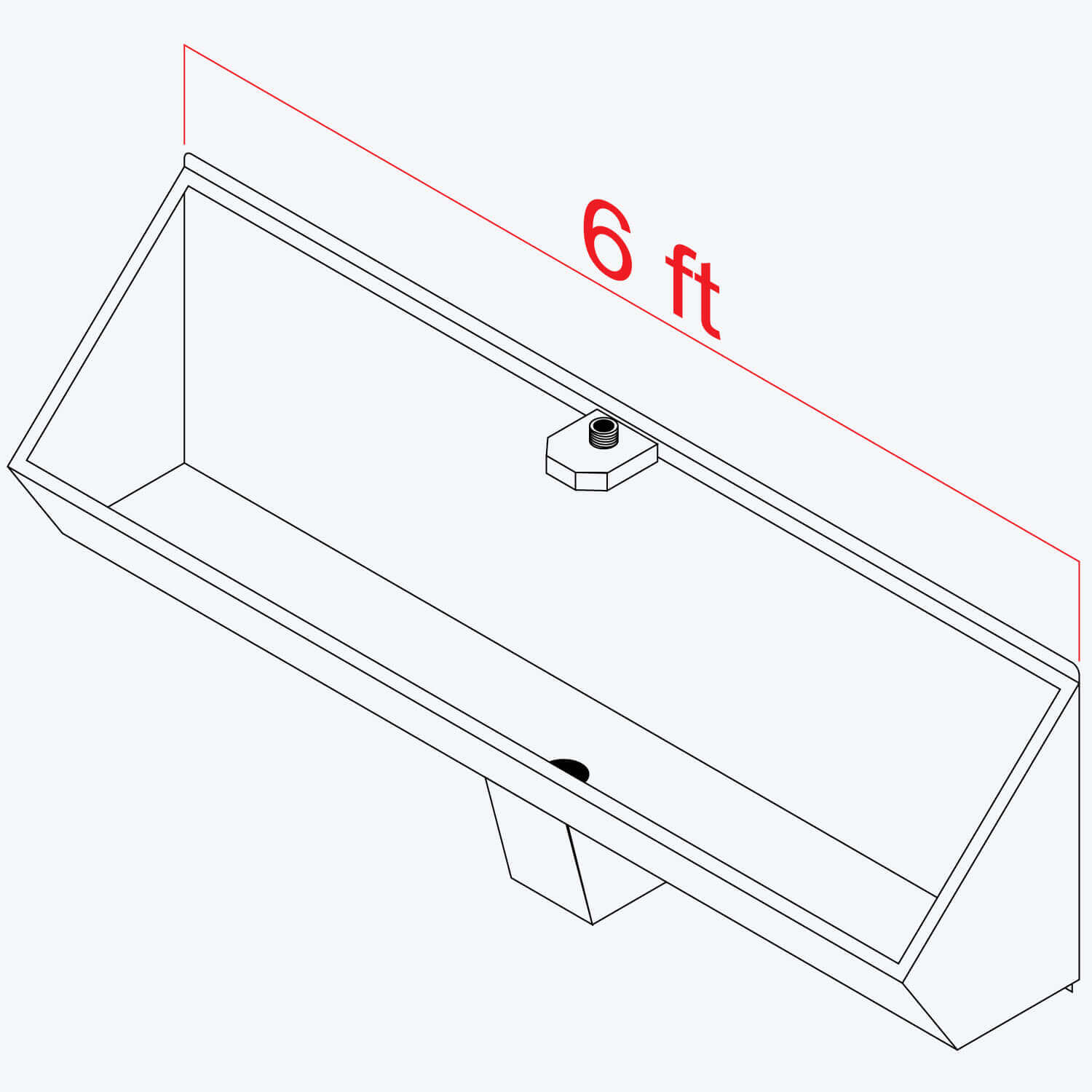

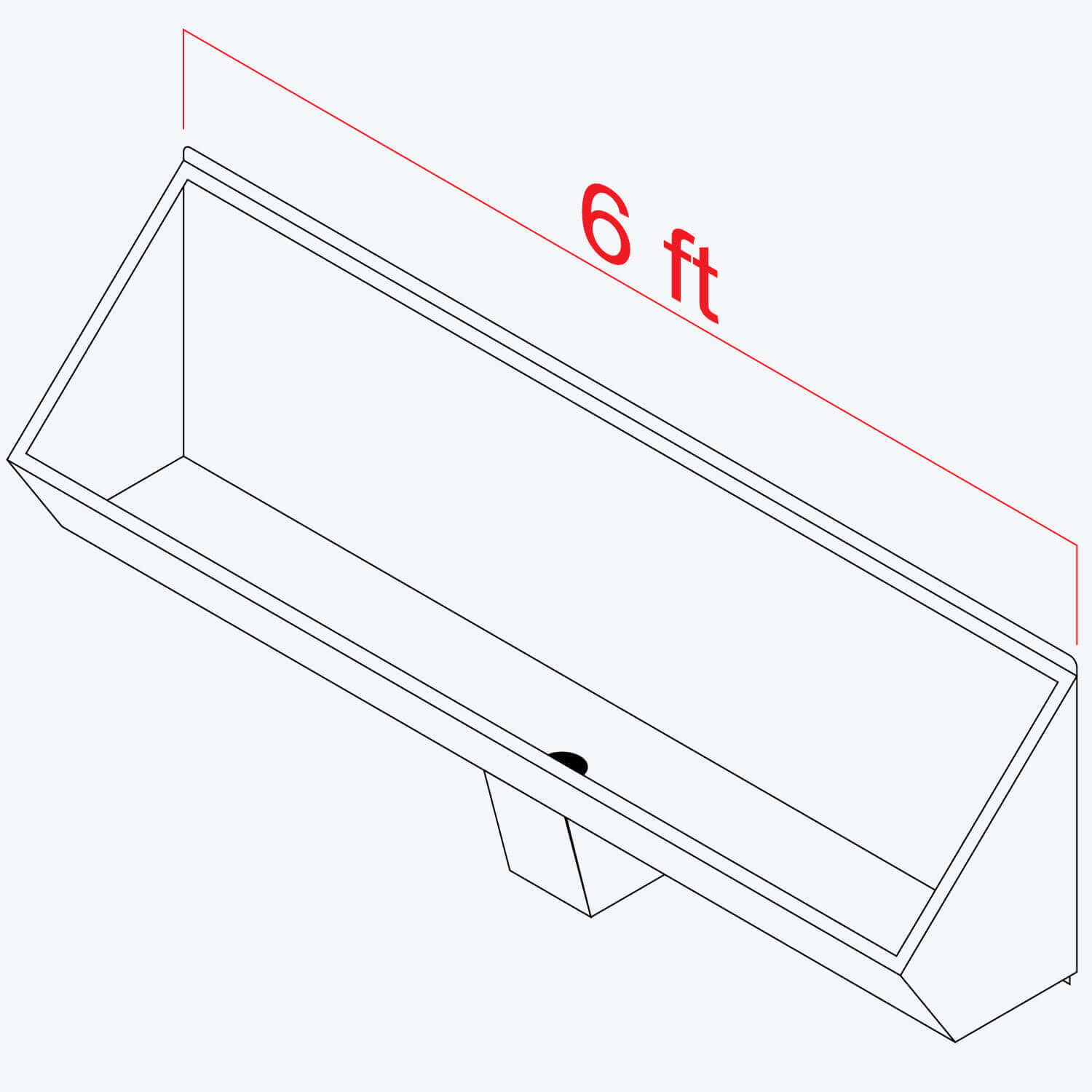

Front Mount, Washout, Six Foot Stainless Steel Trough Urinal
This six foot stainless steel trough urinal is designed for a wall mount application. It is available with backwall washdown, mounts off-floor, has a wall water supply, and a wall waste outlet. This urinal is not available for sale or use in California.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 0 | 96 KB | |||
| | Dura-Ware Multi-Person Washout Urinal 2173, 2174, 2175, 2176, 2178 | 0 | 568 KB | ||
 | | 0 | 263 KB | |||
 | | Acorn Engineering - Commercial Urinals | 0 | 134 KB | ||
| | Acorn Engineering - Commercial Urinals | 0 | 148 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Waste Connections and Thru-Wall Extensions: Waste Adapters Installation Details | 0 | 49 KB |
Specifications
| Product Type | Urinal |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1) |
| Brand | Dura-Ware® |
| Material | Stainless Steel |
| Mounting | Front Mounted |
| Vandal Resistant | Moderate |
| Product Features | Trough Style, Washout |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | CFR | Option: Continuous 360 Degree Flushing Rim | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | FG | Option: Fourteen Gauge Type 304 Stainless Steel | ||

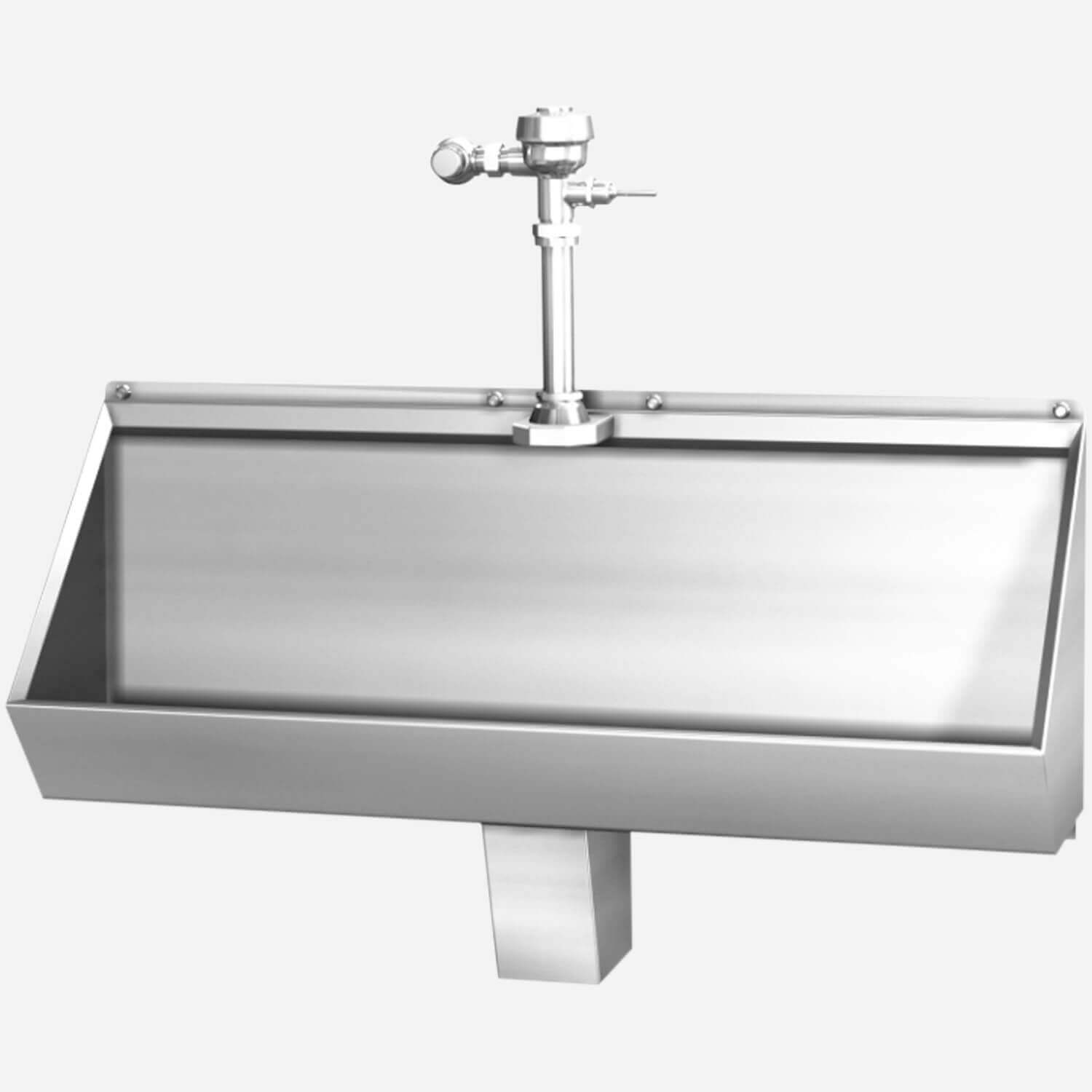

 | FV (Urinal) | Option: Flush Valve For Urinal | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVL | Option: Flush Valve with Lever Activation | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||

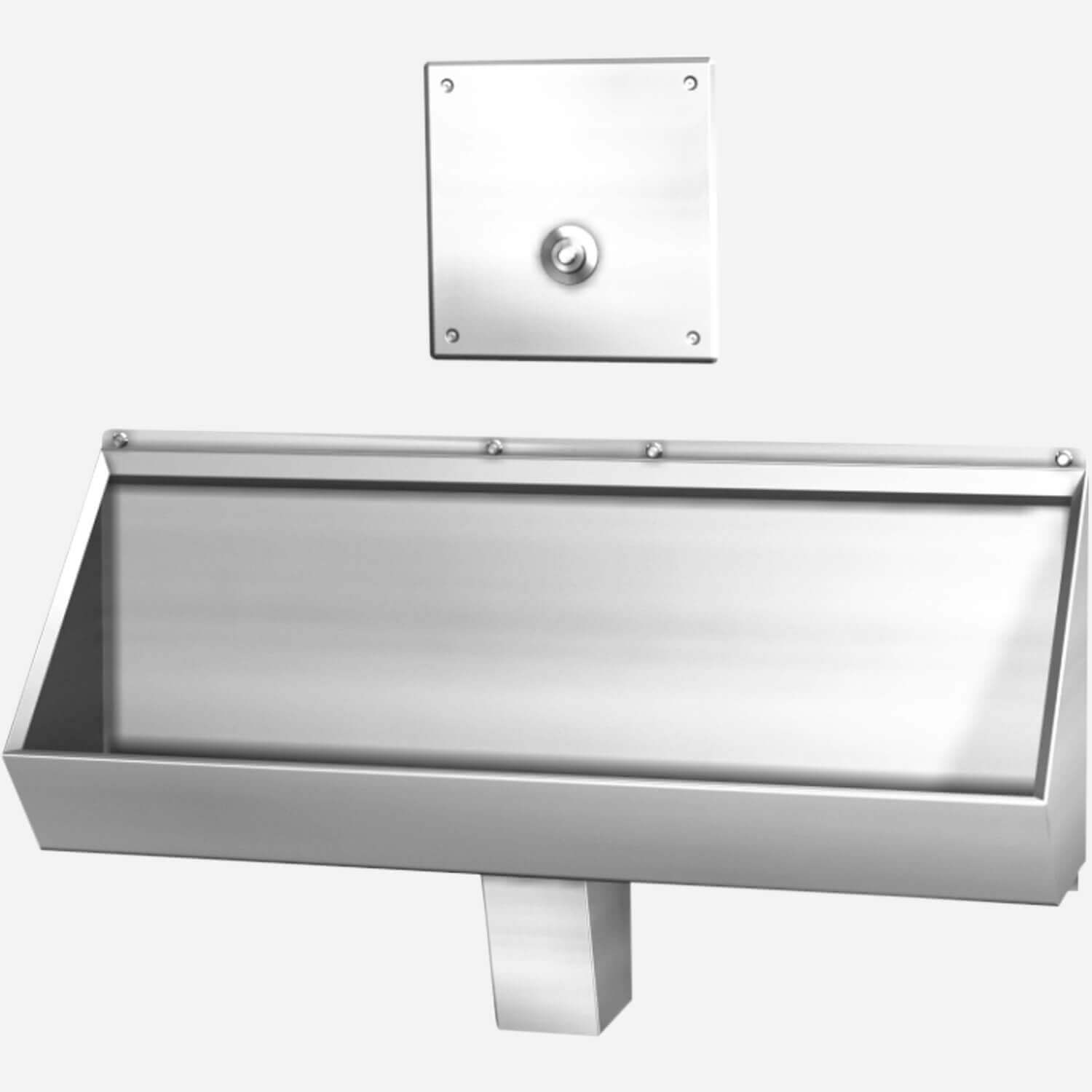

 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | Option W (Urinal) | Wall Supply for Urinal | ||
 | T (Urinal) | Option: Top Supply for Urinal | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | WA1 | Option: Waste Adapter with 2" NCT Female
Connection | ||
 | WA2 | Option: Waste Adapter with 2" NPT Male Connection | ||
 | WA3 | Option: Waste Adapter with 2" NPT Female Connection | ||
 | WA4 | Option: Waste Adapter with 2" No-Hub Connection |
