Rear Mount, ADA Compliant Comby with Angled Toilet and Angled Rectangular Lavatory Bowl
Perfect for retrofits and new construction, this space saving ADA compliant, stainless steel, vandal resistant comby comes in an angle left, right orientation. It features a rear mount and is available in off-floor with wall waste outlet, on-floor with wall waste outlet, and on-floor with floor waste outlet configurations.
The comby is designed to meet water conservation. ADA 2010 compliancy and the rigorous demands of security facilities.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
IMPORTANT: For CBC California Title 24 Compliance refer to LR1432 comby.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Rear Mount, ADA Compliant Comby with Angled Toilet and Angled Rectangular Lavatory Bowl | 0 | 539 KB | ||
| | ADA Compliant, Toilet-Lavatory Comby with Angled Toilet, Angled Lavatory | 0 | 153 KB | ||
 | | ADA Compliant, Toilet-Lavatory Comby with Angled Toilet, Angled Lavatory | 0 | 3 MB | ||
| | ADA Compliant, Toilet-Lavatory Comby with Angled Toilet, Angled Lavatory | 0 | 1 MB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Correctional Facility Fixtures HET Toilet/Acorn Vac | 0 | 816 KB | ||
 | | Angle Left Toilet, On-Floor/Wall Waste with Hot & Cold Air-Control Valves, Penal Bubbler | 0 | 115 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Valves: Air-Control™ Non-Metering Servomotor Assembly | 0 | 142 KB | ||
| | Valves: Hot and Cold Air-Control™ Valve Body Assembly (-04) | 0 | 82 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Hot and Cold Penal Air-Trol Fixture Trim | 0 | 80 KB | ||
| | Trims: Hot and Cold Air-Control™ Fixture Trim (Lavyd with -DMS) | 0 | 62 KB | ||
| | Trims: Single Temp Air-Control™ Fixture(Lavyd with -DMS) | 0 | 104 KB | ||
| | Trims: Suicide Resistant Fixture Trim | 0 | 124 KB | ||
| | Waste Connections and Thru-Wall Extensions: Cleanout w/ O-Ring No-Hub -C01 and Threaded -CO2 | 0 | 78 KB |
Specifications
| Product Type | Comby |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Brand | Penal-Ware® |
| Mounting | Rear-Chase Mounted |
| Toilet Orientation | Angle Left (-AL), Angle Right (-AR) |
| Material | Stainless Steel |
| Institutional Applications | Correctional |
| Material Detail | 14-Gauge Stainless Steel |
| Bowl Shape | Rectangular |
| Compliance | ADA Compliant, WaterSense meets EPA Criteria - certified by IAPMO R&T, Federal Public Law 111-380 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -1 | Option: Off-Floor, Wall Outlet | ||
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | 2 (Comby) | Option: On-Floor, Wall Outlet Comby | ||
 | 3 (Comby) | Option: On-Floor, Floor Outlet Comby | ||
 | AL | Option: Angled Left Toilet Configuration for Toilet-Lav Comby | ||
 | AR | Option: Angled Right Toilet Configuration for Toilet-Lav Comby | ||
 | BC | Option: Bubbler, Code | ||
 | BP | Option: Bubbler, Penal | ||
 | BPH | Option: Hemispherical Penal Bubbler | ||
 | CI | Option: Cycle Interrupt | ||
 | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
 | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
 | CW (Comby) | Option: Combined Waste (Comby) | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSFV | Option: Flush Valve Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | EVSPFV | Option: Piezo Button Flush Valve Application Master-Trol® | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVO | Option: Flush Valve Opposite Location (Comby) | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | GBC | Option: Grab Bar Closure Plate | ||
 | GBC2 | Option: Grab Bar & Lavy Closure Plate For 1432 | ||
 | GW | Option: Gasketed Waste | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | HPS | Option: High Polish Seat #7 Finish | ||
 | HS | Option: Hinged Seat | ||
 | LF | Option: Lavatory Filler | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MA3 | Option: Manifolded Valves, 3 Set | ||
 | MA4 | Option: Manifolded Valves, 4 Set | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPFV | Option: Master-Trol® Plus Flush Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MTPPFV | Option: Master-Trol® Plus Piezo Push Button Flush Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | ULF (Toilet) | Option: Ultra Low Toilet Flush - 1.6 gallon (6 liter) per Flush |
Models
Typical models are shown below

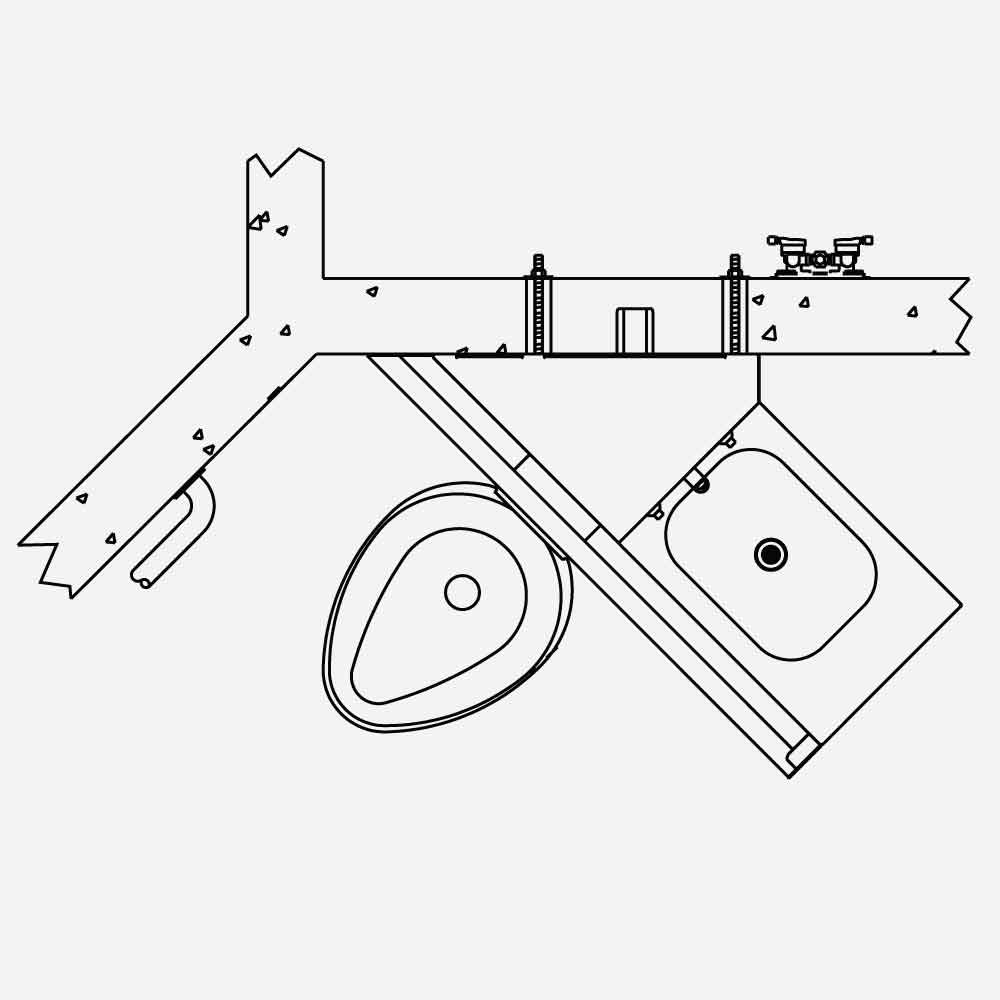

Toilet on Left/Lavy on Right
1432-AL-1
Off-Floor, Wall Waste
1432-AL-2
On-Floor, Walll Waste
1432-AL-3
On-Floor, Floor Waste

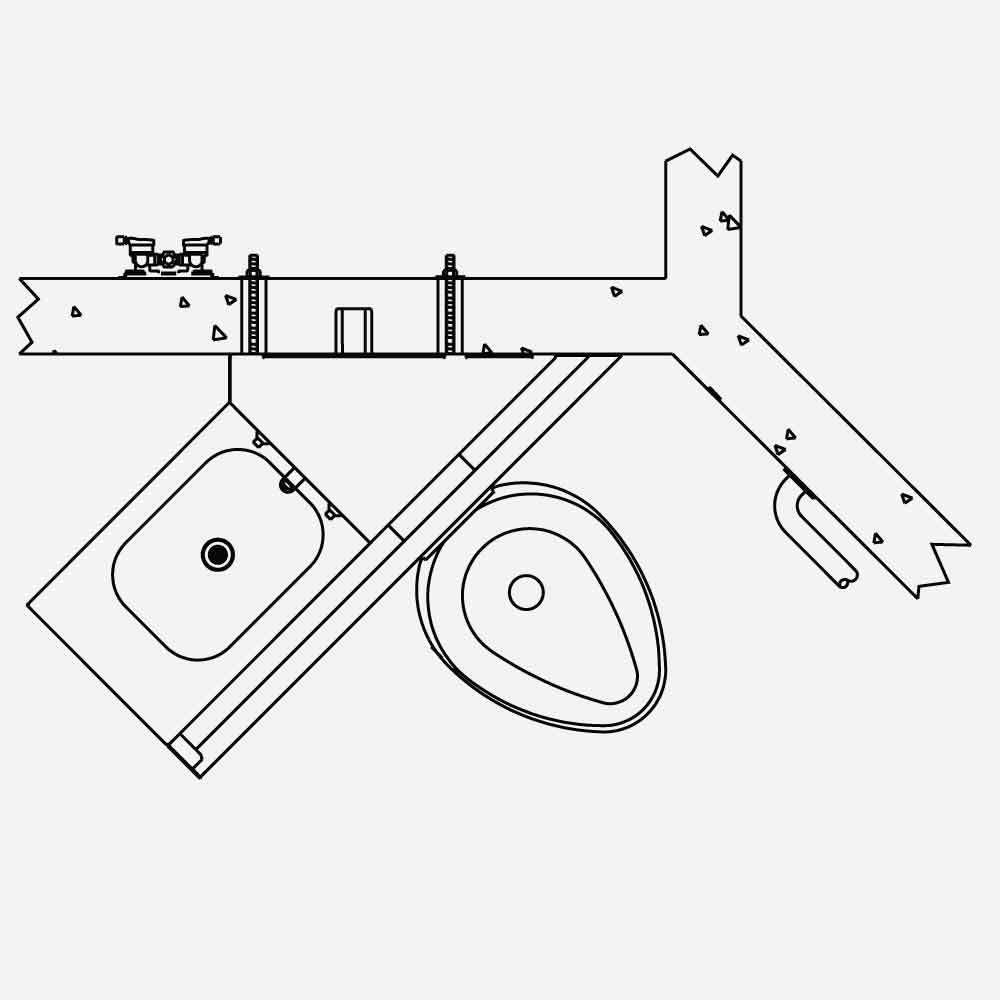

Toilet on Right/Lavy on Left
1432-AR-1
Off-Floor, Wall Waste
1432-AR-2
On-Floor, Walll Waste
1432-AR-3
On-Floor, Floor Waste
Product Variations
Image | Model ID | Description |
|---|---|---|
 | 1432FA | Front Access, ADA Compliant Comby with Angled Toilet and Angled Rectangular Lavatory Bowl |
