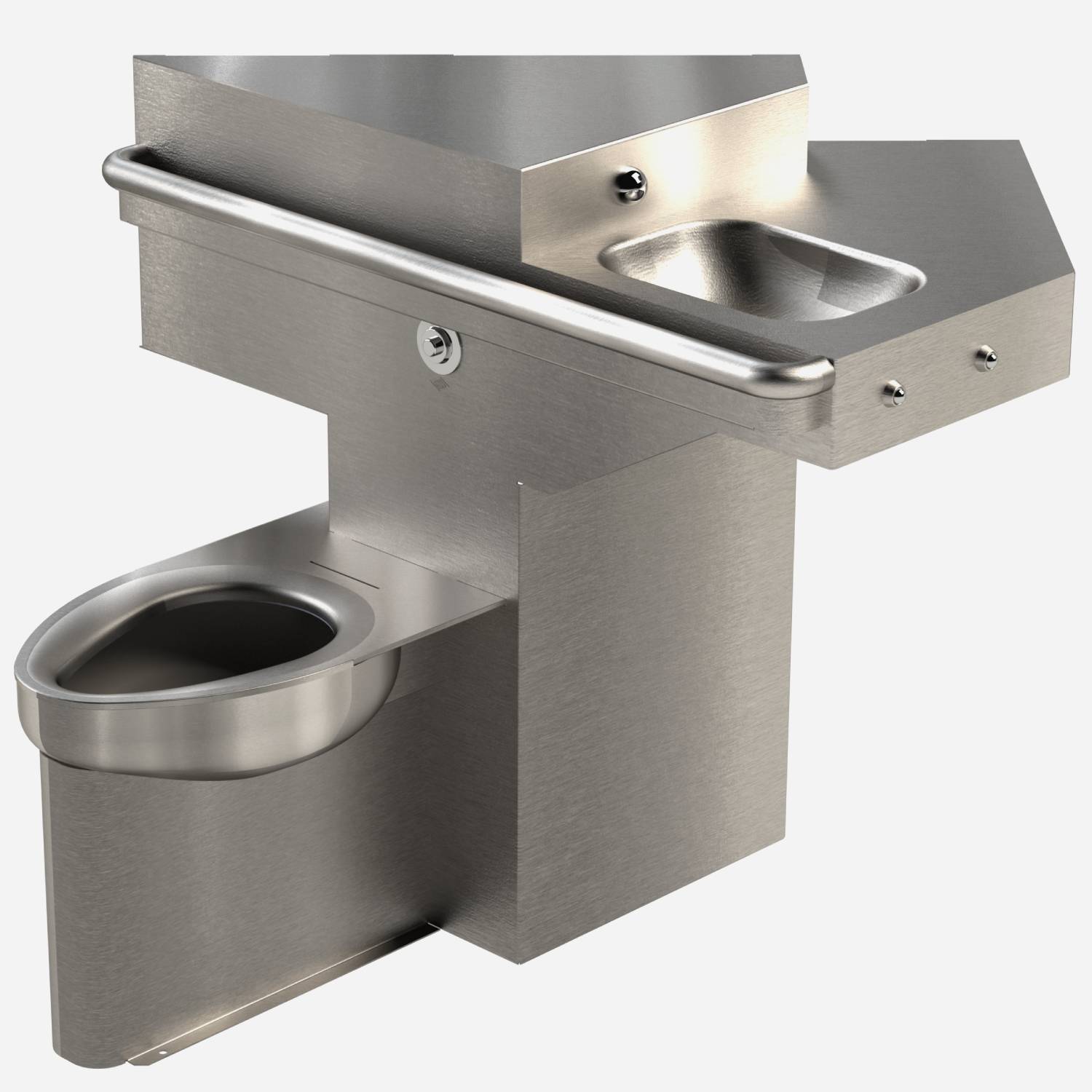

Model LR1432 Series
Secur-Care® ADA/CBC Ligature Resistant - Lav/Toilet Comby - Angled Toilet Bowl - Angled Lavy
Downloads
Specifications
| Product Type | Comby |
| Configurations Available | On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Brand | Secur-Care® |
| Material | Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Toilet Orientation | Angle Left (-AL), Angle Right (-AR) |
| Institutional Applications | Correctional |
| Bowl Shape | Oval |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T, ADA Compliant, CBC (Calif. Title 24), Ligature-Resistant |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
![]() | SW | Accessory: Wall Sleeve |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
![]() | 03 | Option: Single Temperature Air-Control® Pneumatic Valve | ||
![]() | 04 | Option: Hot & Cold Air-Control® Pneumatic Valve | ||
![]() | 2 (Comby) | Option: On-Floor, Wall Outlet Comby | ||
![]() | 3 (Comby) | Option: On-Floor, Floor Outlet Comby | ||

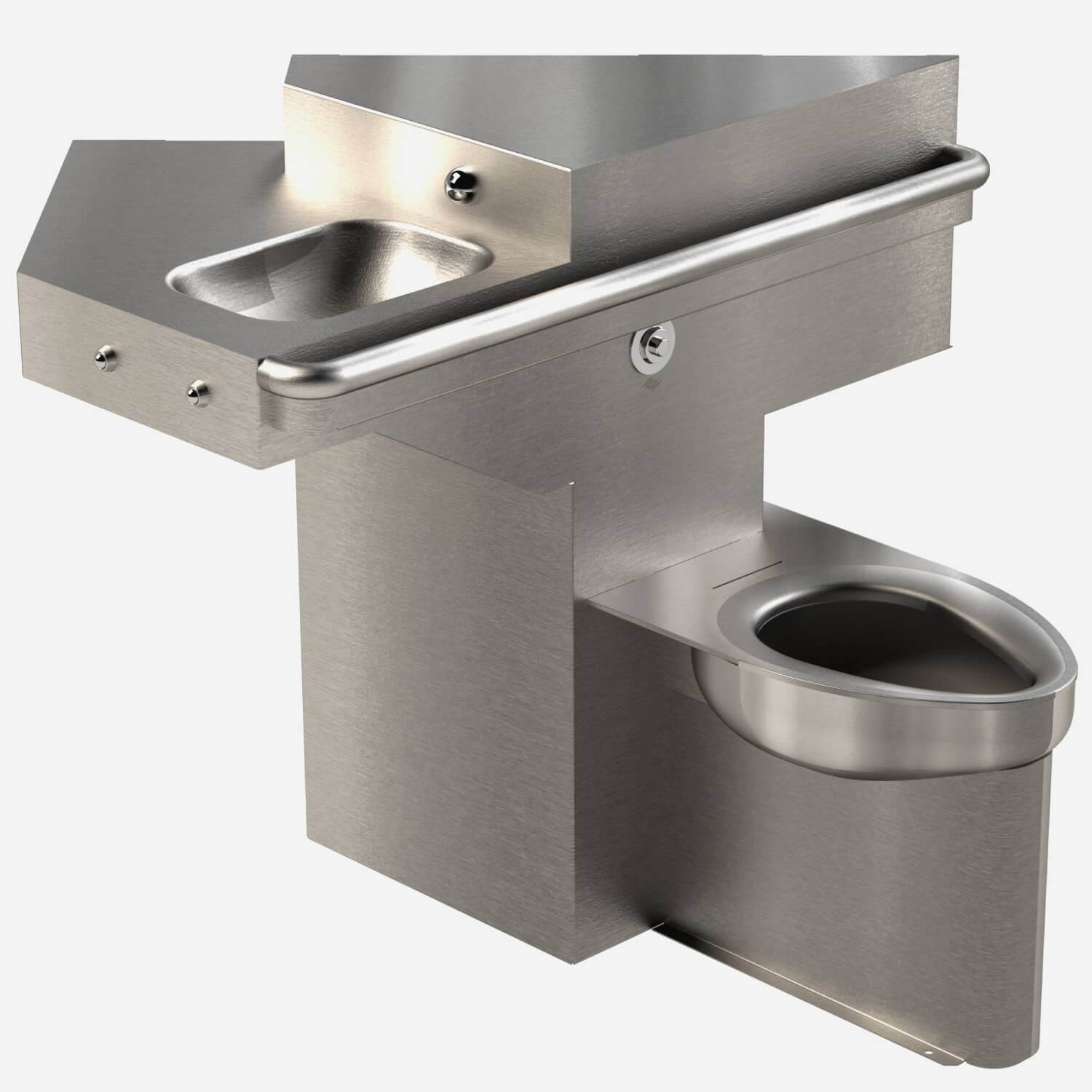

![]() | AL | Option: Angled Left Toilet Configuration for Toilet-Lav Comby | ||
![]() | AR | Option: Angled Right Toilet Configuration for Toilet-Lav Comby | ||
![]() | BPH | Option: Hemispherical Penal Bubbler | ||
![]() | BRS | Option : Lead-Free Brass Body Valve | ||
![]() | CI | Option: Cycle Interrupt | ||
![]() | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
![]() | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
![]() | CW (Comby) | Option: Combined Waste (Comby) | ||
![]() | DMFH | Option: Deck Mounted Bubbler - Hemispherical Cup Filler | ||
![]() | EVS1 | Option: Single Temperature Application Master-Trol® | ||
![]() | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
![]() | EVSFV | Option: Flush Valve Application Master-Trol® | ||
![]() | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
![]() | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
![]() | EVSPFV | Option: Piezo Button Flush Valve Application Master-Trol® | ||
![]() | FMT | Option: Fixture Mounted Trim | ||
![]() | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
![]() | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
![]() | FVBO | Option: Flush Valve by Others | ||
![]() | FVH | Option: Hydraulic Flush Valve | ||
![]() | FVT | Option: Flush Valve Thru Wall Connection | ||
![]() | GW | Option: Gasketed Waste | ||
![]() | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
![]() | HPS | Option: High Polish Seat #7 Finish | ||
![]() | LGB (Comby) | Option: Less Grab Bar on Comby | ||
![]() | LPFV | Option: Less Punching For Flush Valve (For Remote Activation) | ||
![]() | LW1 | Option: Lavy Waste Basin Waste Thru-Wall Connection With P-trap | ||
![]() | LWE | Option: Lavy Waste Extended To Be Specified | ||
![]() | MA2 | Option: Manifolded Valves, 2 Set | ||
![]() | MA3 | Option: Manifolded Valves, 3 Set | ||
![]() | MA4 | Option: Manifolded Valves, 4 Set | ||
![]() | MT | Option: Metal Template | ||
![]() | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
![]() | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
![]() | MTPFV | Option: Master-Trol® Plus Flush Valve | ||
![]() | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
![]() | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
![]() | MTPPFV | Option: Master-Trol® Plus Piezo Push Button Flush Valve | ||
![]() | MVC1 | Single Temperature Valve Application Time-Trol® | ||
![]() | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
![]() | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
![]() | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
![]() | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
![]() | OF (Security Fixture) | Option: Security Lavatory Overflow | ||
![]() | PC | Option: Pinned Cleanout Plug | ||
![]() | PFB | Option: Power Failure Bypass on Master-Trol® Plus | ||
![]() | PH | Option: Paper Holder | ||
![]() | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
![]() | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
![]() | PT | Option: P-Trap | ||
![]() | TF | Option: Transformer for AC Power Valve | ||
![]() | TG | Option Twelve Gauge Type 304 Stainless Steel | ||
![]() | TH | Option: Towel Hook | ||
![]() | TSC | Option: Toilet Shipping Cover | ||
![]() | TWE | Option: Toilet Waste Extended To Be Specified | ||
![]() | WO3B | Option: 2-3/8 Inch P-Trap with 3 Inch Plain End Waste Outlet |
