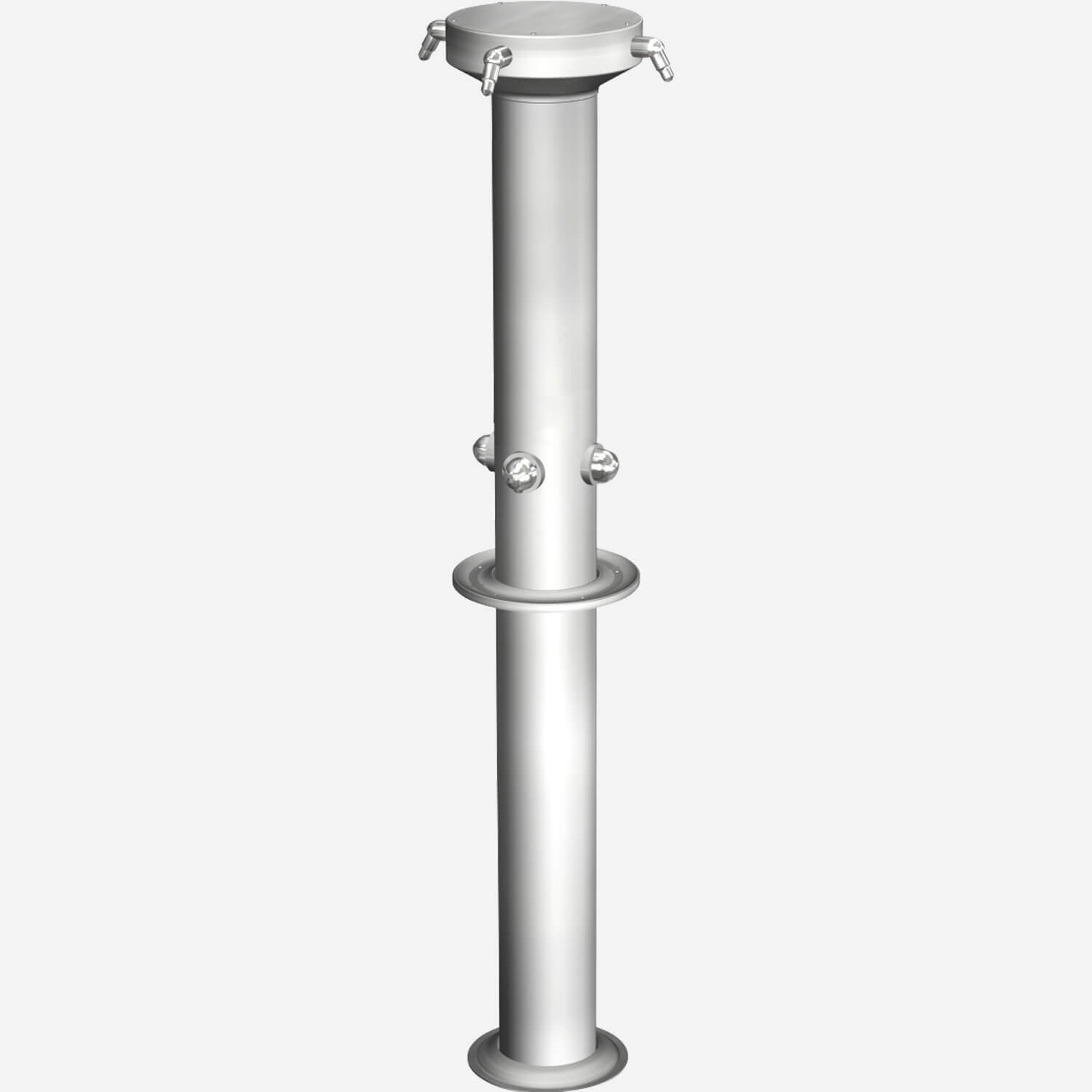

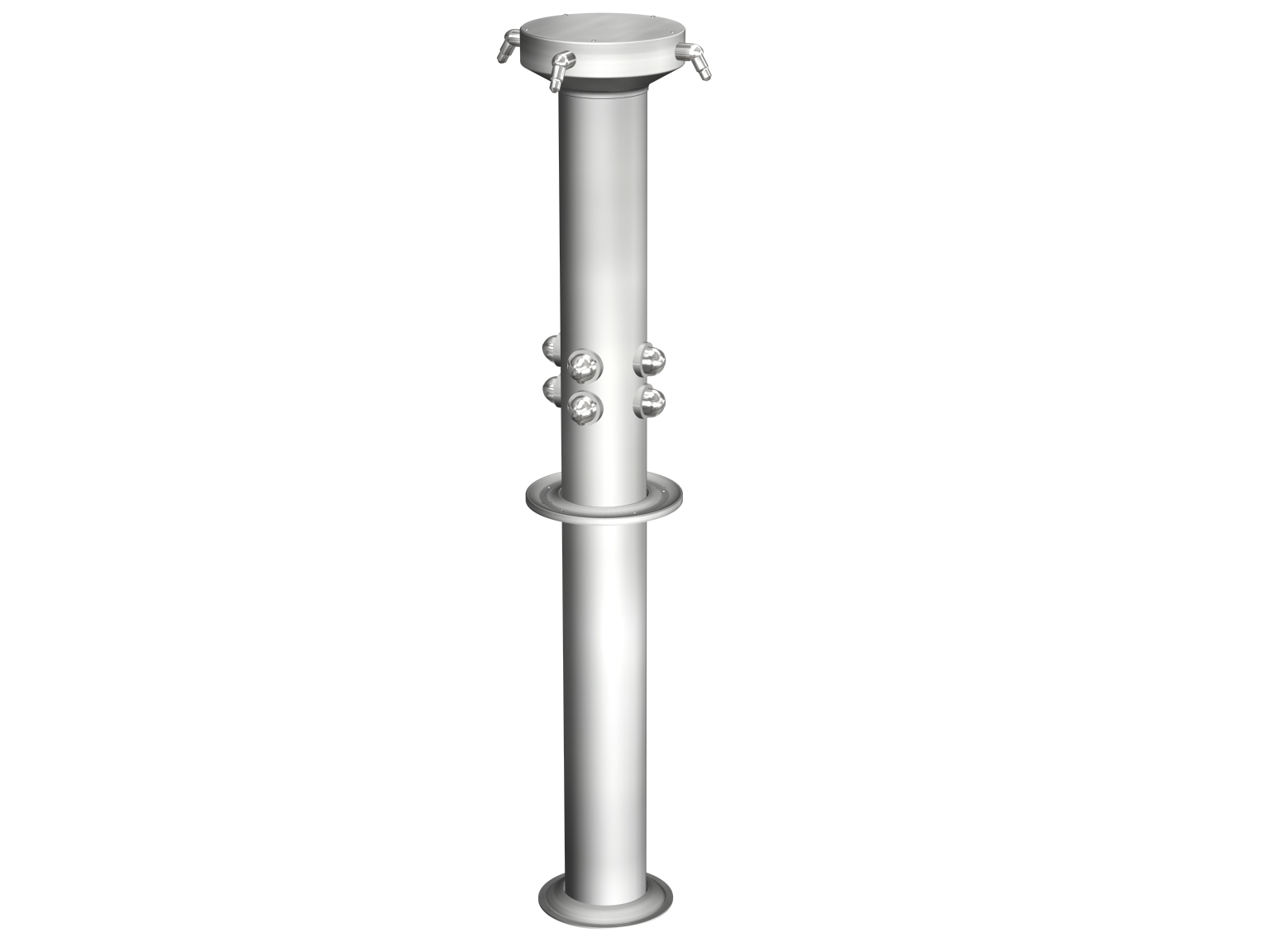

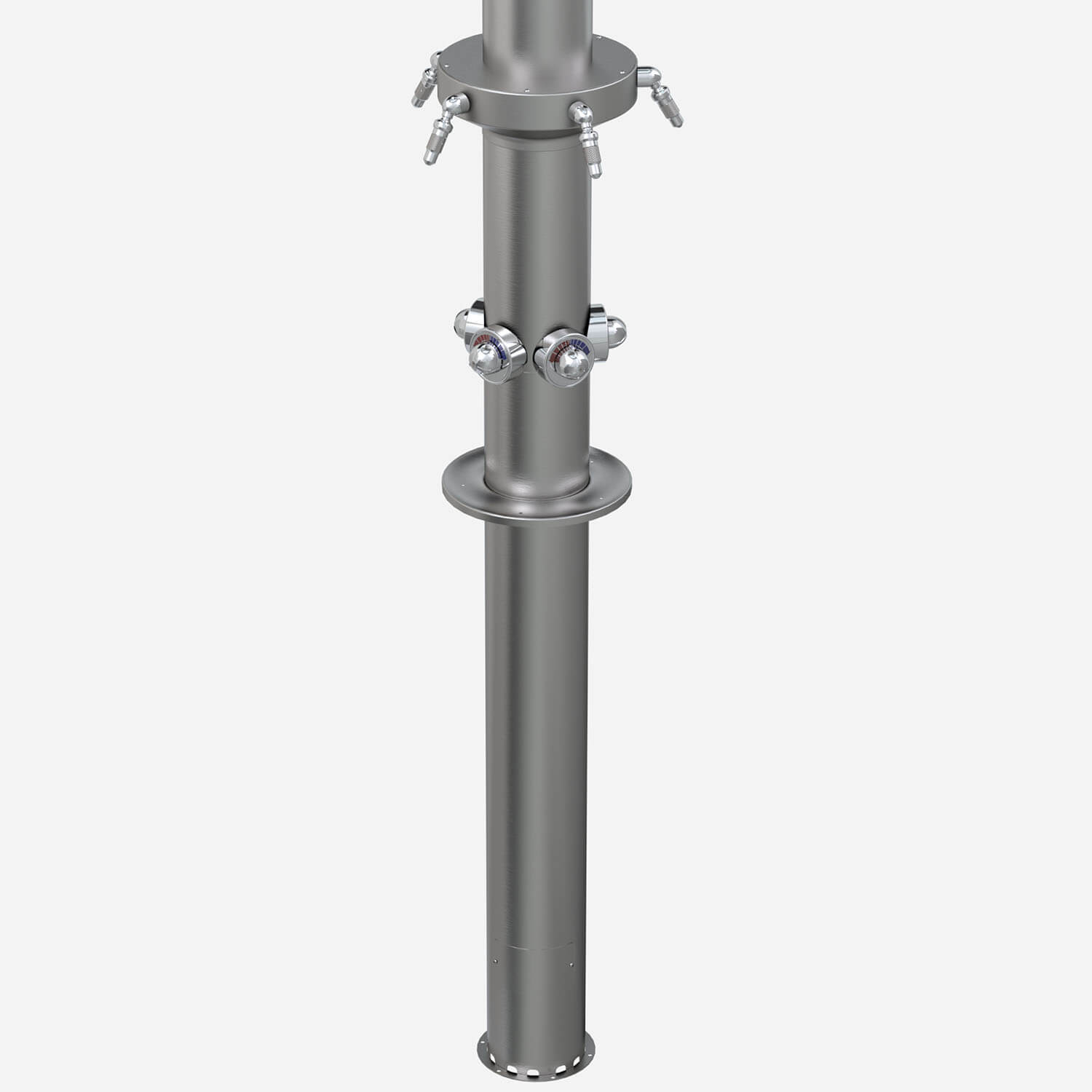

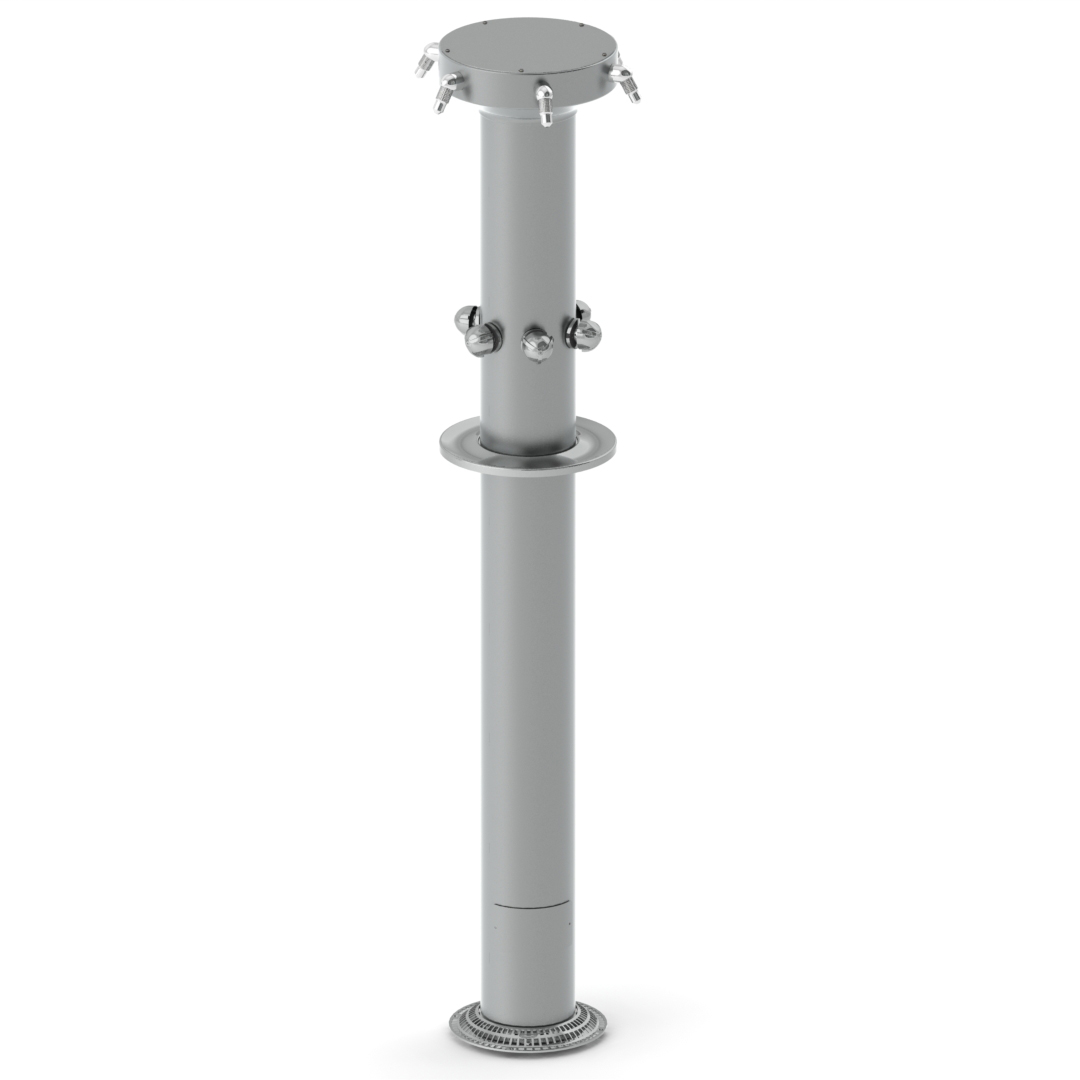

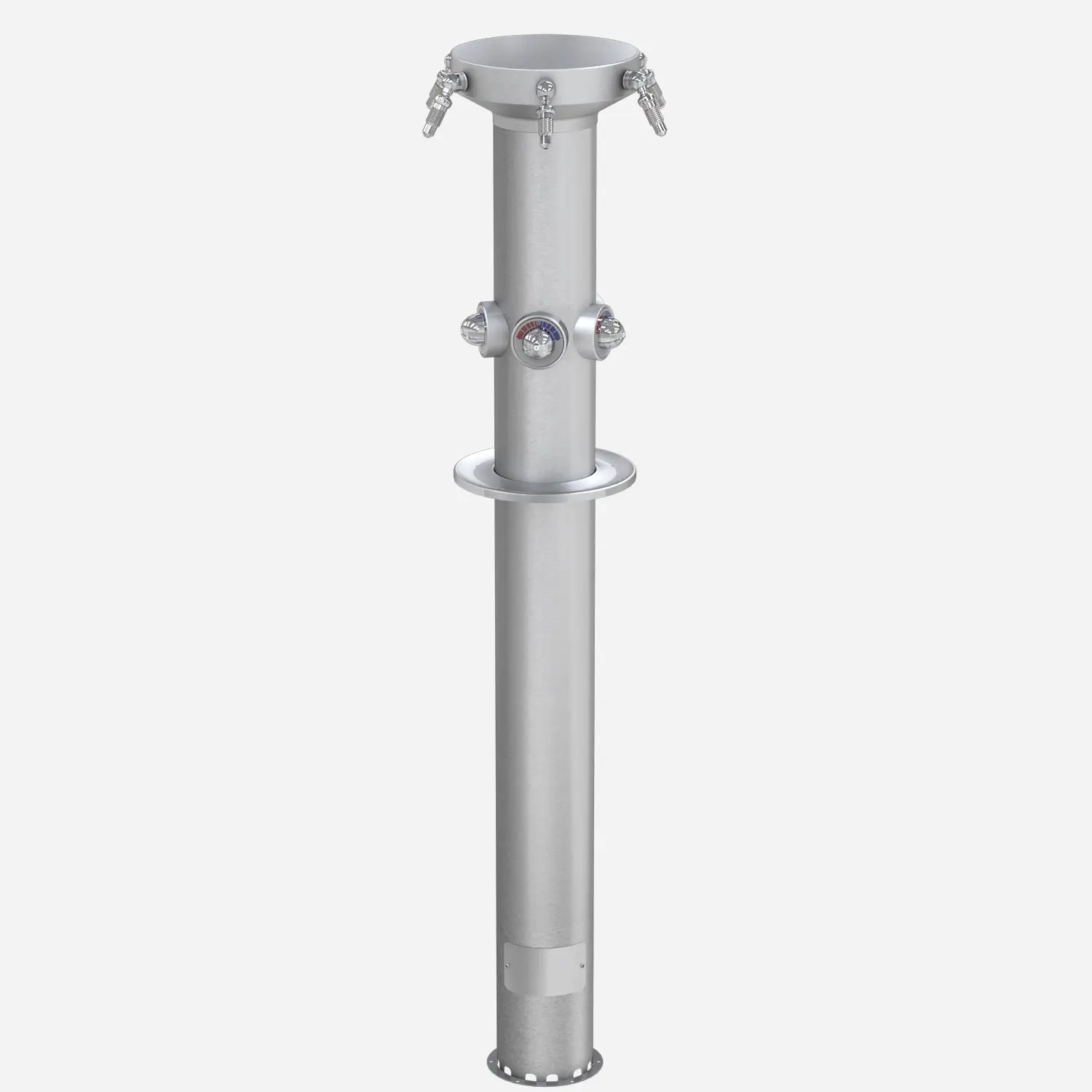

Cylindrical Stainless Steel Column Shower
Shower column shall be 16 gauge, type 304 stainless steel with satin finish. Column shall be factory pre-piped and hydrostatically tested to 150 PSI. Drain base shall be heavy cast iron with a rust preventative coating.
Several valve options are available. Air-Control Pneumatic Pushbutton Valve (7__6) and Safti-Trol, H & C Pressure Balancing Valve (7__2). Electronic Valves include Master-Trol (-EVS1, -EVSP1), Master-Trop Plus (-MTP1, -MPPP1), Time-Trol (-MVC1), Programmable Piezo Button).
On showers utilizing vent off drains (Options -B15, -B25, -T15, -T25), a thermostatic controller (Option -TC) may be specified.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base with Dome Grate | 0 | 2 MB | ||
| | Capital Cylindrical Column Shower [720, 722, 726 | Two-Station Shower; 730, 732, 736 | Three-Station Shower; 740, 742, 746 | Four-Station Shower; 750, 752, 756 | Five-Station Shower; 760, 762, 766 | Six-Station Shower] | 0 | 152 KB | ||
 | | Acorn Engineering - Commercial Showers | 0 | 288 KB | ||
| | Acorn Engineering - Commercial Showers | 0 | 221 KB | ||
| | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base with Dome Grate for Center Vent | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base for Center Vent | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base with Dome Grate | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base with Dome Grate for Center Vent | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base for Center Vent | 0 | 2 MB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
 | | Four Station, Drain Base Bottom Supply with Dome Grate, Hot & Cold Flo-Cloz Valves | 0 | 78 KB | ||
| | Six Station, Drain Base Bottom Supply with Dome Grate, Less Drain Slots | 0 | 146 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 0 | 70 KB | ||
| | Shower Heads: Shower Nozzle Assembly - Rigid Head | 0 | 132 KB | ||
| | Shower Heads: Standard Shower Head | 0 | 58 KB | ||
| | Shower-Ware - Column Drains: 3" No Hub-Vent Off Drain Base Assembly | 0 | 95 KB | ||
| | Shower-Ware - Column Drains: 4" No Hub-Vent Off Drain Base Assembly | 0 | 94 KB | ||
| | Shower-Ware - Column Drains: 3" No Hub-Vent Off Drain Base Dome Grate | 0 | 109 KB | ||
| | Shower-Ware - Column Drains: 4" No Hub-Vent Off Drain Base Dome Grate | 0 | 110 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 0 | 157 KB | ||
| | Shower-Ware - Cartridges: T/P Temperature/Pressure Balancing Mixing Valve Cartridge/Checkstops | 0 | 493 KB | ||
| | Shower-Ware - Cartridges: Meter-Matic Cartridge (Plastic) | 0 | 72 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 0 | 74 KB |
Specifications
| Brand | Shower-Ware® |
| Material | Stainless Steel |
| Institutional Applications | Correctional, Educational Building, Hospital & Treatment Center, Train Station & Airport, Other Institutional Buildings |
| Commercial Applications | Stadium & Arena, Health club |
| Park and Recreation Applications | Yes |
| Product Type | Shower |
| Mounting | Pedestal |
| Product Features | Cylindrical |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | B11 | Option: Shower Drain Base Bottom Supply with Dome Grate | ||
 | B15 | Option: Shower Drain Base Bottom Supply with Dome Grate for Center Vent | ||
 | B21 | Option: Shower Drain Base Bottom Supply | ||
 | B25 | Option: Shower Drain Base Bottom Supply for Center Vent | ||
 | BDF | Option: Bradley® Drain Adapter Flange | ||
 | BS | Option: Built-In Liquid Soap System | ||

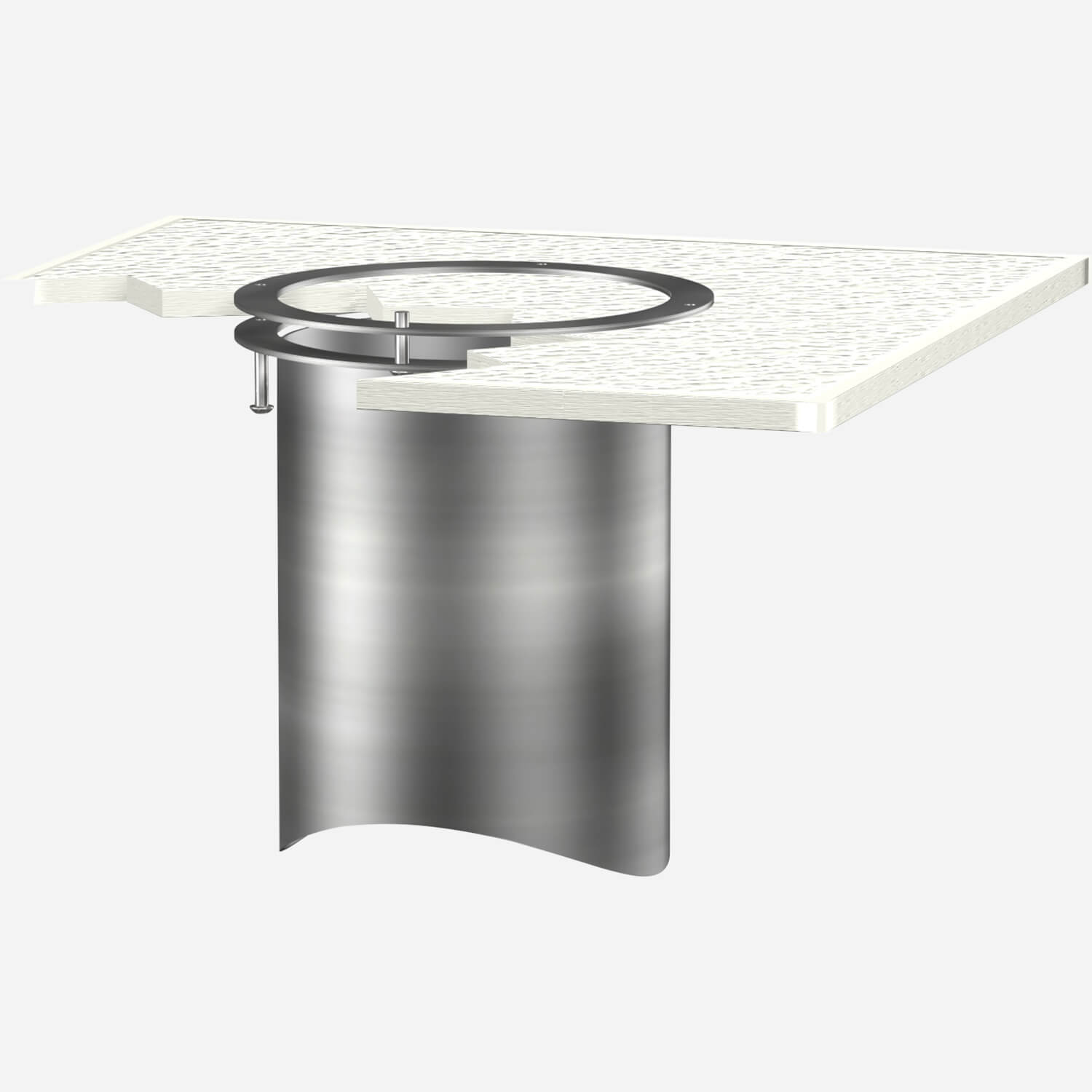

 | CA | Option: Ceiling Anchor Plate | ||

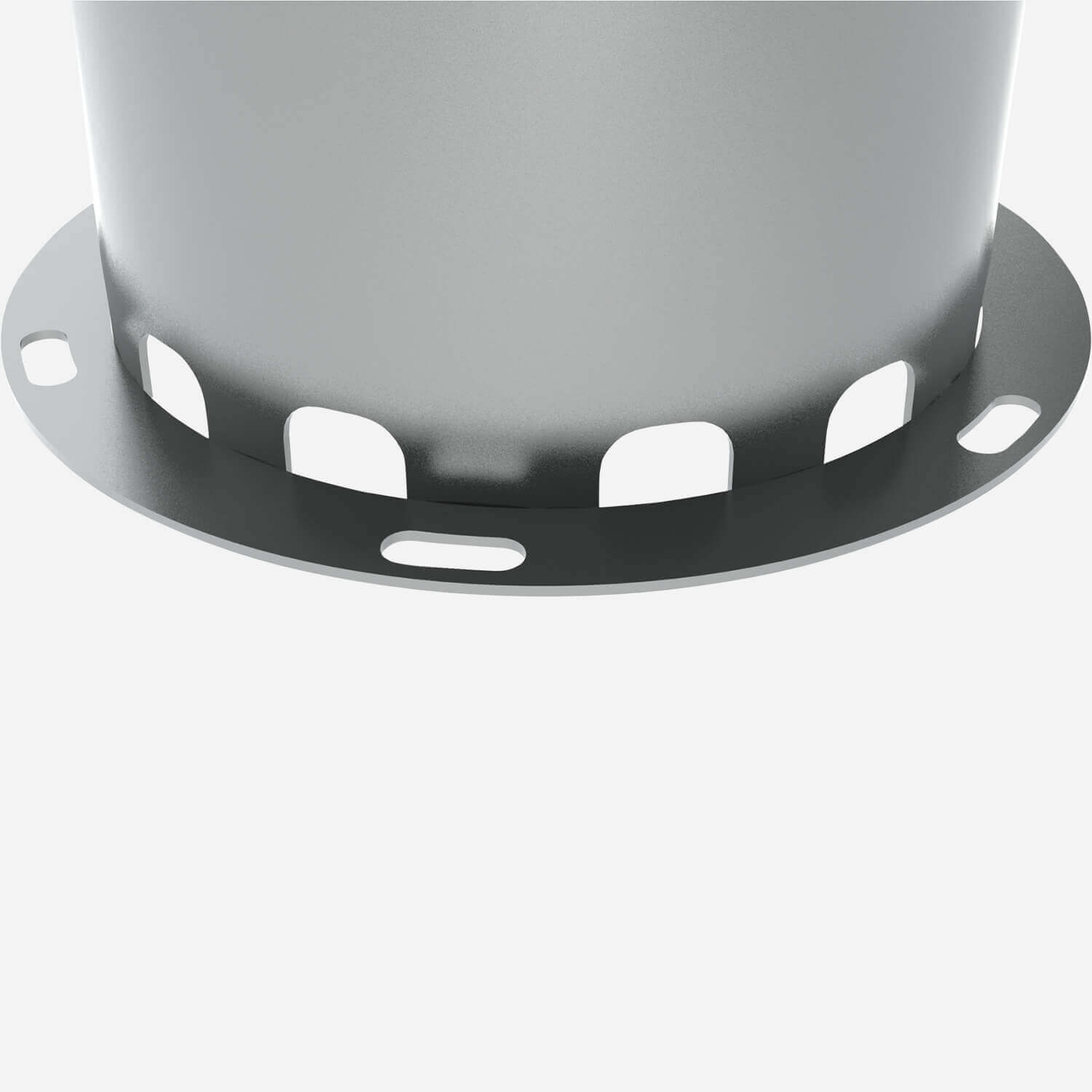

 | CF | Option: Adjustable Column Flange | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||

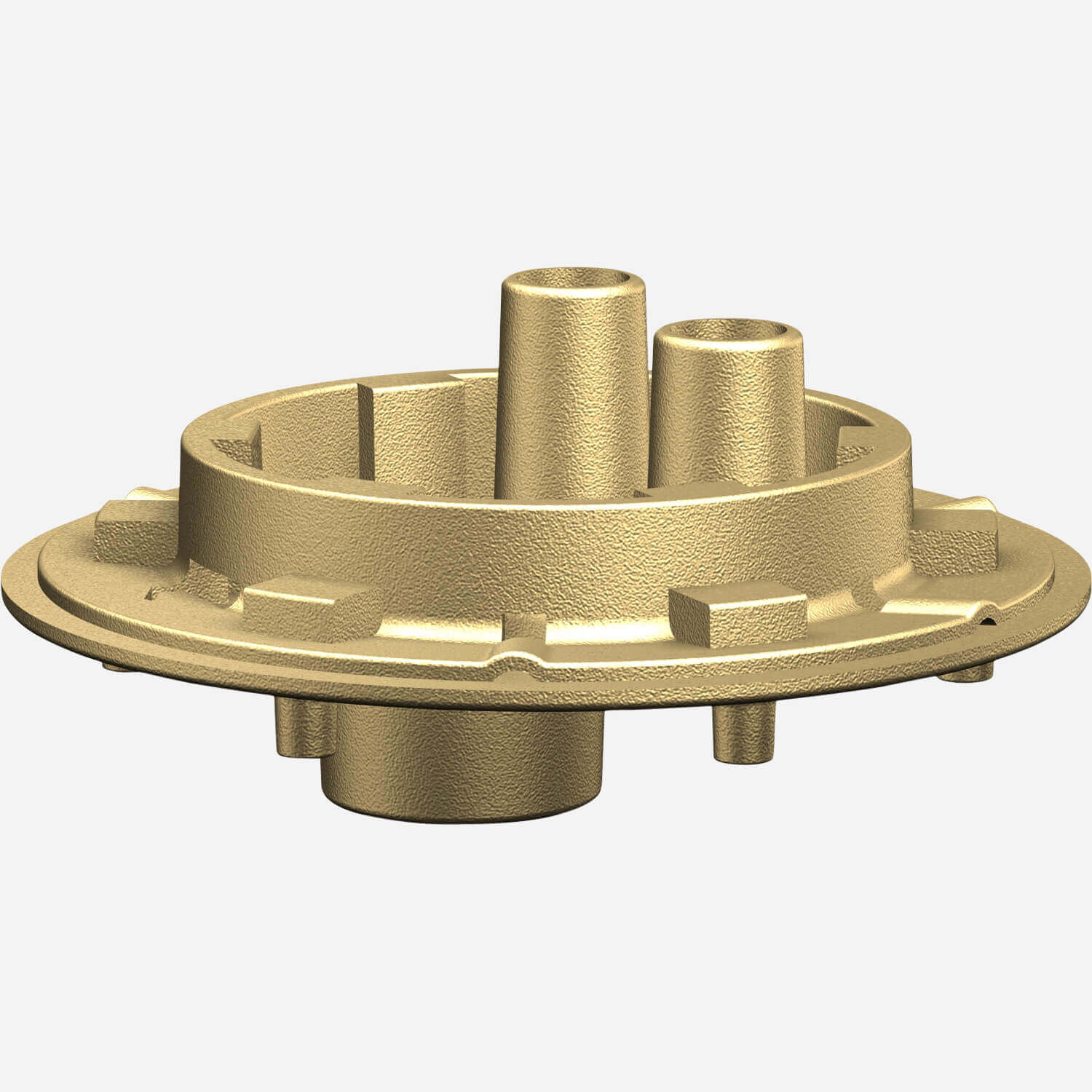

 | FO | Option: 4" No-Hub Waste Outlet | ||
 | FS | Option: Foot Spray | ||

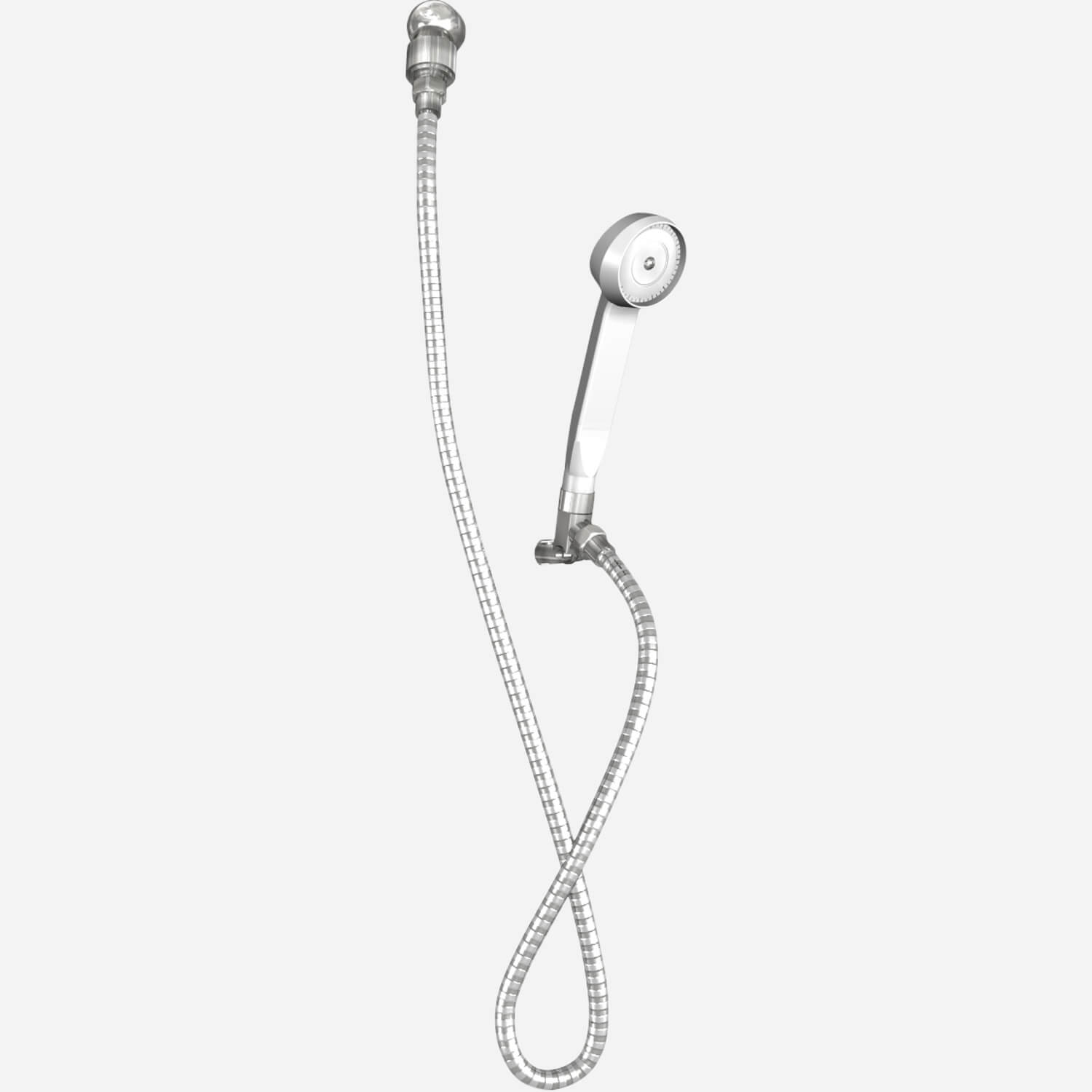

 | FX | Option: Hand Shower | ||

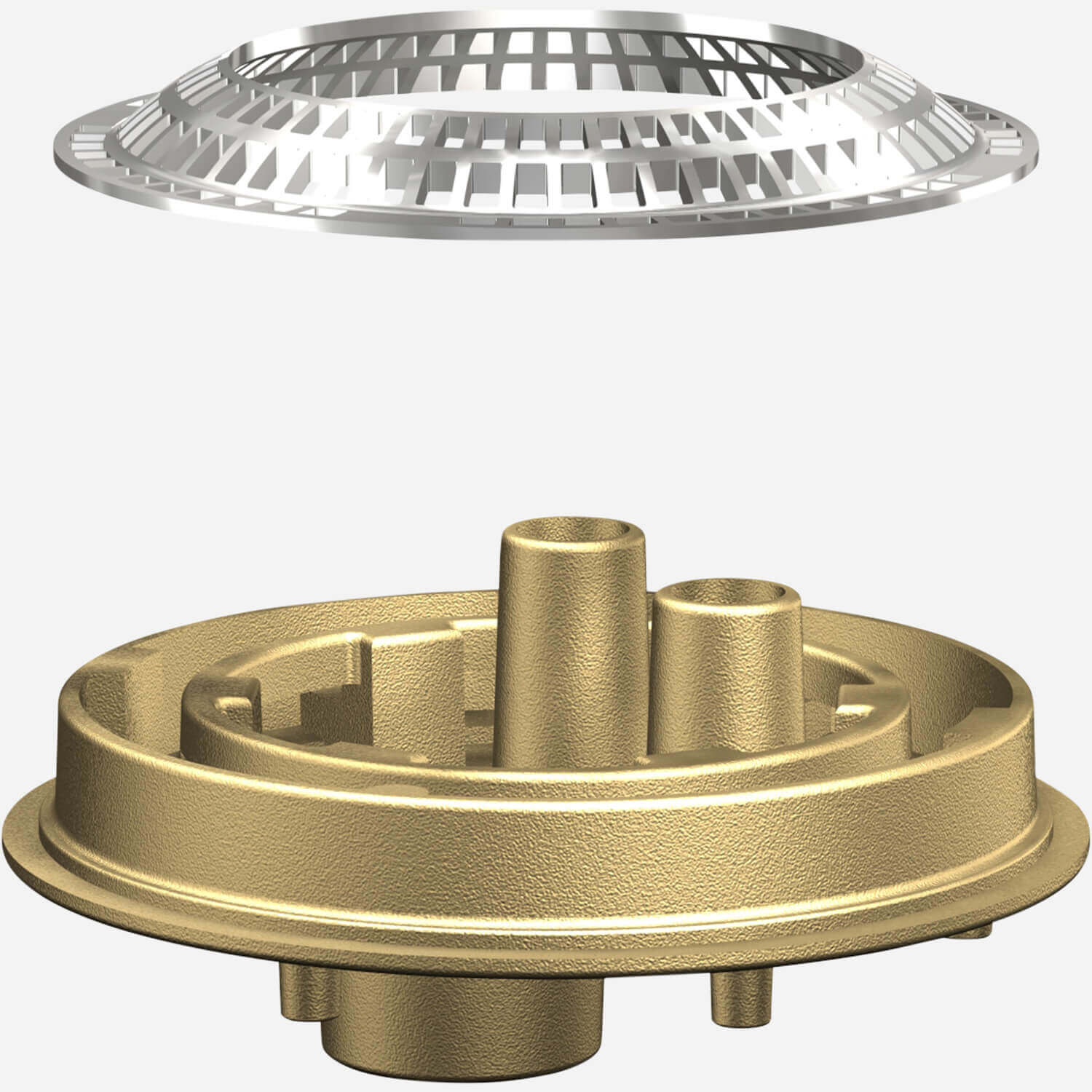

 | IC (Column Shower) | Option: Inside Caulk Waste, 3-inch (Column Shower) | ||

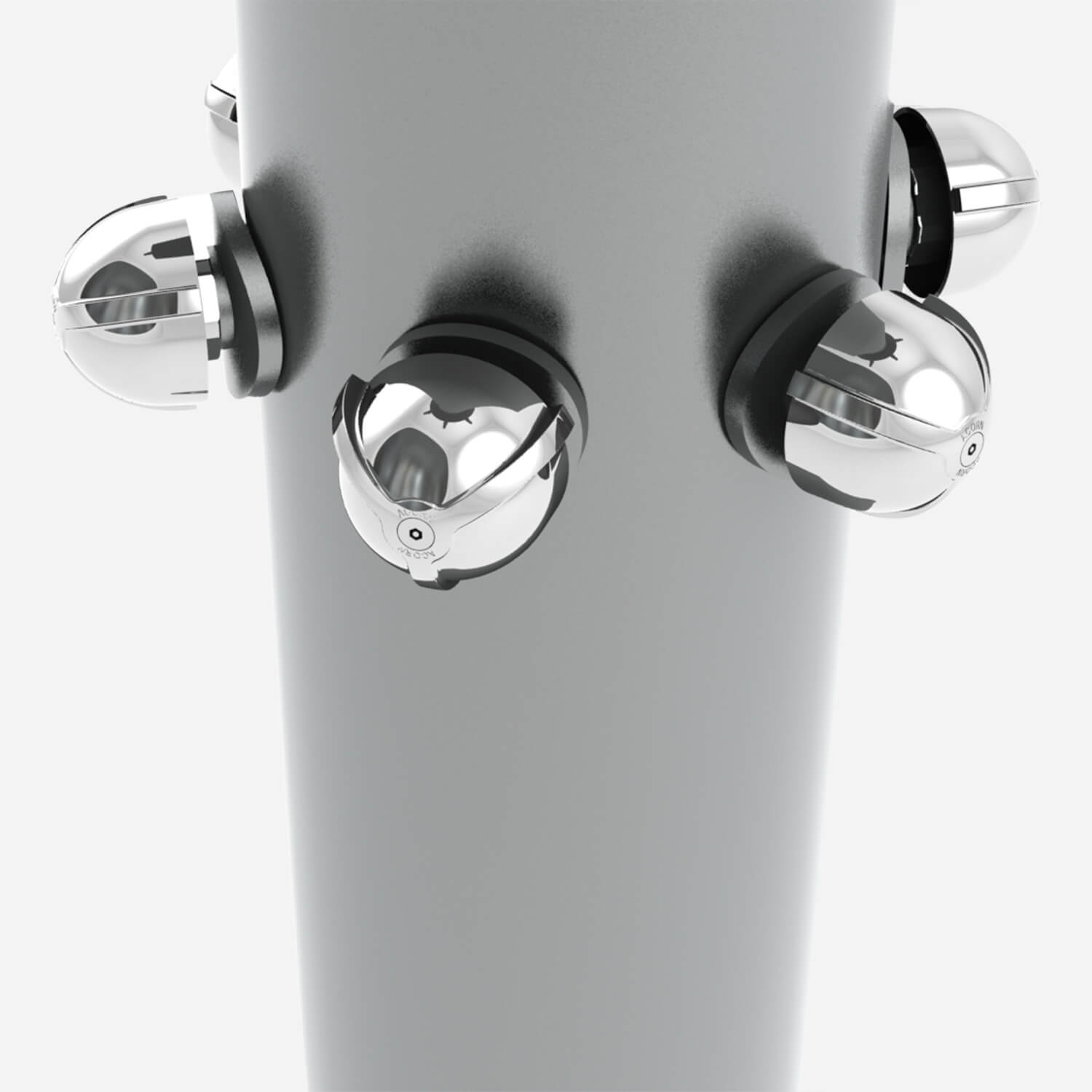

 | LCD | Option: Less Circular Soap Dish on Column Shower | ||
 | LD | Option: Less Drain Slots | ||

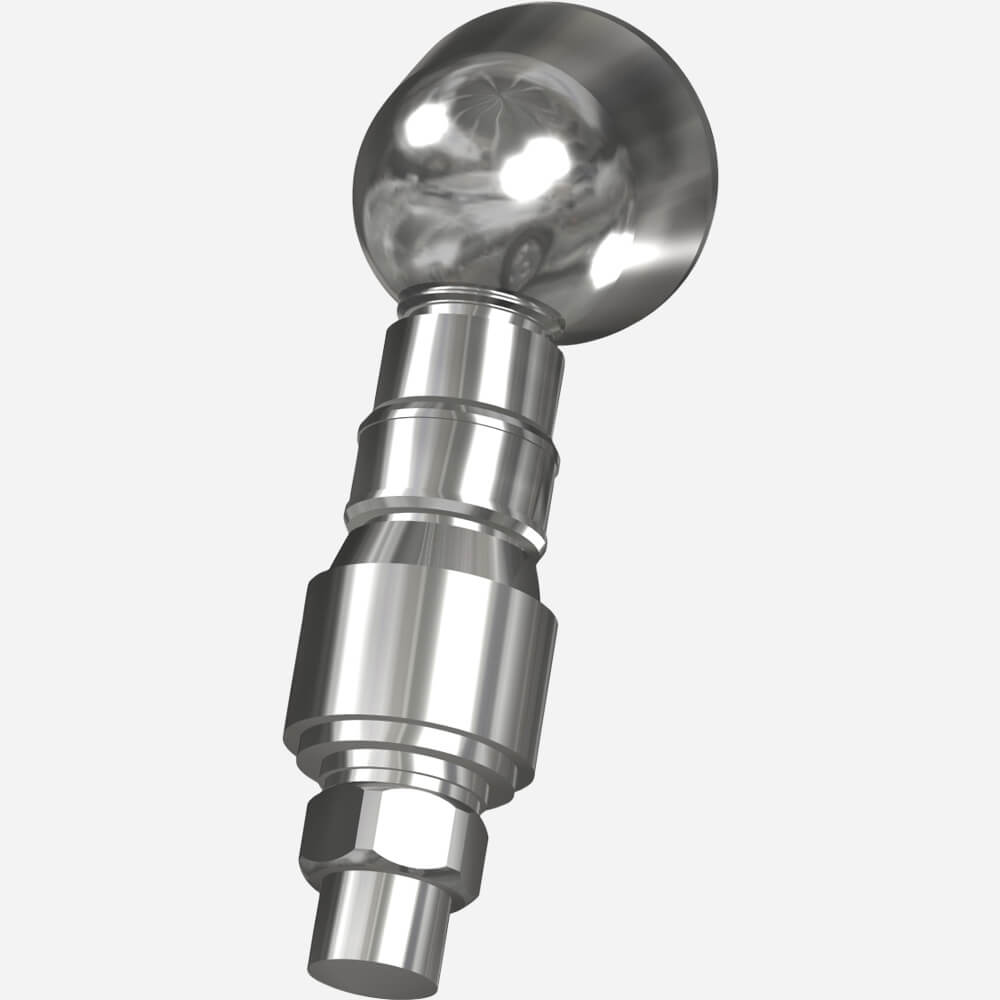

 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
| MVC1-CI | Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol® | ||
 | P | Option: Penal Shower Head | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | QD | Option: Quick Disconnect for Shower | ||
 | SC (Shower) | Option: Supply Cover for Shower | ||

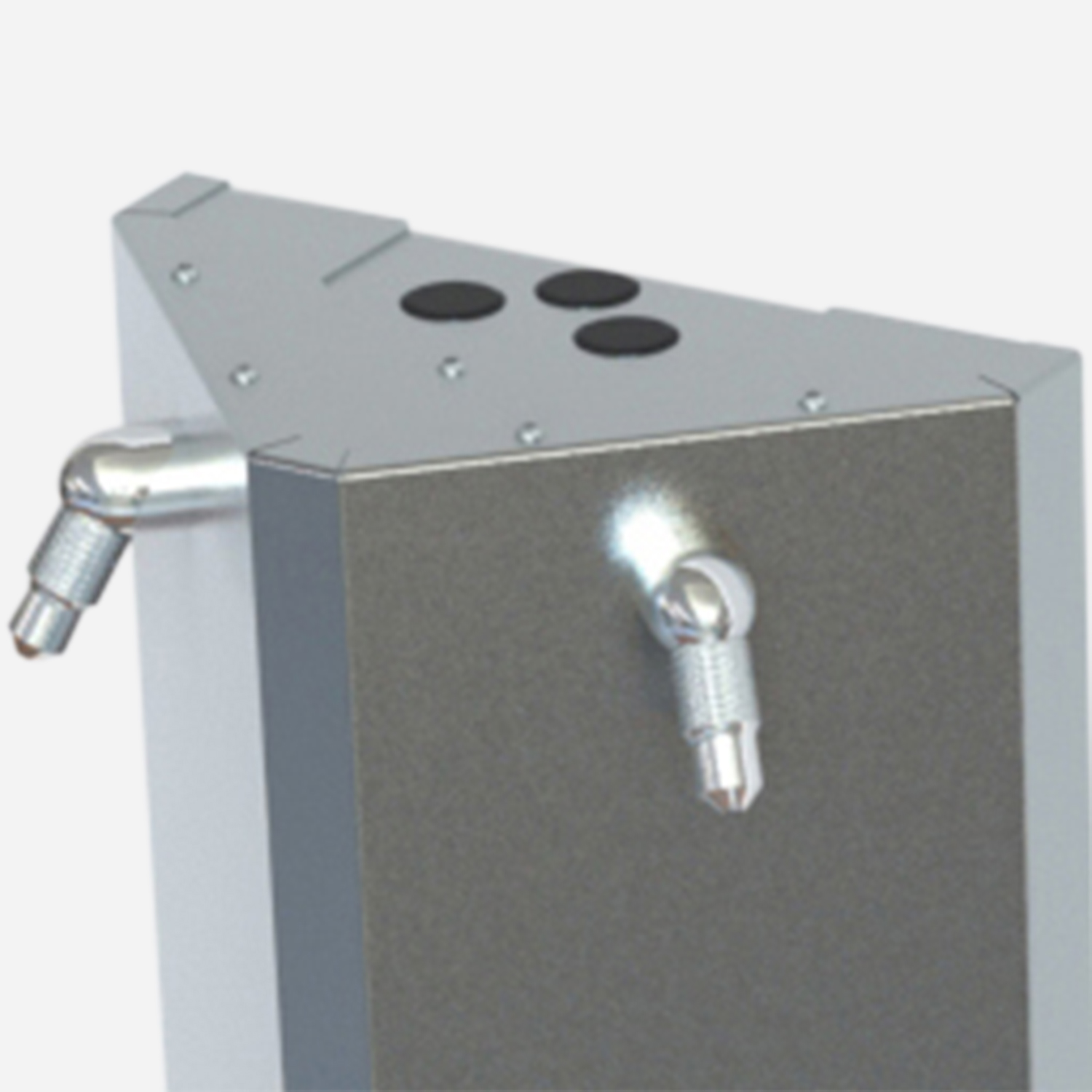

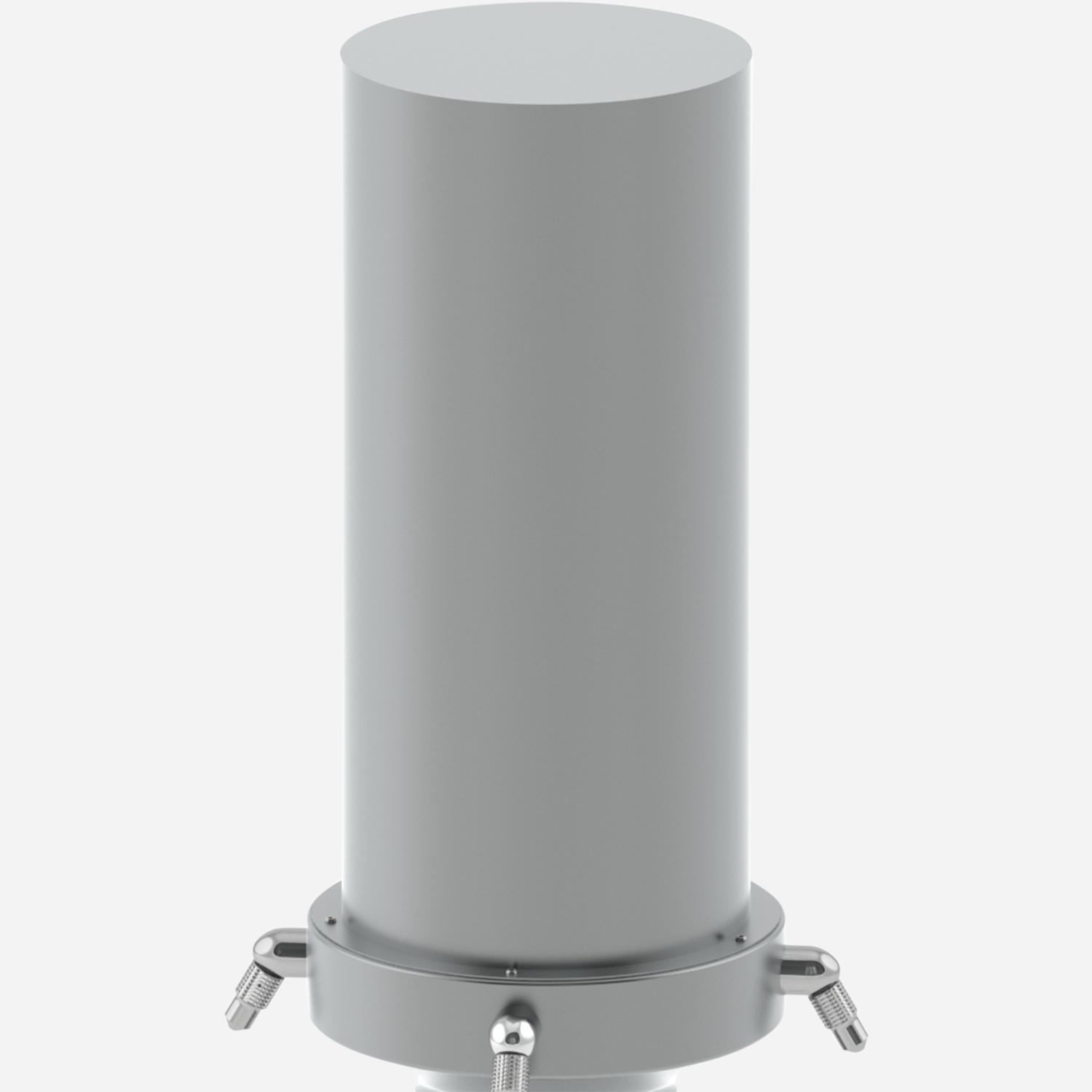

 | T (Shower) | Option: Top Supply for Showers | ||
 | T11 | Option: Shower Drain Base Top Supply with Dome Grate | ||

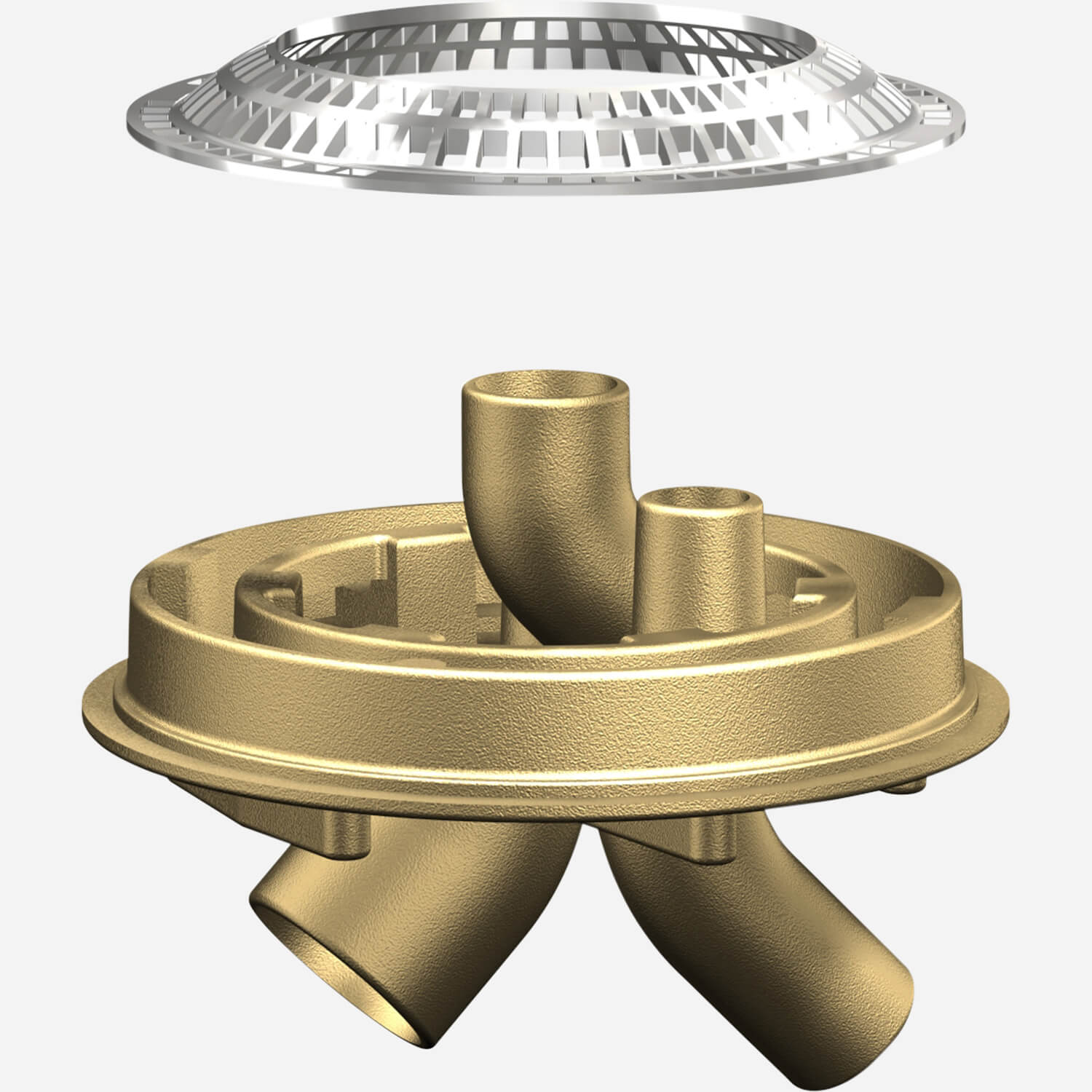

 | T15 | Option: Shower Drain Base Top Supply with Dome Grate for Center Vent | ||
 | T21 | Option: Shower Drain Base Top Supply | ||
 | T25 | Option: Shower Drain Base Top Supply for Center Vent | ||
 | VC (Shower) | Option: Valve Cover for Shower | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint |
Models
Shower Heads are solid brass, triple chrome-plated and include a 1.6 gallon (6 liters) per minute flow restrictor. The Acorn Logan Wizard Shower Head design provides self-cleaning with every use, and has an adjustable spray pattern from a coarse stream to a fine mist.
The model numbers are defined with the valve that is specified for the shower.
Model Number 7__6
Air-Control Valve,
Single Temperature Metering
Model 726 - 2 Station
Model 736 - 3 Station
Model 746 - 4 Station
Model 756 - 5 Station
Model 766 - 6 Station

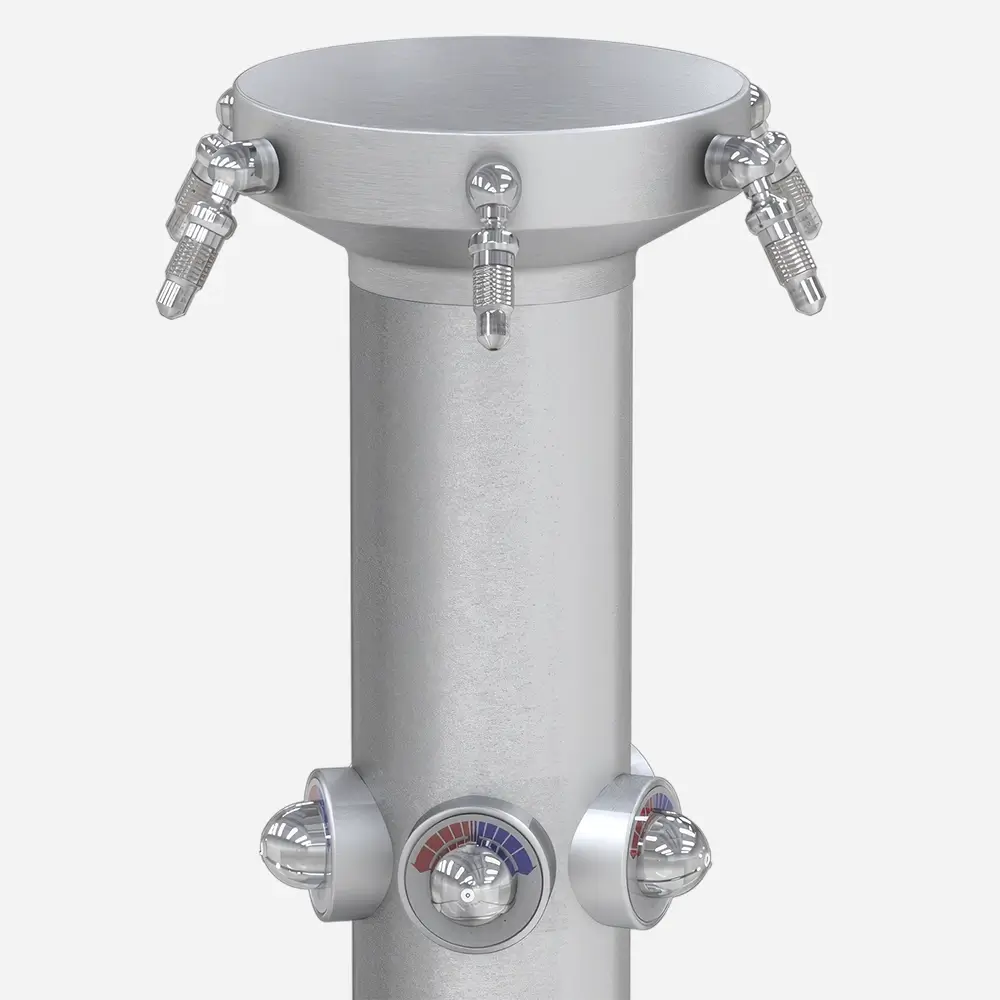

Model Number 7__2
Saft-Trol Piston-Operated
Pressure Balancing Valve
Valve with Lever Handle also available
Model 728 - 2 StationModel 738 - 3 StationModel 748 - 4 StationModel 758 - 5 StationModel 768 - 6 Station
ELECTRONIC VALVES
Model 720 - 2 Station; Model 730 - 3 Station; Model 740 - 4 StationModel 750 - 5 Station; Model 780 - 6 Station
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
LESS VALVE FOR REMOTE OPERATION
Model 729 - 2 Station; Model 739 - 3 Station; Model 749 - 4 StationModel 759 - 5 Station; Model 789 - 6 Station
SUPPLY/DRAIN TYPE
Top Supply with
-T11 | Drain Base with Dome Grate | install
-T15 | Drain Base with Center Vent, Drain Grate | install
-T21 | Drain Base | install
-T25 | Drain Base with Center Vent | install
Bottom Supply with
-B11 | Drain Base with Dome Grate | install
-B15 | Drain Base with Center Vent, Drain Grate | install
-B21 | Drain Base | install
-B25 | Drain Base with Center Vent | install
